Model # 41EDZ20C799 Official MTD trimmer

Here are the diagrams and repair parts for Official MTD 41EDZ20C799 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Line Trimmer Spark Plug (replaces 753-06193) 753-06847
#5

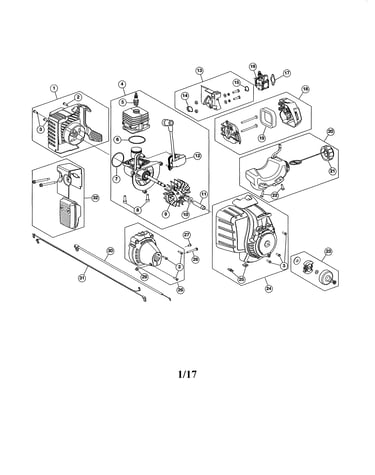

Short block/fuel tank/starter housing diagram

Line trimmer spark plug (replaces 753-06193)

Part #753-06847

BEST SELLER

Get free shipping with Automatic Reorder

$9.76 |
9% OFF Phone Price : $10.76
In Stock
Line Trimmer Spool Cap (replaces 69700701s) 697-00701S
#23

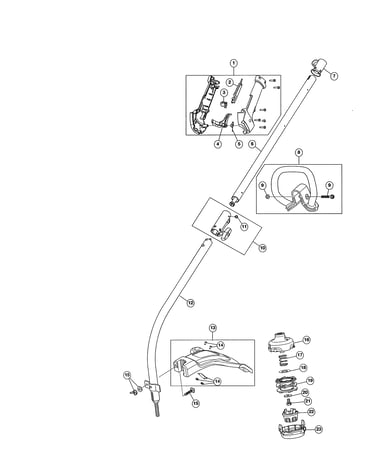

Throttle housing/shaft/shield diagram

Line trimmer spool cap (replaces 69700701s)

Part #697-00701S

BEST SELLER
This item is not returnable
$5.40 |
16% OFF Phone Price : $6.40
In Stock
Line Trimmer Fuel Tank Assembly (replaces 753-06921) 753-06183
#20

Short block/fuel tank/starter housing diagram

Line trimmer fuel tank assembly (replaces 753-06921)

Part #753-06183

BEST SELLER
$18.93 |
10% OFF Phone Price : $20.93
In Stock
Ace Line Trimmer Carburetor (replaces 751-15112, 751-15112a, 753-08984) 753-06288
#16

Short block/fuel tank/starter housing diagram

Ace line trimmer carburetor (replaces 751-15112, 751-15112a, 753-08984)

Part #753-06288

BEST SELLER
$38.78 |
13% OFF Phone Price : $44.78
In Stock
Lawn & Garden Equipment Engine Carburetor Mount Gasket (replaces 721-04381) 753-06253
#17

Short block/fuel tank/starter housing diagram

Lawn & garden equipment engine carburetor mount gasket (replaces 721-04381)

Part #753-06253

BEST SELLER
This item is not returnable
$4.60 |
18% OFF Phone Price : $5.60
In Stock
Troybilt Line Trimmer Spool Spring (replaces 791-610636) 791-610636B
#17

Throttle housing/shaft/shield diagram

Troybilt line trimmer spool spring (replaces 791-610636)

Part #791-610636B

BEST SELLER
This item is not returnable
$13.14 |
13% OFF Phone Price : $15.14
In Stock
Line Trimmer Cutting Line 753-06767

#NI01

All parts diagram

Line trimmer cutting line

Part #753-06767

BEST SELLER
$13.05 |
13% OFF Phone Price : $15.05
In Stock
Line Trimmer Washer 736-04117
#20

Throttle housing/shaft/shield diagram

Line trimmer washer

Part #736-04117

BEST SELLER
This item is not returnable
$5.02 |
17% OFF Phone Price : $6.02
In Stock
Line Trimmer Carburetor Insulator Assembly 753-06189
#13

Short block/fuel tank/starter housing diagram

Line trimmer carburetor insulator assembly

Part #753-06189

BEST SELLER
This item is not returnable
$10.22 |
16% OFF Phone Price : $12.22
In Stock
Yard Machines Lawn & Garden Equipment Engine Start/stop Switch (replaces 182405) 791-182405
#3

Throttle housing/shaft/shield diagram

Yard machines lawn & garden equipment engine start/stop switch (replaces 182405)

Part #791-182405

BEST SELLER
$14.29 |
12% OFF Phone Price : $16.29
In Stock
