Model # NE59N6650SG/AA-00 Official Samsung electric freestanding range

Here are the diagrams and repair parts for Official Samsung NE59N6650SG-AA-00 electric freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

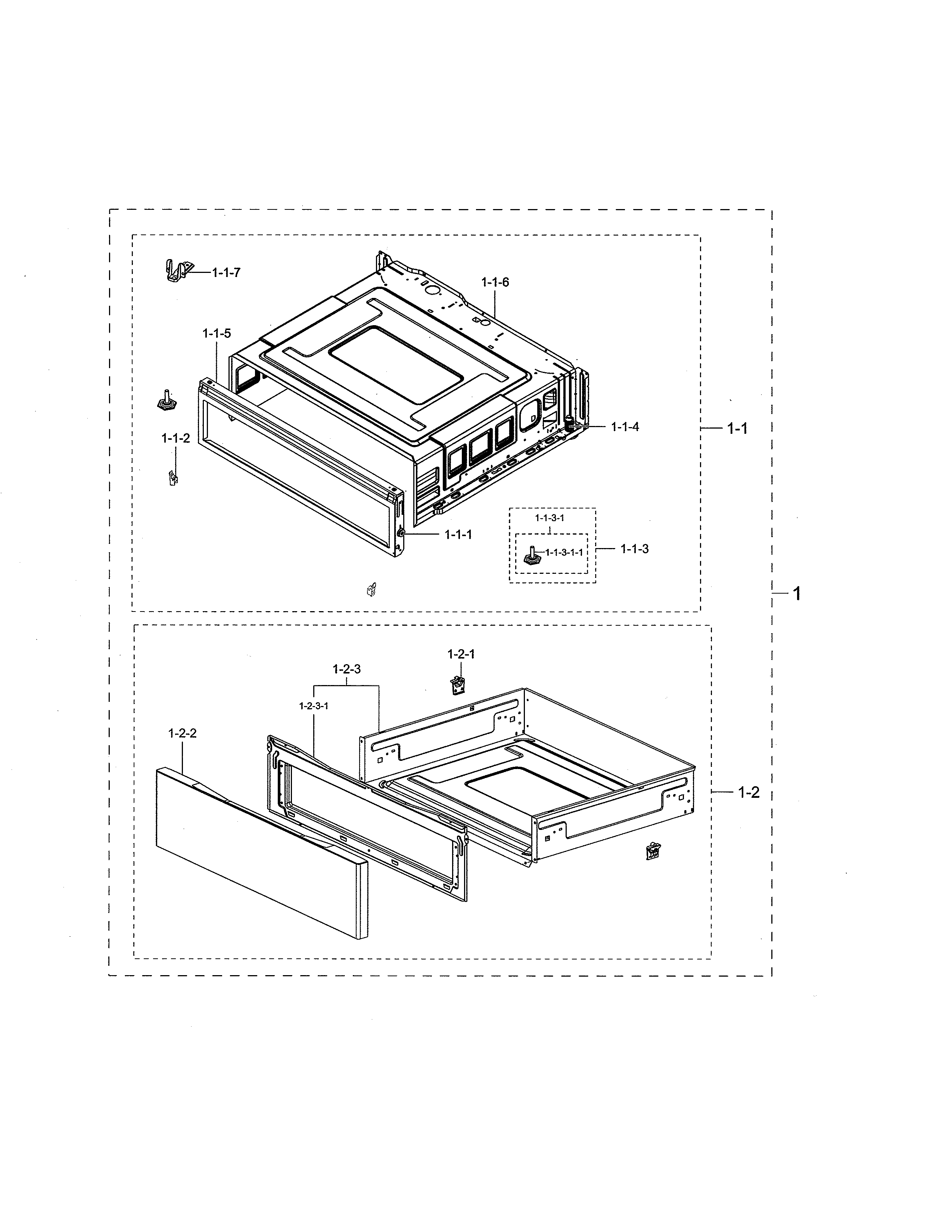

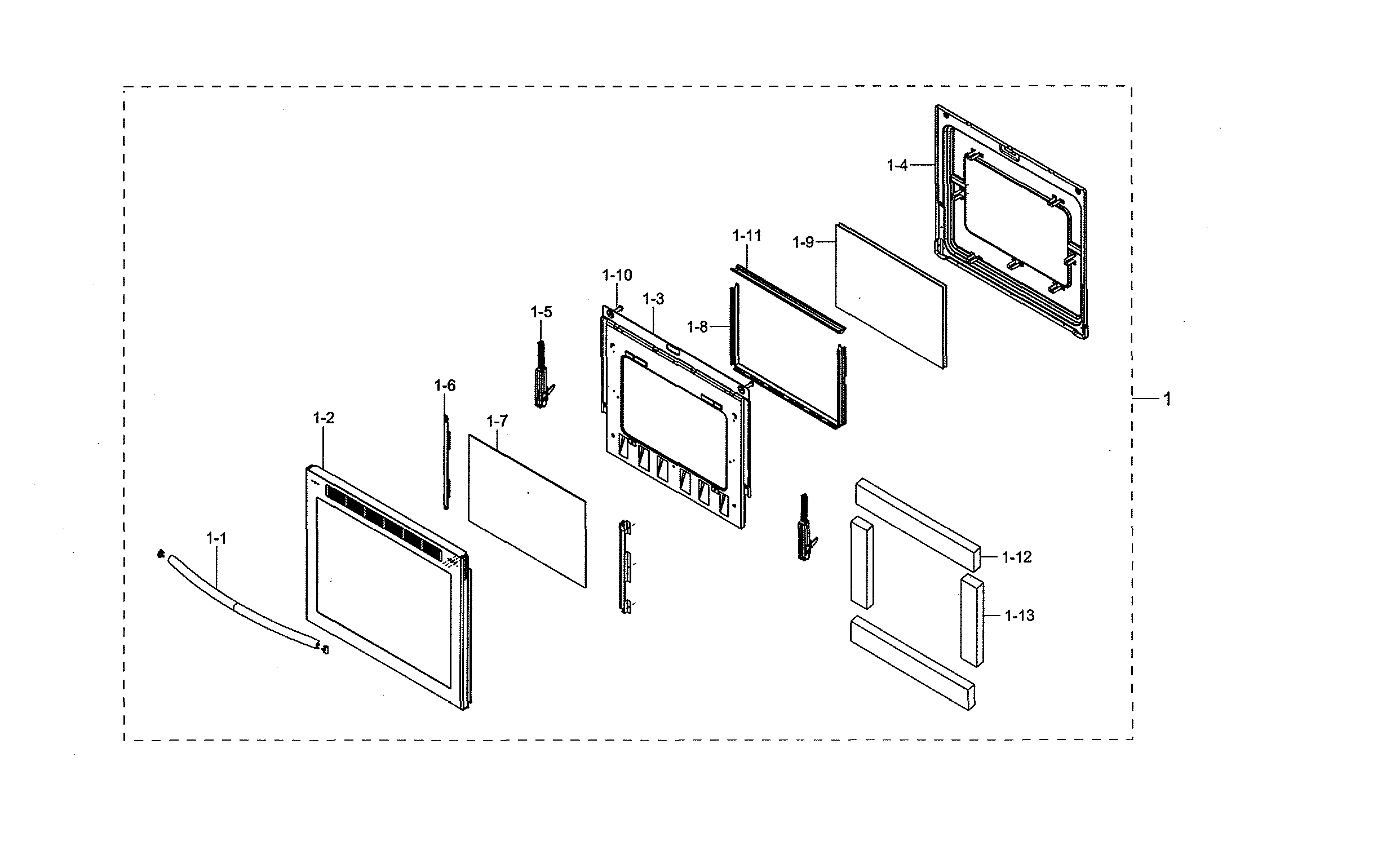

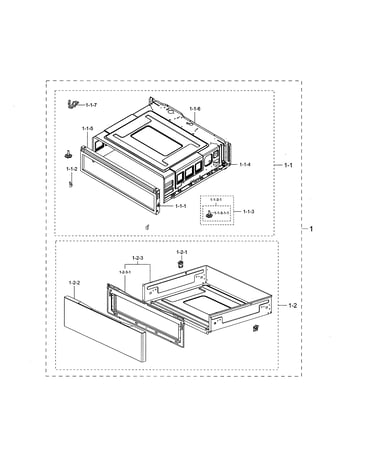

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 119 parts  |
Range Surface Element Control Switch DG44-01006A
#1-2

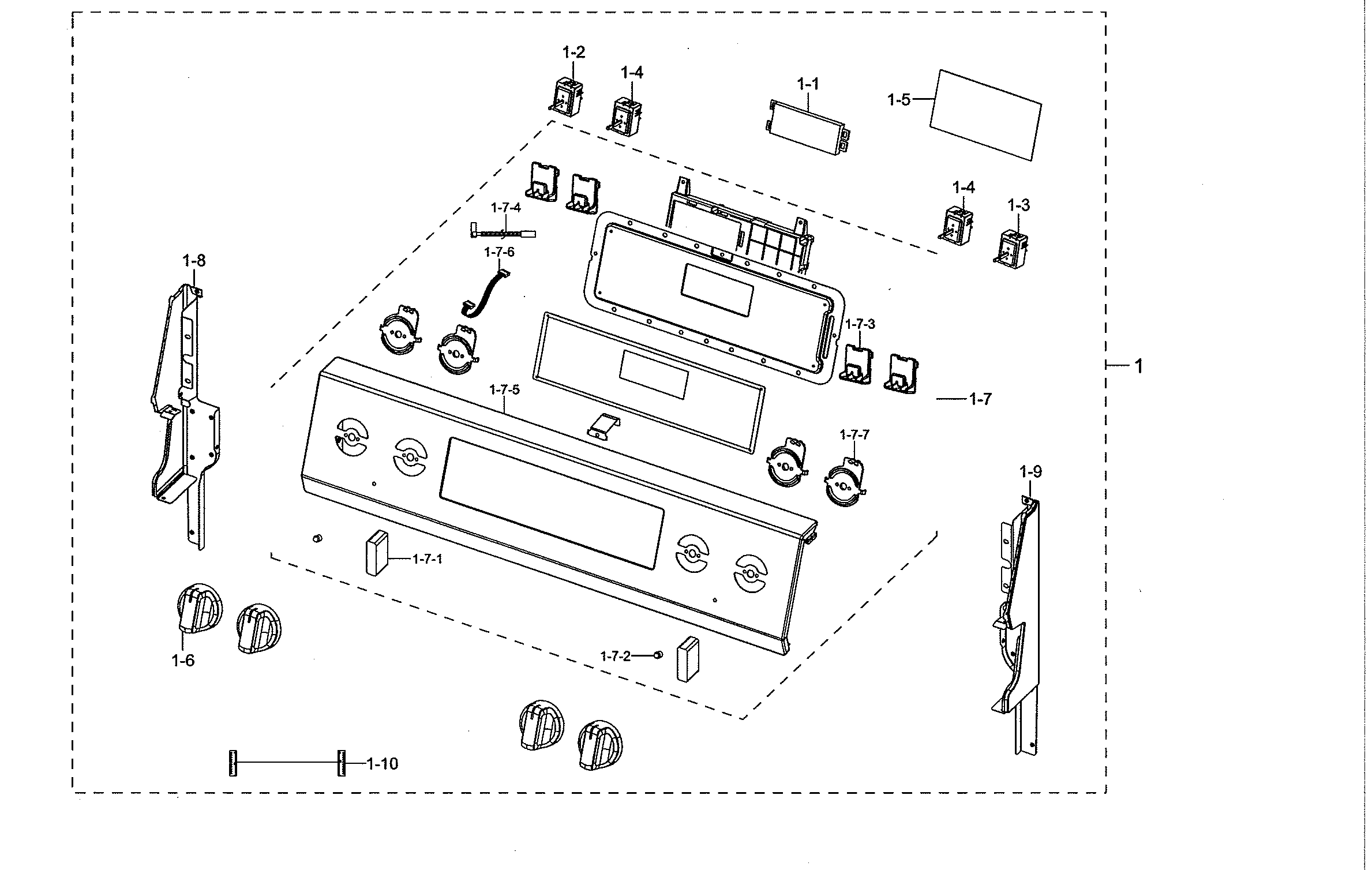

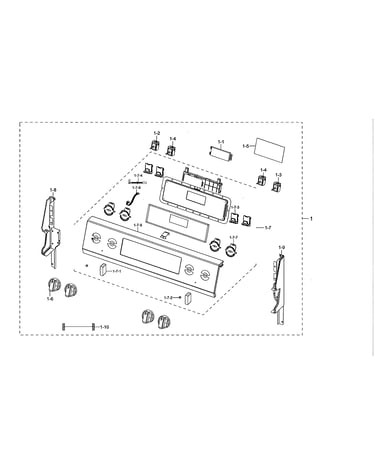

Control box diagram

Range surface element control switch

Part #DG44-01006A

BEST SELLER
$108.35 |
10% OFF Phone Price : $120.35
In Stock
Range Oven Temperature Sensor (replaces Dg32-00002a) DG32-00002B
#3

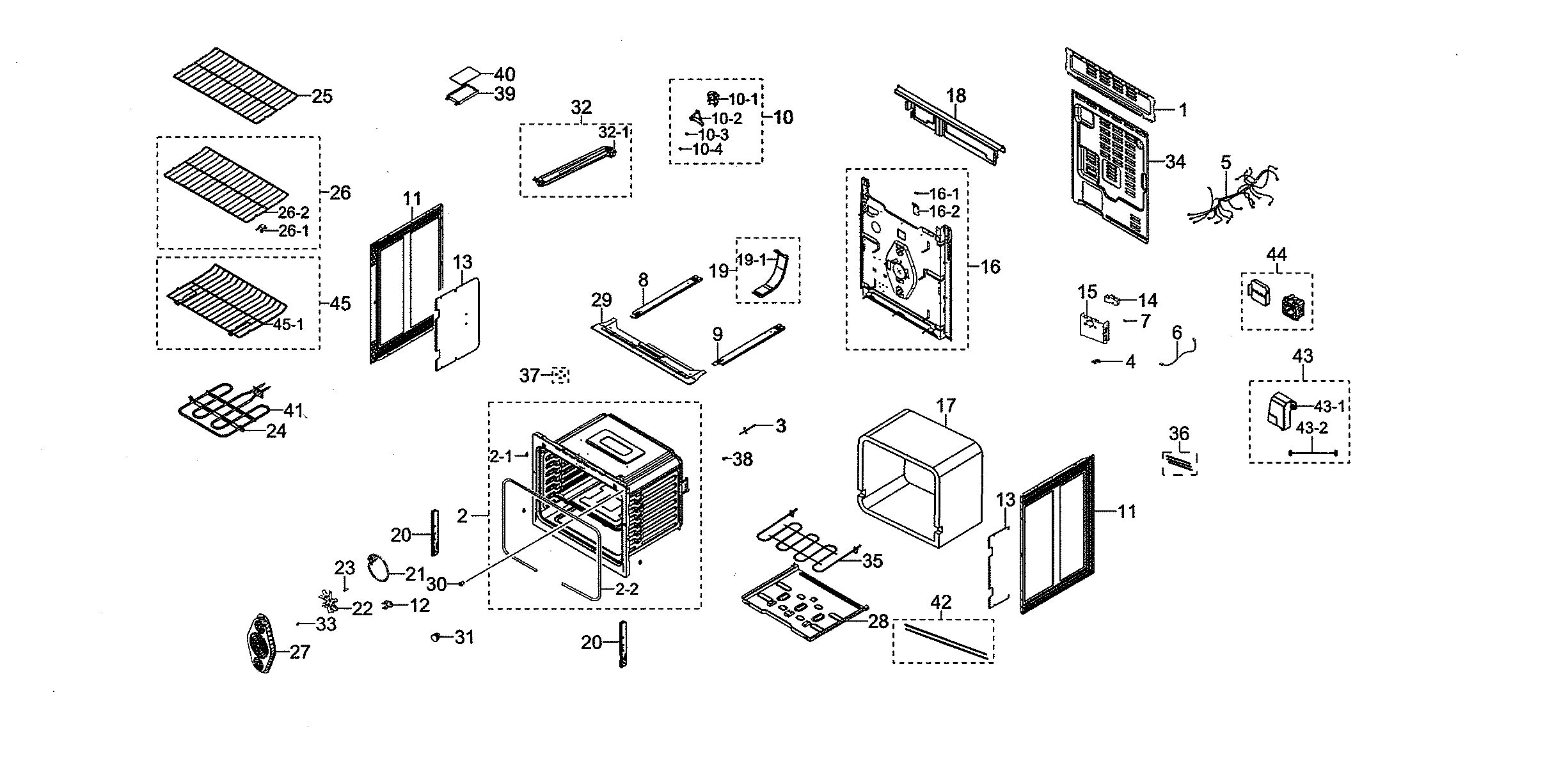

Main unit diagram

Range oven temperature sensor (replaces dg32-00002a)

Part #DG32-00002B

BEST SELLER
$93.38 |
6% OFF Phone Price : $99.38
In Stock
Range Surface Element Control Switch (replaces Dg44-01007a) DG44-01007B
#1-3

Control box diagram

Range surface element control switch (replaces dg44-01007a)

Part #DG44-01007B

BEST SELLER
$125.37 |
9% OFF Phone Price : $137.37
In Stock
Microwave Door Interlock Switch (replaces 3405-000178) 3405-001034
#32-1

Main unit diagram

Microwave door interlock switch (replaces 3405-000178)

Part #3405-001034

BEST SELLER
$17.74 |
10% OFF Phone Price : $19.74
Back Order
Range Surface Element Control Switch DG44-01009A
#1-4

Control box diagram

Range surface element control switch

Part #DG44-01009A

BEST SELLER
$106.86 |
10% OFF Phone Price : $118.86
In Stock
Range Convection Fan Motor Assembly (replaces Dg96-00110a) DG96-00110E
#10

Main unit diagram

Range convection fan motor assembly (replaces dg96-00110a)

Part #DG96-00110E

BEST SELLER
$109.81 |
10% OFF Phone Price : $121.81
In Stock
Range Oven Door Switch DG34-00006A
#30

Main unit diagram

Range oven door switch

Part #DG34-00006A

BEST SELLER
This item is not returnable
$35.15 |
15% OFF Phone Price : $41.15
In Stock
Range High-limit Thermostat DE47-20037A
#16-1

Main unit diagram

Range high-limit thermostat

Part #DE47-20037A

BEST SELLER
$18.39 |
10% OFF Phone Price : $20.39
In Stock
Range Triple Radiant Element DG47-00065A
#1-1

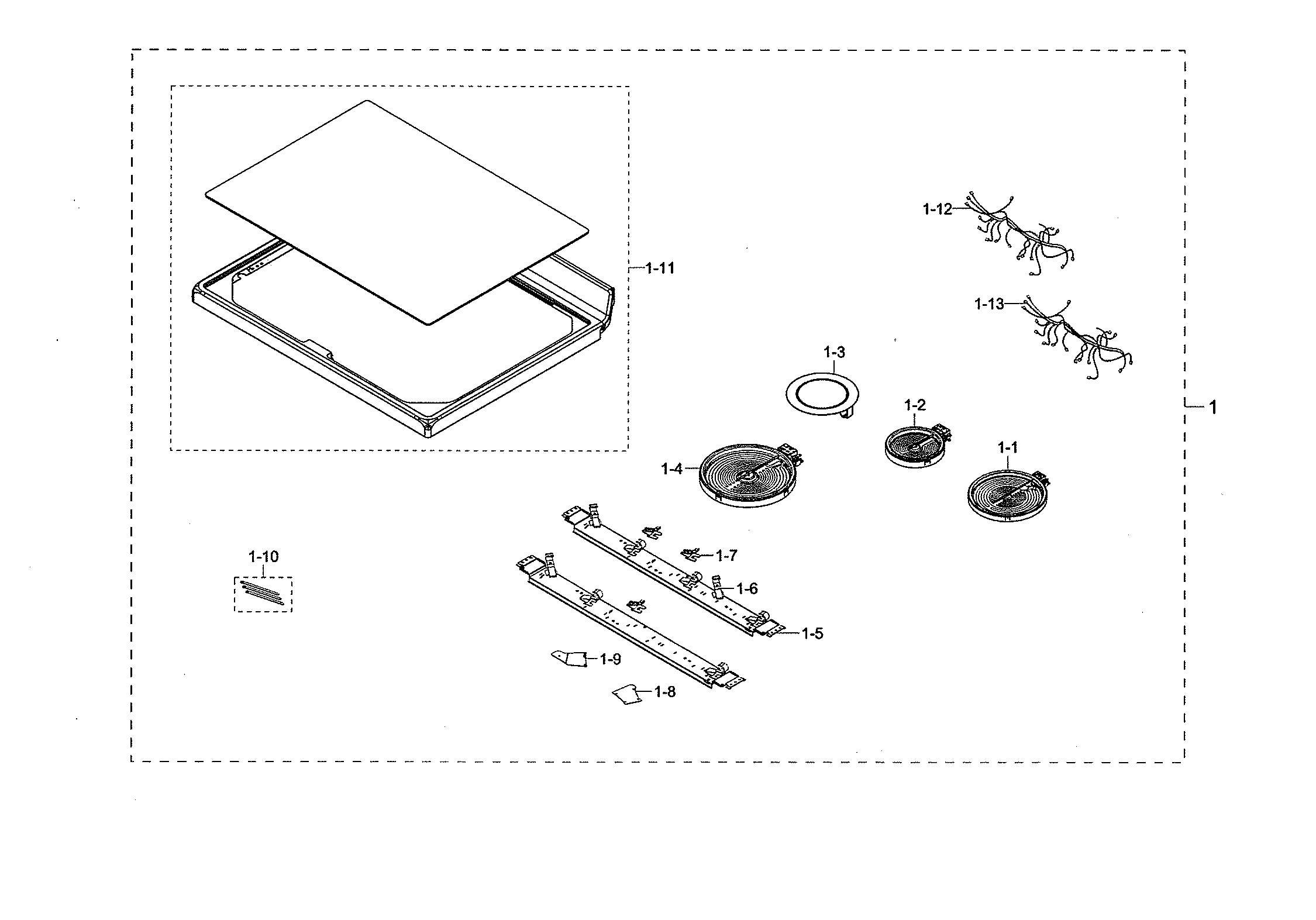

Cooktop diagram

Range triple radiant element

Part #DG47-00065A

BEST SELLER
$246.33 |
5% OFF Phone Price : $258.33
Back Order
Range Convection Fan Blade Nut 6021-001211
#33

Main unit diagram

Range convection fan blade nut

Part #6021-001211

BEST SELLER
$8.93 |
10% OFF Phone Price : $9.93
In Stock
