Model # 229964281 Official Kenmore gas-fired forced hot water boiler

Here are the diagrams and repair parts for Official Kenmore 229964281 gas-fired forced hot water boiler, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
229964281 Gas-Fired Forced Hot Water Boiler
Asme Valve 146-22-011-60
#1

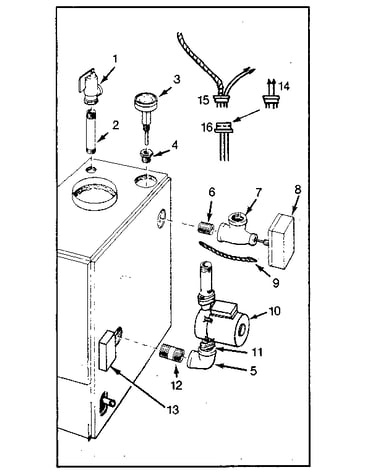

Boiler controls diagram

Asme valve

Part #146-22-011-60

Replaced by #10-408-05

?
Manufacturer substitution
This part replaces 146-22-011-60. Substitute parts can look different from the original.
$44.77
12% OFF Phone Price : $50.77
In Stock
Circulator 146-26-043-60
#10

Boiler controls diagram

Circulator

Part #146-26-043-60

Replaced by #103251

?
Manufacturer substitution
This part replaces 146-26-043-60. Substitute parts can look different from the original.
$224.79
5% OFF Phone Price : $236.79
In Stock
Press Gauge 146-23-003-60
#3

Boiler controls diagram

Press gauge

Part #146-23-003-60

Replaced by #1260006SP

?
Manufacturer substitution
This part replaces 146-23-003-60. Substitute parts can look different from the original.
In Stock
Pilot Cntrl 146-62-303-60
#13

Boiler controls diagram

Pilot cntrl

Part #146-62-303-60

Replaced by #BG1600M51EF-1AA

?
Manufacturer substitution
This part replaces 146-62-303-60. Substitute parts can look different from the original.
$191.94
6% OFF Phone Price : $203.94
In Stock
Ignik Cable 146-62-074-60
#8A

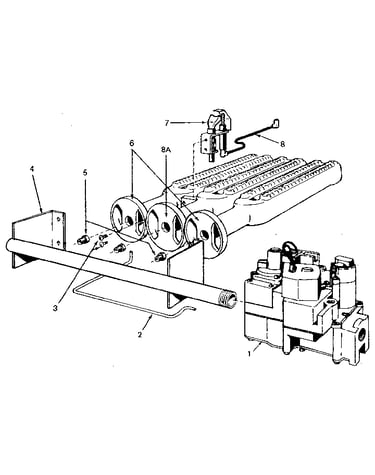

Gas burners and manifold diagram

Ignik cable

Part #146-62-074-60

The manufacturer no longer makes this part, and there's no substitute part

Block Assembly 410-60-310

#NI

All parts diagram

Block assembly

Part #410-60-310

Replaced by #410-00-313

?
Manufacturer substitution
This part replaces 410-60-310. Substitute parts can look different from the original.
In Stock
Vent Damper 433-60-502
#22C

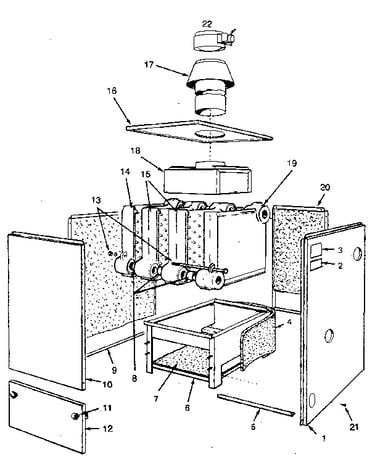

Jacket - sections & base diagram

Vent damper

Part #433-60-502

Replaced by #FC46487201

?
Manufacturer substitution
This part replaces 433-60-502. Substitute parts can look different from the original.
In Stock
Drain Valve 146-22-001-60

#NI

All parts diagram

Drain valve

Part #146-22-001-60

Replaced by #31-606-04

?
Manufacturer substitution
This part replaces 146-22-001-60. Substitute parts can look different from the original.
In Stock
Gas Valve 146-62-052-60
#1A

Gas burners and manifold diagram

Gas valve

Part #146-62-052-60

The manufacturer no longer makes this part, and there's no substitute part

Block Assembly 410-60-610

#NI

All parts diagram

Block assembly

Part #410-60-610

Replaced by #41000613SVC

?
Manufacturer substitution
This part replaces 410-60-610. Substitute parts can look different from the original.
In Stock
