Model # EW200R Official Makita 2" centrifugal pump
Here are the diagrams and repair parts for Official Makita EW200R 2" centrifugal pump, as well as links to manuals and error code tables, if available.
By Schematic

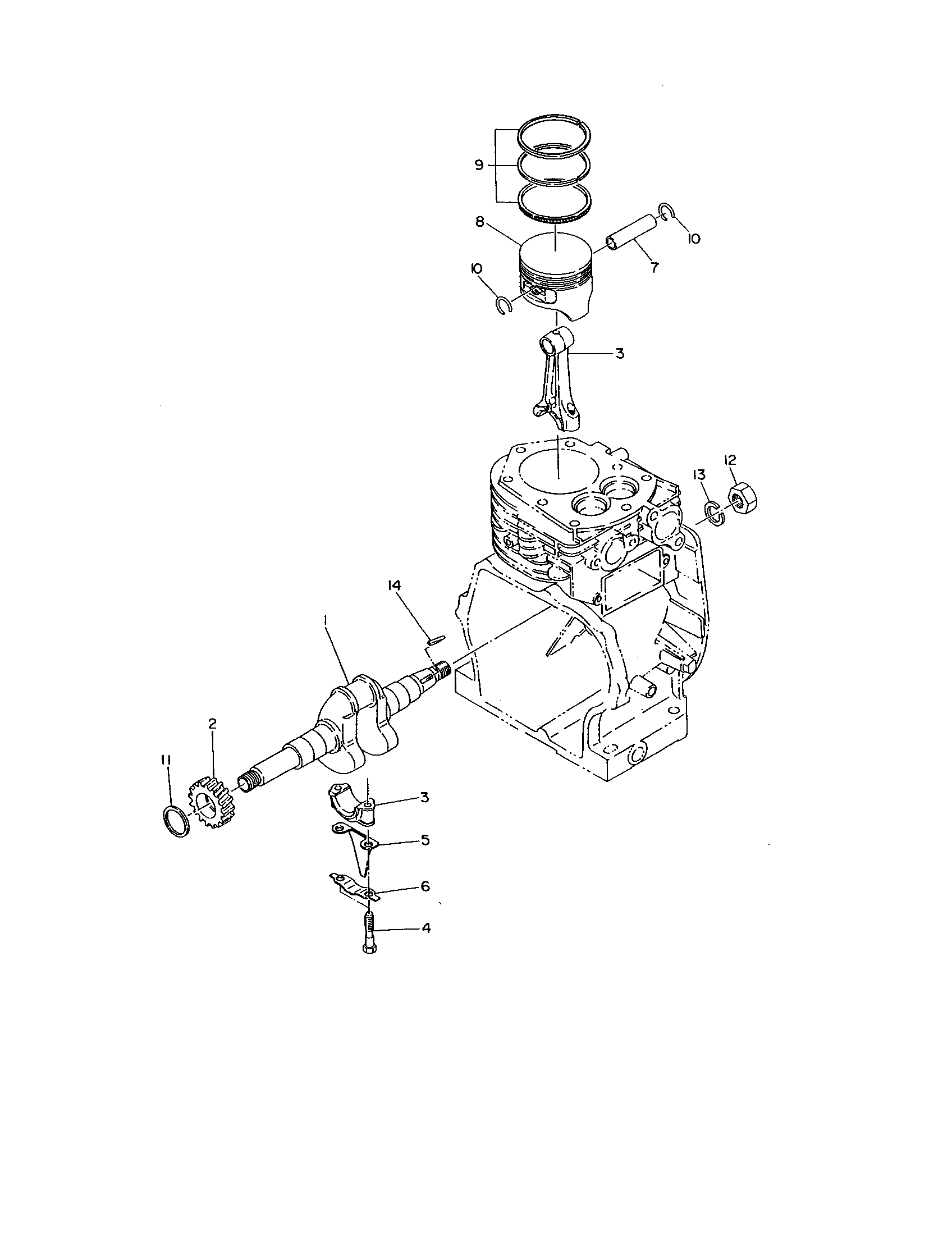

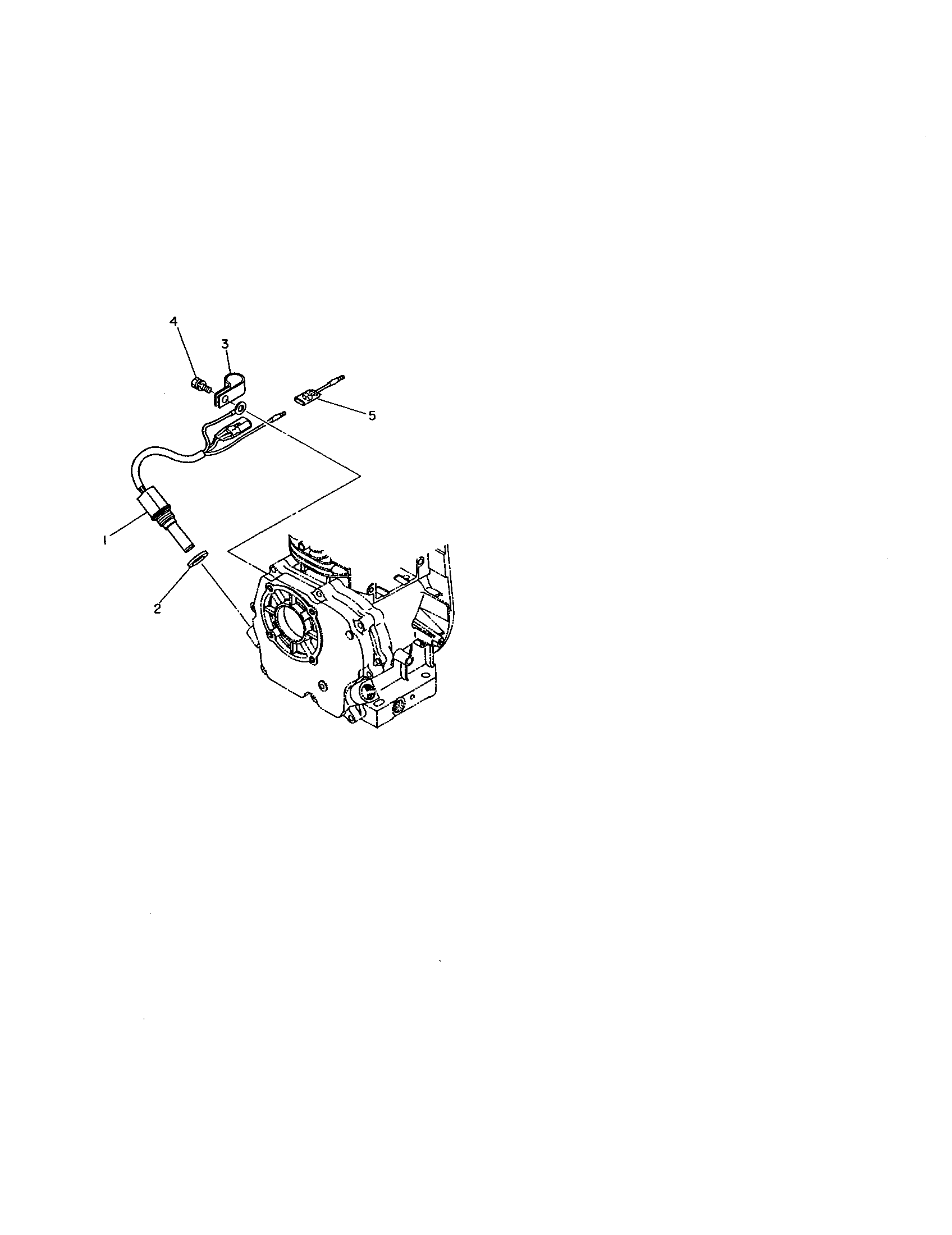

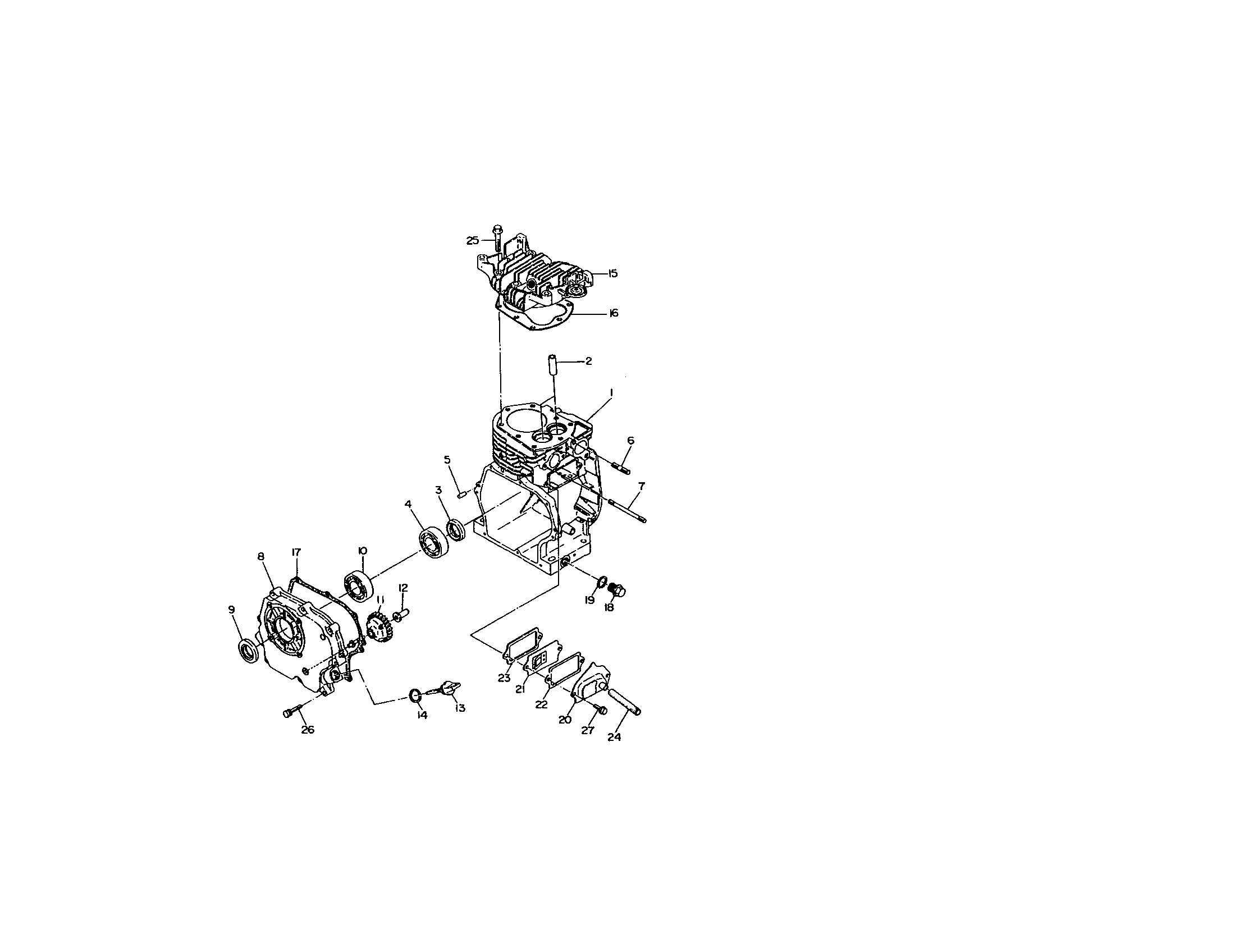

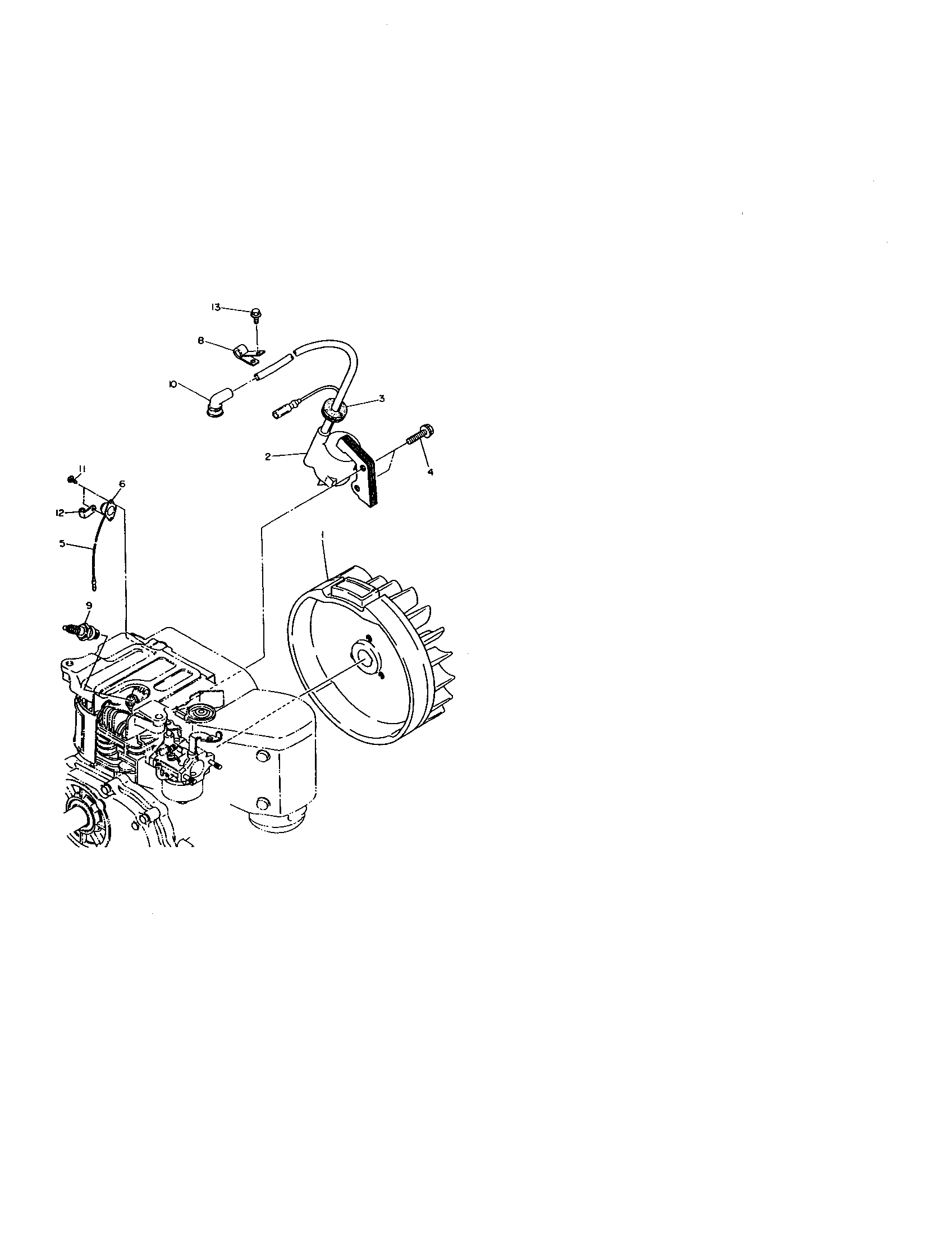

SELECT DIAGRAM
Browse Parts for
EW200R 2" Centrifugal Pump
#7

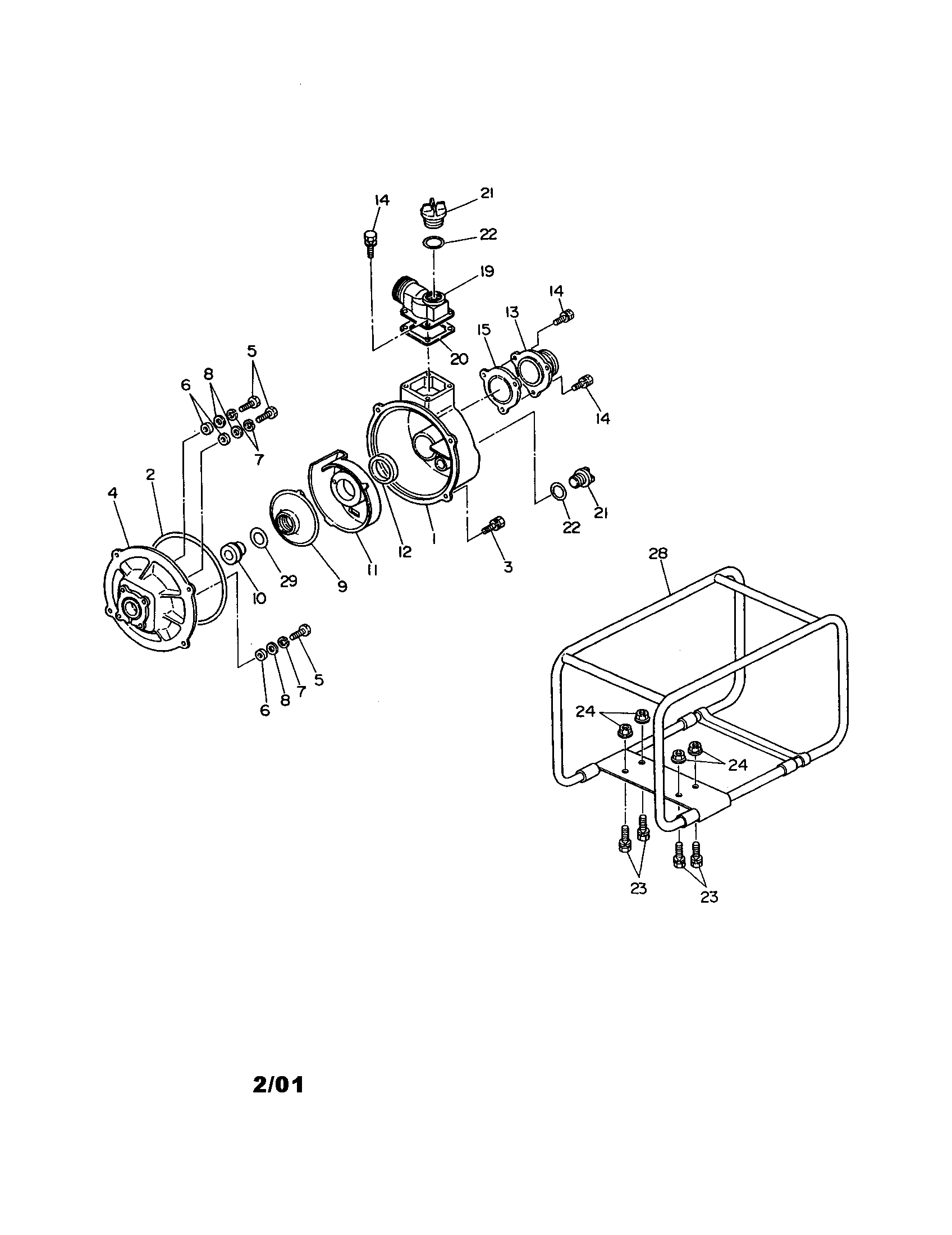

2" pump diagram
Spring washer (4)
Part #480-05010-07
The manufacturer no longer makes this part, and there's no substitute part
#22

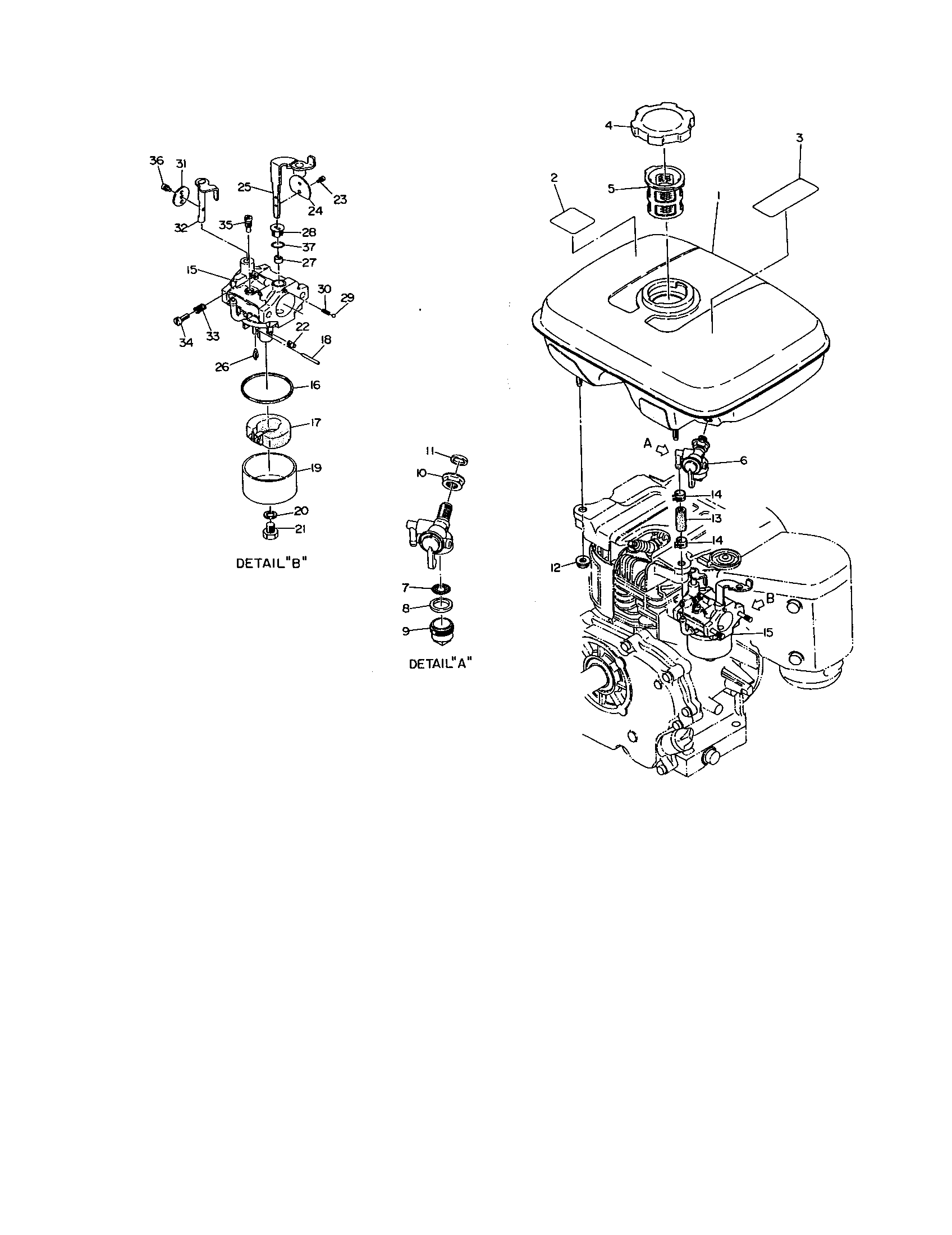

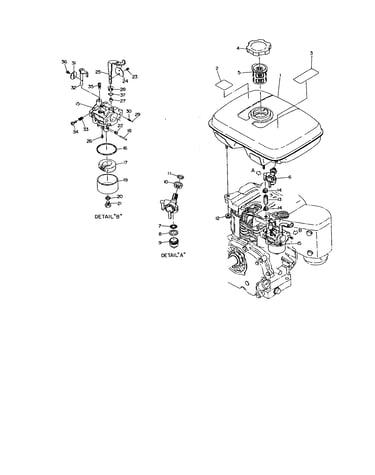

Fuel lubricant diagram
Main jet (#75)
Part #226-62400-08
The manufacturer no longer makes this part, and there's no substitute part
#24
2" pump diagram
Flange nut (m8)(4)
Part #480-05010-24
The manufacturer no longer makes this part, and there's no substitute part
#24
Fuel lubricant diagram
Choke valve
Part #226-62525-08
The manufacturer no longer makes this part, and there's no substitute part
#21

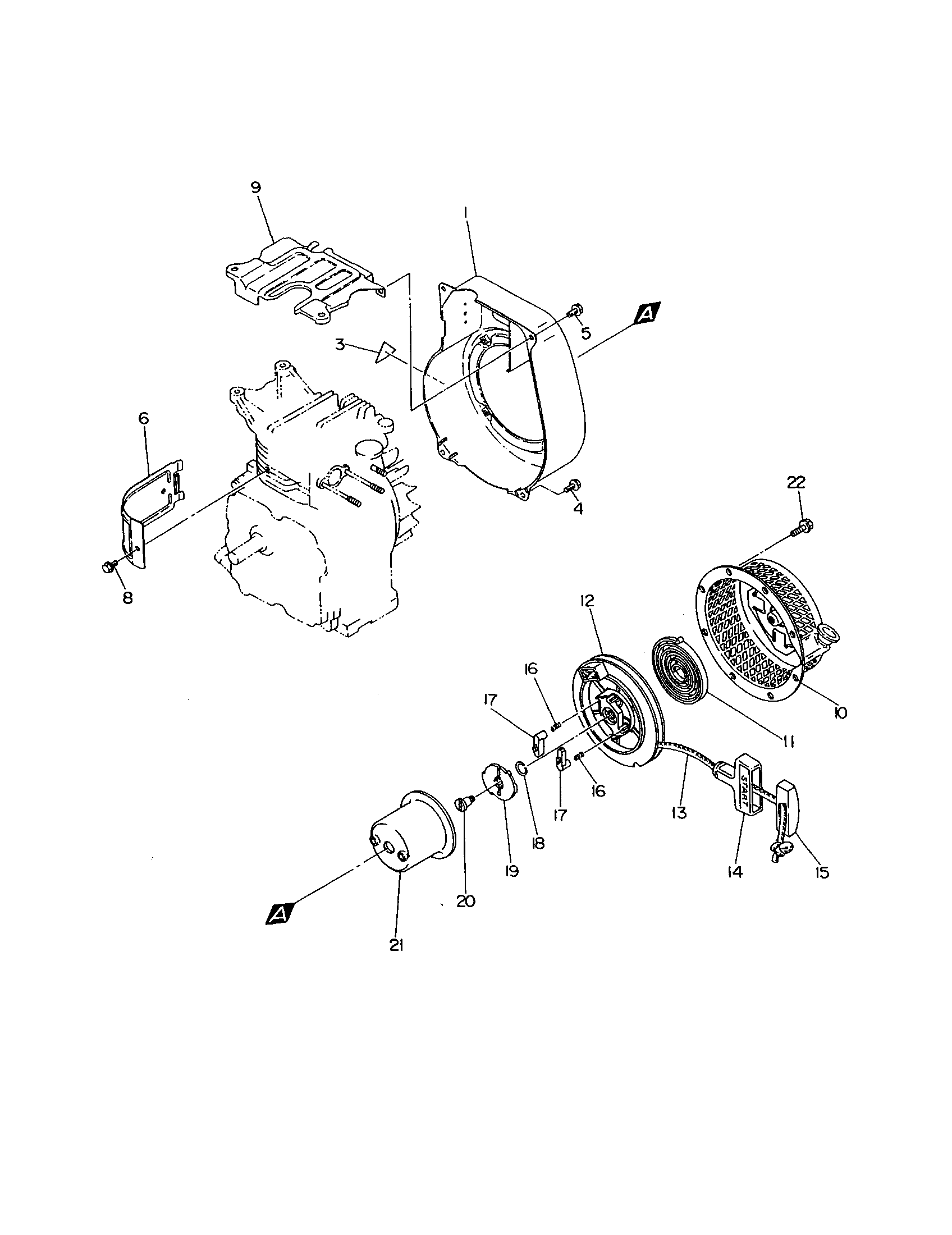

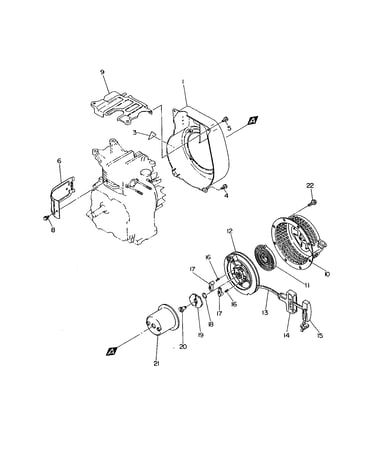

Cooling and starting diagram
Starting pulley
Part #227-50149-08
The manufacturer no longer makes this part, and there's no substitute part
#10
2" pump diagram
Mechanical seal
Part #480-05010-10
The manufacturer no longer makes this part, and there's no substitute part
Screw
Part #209-62445-08
The manufacturer no longer makes this part, and there's no substitute part
#11
Fuel lubricant diagram
Packing (ey1
Part #064-20064-40
The manufacturer no longer makes this part, and there's no substitute part
#7

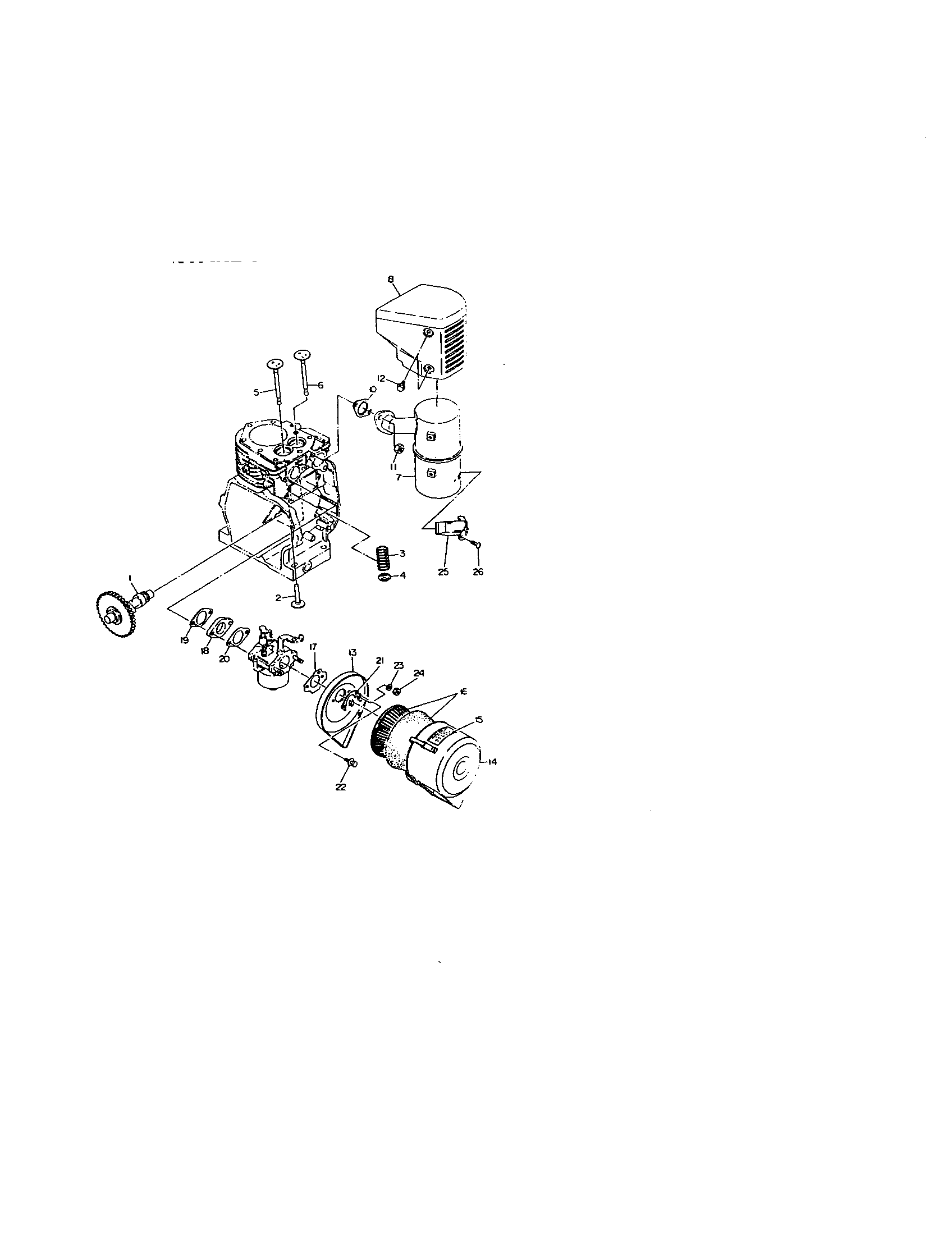

Intake and exhaust diagram
Muffler complete
Part #226-30109-01
The manufacturer no longer makes this part, and there's no substitute part
#10

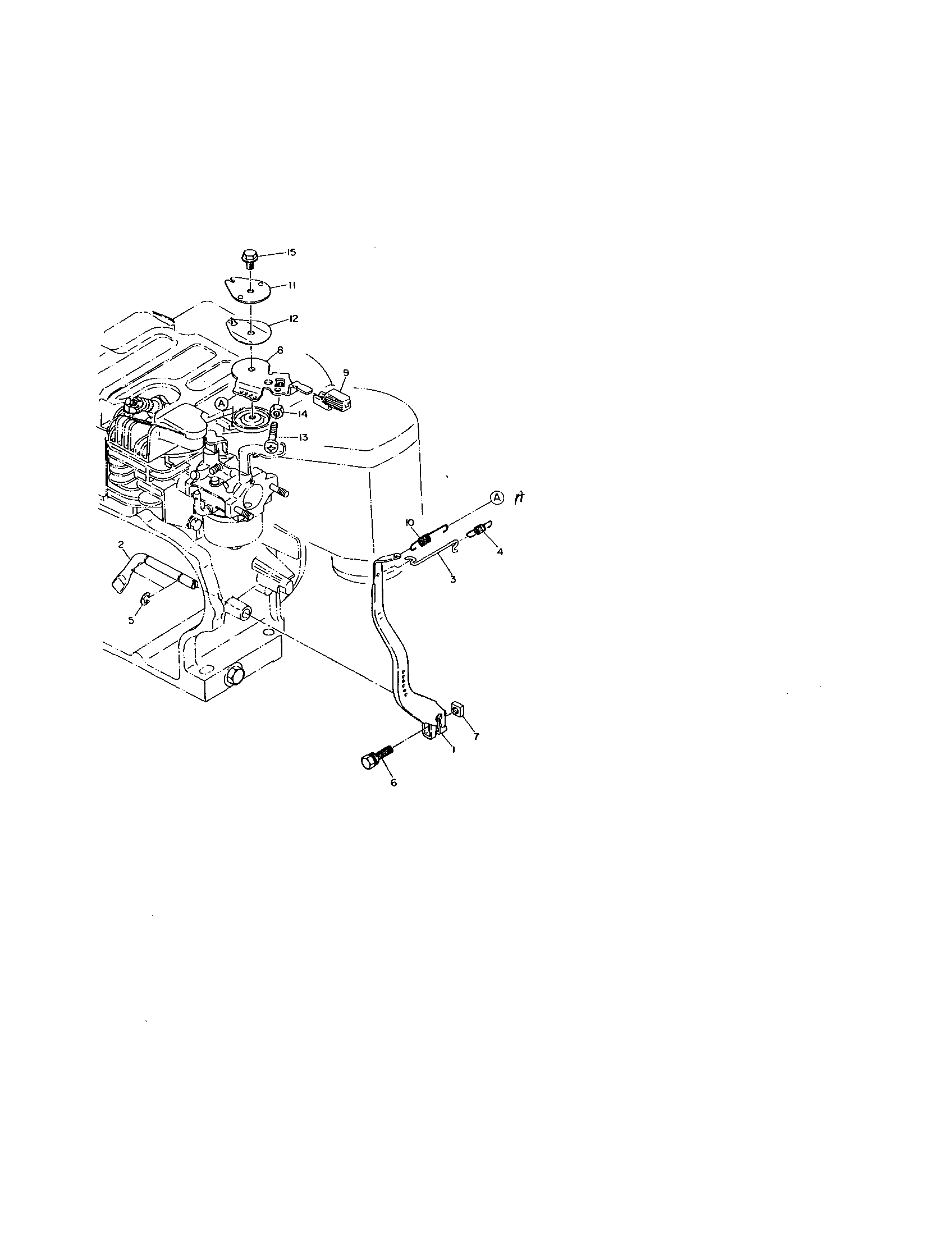

Governor, operate diagram
Governor spring
Part #226-42501-13
The manufacturer no longer makes this part, and there's no substitute part
