GE
Dryer

Model # GTDP520ED1WW Official GE electric dryer

Here are the diagrams and repair parts for Official GE GTDP520ED1WW electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

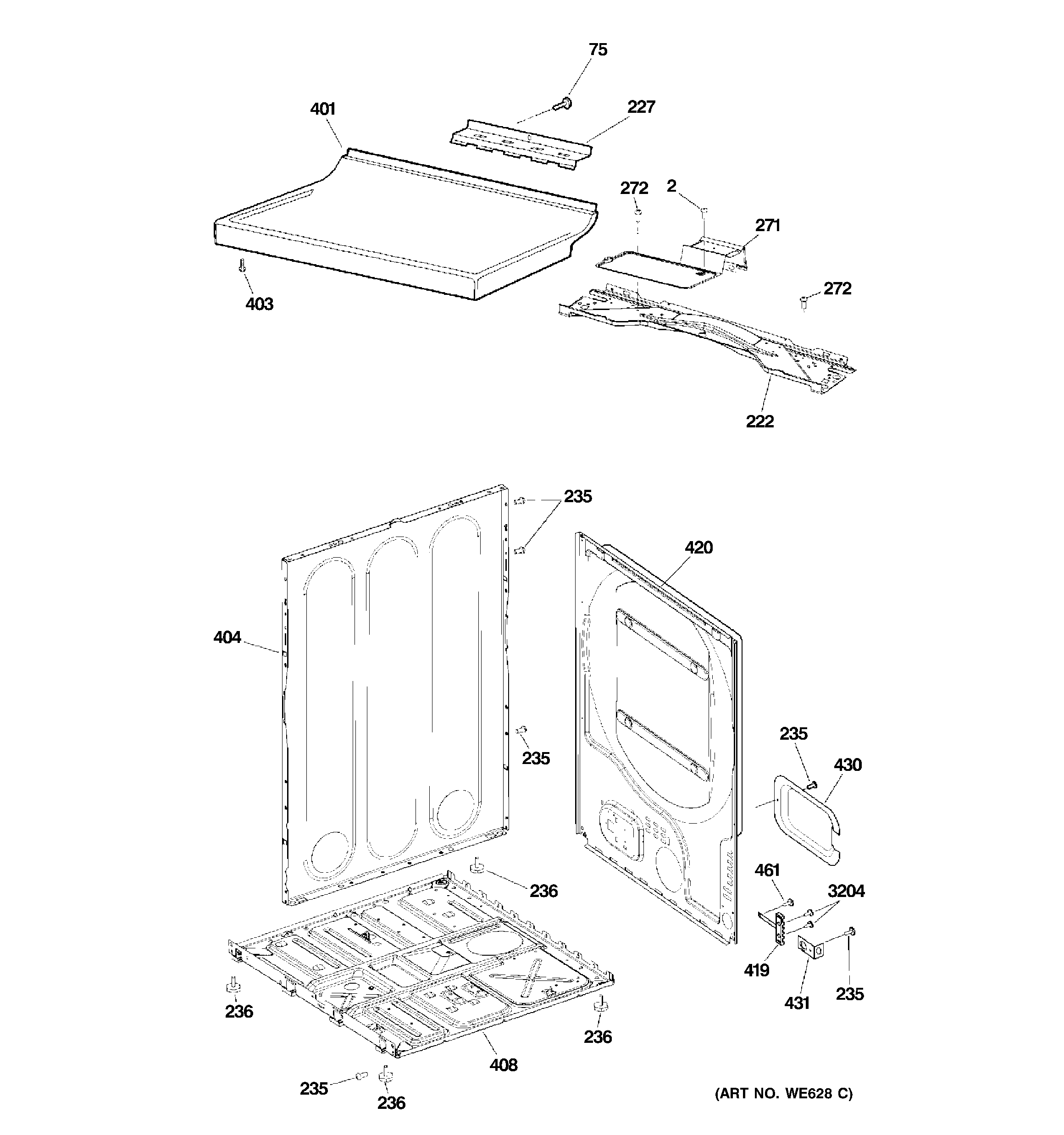

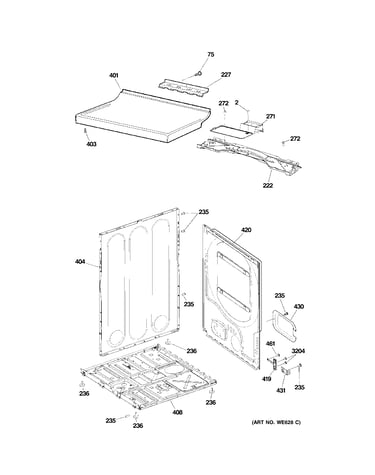

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Dryer Drum Bearing, Front (replaces We03m0026, We3m20) WE3M26
#313

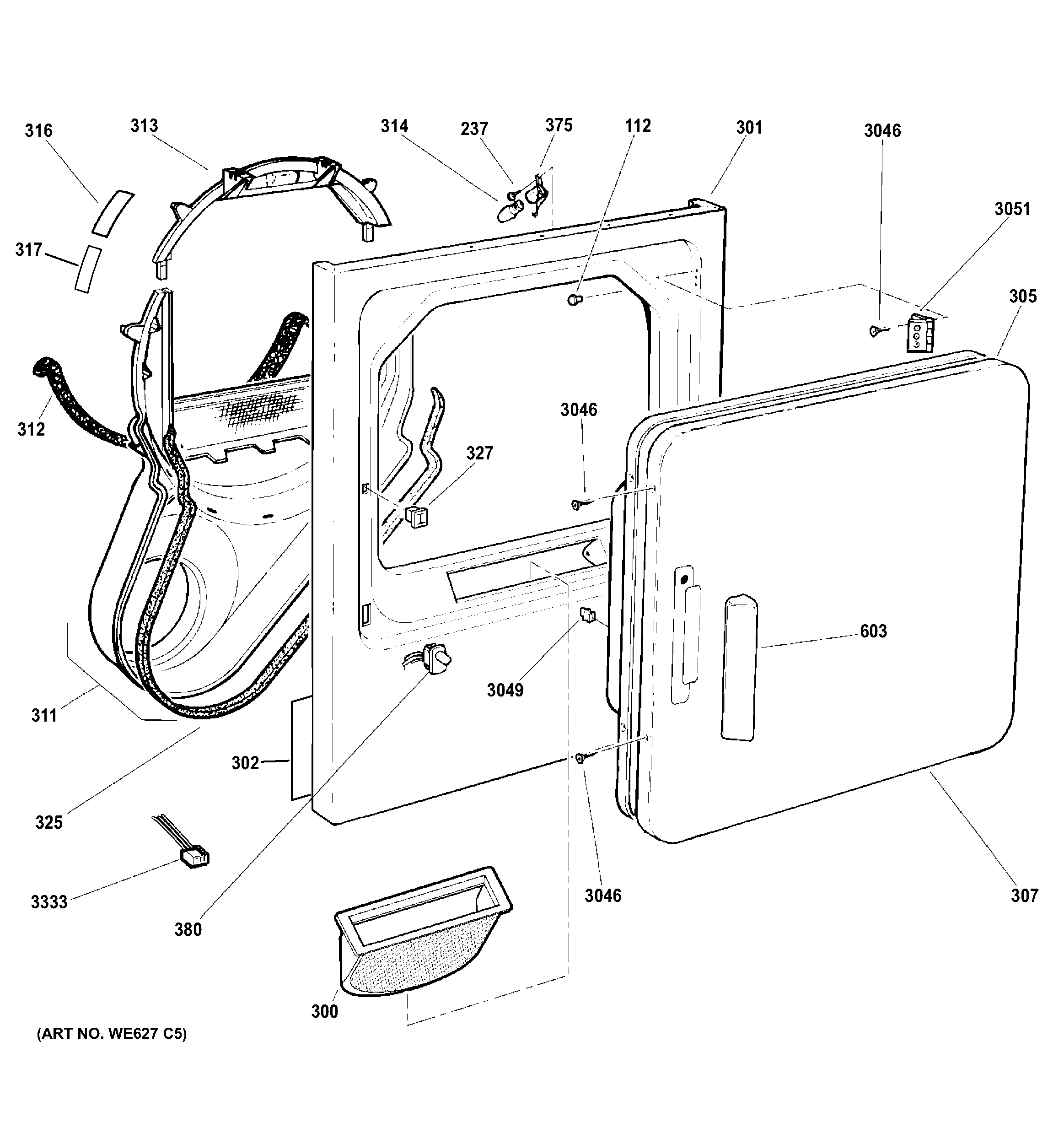

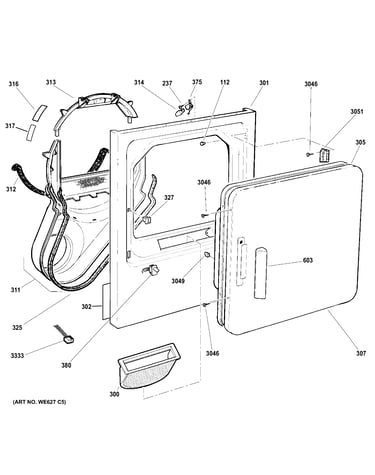

Front panel & door diagram

Dryer drum bearing, front (replaces we03m0026, we3m20)

Part #WE3M26

BEST SELLER
$30.11 |
17% OFF Phone Price : $36.11
In Stock
Inlet Control WE4M333
#506

Drum diagram

Inlet control

Part #WE4M333

Replaced by #WE4M398

?
Manufacturer substitution
This part replaces WE4M333. Substitute parts can look different from the original.
BEST SELLER
$33.90 |
15% OFF Phone Price : $39.90
In Stock
Kenmore Dryer Rear Bearing WE1M462
#3106

Drum diagram

Kenmore dryer rear bearing

Part #WE1M462

BEST SELLER
$24.24 |
20% OFF Phone Price : $30.24
In Stock
Air Duct Assembly WE14M92
#311

Front panel & door diagram

Air duct assembly

Part #WE14M92

Replaced by #WE14X25080

?
Manufacturer substitution
This part replaces WE14M92. Substitute parts can look different from the original.
BEST SELLER
$83.41 |
7% OFF Phone Price : $89.41
In Stock
Idler Pulley WE12M8
#216

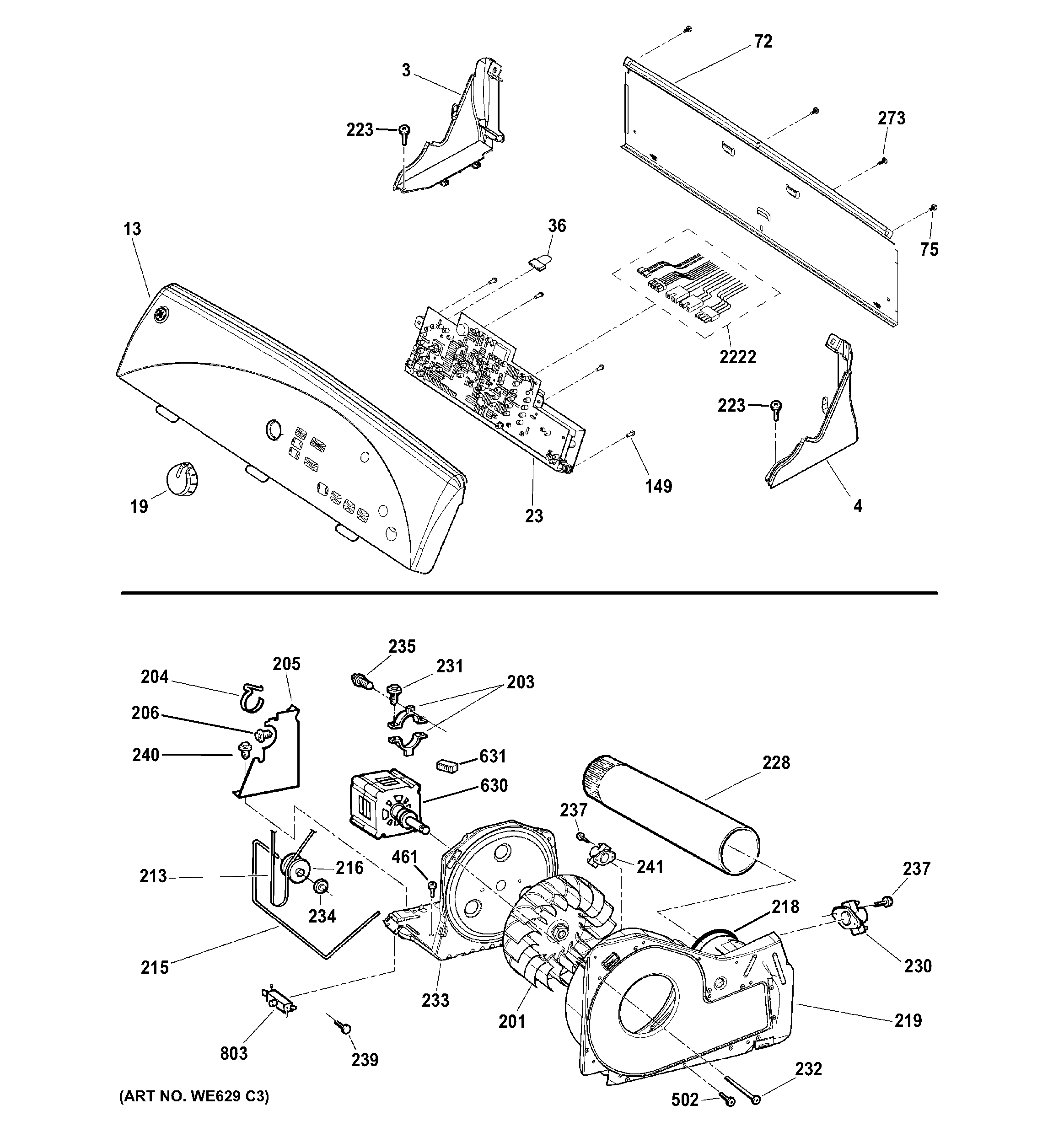

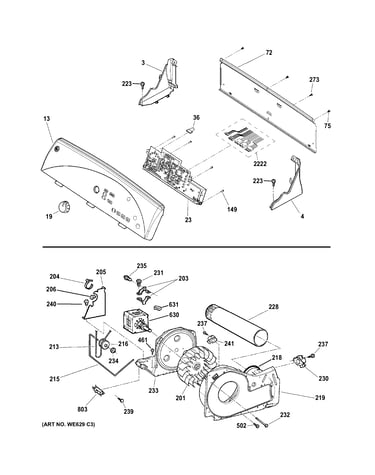

Backsplash, blower & drive assembly diagram

Idler pulley

Part #WE12M8

Replaced by #WE12X83

?
Manufacturer substitution
This part replaces WE12M8. Substitute parts can look different from the original.
BEST SELLER
$24.59 |
20% OFF Phone Price : $30.59
In Stock
Shft-brkt WE3X39
#508

Drum diagram

Shft-brkt

Part #WE3X39

Replaced by #WE25M40

?
Manufacturer substitution
This part replaces WE3X39. Substitute parts can look different from the original.
BEST SELLER
$64.45 |
10% OFF Was : $71.61
In Stock
Dryer Blower Wheel WE16M17
#201

Backsplash, blower & drive assembly diagram

Dryer blower wheel

Part #WE16M17

Replaced by #WE16X20393

?
Manufacturer substitution
This part replaces WE16M17. Substitute parts can look different from the original.
BEST SELLER
$42.32 |
12% OFF Phone Price : $48.32
In Stock
Dryer Drum Bearing Bracket (replaces We01m0300) WE1M300
#3102

Drum diagram

Dryer drum bearing bracket (replaces we01m0300)

Part #WE1M300

BEST SELLER
$15.97 |
11% OFF Phone Price : $17.97
In Stock
Filter WE18M53
#300

Front panel & door diagram

Filter

Part #WE18M53

Replaced by #WE18X25100

?
Manufacturer substitution
This part replaces WE18M53. Substitute parts can look different from the original.
BEST SELLER
$53.65 |
10% OFF Phone Price : $59.65
In Stock
Dryer Drum Lamp WE4M305
#314

Front panel & door diagram

Dryer drum lamp

Part #WE4M305

Replaced by #WE05X20431

?
Manufacturer substitution
This part replaces WE4M305. Substitute parts can look different from the original.
BEST SELLER
$13.71 |
13% OFF Phone Price : $15.71
In Stock
