Kenmore
Gas Water Heater

Model # 153333312 Official Kenmore gas water heater

Here are the diagrams and repair parts for Official Kenmore 153333312 gas water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Flue Baffle 9000360
#17C

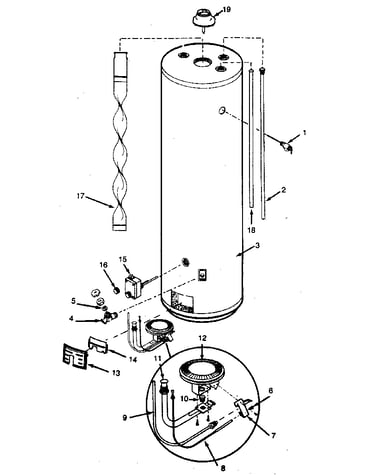

Replacement parts diagram

Flue baffle

Part #9000360

$20.99
In Stock
Water Heater Manifold Inner Door 9000281
#14

Replacement parts diagram

Water heater manifold inner door

Part #9000281

$17.69 |
10% OFF Phone Price : $19.69
In Stock
Dip Tube 0260007
#18B

Replacement parts diagram

Dip tube

Part #0260007

Replaced by #100108763

?
Manufacturer substitution
This part replaces 0260007. Substitute parts can look different from the original.
$26.67
In Stock
Manifold 0220105
#11B

Replacement parts diagram

Manifold

Part #0220105

Replaced by #100108783

?
Manufacturer substitution
This part replaces 0220105. Substitute parts can look different from the original.
$55.56
In Stock
Orifice 0230129
#10A

Replacement parts diagram

Orifice

Part #0230129

Replaced by #100109257

?
Manufacturer substitution
This part replaces 0230129. Substitute parts can look different from the original.
$27.78
In Stock
Water Heater Pilot Tube Assembly (replaces Std317025, Std317255) 9000278
#9

Replacement parts diagram

Water heater pilot tube assembly (replaces std317025, std317255)

Part #9000278

Replaced by #100108370

?
Manufacturer substitution
This part replaces 9000278. Substitute parts can look different from the original.
$36.67
In Stock
Pilot 9000284
#7

Replacement parts diagram

Pilot

Part #9000284

Replaced by #100109070

?
Manufacturer substitution
This part replaces 9000284. Substitute parts can look different from the original.
$47.78
In Stock
Thermocouple 42-9231
#8

Replacement parts diagram

Thermocouple

Part #42-9231

Replaced by #H06E-36

?
Manufacturer substitution
This part replaces 42-9231. Substitute parts can look different from the original.
This item is not returnable
$14.52 |
12% OFF Phone Price : $16.52
Back Order
Manifold 0220104
#11A

Replacement parts diagram

Manifold

Part #0220104

Replaced by #100108784

?
Manufacturer substitution
This part replaces 0220104. Substitute parts can look different from the original.
$55.56
In Stock
Anode Rod 0160101
#2A

Replacement parts diagram

Anode rod

Part #0160101

Replaced by #100108571

?
Manufacturer substitution
This part replaces 0160101. Substitute parts can look different from the original.
$90.00
In Stock
