GE
Side-By-Side Refrigerator

Model # RCE25RGBBFSV Official GE refrigerator - b series

Here are the diagrams and repair parts for Official GE RCE25RGBBFSV refrigerator - b series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

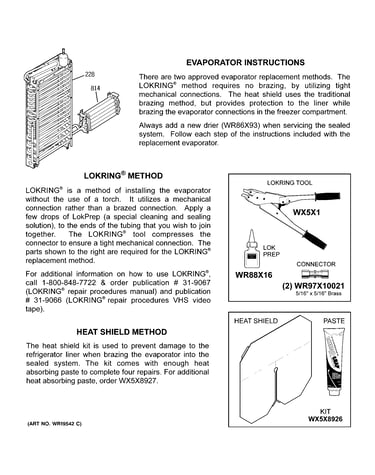

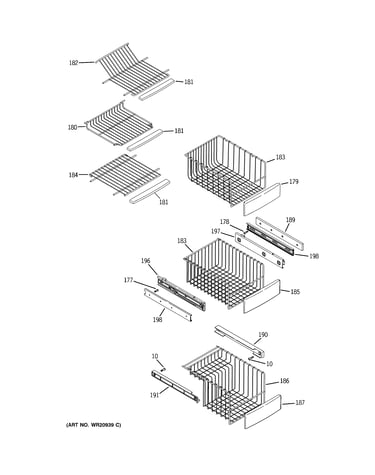

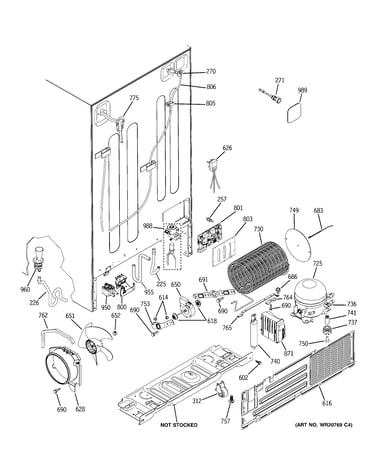

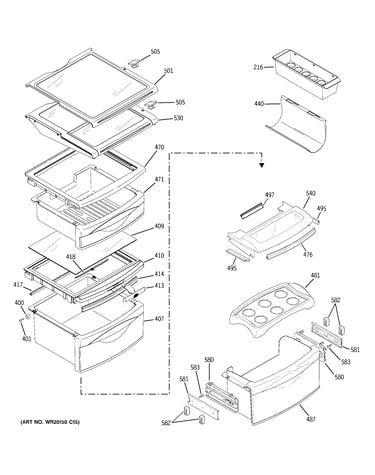

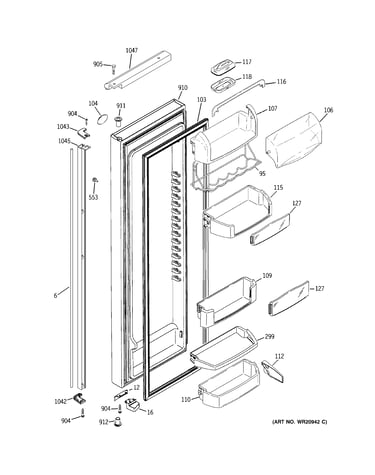

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 287 parts  |
Ge Profile Refrigerator Temperature Sensor WR55X10025
#241

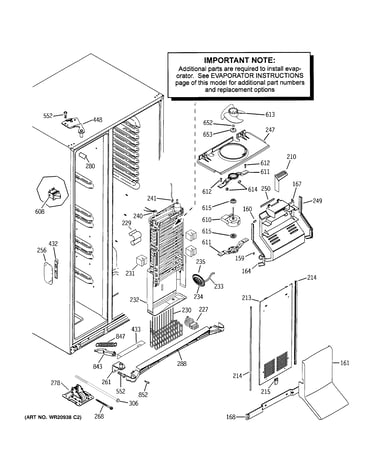

Freezer section diagram

Ge profile refrigerator temperature sensor

Part #WR55X10025

BEST SELLER
$19.08 |
9% OFF Phone Price : $21.08
In Stock
Temperature Sensor WR55X10030
#947

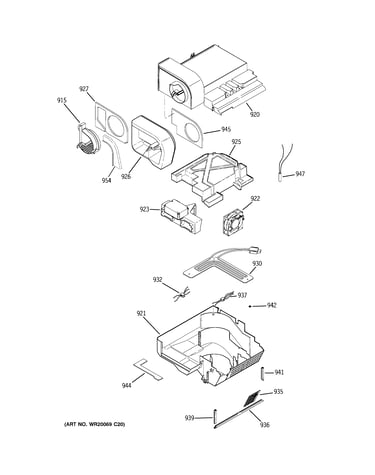

Custom cool diagram

Temperature sensor

Part #WR55X10030

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10030. Substitute parts can look different from the original.
BEST SELLER
$19.08 |
9% OFF Phone Price : $21.08
In Stock
Refrigerator Temperature Sensor WR55X10939
#236

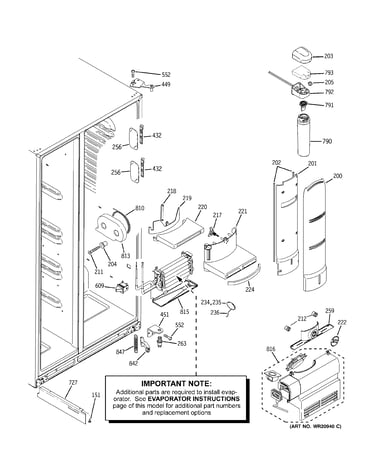

Fresh food section diagram

Refrigerator temperature sensor

Part #WR55X10939

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10939. Substitute parts can look different from the original.
BEST SELLER
$19.08 |
9% OFF Phone Price : $21.08
In Stock
Refrigerator Temperature Sensor WR55X10938
#233

Freezer section diagram

Refrigerator temperature sensor

Part #WR55X10938

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10938. Substitute parts can look different from the original.
BEST SELLER
$19.08 |
9% OFF Phone Price : $21.08
In Stock
Refrigerator Evaporator Fan Blade WR60X10208
#613

Freezer section diagram

Refrigerator evaporator fan blade

Part #WR60X10208

Replaced by #WR60X30922

?
Manufacturer substitution
This part replaces WR60X10208. Substitute parts can look different from the original.
BEST SELLER
$85.08 |
7% OFF Phone Price : $91.08
In Stock
Ge Profile Refrigerator Dispenser Ice Chute Door Crank WR17X10706
#67

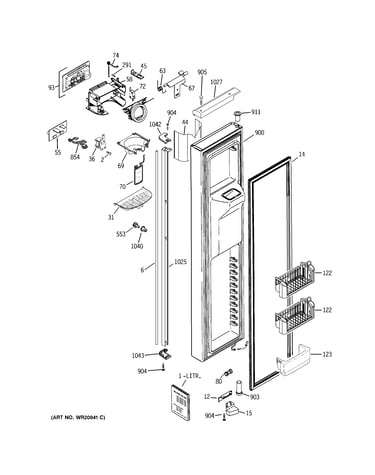

Freezer door diagram

Ge profile refrigerator dispenser ice chute door crank

Part #WR17X10706

BEST SELLER
This item is not returnable
$6.86 |
13% OFF Phone Price : $7.86
In Stock
Refrigerator Water Filter Cartridge WR02X13618
#790

Fresh food section diagram

Refrigerator water filter cartridge

Part #WR02X13618

Replaced by #MSWF

?
Manufacturer substitution
This part replaces WR02X13618. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$49.98
In Stock
Ge Profile Refrigerator Dispenser Lever Spring WR02X10585
#63

Freezer door diagram

Ge profile refrigerator dispenser lever spring

Part #WR02X10585

BEST SELLER
$7.91 |
11% OFF Phone Price : $8.91
In Stock
Refrigerator Switch WR23X10224
#72

Freezer door diagram

Refrigerator switch

Part #WR23X10224

Replaced by #WR23X10783

?
Manufacturer substitution
This part replaces WR23X10224. Substitute parts can look different from the original.
BEST SELLER
$57.84 |
9% OFF Phone Price : $63.84
In Stock
Refrigerator Auger Motor Coupler (replaces Wr02x10565) WR02X11941
#365

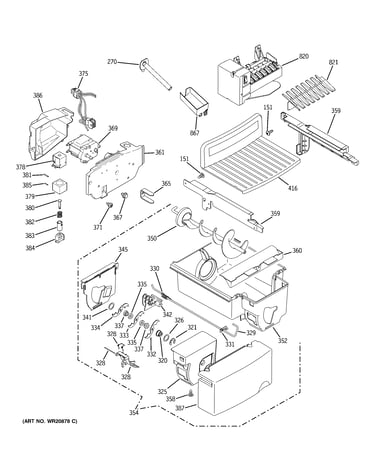

Ice maker & dispenser diagram

Refrigerator auger motor coupler (replaces wr02x10565)

Part #WR02X11941

BEST SELLER
$10.85 |
16% OFF Phone Price : $12.85
In Stock
