Model # FFUE2022AW6 Official Frigidaire freezer

Here are the diagrams and repair parts for Official Frigidaire FFUE2022AW6 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

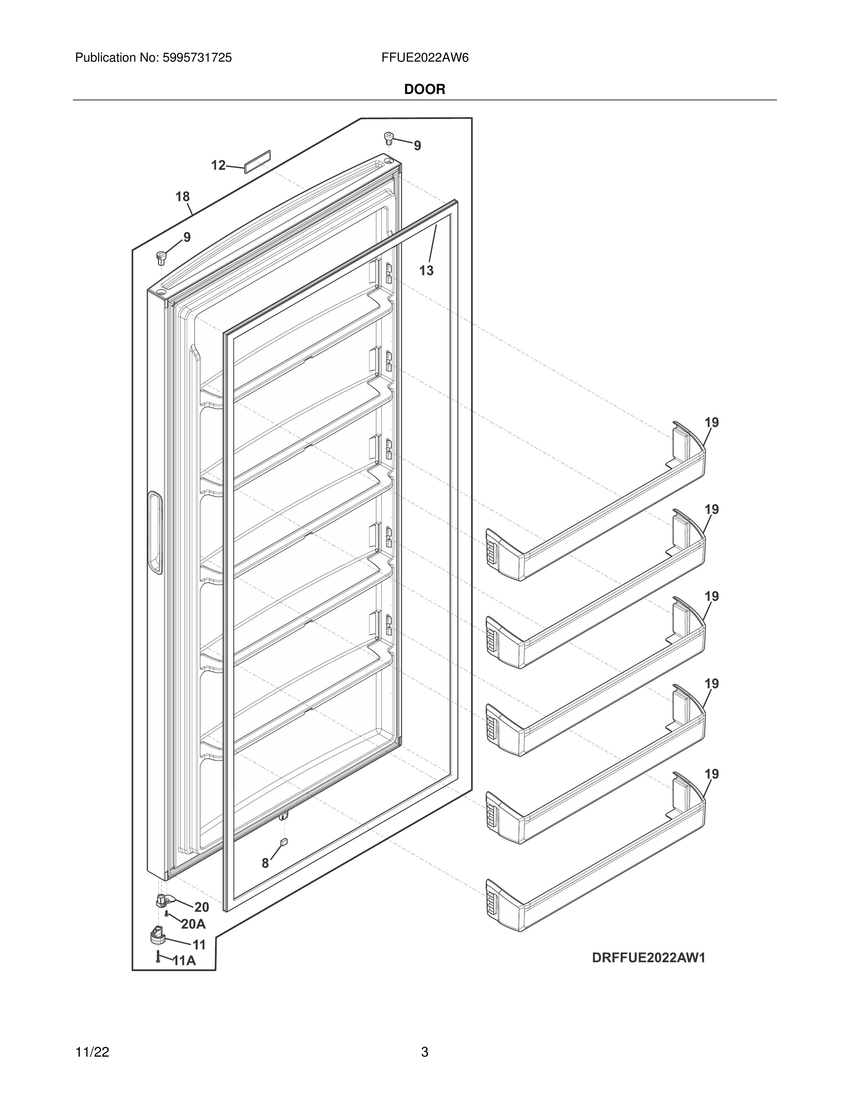

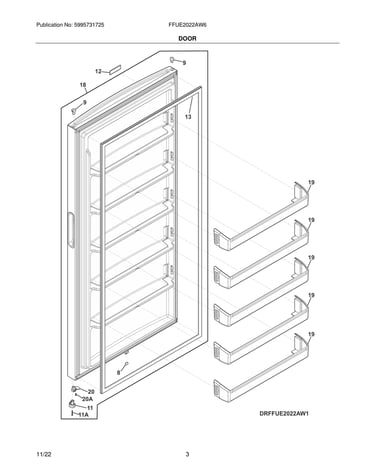

Model diagram and schematic

SEARCH WITHIN THIS MODEL

Filters

Screws

ALL PARTS

Showing 10 of 75 parts |

#15

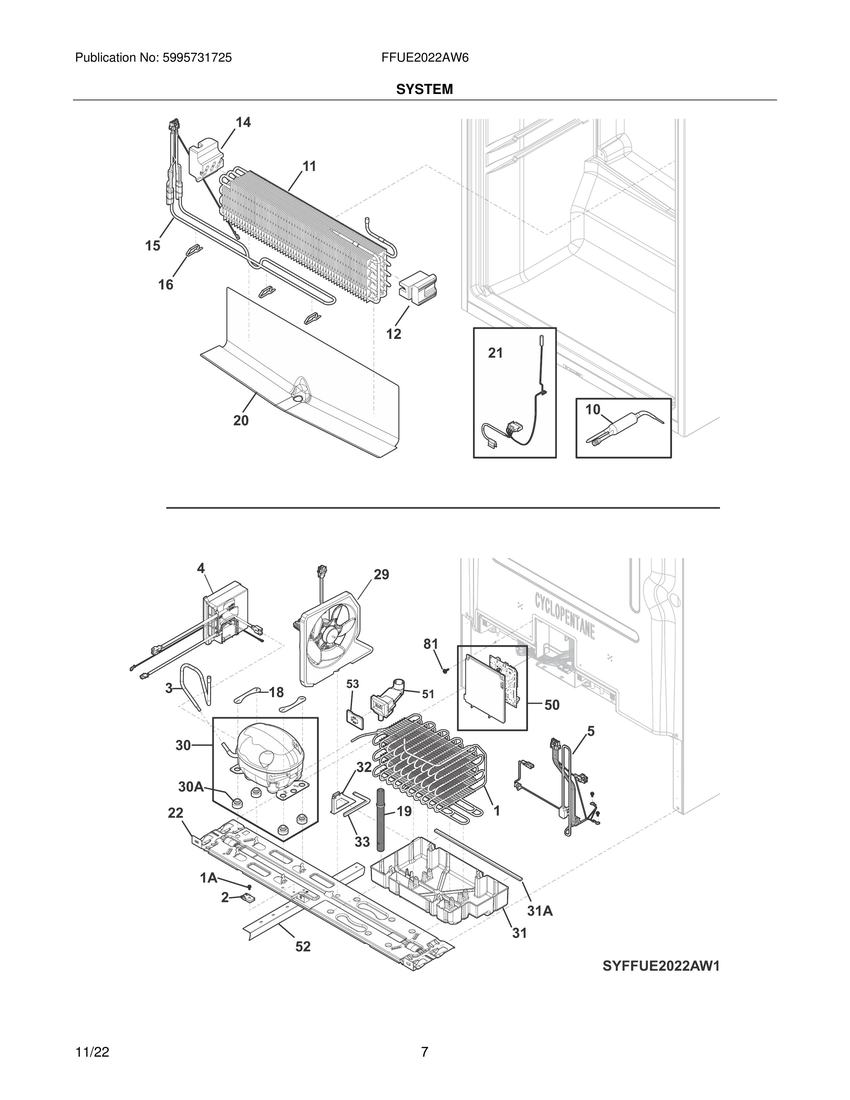

System diagram

Freezer defrost heater

Part #5304523833

$74.06 |

7% OFF Phone Price : $80.06

In Stock

Qty

Freezer defrost bi-metal thermostat and wire harness assembly (replaces 5304521790)

Part #5304523788

$37.99 |

14% OFF Phone Price : $43.99

In Stock

Qty

Frigidaire Freezer Sliding Shelf (replaces 5304523692) 5304525223

#42

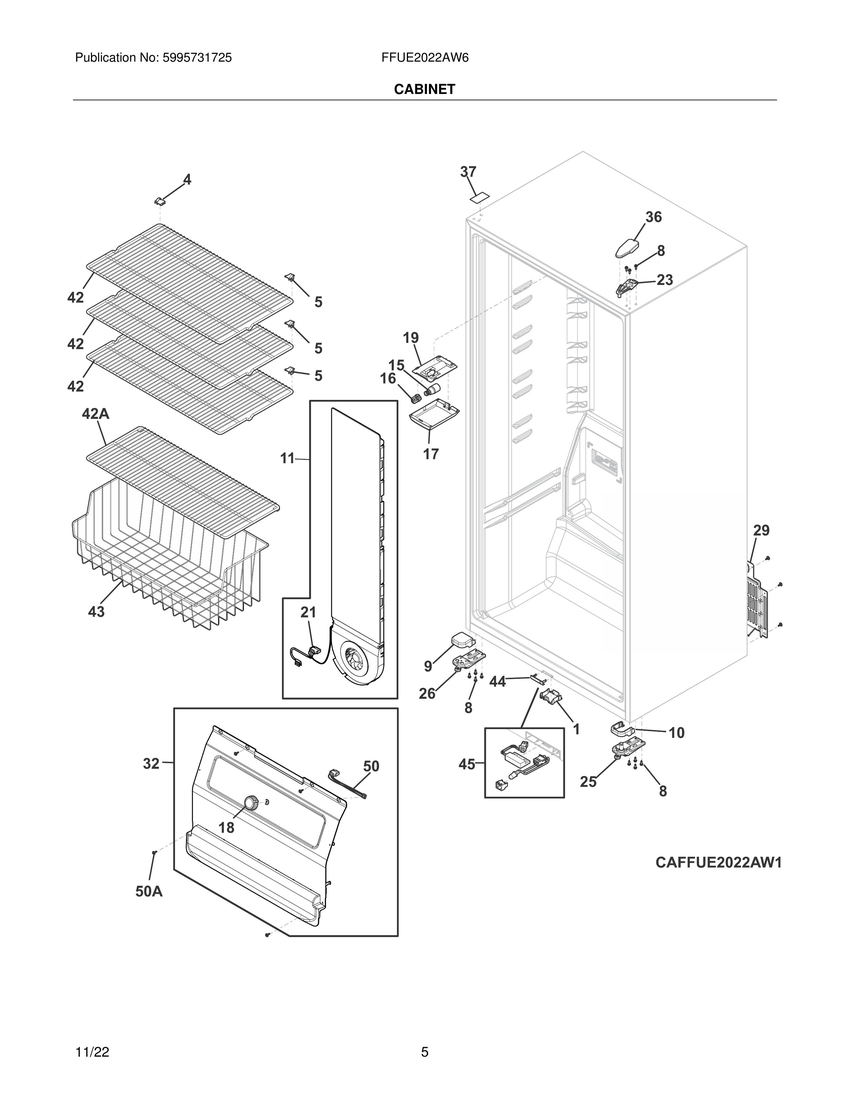

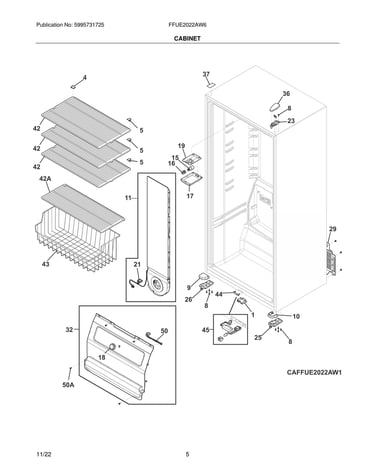

Cabinet diagram

Frigidaire freezer sliding shelf (replaces 5304523692)

Part #5304525223

$60.96 |

9% OFF Phone Price : $66.96

In Stock

Qty

#30

System diagram

Compressor

Part #5304530136

$198.46

In Stock

Qty

Refrigerator Evaporator Fan Motor And Blade 5304523741

#28

System diagram

Refrigerator evaporator fan motor and blade

Part #5304523741

$95.57 |

11% OFF Phone Price : $107.57

In Stock

Qty

Freezer Air Duct Cover (replaces 5304523725) 5303918891

#NI

Cabinet diagram

Freezer air duct cover (replaces 5304523725)

Part #5303918891

$108.08

In Stock

Qty

#15

Cabinet diagram

Refrigerator light bulb

Part #5304522314

$32.22 |

16% OFF Phone Price : $38.22

In Stock

Qty

#11

System diagram

Coil

Part #5304523830

$115.46

In Stock

Qty

System diagram

Freezer inverter

Part #5304523779

$195.21 |

6% OFF Phone Price : $207.21

In Stock

Qty

Air Tower,assembly ,complete ,w/motor-heater 5304523734

#11

Cabinet diagram

Air tower,assembly ,complete ,w/motor-heater

Part #5304523734

Replaced by #5304531533

$108.30

In Stock

Qty

Most common symptoms to help you fix your freestanding freezers

Choose a symptom to see related freezer repairs.

View all

Why don't the lights in my freezer work?

Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…

What should I do when my freezer's high-temperature alarm sounds?

Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…

Why isn't my freezer cooling?

Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…

Why does my freezer have a lot of frost inside?

Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …

Why is my freezer too warm?

Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …

Why is my freezer hot on the outside?

Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…

Why isn't my freezer running?

Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…

Why is my freezer so noisy?

Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …
