Amana
Microwave/Hood Combo

Model # AMV2307PFB4 Official Amana microwave/hood combo

Here are the diagrams and repair parts for Official Amana AMV2307PFB4 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

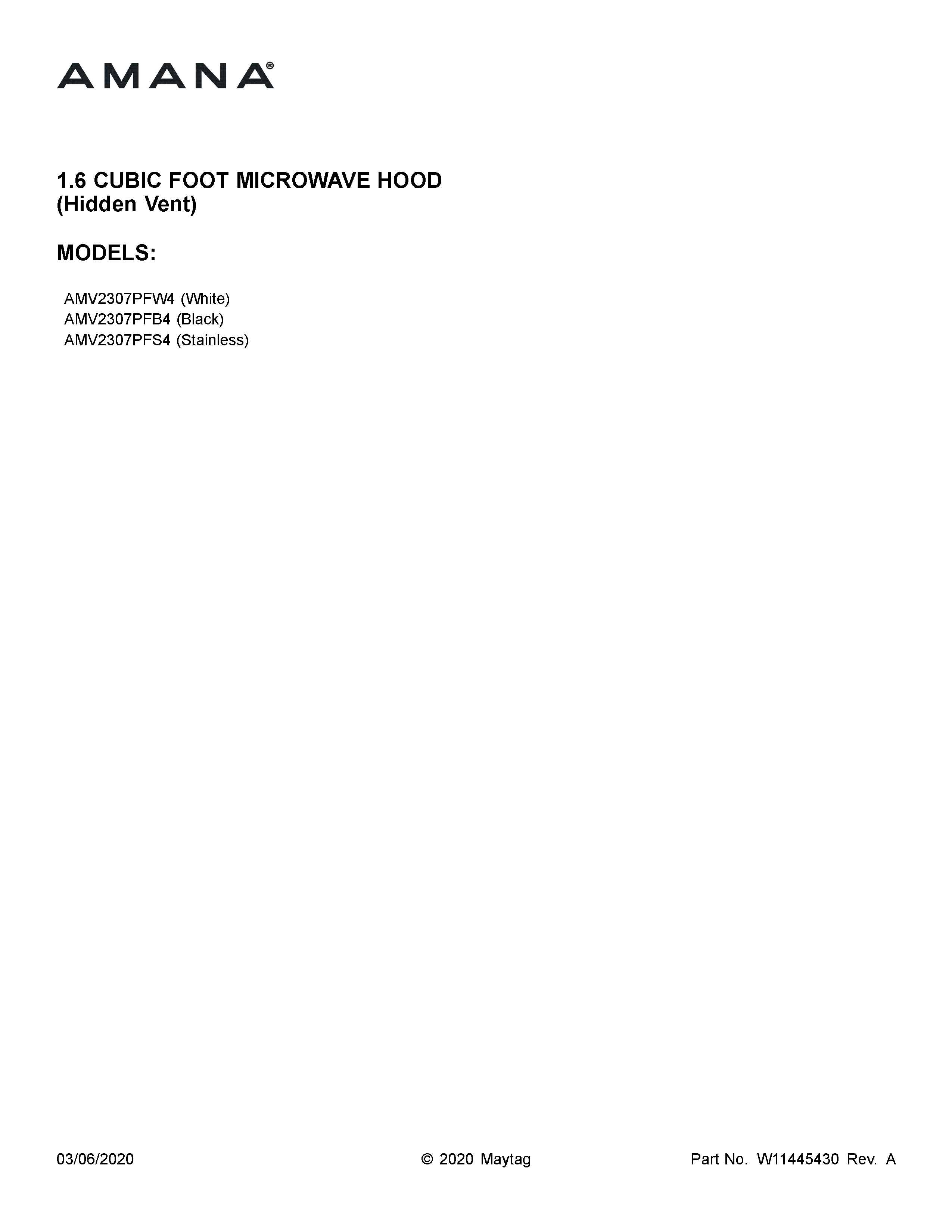

Installation guide
Owner’s manual

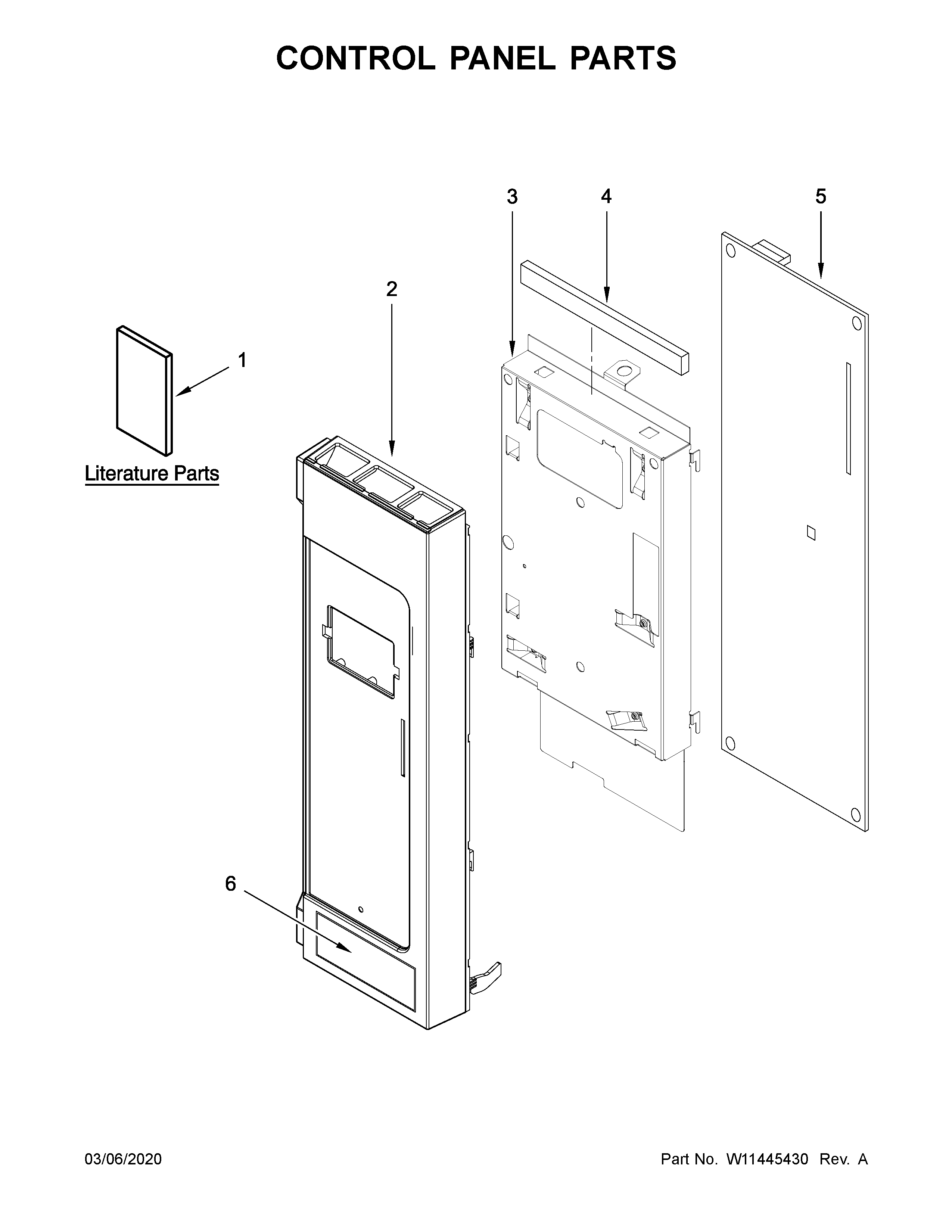

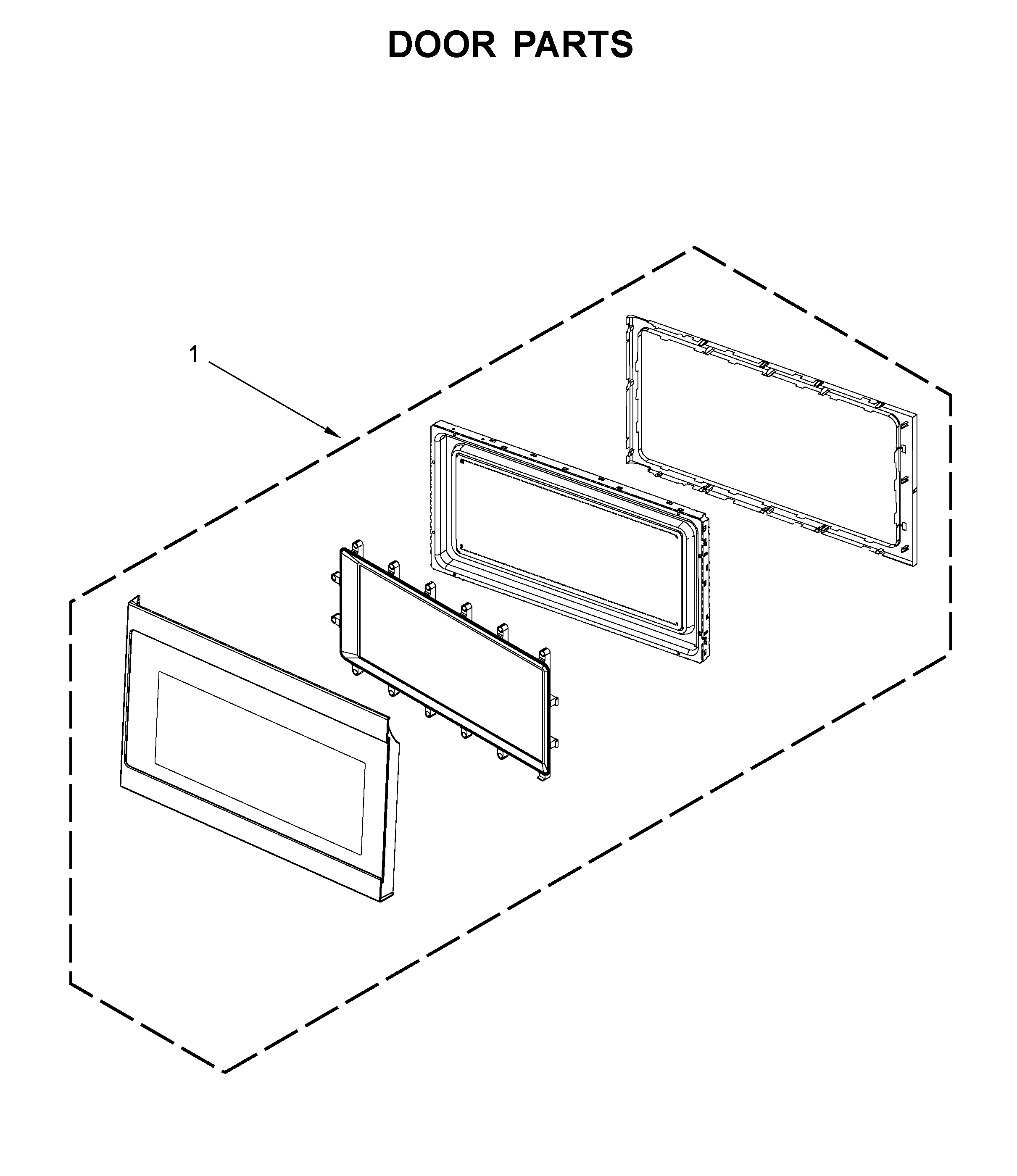

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Gaoxin-hvd C W11222648
#23

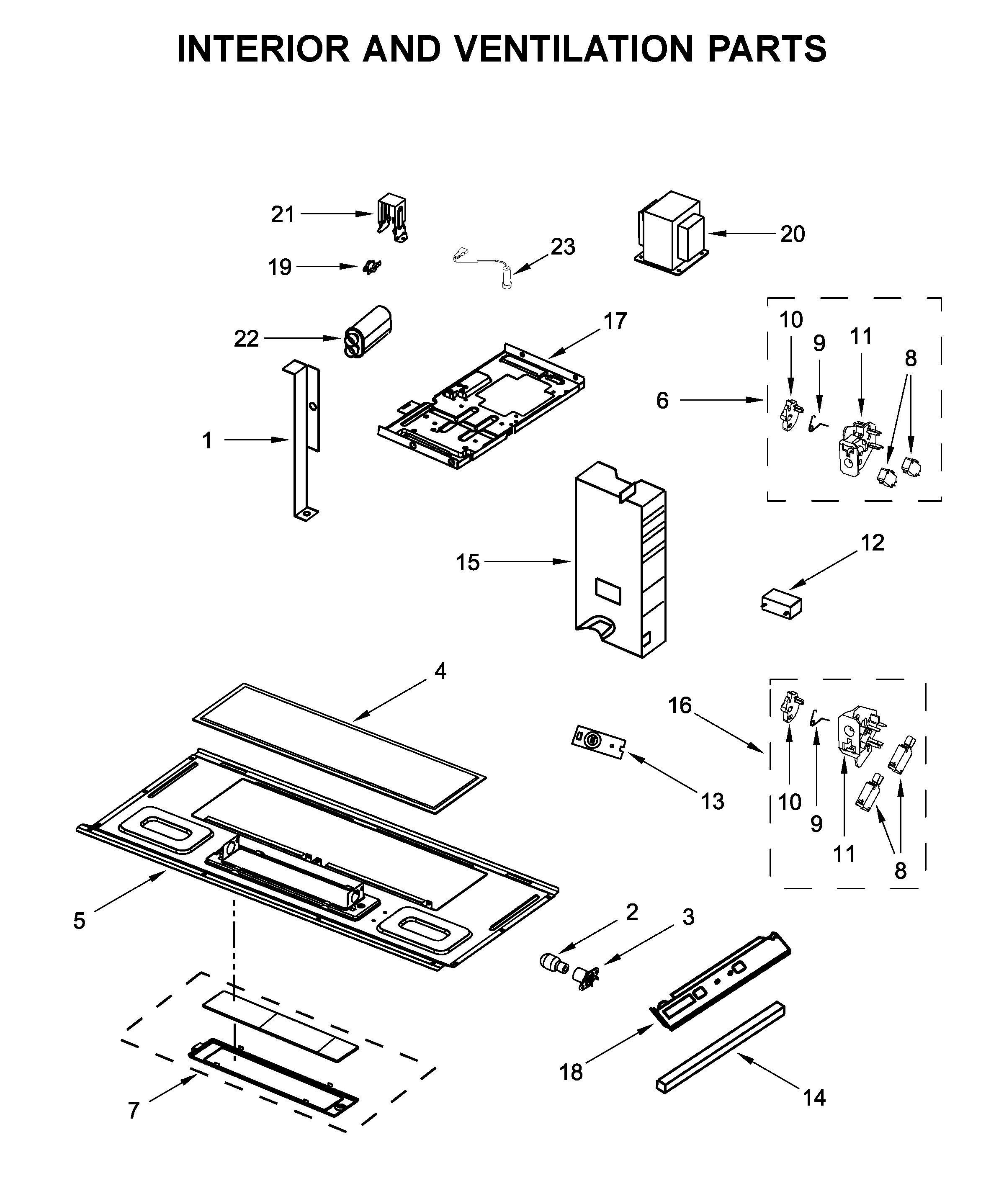

Interior and ventilation parts diagram

Gaoxin-hvd c

Part #W11222648

Replaced by #W11256462

?
Manufacturer substitution
This part replaces W11222648. Substitute parts can look different from the original.
BEST SELLER
$24.65 |
20% OFF Phone Price : $30.65
In Stock
Capacitor W10343300
#22

Interior and ventilation parts diagram

Capacitor

Part #W10343300

Replaced by #W10850446

?
Manufacturer substitution
This part replaces W10343300. Substitute parts can look different from the original.
BEST SELLER
$94.83 |
6% OFF Phone Price : $100.83
In Stock
Microwave Magnetron (replaces W10210845, W10216360, W10496310) W10754299
#15

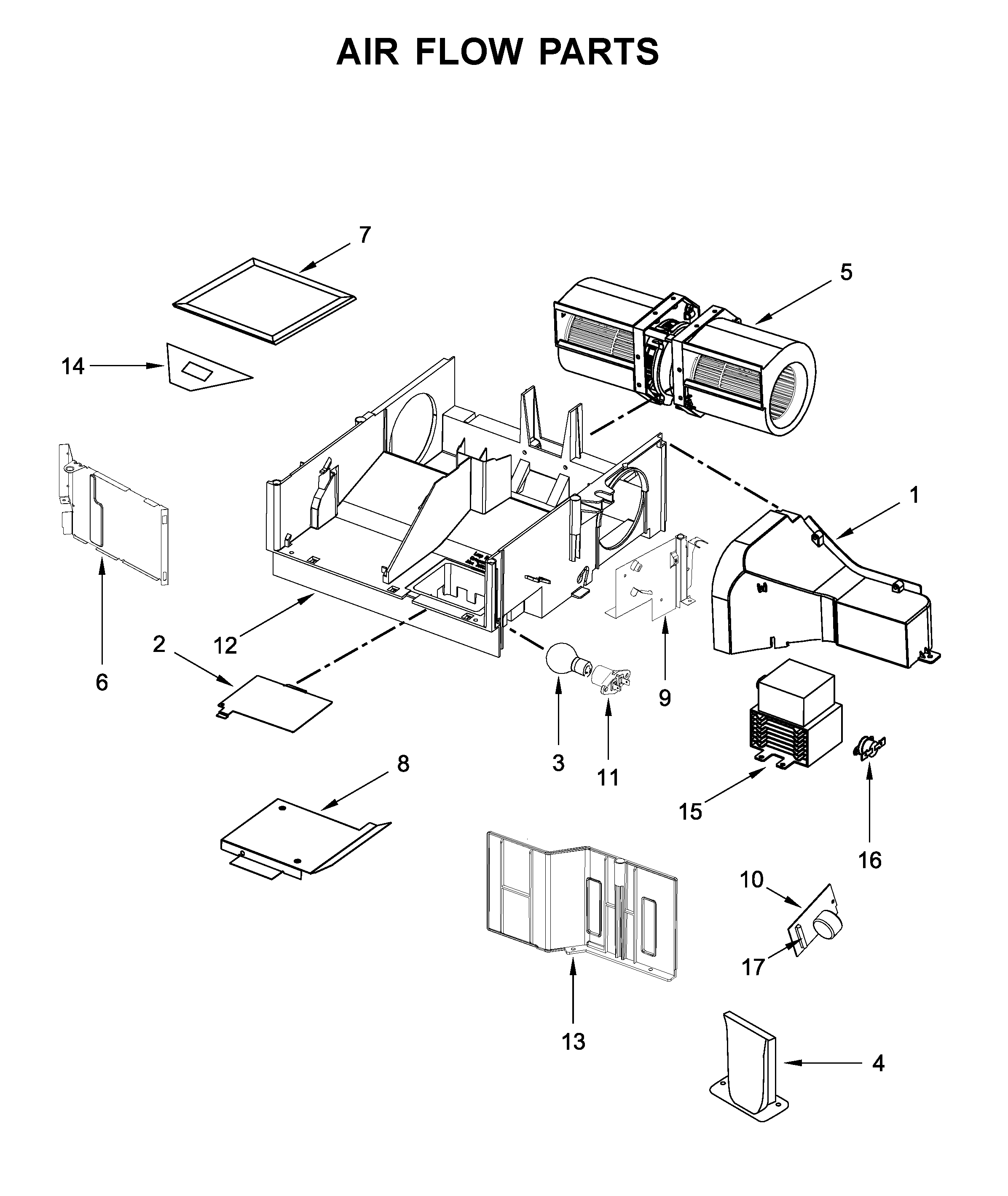

Air flow parts diagram

Microwave magnetron (replaces w10210845, w10216360, w10496310)

Part #W10754299

BEST SELLER
$183.60 |
6% OFF Phone Price : $195.60
In Stock
Microwave Door Interlock Support, Upper 8206419
#11

Interior and ventilation parts diagram

Microwave door interlock support, upper

Part #8206419

BEST SELLER
$15.53
In Stock
Microwave Door Interlock Spring W10156812
#9

Interior and ventilation parts diagram

Microwave door interlock spring

Part #W10156812

BEST SELLER
$7.73 |
11% OFF Phone Price : $8.73
In Stock
Filter W10208631
#4

Interior and ventilation parts diagram

Filter

Part #W10208631

Replaced by #W10208631A

?
Manufacturer substitution
This part replaces W10208631. Substitute parts can look different from the original.
BEST SELLER
$25.60 |
19% OFF Phone Price : $31.60
In Stock
Ring, Turntable (with Rollers) W11193600
#4

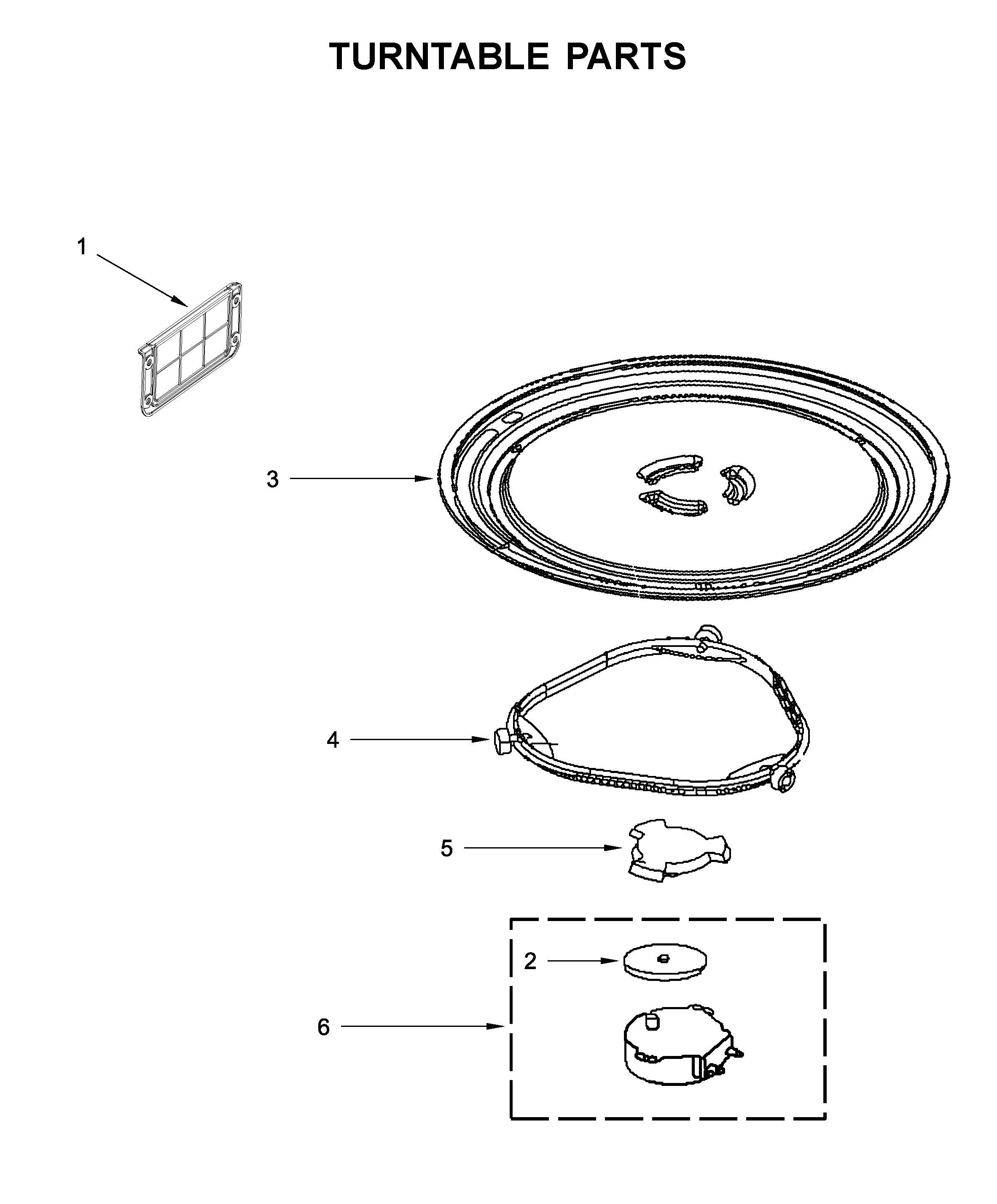

Turntable parts diagram

Ring, turntable (with rollers)

Part #W11193600

Replaced by #W11252182

?
Manufacturer substitution
This part replaces W11193600. Substitute parts can look different from the original.
$38.92 |
13% OFF Phone Price : $44.92
In Stock
Turntable Gl W11335034
#3

Turntable parts diagram

Turntable gl

Part #W11335034

Replaced by #W11367904

?
Manufacturer substitution
This part replaces W11335034. Substitute parts can look different from the original.
$57.69 |
9% OFF Phone Price : $63.69
In Stock
Microwave Installation Template W10190018
#NI

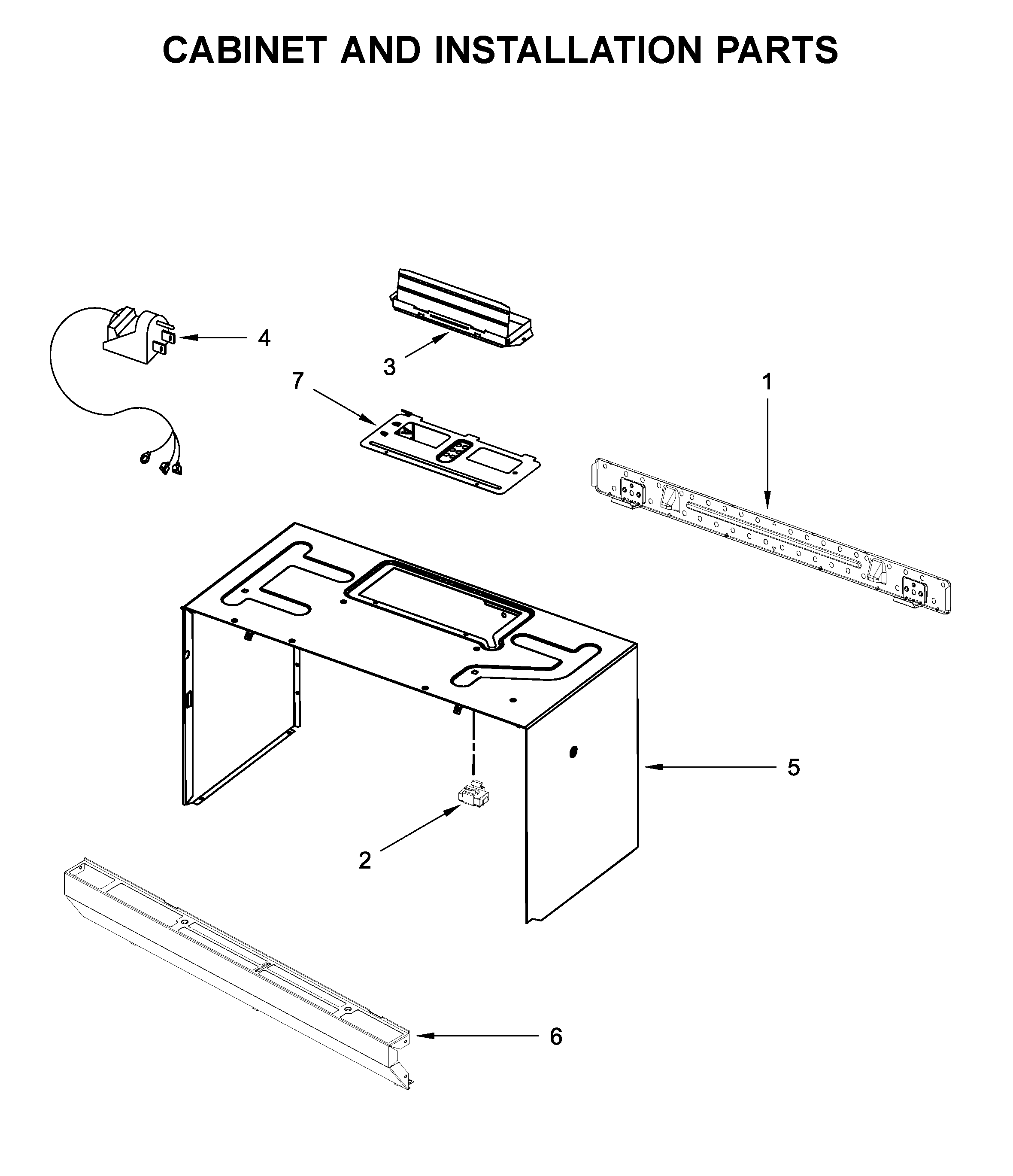

Cabinet and installation parts diagram

Microwave installation template

Part #W10190018

This item is not returnable
$6.39 |
14% OFF Phone Price : $7.39
In Stock
Microwave Noise Filter W10422269
#10

Air flow parts diagram

Microwave noise filter

Part #W10422269

$23.21 |
21% OFF Phone Price : $29.21
In Stock
