Model # 1753025080 Official Kenmore vacuum cleaner
Here are the diagrams and repair parts for Official Kenmore 1753025080 vacuum cleaner, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
1753025080 Vacuum Cleaners
#12

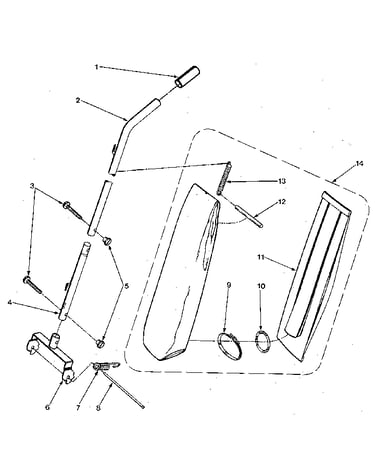

Figure "a" diagram
Wood dowel
Part #640997-001
The manufacturer no longer makes this part, and there's no substitute part
#5

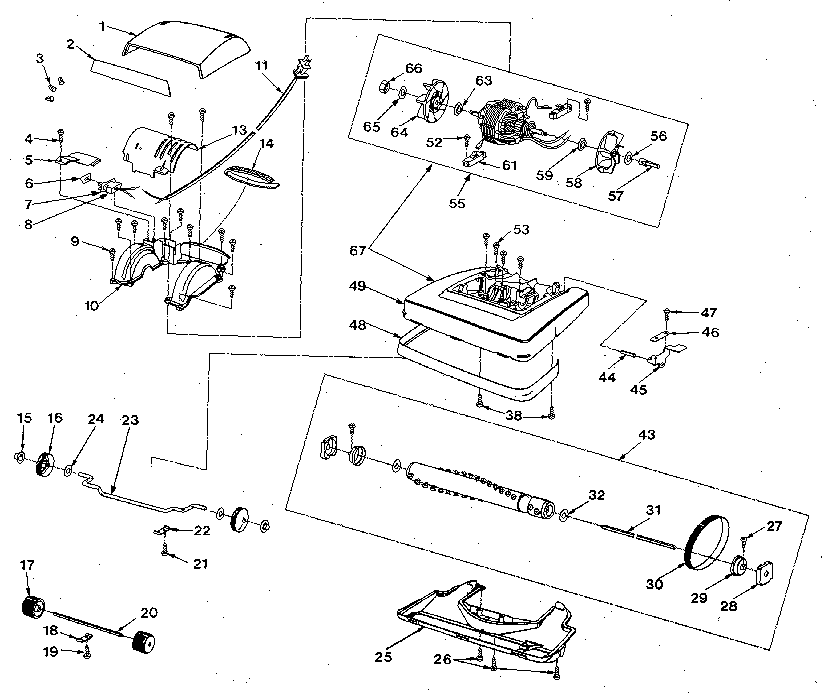

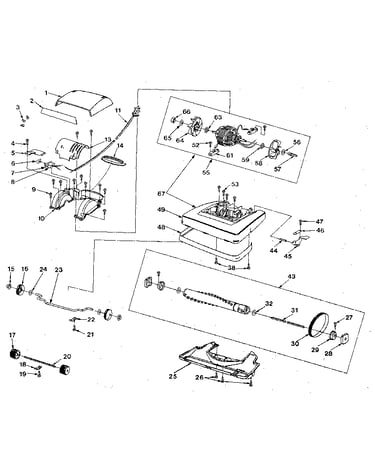

Figure "b" diagram
Wiring cover
Part #643040-000
The manufacturer no longer makes this part, and there's no substitute part
Retainer plate
Part #643015-000
The manufacturer no longer makes this part, and there's no substitute part
#27
Figure "b" diagram
Screw
Part #644586-003
The manufacturer no longer makes this part, and there's no substitute part
#64
Figure "b" diagram
Fan
Part #643205-000
The manufacturer no longer makes this part, and there's no substitute part
#46
Figure "b" diagram
Retainer
Part #643016-001
The manufacturer no longer makes this part, and there's no substitute part
#14
Figure "a" diagram
Outer bag
Part #642482-037
The manufacturer no longer makes this part, and there's no substitute part
#6
Figure "b" diagram
Dust shield
Part #643037-000
The manufacturer no longer makes this part, and there's no substitute part
#56
Figure "b" diagram
Washer
Part #643048-001
The manufacturer no longer makes this part, and there's no substitute part
#66
Figure "b" diagram
Nut
Part #641514-000
The manufacturer no longer makes this part, and there's no substitute part
