Model # 78615220 Official Craftsman 2-gallon funnel top tri-poxy lined sprayer
Here are the diagrams and repair parts for Official Craftsman 78615220 2-gallon funnel top tri-poxy lined sprayer, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
78615220 2-Gallon Funnel Top Tri-Poxy Lined Sprayer
#9

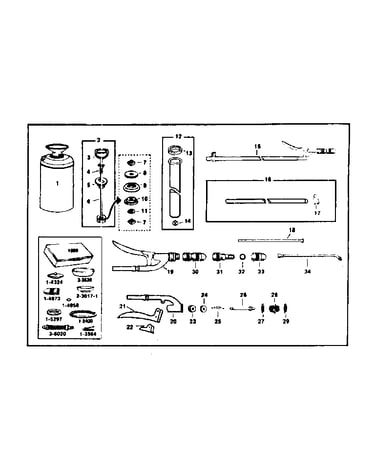

Compressed air sprayer diagram
Lawn sprayer plunger rod cup assembly
Part #3-3538
The manufacturer no longer makes this part, and there's no substitute part
#13
Compressed air sprayer diagram
Lawn sprayer pump barrel gasket
Part #1-2420
The manufacturer no longer makes this part, and there's no substitute part
#8
Compressed air sprayer diagram
Lawn sprayer washer
Part #2-2252
The manufacturer no longer makes this part, and there's no substitute part
#24
Compressed air sprayer diagram
Lawn sprayer washer
Part #1-3635
The manufacturer no longer makes this part, and there's no substitute part
#14
Compressed air sprayer diagram
Lawn sprayer check valve
Part #1-4324
The manufacturer no longer makes this part, and there's no substitute part
#27
Compressed air sprayer diagram
Lawn sprayer shut-off handle fiber gasket
Part #1-3632
The manufacturer no longer makes this part, and there's no substitute part
#31
Compressed air sprayer diagram
Lawn sprayer adjustable nozzle base
Part #1-4974
The manufacturer no longer makes this part, and there's no substitute part
#4
Compressed air sprayer diagram
Lawn sprayer plunger rod return spring
Part #1-5587
The manufacturer no longer makes this part, and there's no substitute part
#28
Compressed air sprayer diagram
Bushing
Part #1-4570
The manufacturer no longer makes this part, and there's no substitute part
#33
Compressed air sprayer diagram
Lawn sprayer adjustable spray nozzle cap
Part #1-4973
The manufacturer no longer makes this part, and there's no substitute part
