Ryobi
Router

Model # R-230 Official Ryobi router

Here are the diagrams and repair parts for Official Ryobi R-230 router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Compression Spring 6180060
#45

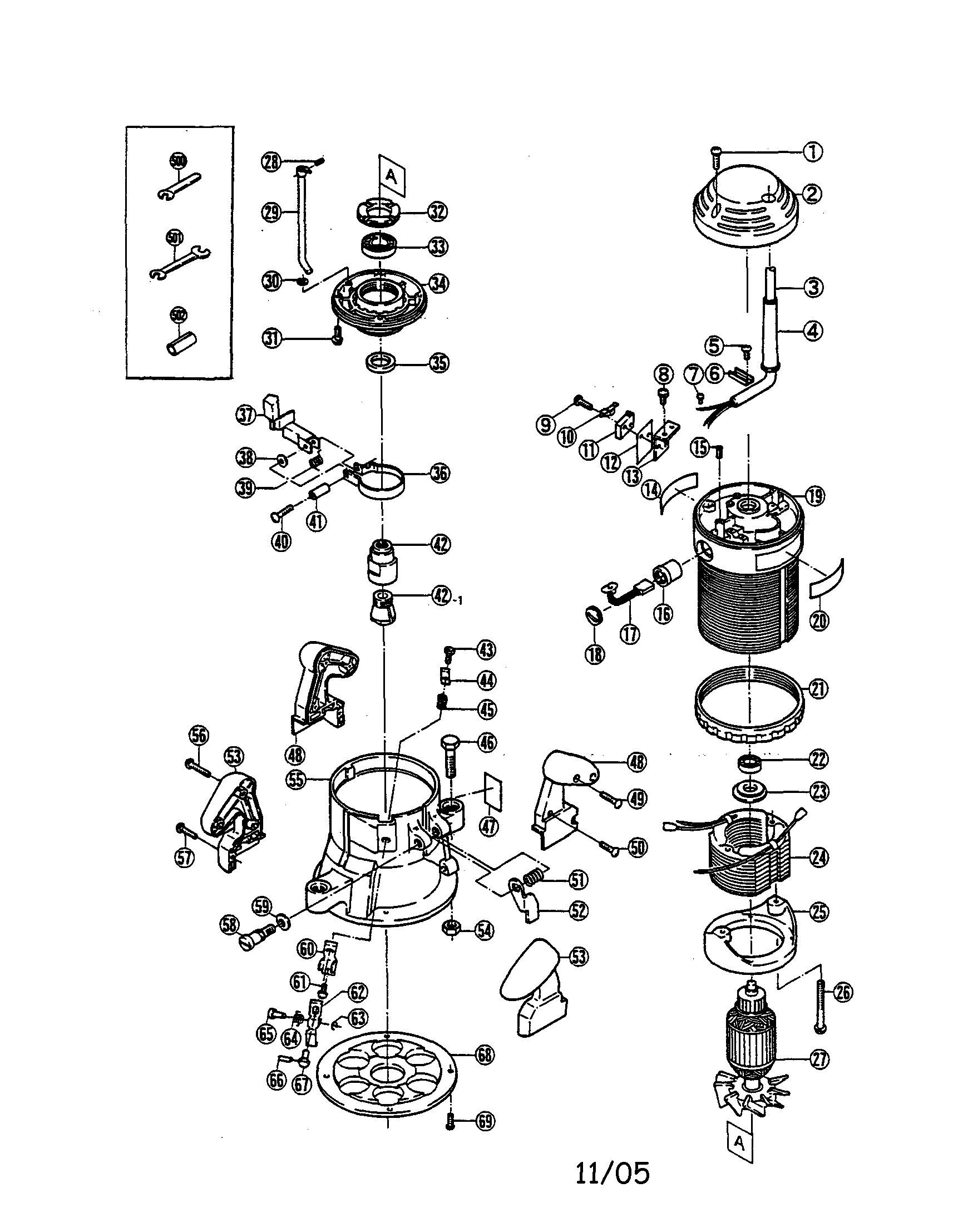

Router diagram

Compression spring

Part #6180060

The manufacturer no longer makes this part, and there's no substitute part

Screw 9020560
#26

Router diagram

Screw

Part #9020560

The manufacturer no longer makes this part, and there's no substitute part

Washer 9570600
#38

Router diagram

Washer

Part #9570600

The manufacturer no longer makes this part, and there's no substitute part

Screw 9060425
Screw

Part #9060425

The manufacturer no longer makes this part, and there's no substitute part

Screw 9020408
Screw

Part #9020408

The manufacturer no longer makes this part, and there's no substitute part

Washer 6900164
#59

Router diagram

Washer

Part #6900164

The manufacturer no longer makes this part, and there's no substitute part

Single End Wrench 6240263
#500

Router diagram

Single end wrench

Part #6240263

The manufacturer no longer makes this part, and there's no substitute part

Switch Plate 6150440
#13

Router diagram

Switch plate

Part #6150440

The manufacturer no longer makes this part, and there's no substitute part

Spring 6180064
#44

Router diagram

Spring

Part #6180064

The manufacturer no longer makes this part, and there's no substitute part

Safety Lever 6150455
#62

Router diagram

Safety lever

Part #6150455

The manufacturer no longer makes this part, and there's no substitute part
