Model # GLDT696D02SS Official GE dishwasher

Here are the diagrams and repair parts for Official GE GLDT696D02SS dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 120 parts  |
Dishwasher Silverware Basket (replaces Wd28x10191, Wd28x10193, Wd28x10195, Wd28x10196, Wd28x10198) WD28X10197
#121

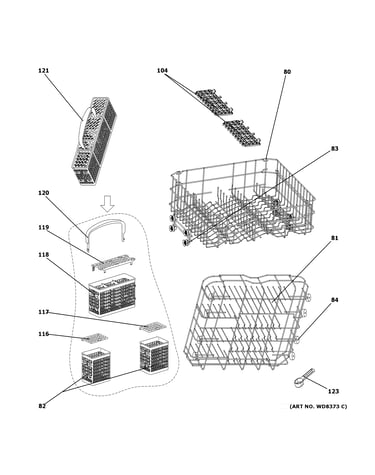

Rack assemblies diagram

Dishwasher silverware basket (replaces wd28x10191, wd28x10193, wd28x10195, wd28x10196, wd28x10198)

Part #WD28X10197

$31.98 |
16% OFF Phone Price : $37.98
In Stock
Dishwasher Silverware Basket WD28X10191
#82

Rack assemblies diagram

Dishwasher silverware basket

Part #WD28X10191

Replaced by #WD28X10197

?
Manufacturer substitution
This part replaces WD28X10191. Substitute parts can look different from the original.
$31.98 |
16% OFF Phone Price : $37.98
In Stock
Basket Lid WD28X10193
#116

Rack assemblies diagram

Basket lid

Part #WD28X10193

Replaced by #WD28X10197

?
Manufacturer substitution
This part replaces WD28X10193. Substitute parts can look different from the original.
$31.98 |
16% OFF Phone Price : $37.98
In Stock
Basket Lid WD28X10198
#119

Rack assemblies diagram

Basket lid

Part #WD28X10198

Replaced by #WD28X10197

?
Manufacturer substitution
This part replaces WD28X10198. Substitute parts can look different from the original.
$31.98 |
16% OFF Phone Price : $37.98
In Stock
Dishwasher Silverware Basket WD28X10195
#118

Rack assemblies diagram

Dishwasher silverware basket

Part #WD28X10195

Replaced by #WD28X10197

?
Manufacturer substitution
This part replaces WD28X10195. Substitute parts can look different from the original.
$31.98 |
16% OFF Phone Price : $37.98
In Stock
Basket Handle WD28X10196
#120

Rack assemblies diagram

Basket handle

Part #WD28X10196

Replaced by #WD28X10197

?
Manufacturer substitution
This part replaces WD28X10196. Substitute parts can look different from the original.
$31.98 |
16% OFF Phone Price : $37.98
In Stock
Dishwasher Dishrack Track Roller Assembly WD12X10231
#84

Rack assemblies diagram

Dishwasher dishrack track roller assembly

Part #WD12X10231

$7.09 |
12% OFF Phone Price : $8.09
In Stock
Dishwasher Door Latch Assembly WD13X10046
#147

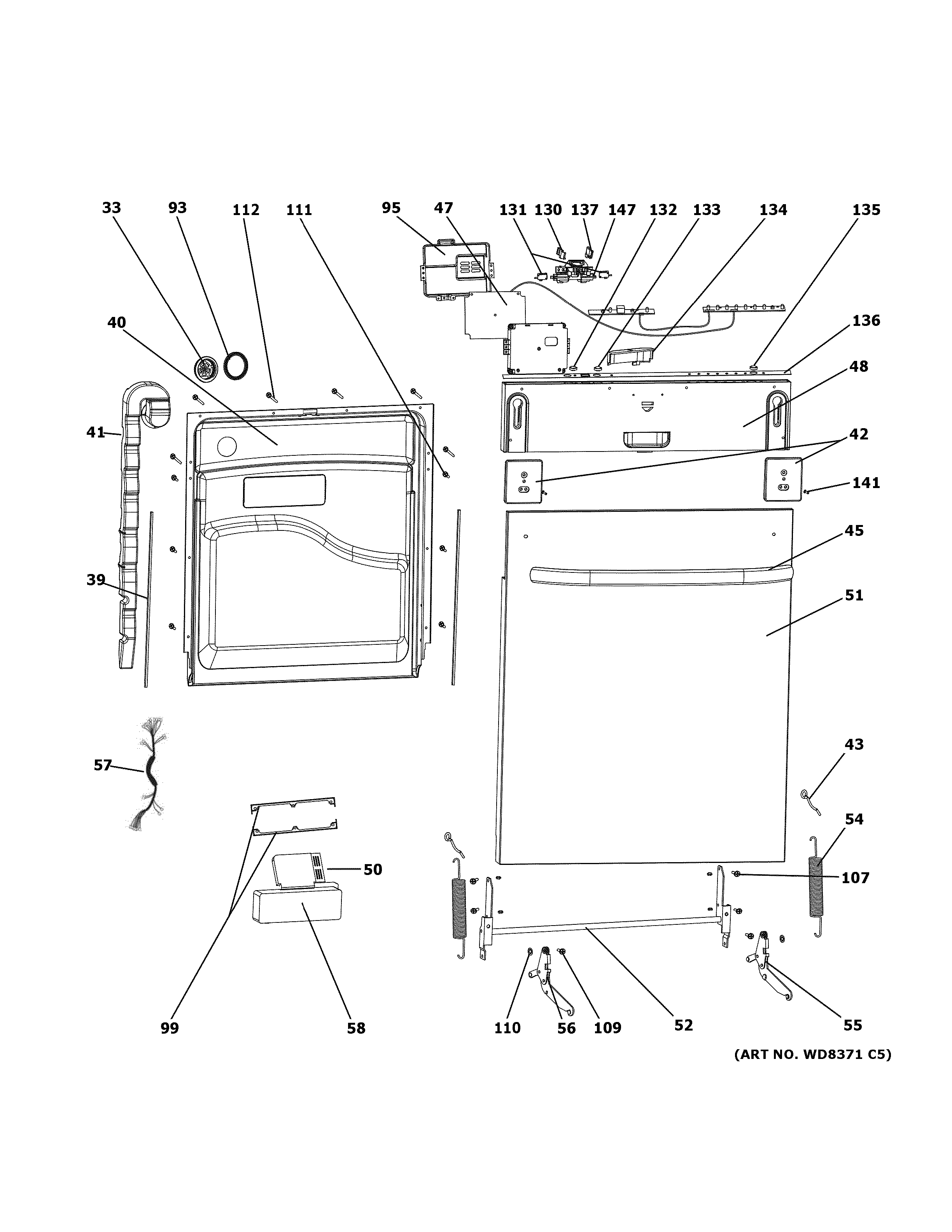

Escutcheon & door assembly diagram

Dishwasher door latch assembly

Part #WD13X10046

Replaced by #WD13X23417

?
Manufacturer substitution
This part replaces WD13X10046. Substitute parts can look different from the original.
$78.96 |
7% OFF Phone Price : $84.96
In Stock
Dishwasher Circulation Pump WD26X10050
#15

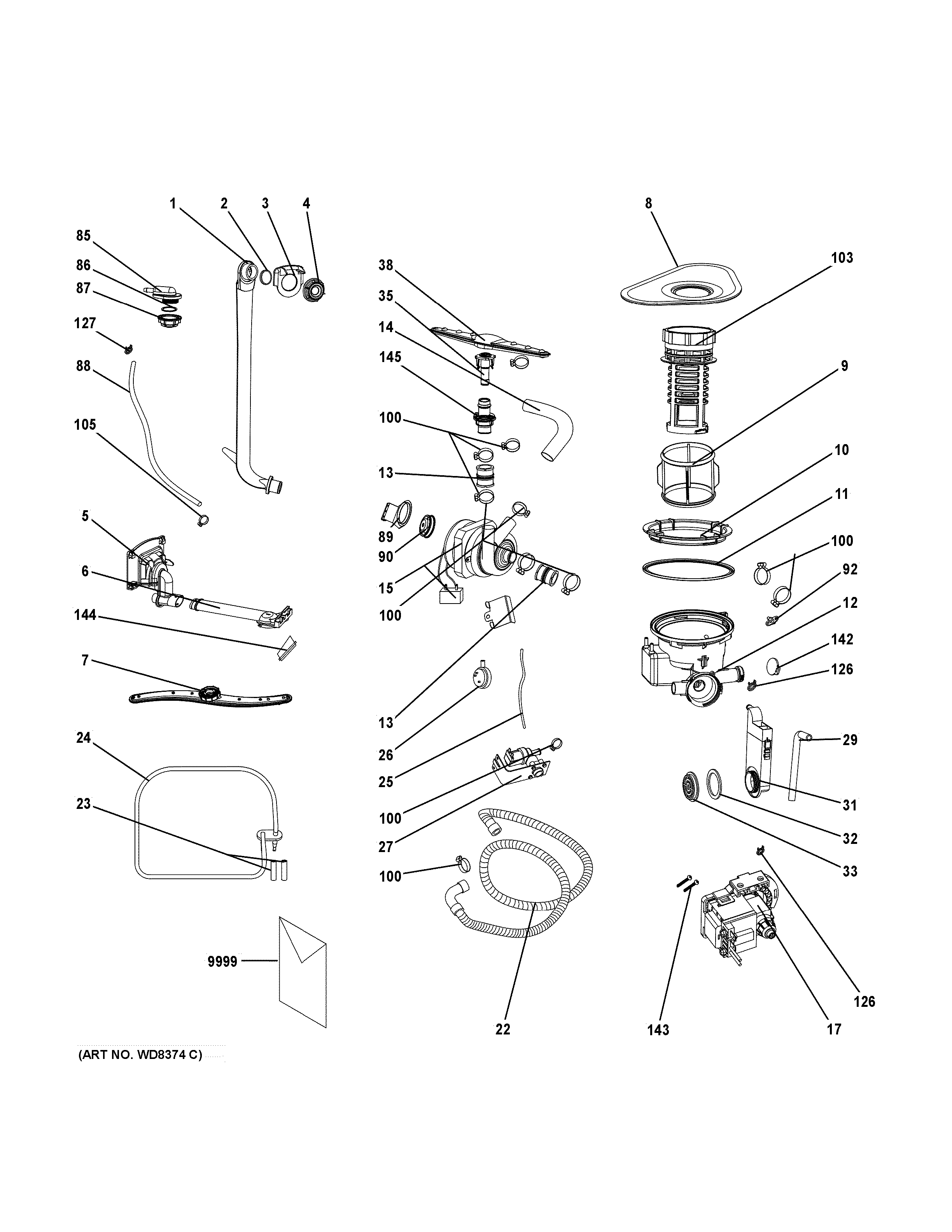

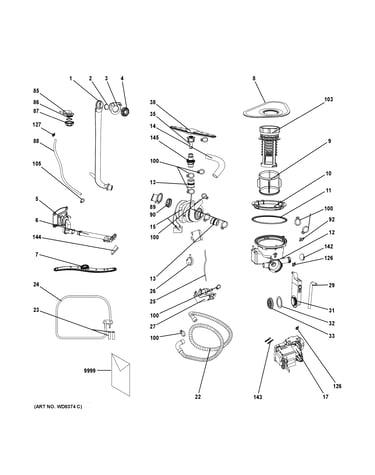

Motor-pump mechanism diagram

Dishwasher circulation pump

Part #WD26X10050

$159.77 |
9% OFF Was : $175.95
In Stock
Dishwasher Drain Pump WD26X10049
#17

Motor-pump mechanism diagram

Dishwasher drain pump

Part #WD26X10049

$69.47 |
8% OFF Phone Price : $75.47
In Stock
