Model # KGCT305EWH0 Official KitchenAid 30" gas glass surface cooktop
Here are the diagrams and repair parts for Official KitchenAid KGCT305EWH0 30" gas glass surface cooktop, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
KGCT305EWH0 Cooktops
#2A

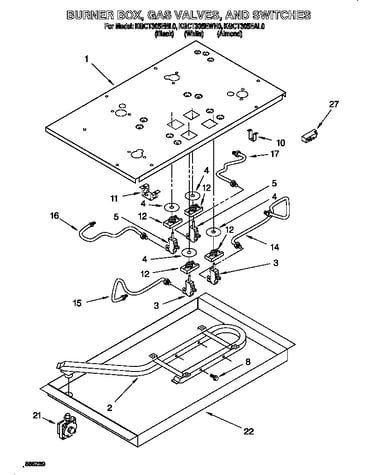

Burner box, gas valves and switches diagram
Screw
Part #3148107
Replaced by #WP488729
?
Manufacturer substitution
This part replaces 3148107. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
#4
Sealed gas burner asm diagram
Range surface burner igniter
Part #3185804
Replaced by #WP3185804
?
Manufacturer substitution
This part replaces 3185804. Substitute parts can look different from the original.
This item is not returnable
$34.99 |
15% OFF Phone Price : $40.99
In Stock
#2B

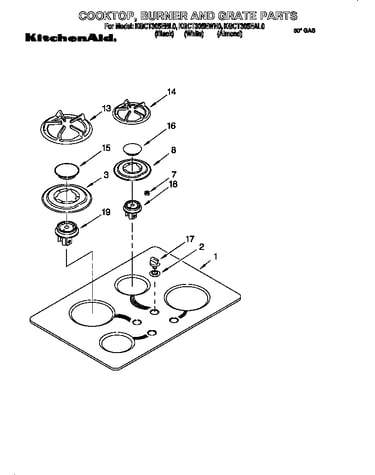

Cooktop, burner and grate diagram
Grommet-bl
Part #3180079
Replaced by #W10854242
?
Manufacturer substitution
This part replaces 3180079. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
#NI
All parts diagram
Wire tie
Part #535183
Replaced by #WPW10339879
?
Manufacturer substitution
This part replaces 535183. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
#27
Burner box, gas valves and switches diagram
Spark module
Part #3186493
Replaced by #WP8053421
?
Manufacturer substitution
This part replaces 3186493. Substitute parts can look different from the original.
$117.02 |
9% OFF Phone Price : $129.02
In Stock
#2B
Burner box, gas valves and switches diagram
Washer
Part #4166436
Replaced by #WP3188425
?
Manufacturer substitution
This part replaces 4166436. Substitute parts can look different from the original.
$32.89 |
15% OFF Phone Price : $38.89
In Stock
#NI
All parts diagram
Cooktop bracket
Part #3183401
Replaced by #8186533
?
Manufacturer substitution
This part replaces 3183401. Substitute parts can look different from the original.
$32.89 |
15% OFF Phone Price : $38.89
In Stock
#4
Burner box, gas valves and switches diagram
Gasket switch
Part #3188425
Replaced by #WP3188425
?
Manufacturer substitution
This part replaces 3188425. Substitute parts can look different from the original.
$32.89 |
15% OFF Phone Price : $38.89
In Stock
Range screw
Part #3177991
Replaced by #WP3177991
?
Manufacturer substitution
This part replaces 3177991. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
#17A
Cooktop, burner and grate diagram
Range burner control knob
Part #3182568
Replaced by #WP3182568
?
Manufacturer substitution
This part replaces 3182568. Substitute parts can look different from the original.
This item is not returnable
$22.35 |
21% OFF Phone Price : $28.35
In Stock
Most common symptoms to help you fix your cooktops
Choose a symptom to see related cooktop repairs.
Main causes: lack of electrical power, gas supply failure, bad pressure regulator, control system failure…
Repair guides for gas cooktops
How to replace a spark igniter switch on a gas cooktop
Follow these step-by-step instructions to fix the surface burner ignition system on your gas cooktop by replacing the sp…
Repair difficulty
Time required
45 minutes or less
How to replace a spark module on a gas cooktop
No flame on your gas cooktop? Installing a new spark module could be the fix you need.…
Repair difficulty
Time required
30 minutes or less
Effective articles & videos to help repair your cooktops
Use the advice and tips in these articles and videos to get the most out of your cooktop.
Get tips on completing essential holiday cleaning tasks to brighten your home.…
Learn how to repair broken, frayed or damaged wires in your appliances.…
These common questions can help you make the most of your cooktop.…
