Model # 917253715-1980 Official Craftsman lawn tractor
Here are the diagrams and repair parts for Official Craftsman 917253715-1980 lawn tractor, as well as links to manuals and error code tables, if available.
By Schematic
By Part

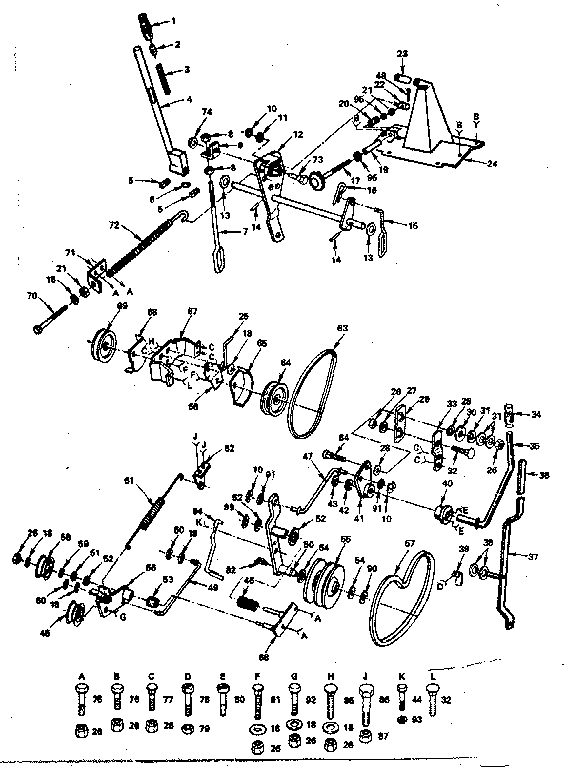

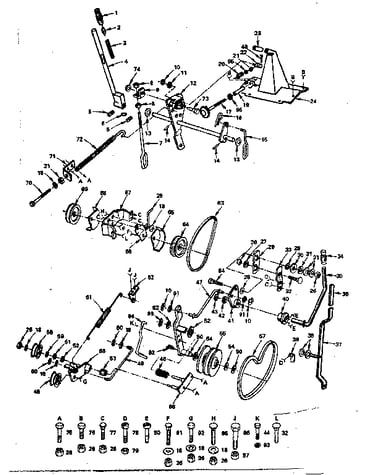

SELECT DIAGRAM
Browse Parts for
917253715-1980 Riding Mowers & Tractors
#84

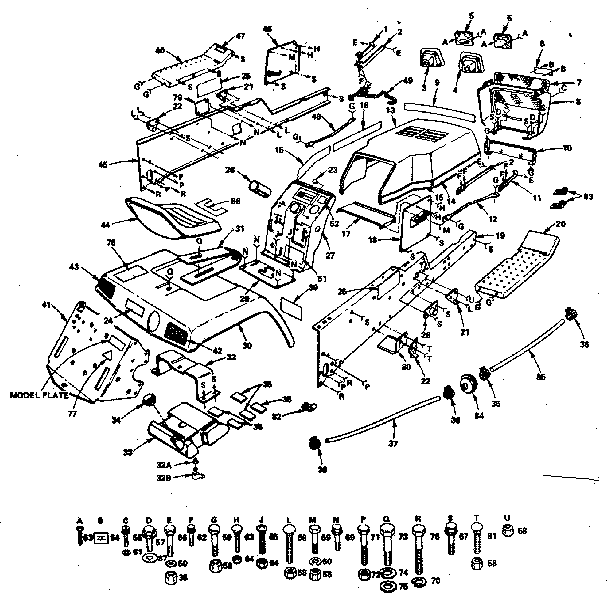

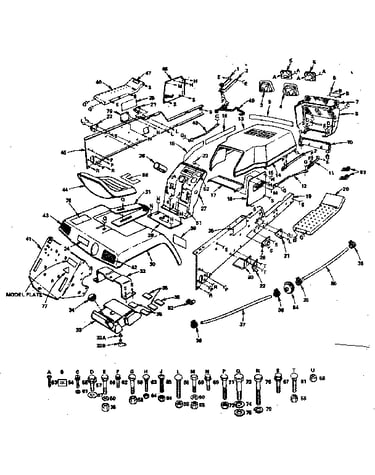

Chassis, fender and dashboard diagram
Filter
Part #2887J
Replaced by #84001895
?
Manufacturer substitution
This part replaces 2887J. Substitute parts can look different from the original.
$9.57 |
9% OFF Phone Price : $10.57
In Stock
#3

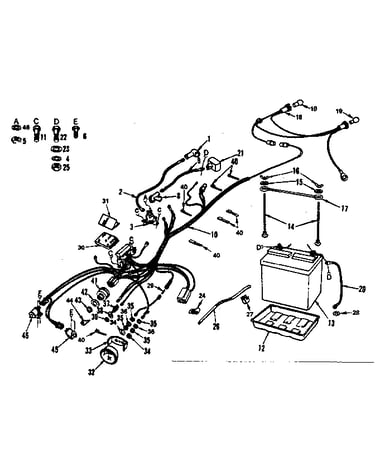

Electrical diagram
Solenoid
Part #2008J
Replaced by #532146154
?
Manufacturer substitution
This part replaces 2008J. Substitute parts can look different from the original.
$28.33 |
17% OFF Phone Price : $34.33
In Stock
#9

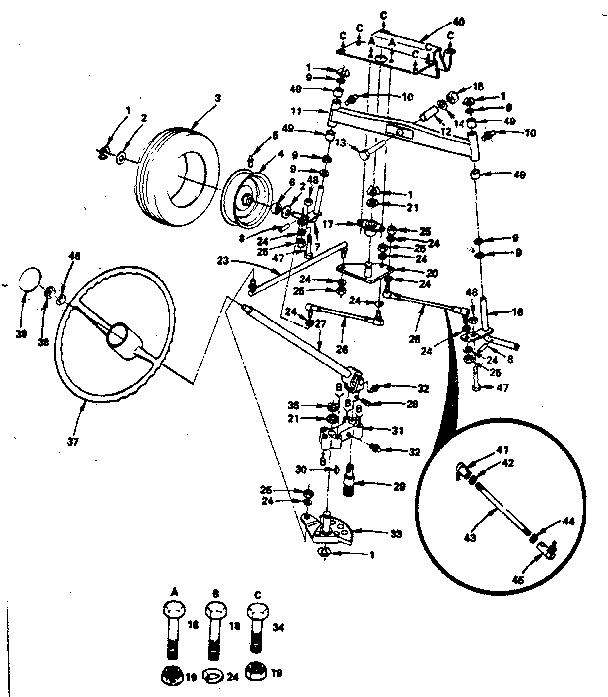

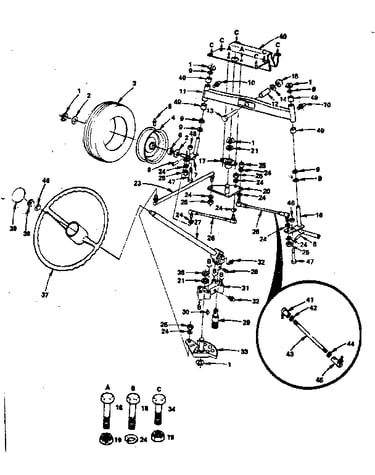

Steering diagram
Hardened race thrust bearing
Part #6266H
Replaced by #532006266
?
Manufacturer substitution
This part replaces 6266H. Substitute parts can look different from the original.
$9.44 |
10% OFF Phone Price : $10.44
In Stock
#32A
Chassis, fender and dashboard diagram
Gas outlet bushing
Part #3645J
Replaced by #532003645
?
Manufacturer substitution
This part replaces 3645J. Substitute parts can look different from the original.
This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
#34
Chassis, fender and dashboard diagram
Cap
Part #4609J
Replaced by #581075501
?
Manufacturer substitution
This part replaces 4609J. Substitute parts can look different from the original.
$33.20 |
15% OFF Phone Price : $39.20
In Stock

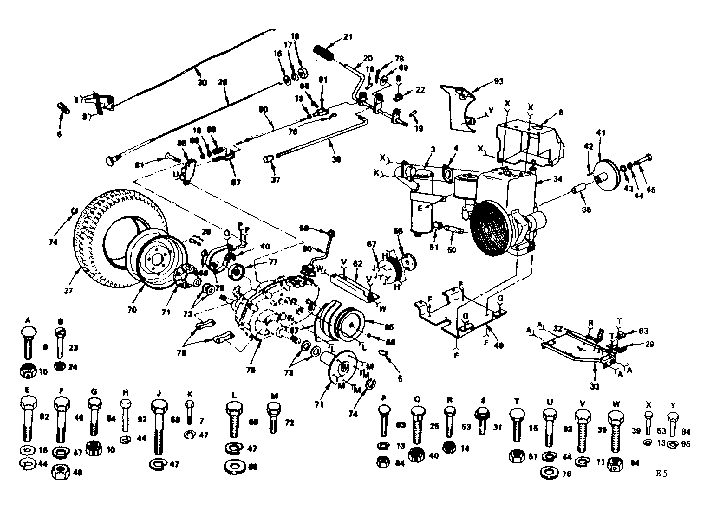

#74

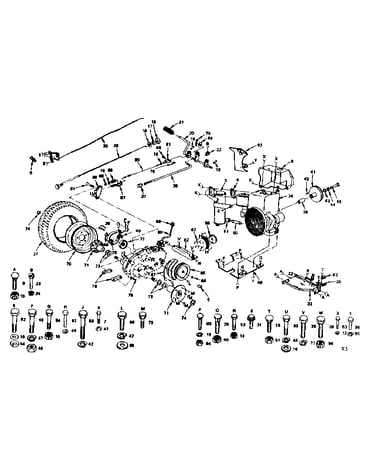

Clutch - brake diagram
Ring
Part #5027P
Replaced by #812000029
?
Manufacturer substitution
This part replaces 5027P. Substitute parts can look different from the original.
This item is not returnable
$4.51 |
18% OFF Phone Price : $5.51
In Stock
Nut
Part #545P
Replaced by #596322601
?
Manufacturer substitution
This part replaces 545P. Substitute parts can look different from the original.
This item is not returnable
$5.54
In Stock
#72
Clutch - brake diagram
Hub bolt
Part #1304H
Replaced by #596218701
?
Manufacturer substitution
This part replaces 1304H. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
#6
Steering diagram
Wizard lawn tractor axle flange bearing (replaces 532009040, 5320090-40, 532124959, 577203109, 5920h, 5920h1, p-1246, p-1622)
Part #9040H
Replaced by #532009040
?
Manufacturer substitution
This part replaces 9040H. Substitute parts can look different from the original.
This item is not returnable
$9.31 |
10% OFF Phone Price : $10.31
In Stock
#1
Steering diagram
Ring
Part #5022P
Replaced by #812000029
?
Manufacturer substitution
This part replaces 5022P. Substitute parts can look different from the original.
This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
