Magic Chef
Gas Range

Model # 34JN-5TKXW Official Magic Chef gas range

Here are the diagrams and repair parts for Official Magic Chef 34JN-5TKXW gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

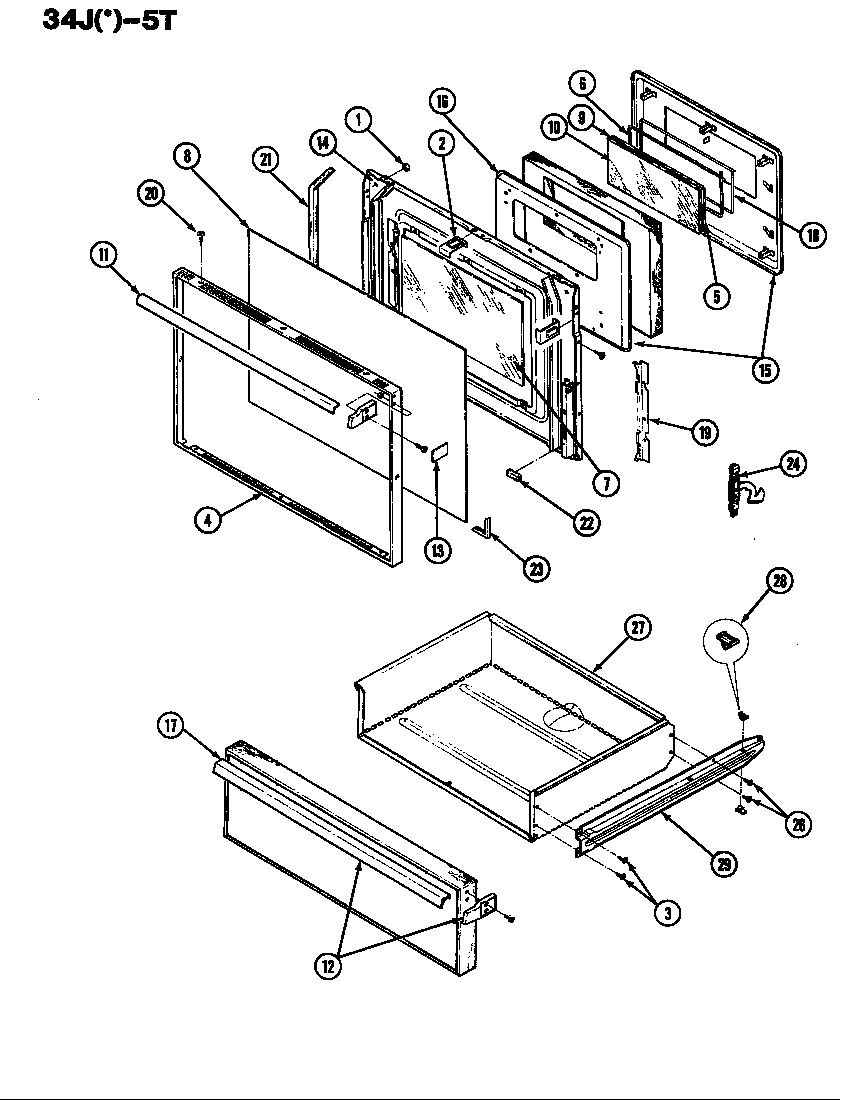

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 238 parts  |
Oven Igniter 7432P067-60
#28A

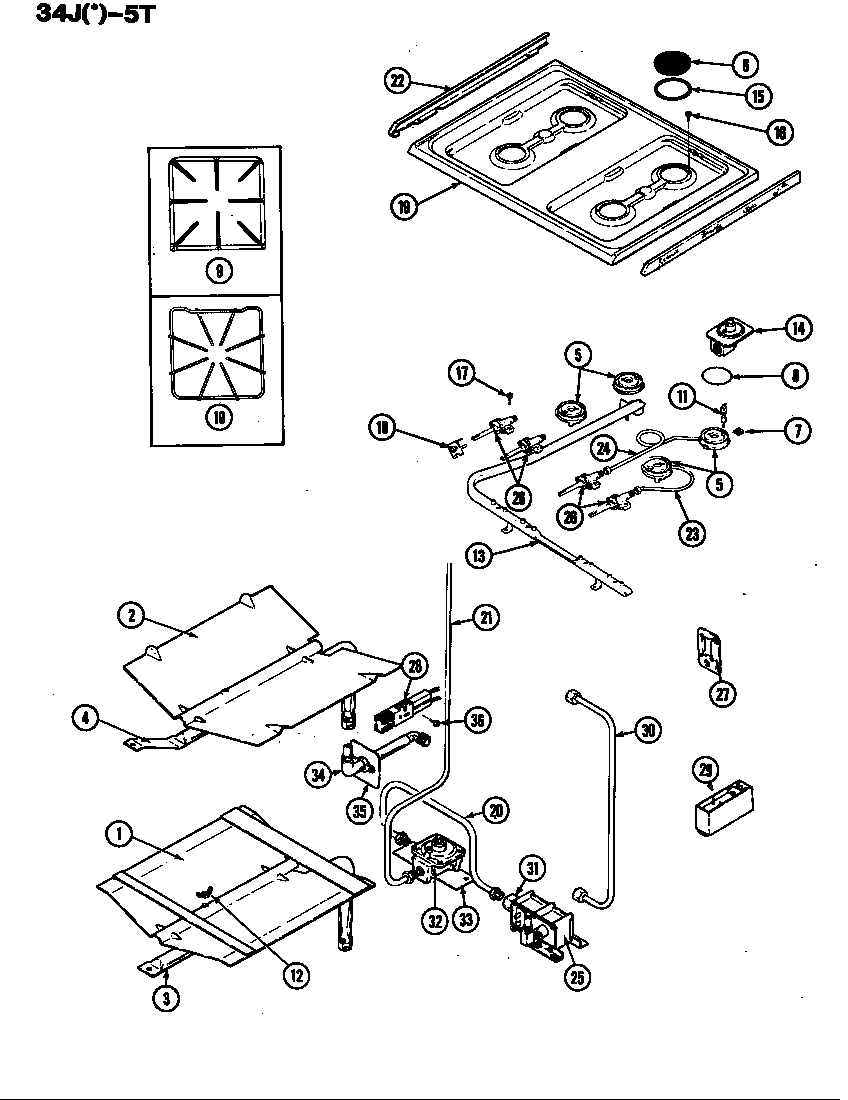

Top assy./control system diagram

Oven igniter

Part #7432P067-60

Replaced by #12400035

?
Manufacturer substitution
This part replaces 7432P067-60. Substitute parts can look different from the original.
BEST SELLER
$39.28 |
13% OFF Phone Price : $45.28
In Stock
Bake Igniter 7432P052-60
#28

Top assy./control system diagram

Bake igniter

Part #7432P052-60

Replaced by #12400035

?
Manufacturer substitution
This part replaces 7432P052-60. Substitute parts can look different from the original.
BEST SELLER
$39.28 |
13% OFF Phone Price : $45.28
In Stock
Oven Sensor 7430P007-60
#21C

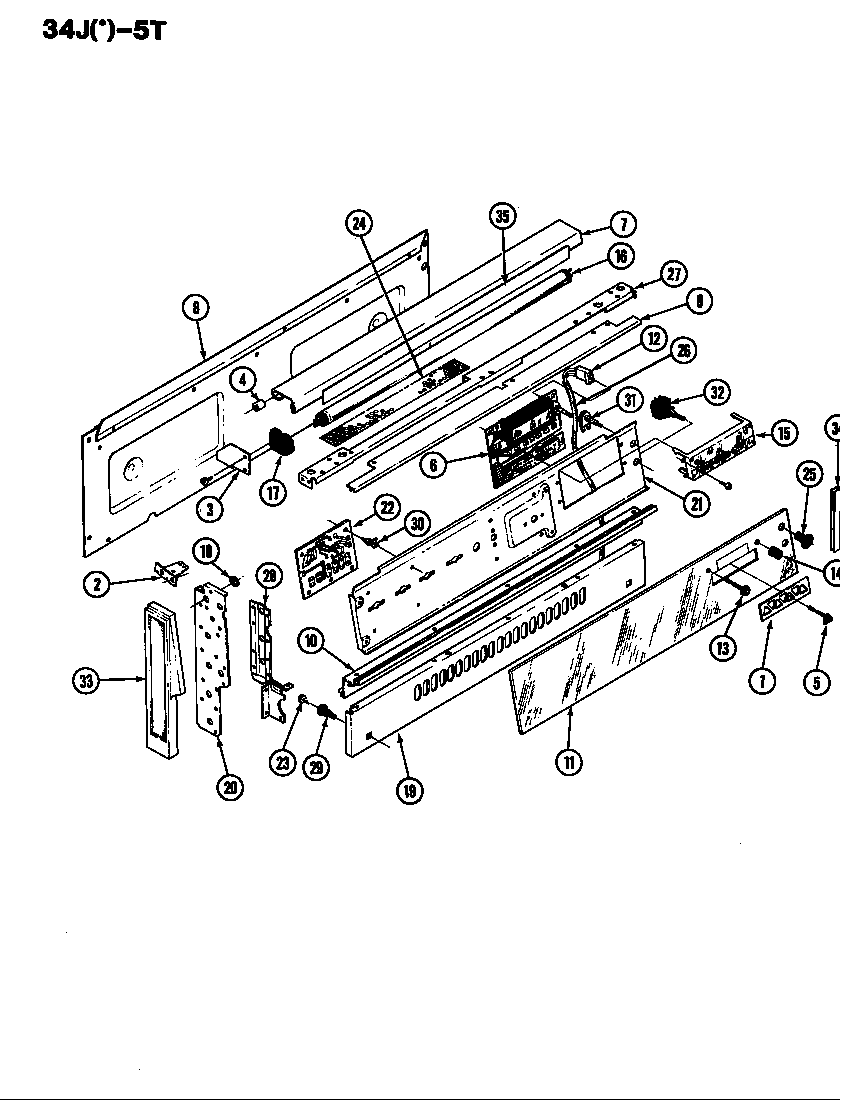

Control panel diagram

Oven sensor

Part #7430P007-60

Replaced by #12001655

?
Manufacturer substitution
This part replaces 7430P007-60. Substitute parts can look different from the original.
BEST SELLER
$31.35 |
16% OFF Phone Price : $37.35
In Stock
Oven Probe 7430P004-60
Oven probe

Part #7430P004-60

Replaced by #12001655

?
Manufacturer substitution
This part replaces 7430P004-60. Substitute parts can look different from the original.
BEST SELLER
$31.35 |
16% OFF Phone Price : $37.35
In Stock
Oven Probe 7430P009-60
#21D

Control panel diagram

Oven probe

Part #7430P009-60

Replaced by #12001655

?
Manufacturer substitution
This part replaces 7430P009-60. Substitute parts can look different from the original.
BEST SELLER
$31.35 |
16% OFF Phone Price : $37.35
In Stock
Panel Screw 7101P041-60
#23

Control panel diagram

Panel screw

Part #7101P041-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P041-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Spark Module 7431P017-60
Spark module

Part #7431P017-60

Replaced by #12001596

?
Manufacturer substitution
This part replaces 7431P017-60. Substitute parts can look different from the original.
$70.36 |
8% OFF Phone Price : $76.36
In Stock
Screw 7101P282-60
#36

Top assy./control system diagram

Screw

Part #7101P282-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P282-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Screw 7101P018-60
#49

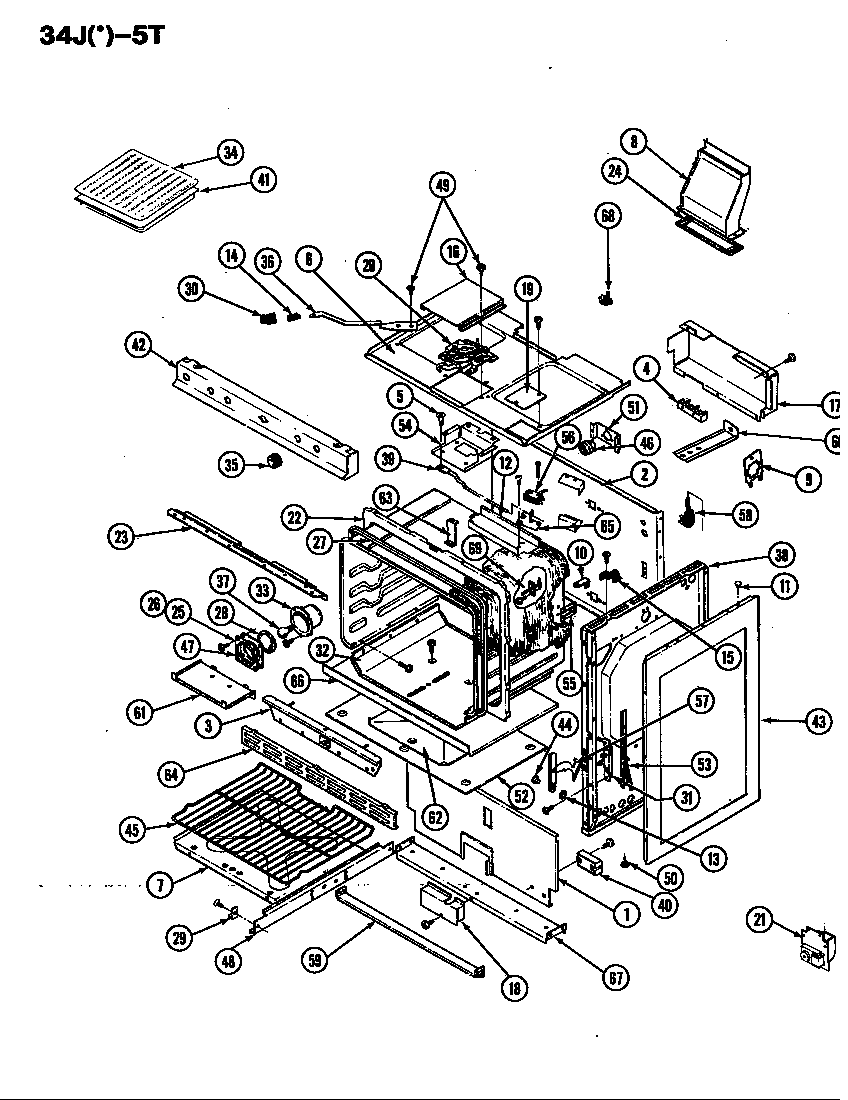

Body diagram

Screw

Part #7101P018-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P018-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
"bracket, Ant" 3801F218-51
#60A

Body diagram

"bracket, ant"

Part #3801F218-51

Replaced by #WP3801F656-51

?
Manufacturer substitution
This part replaces 3801F218-51. Substitute parts can look different from the original.
This item is not returnable
$5.03 |
17% OFF Phone Price : $6.03
In Stock
