Thermador
Range

Model # PDR364GDZS/06 Official Thermador range

Here are the diagrams and repair parts for Official Thermador PDR364GDZS-06 range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

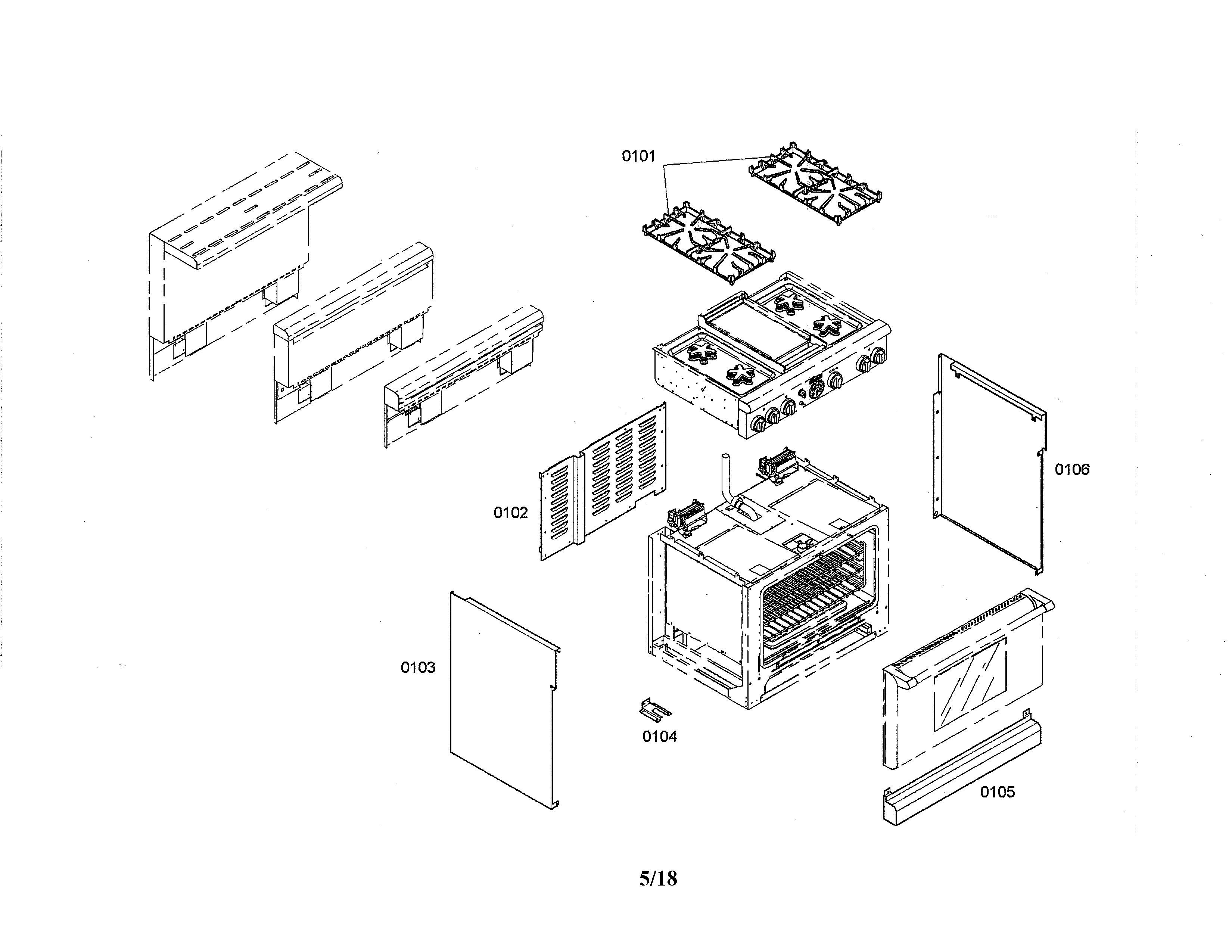

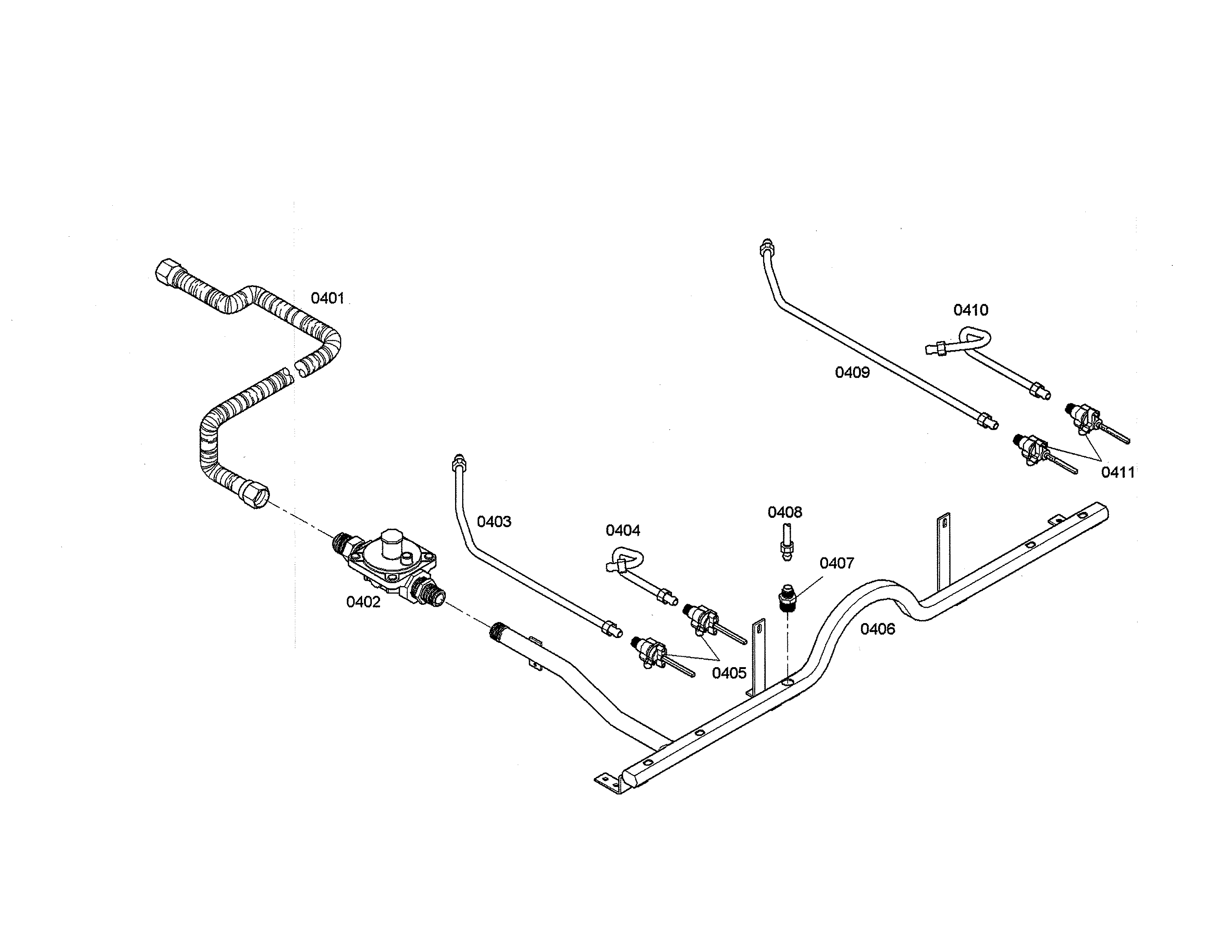

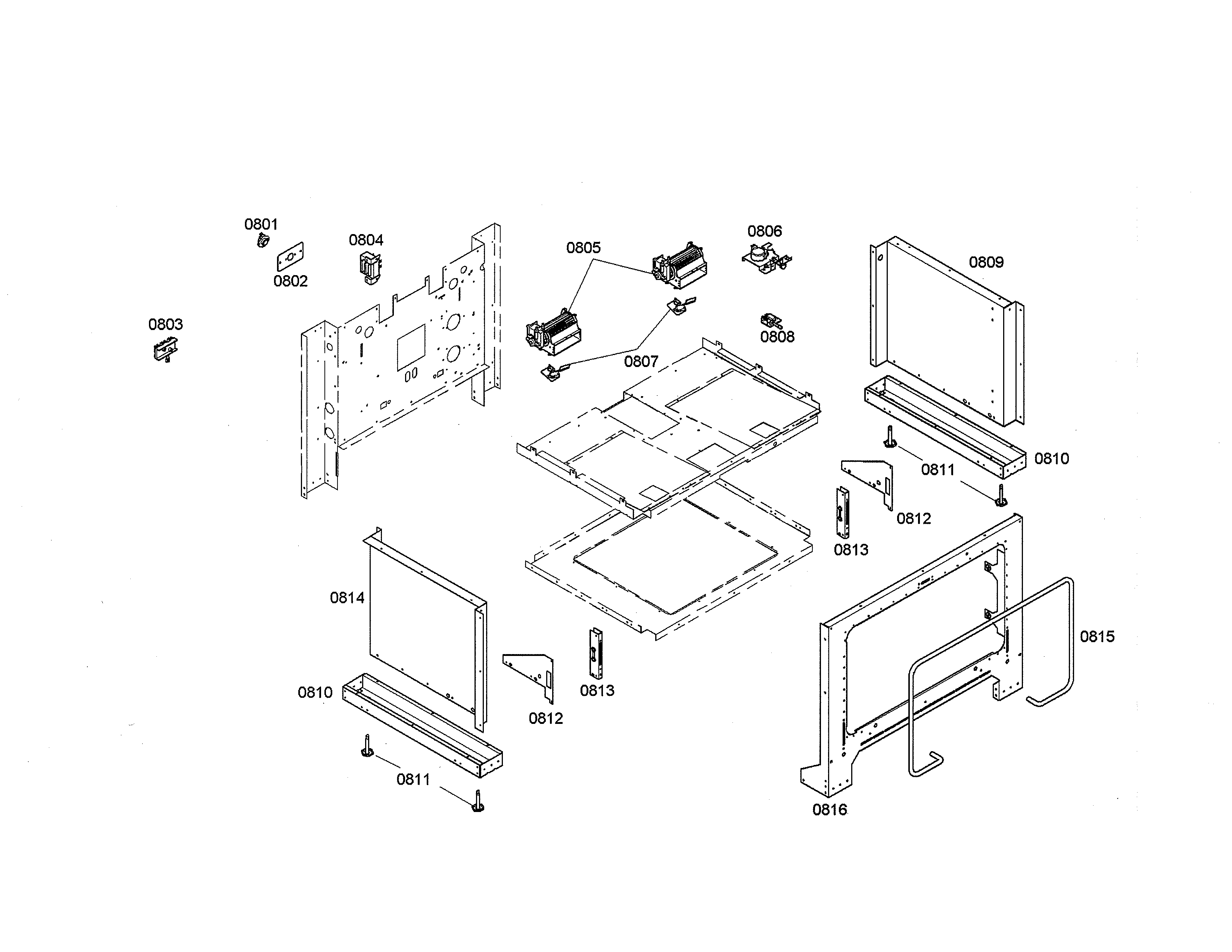

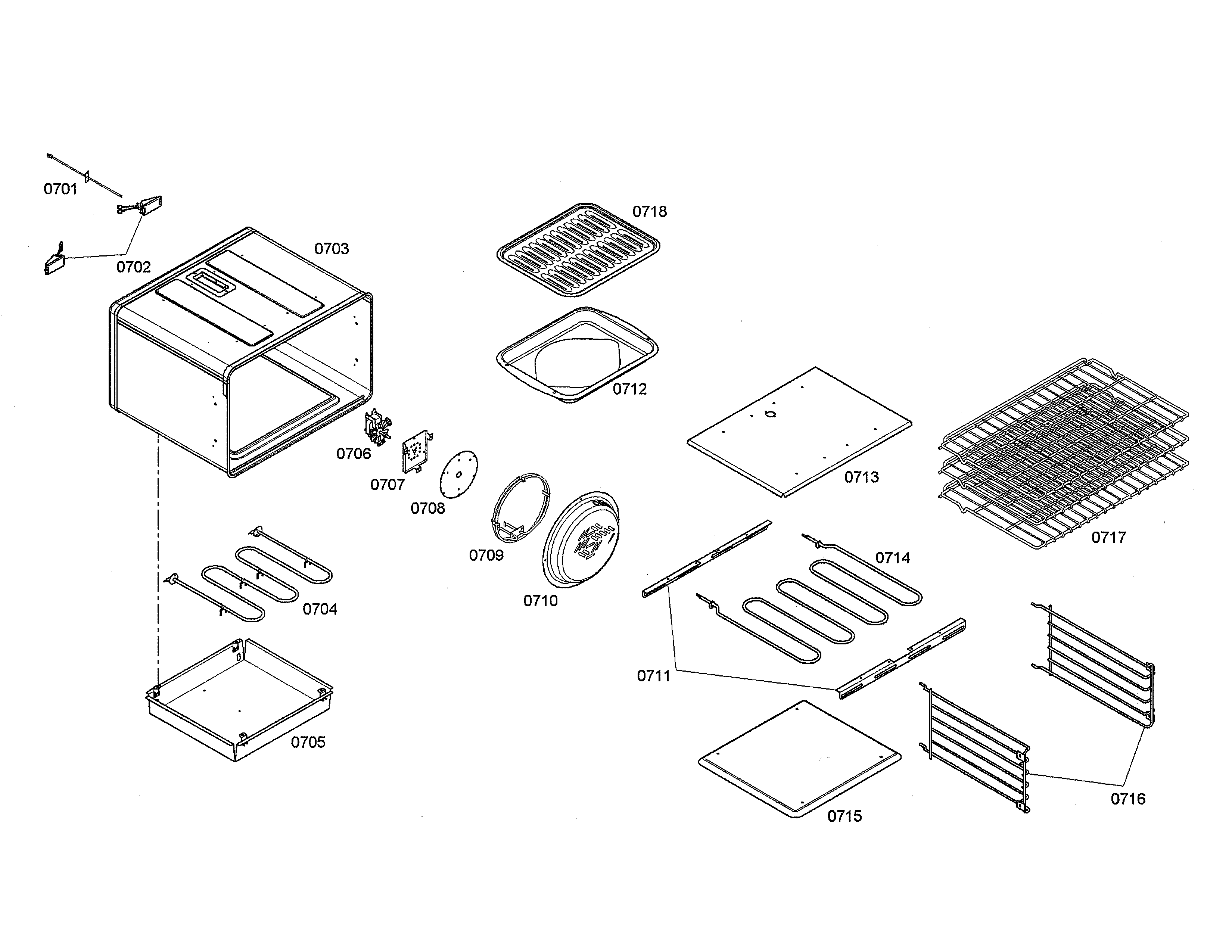

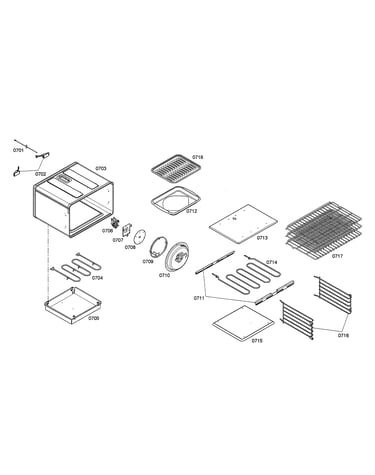

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 124 parts  |
Range Nut, 1-mm, 22-tpi 00188978
#309

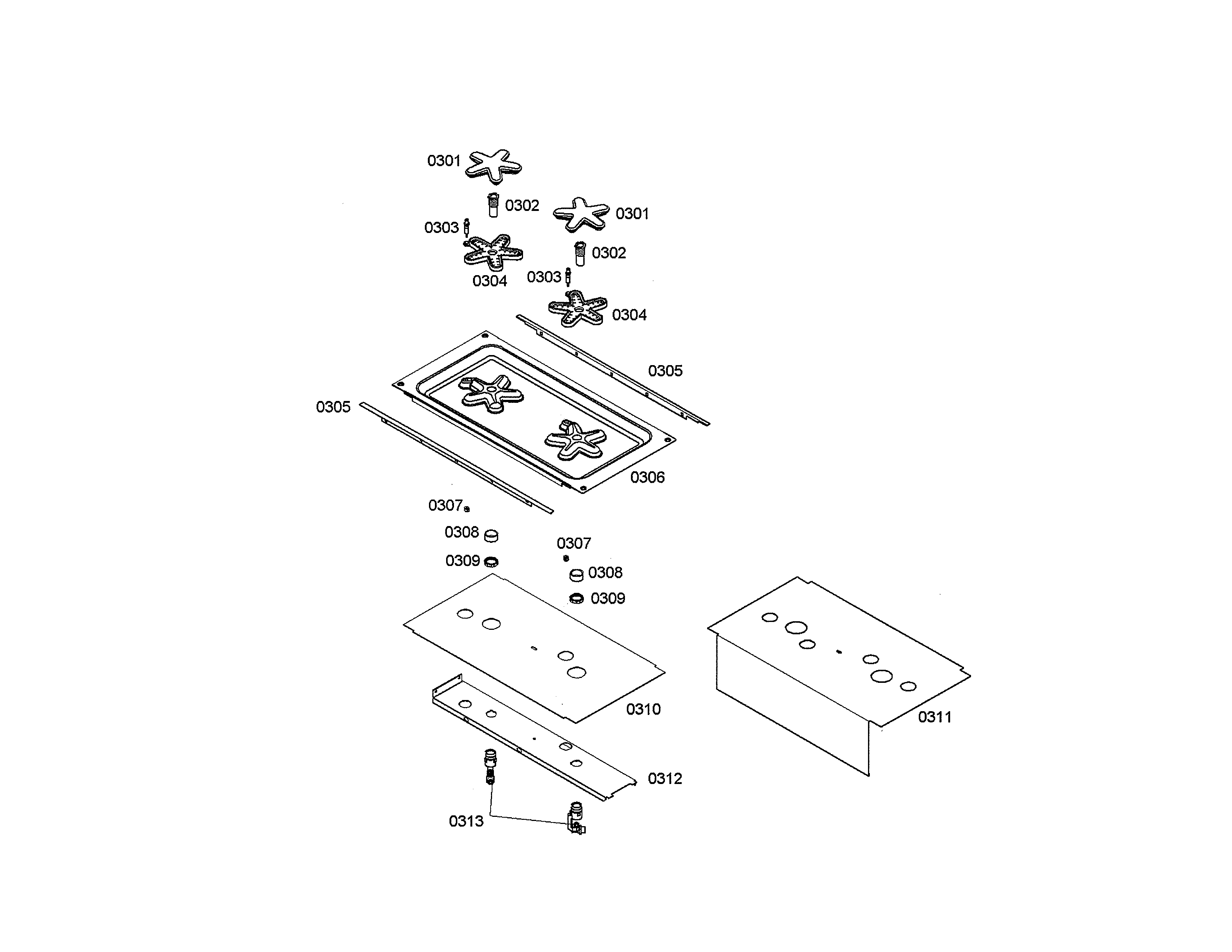

Burner caps/starburner w/igniter diagram

Range nut, 1-mm, 22-tpi

Part #00188978

$20.59 |
23% OFF Phone Price : $26.59
Back Order
Cooktop Burner Igniter (replaces 00189719, 00189773, 00189889, 00413966, 00488832, 189324, 189773) 00189324
#303

Burner caps/starburner w/igniter diagram

Cooktop burner igniter (replaces 00189719, 00189773, 00189889, 00413966, 00488832, 189324, 189773)

Part #00189324

$35.49 |
14% OFF Phone Price : $41.49
In Stock
Range Surface Burner Orifice Holder 00188976
#313

Burner caps/starburner w/igniter diagram

Range surface burner orifice holder

Part #00188976

This item is not returnable
$27.64 |
18% OFF Phone Price : $33.64
Back Order
Tube 00415133
#302

Burner caps/starburner w/igniter diagram

Tube

Part #00415133

Replaced by #00189023

?
Manufacturer substitution
This part replaces 00415133. Substitute parts can look different from the original.
$35.49 |
14% OFF Phone Price : $41.49
In Stock
Range Power Control Board 00709785
#602

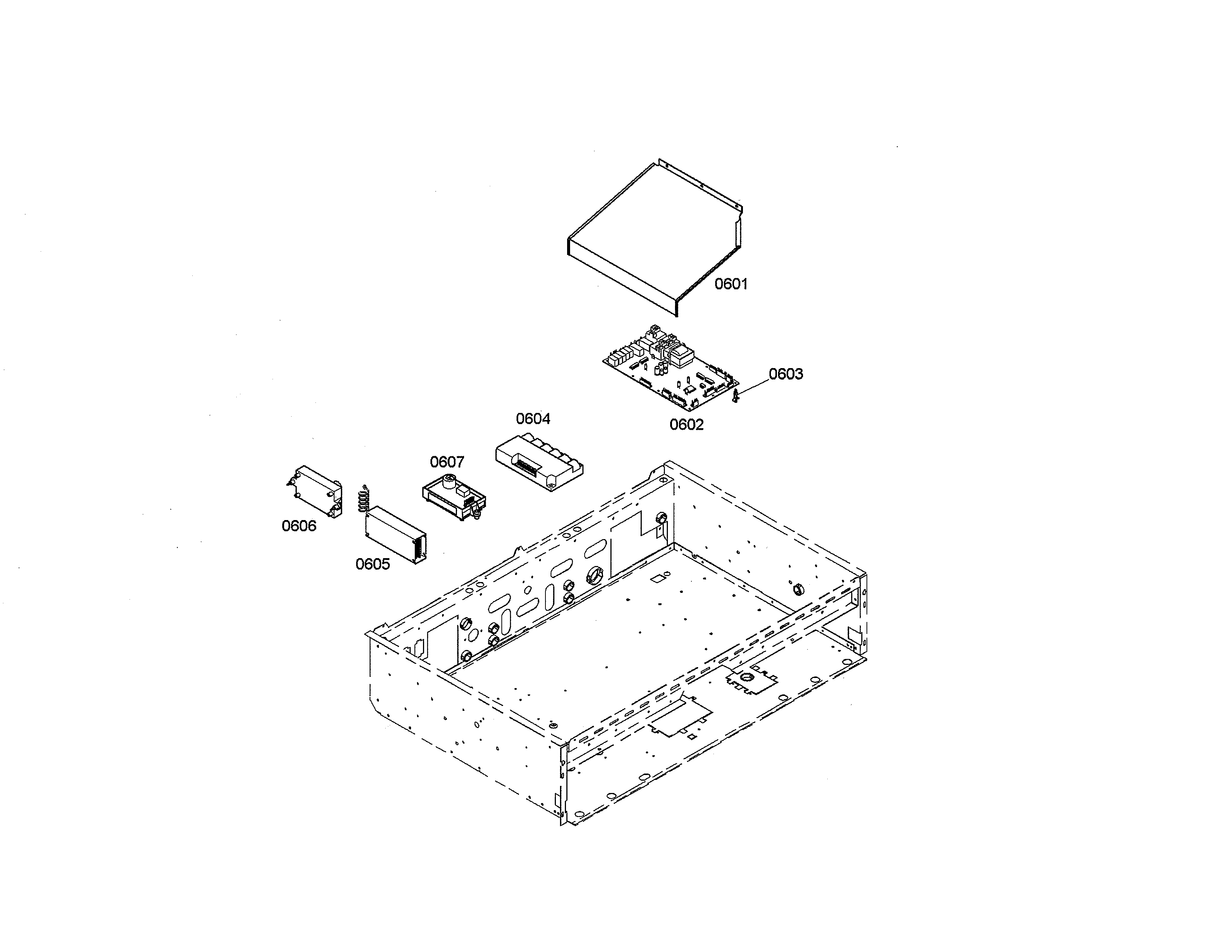

Pc board/ignitor diagram

Range power control board

Part #00709785

This item is not returnable
$338.55 |
$12.00 OFF Phone Price : $350.55
In Stock
Range Knob 00419038
#219

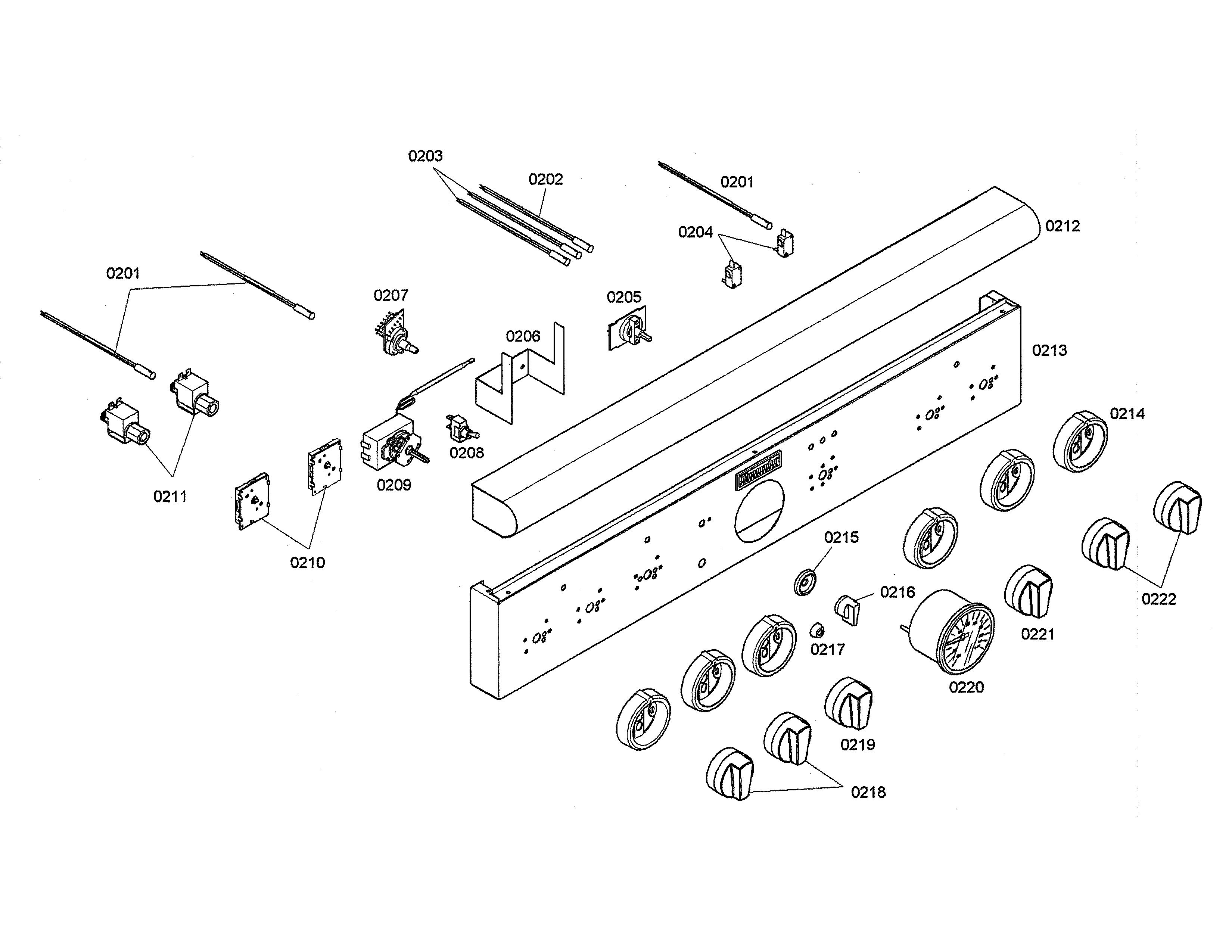

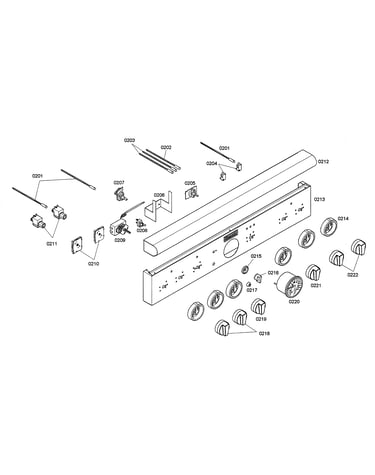

Facia panel/knobs/thermostat diagram

Range knob

Part #00419038

$26.58
In Stock
Bracket 00418879
#950

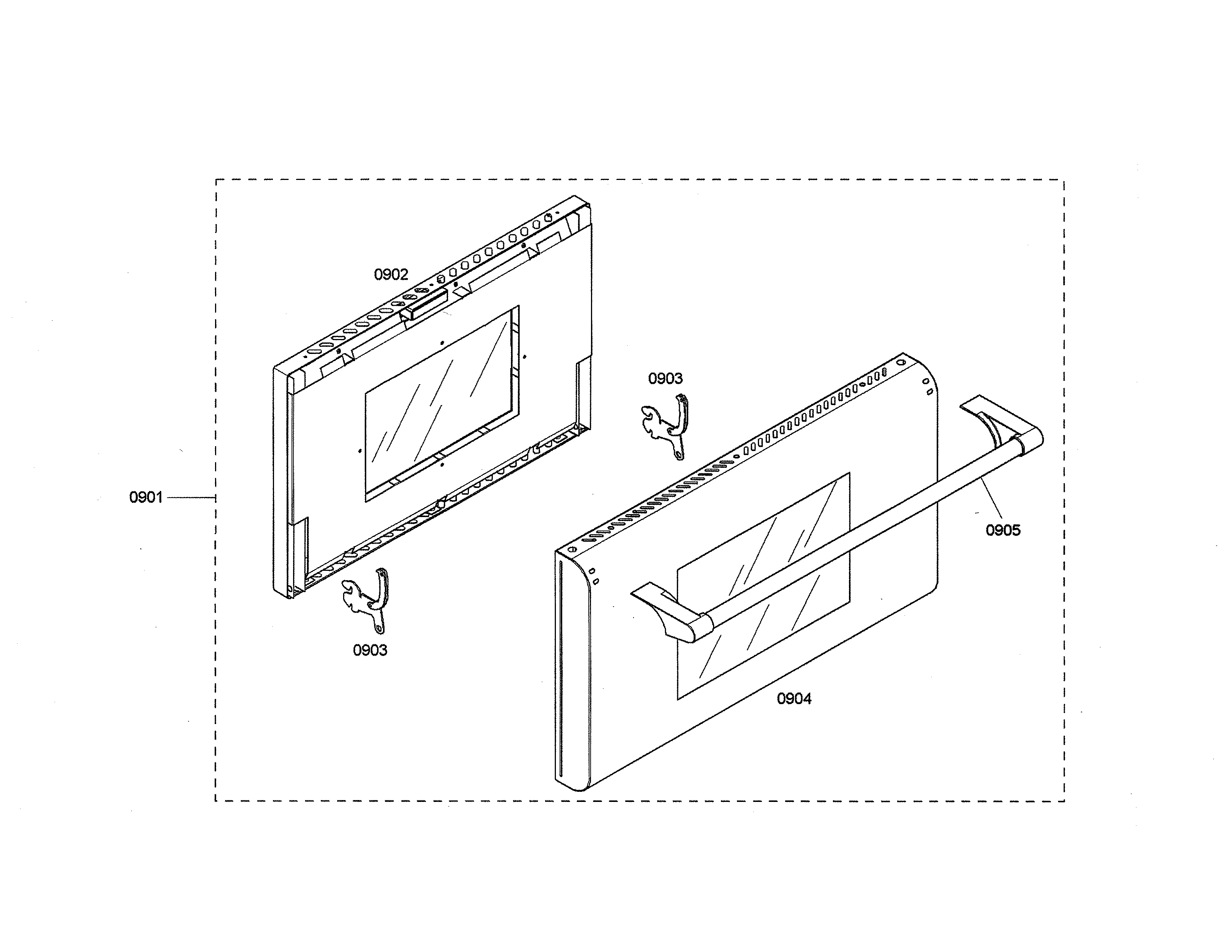

Door diagram

Bracket

Part #00418879

$38.42
In Stock
Range Griddle Gas Control Valve 00418064
#512

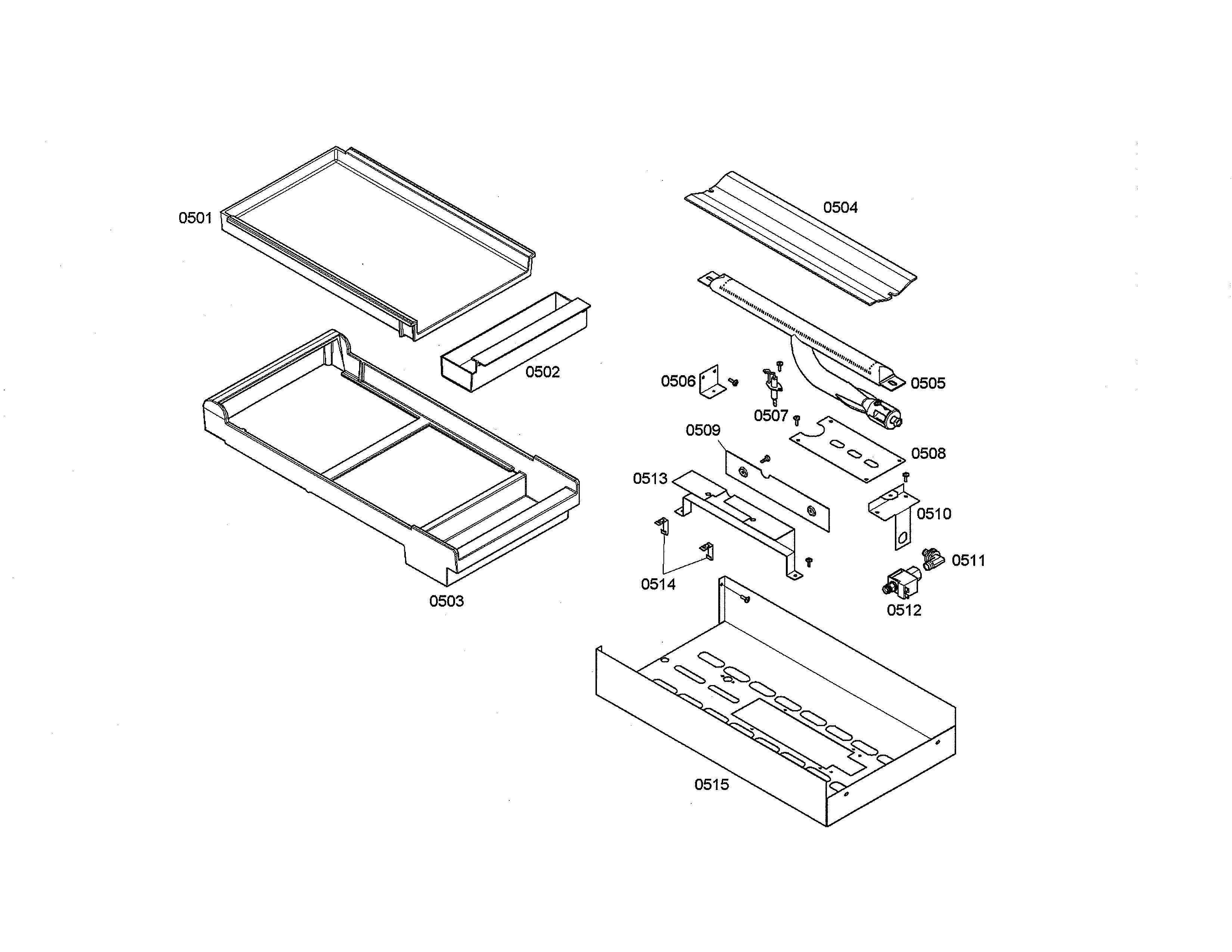

Griddle frame/heat shield box diagram

Range griddle gas control valve

Part #00418064

$187.14
In Stock
Range Surface Burner Igniter Switch (replaces 00189885, 00413944, 00415094, 00421651, 428049) 00428049
#204

Facia panel/knobs/thermostat diagram

Range surface burner igniter switch (replaces 00189885, 00413944, 00415094, 00421651, 428049)

Part #00428049

$15.83 |
11% OFF Phone Price : $17.83
In Stock
Range Surface Burner Knob 00419035
#222

Facia panel/knobs/thermostat diagram

Range surface burner knob

Part #00419035

$26.44
In Stock
