Model # 229960440 Official Kenmore gas-fired cast iron hot water boiler

Here are the diagrams and repair parts for Official Kenmore 229960440 gas-fired cast iron hot water boiler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 157 parts  |
Thermostat 42-9237
#5A

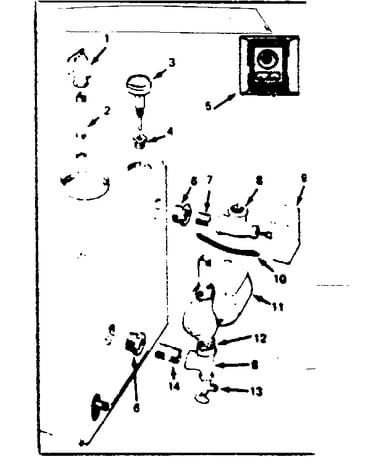

Boiler controls diagram

Thermostat

Part #42-9237

Replaced by #1E30N-910

?
Manufacturer substitution
This part replaces 42-9237. Substitute parts can look different from the original.
$81.43 |
7% OFF Phone Price : $87.43
In Stock
6 Sec Block 410-610

#NI

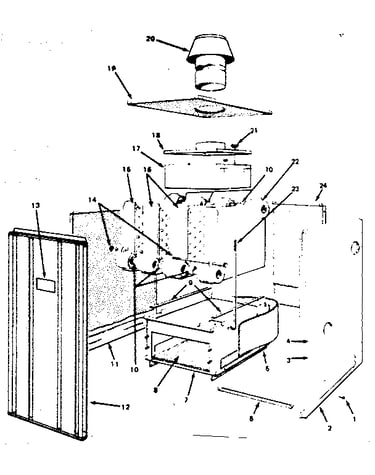

All parts diagram

6 sec block

Part #410-610

Replaced by #41000613SVC

?
Manufacturer substitution
This part replaces 410-610. Substitute parts can look different from the original.
$1264.77
In Stock
Circulator 94023
#11

Boiler controls diagram

Circulator

Part #94023

Replaced by #103251

?
Manufacturer substitution
This part replaces 94023. Substitute parts can look different from the original.
$224.79 |
5% OFF Phone Price : $236.79
In Stock
Orifice Pilot 86-212

#NI

All parts diagram

Orifice pilot

Part #86-212

The manufacturer no longer makes this part, and there's no substitute part

Burner 0314
#9

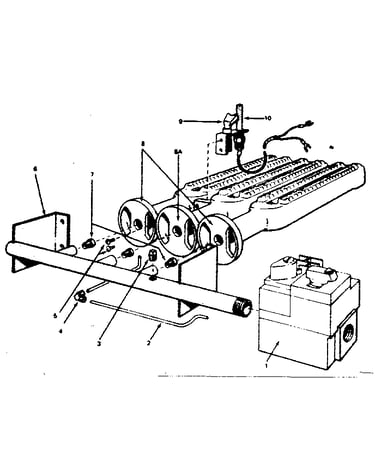

Gas burners and manifold parts diagram

Burner

Part #0314

The manufacturer no longer makes this part, and there's no substitute part

7 Sec Block 410-710

#NI

All parts diagram

7 sec block

Part #410-710

Replaced by #41000713SVC

?
Manufacturer substitution
This part replaces 410-710. Substitute parts can look different from the original.
$1464.89
In Stock
Thermopile 0313
#10

Gas burners and manifold parts diagram

Thermopile

Part #0313

Replaced by #GO1A-332

?
Manufacturer substitution
This part replaces 0313. Substitute parts can look different from the original.
$66.49
In Stock
3 Sec Block 410-310

#NI

All parts diagram

3 sec block

Part #410-310

Replaced by #410-00-313

?
Manufacturer substitution
This part replaces 410-310. Substitute parts can look different from the original.
$1353.05
In Stock
Relief Valve 8840
#1

Boiler controls diagram

Relief valve

Part #8840

Replaced by #10-408-05

?
Manufacturer substitution
This part replaces 8840. Substitute parts can look different from the original.
$44.77 |
12% OFF Phone Price : $50.77
In Stock
Thermostat 42-9235
#5

Boiler controls diagram

Thermostat

Part #42-9235

The manufacturer no longer makes this part, and there's no substitute part
