Model # 72124195S Official Kenmore vacuum

Here are the diagrams and repair parts for Official Kenmore 72124195S vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Vacuum Bag 5231FI2390J
#22

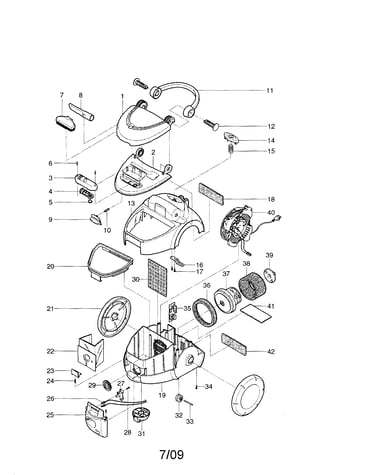

Vacuum cleaner diagram

Vacuum bag

Part #5231FI2390J

Replaced by #5231FI3779A

?
Manufacturer substitution
This part replaces 5231FI2390J. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$9.86 |
9% OFF Phone Price : $10.86
In Stock
Hook Spring 4I23028A
#9

Hose and attachments diagram

Hook spring

Part #4I23028A

This item is not returnable
$2.16
In Stock
Us Pressed Steel Screw 1TPL0402818
Us pressed steel screw

Part #1TPL0402818

This item is not returnable
$2.27
In Stock
Vacuum Screw 1TPL0302416
Vacuum screw

Part #1TPL0302416

Replaced by #1TPL0302418

?
Manufacturer substitution
This part replaces 1TPL0302416. Substitute parts can look different from the original.
$8.29
In Stock
Sweeper 5882FI2001A
#15

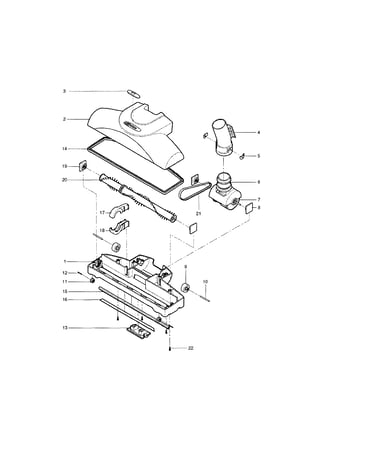

Air-turbine brush nozzle diagram

Sweeper

Part #5882FI2001A

The manufacturer no longer makes this part, and there's no substitute part

Filter Cover 3550FI1758H
#2

Vacuum cleaner diagram

Filter cover

Part #3550FI1758H

The manufacturer no longer makes this part, and there's no substitute part

Handle Cover 3550FI1511D
#5

Hose and attachments diagram

Handle cover

Part #3550FI1511D

The manufacturer no longer makes this part, and there's no substitute part

Roller Shaft 4I22094A
#33

Vacuum cleaner diagram

Roller shaft

Part #4I22094A

The manufacturer no longer makes this part, and there's no substitute part

Roller 4581FI3002A
#11

Air-turbine brush nozzle diagram

Roller

Part #4581FI3002A

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Electronic Circuit Board 6871FX2130G
#35

Vacuum cleaner diagram

Vacuum electronic circuit board

Part #6871FX2130G

The manufacturer no longer makes this part, and there's no substitute part
