Wine & Beverage Cooler

Model # ZIFS240NCSS Official GE beverage center

Here are the diagrams and repair parts for Official GE ZIFS240NCSS beverage center, as well as links to manuals and error code tables, if available.

By Schematic
By Part

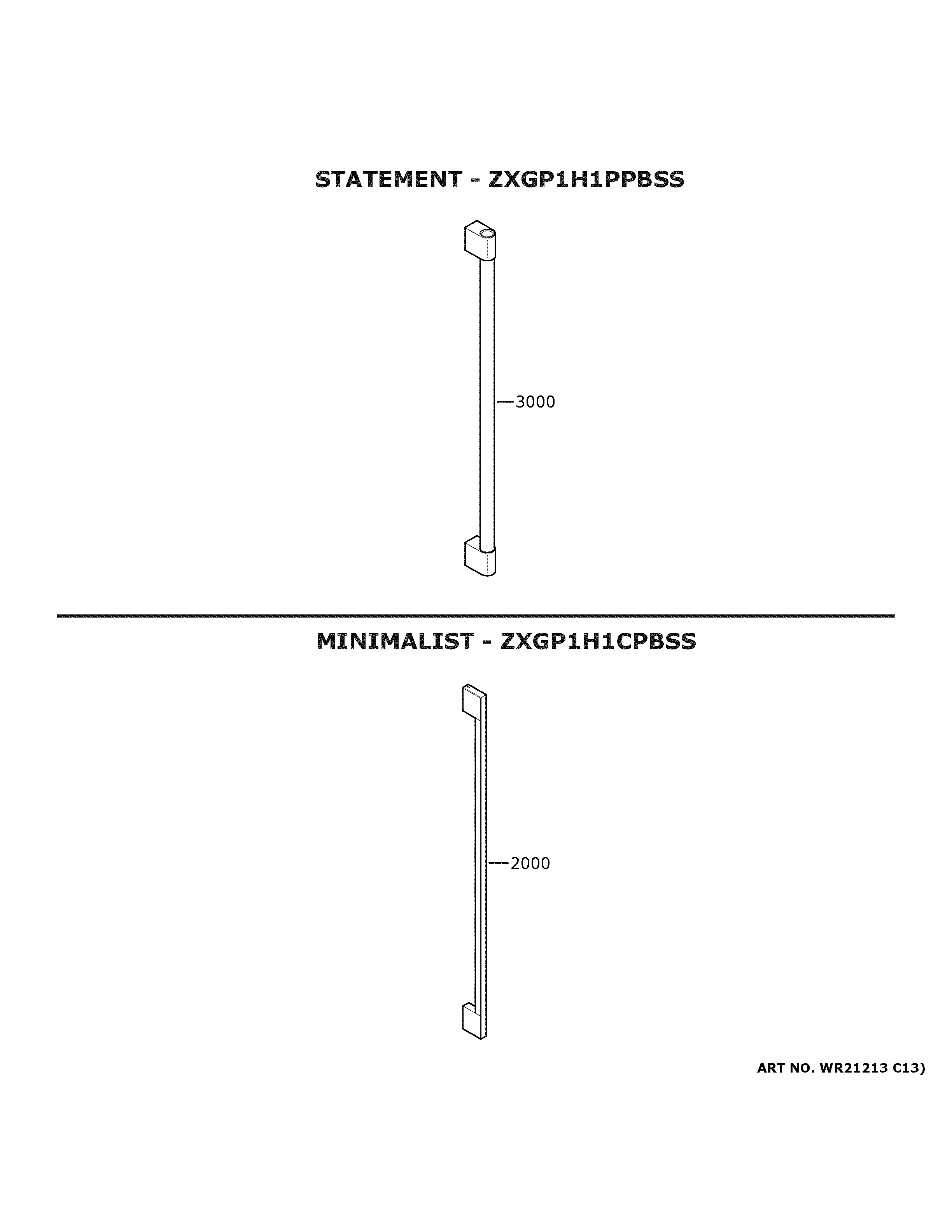

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
ZIFS240NCSS BEVERAGE CENTER
Refrigeration Appliance Evaporator Fan Motor And Blade WR60X10165
#601

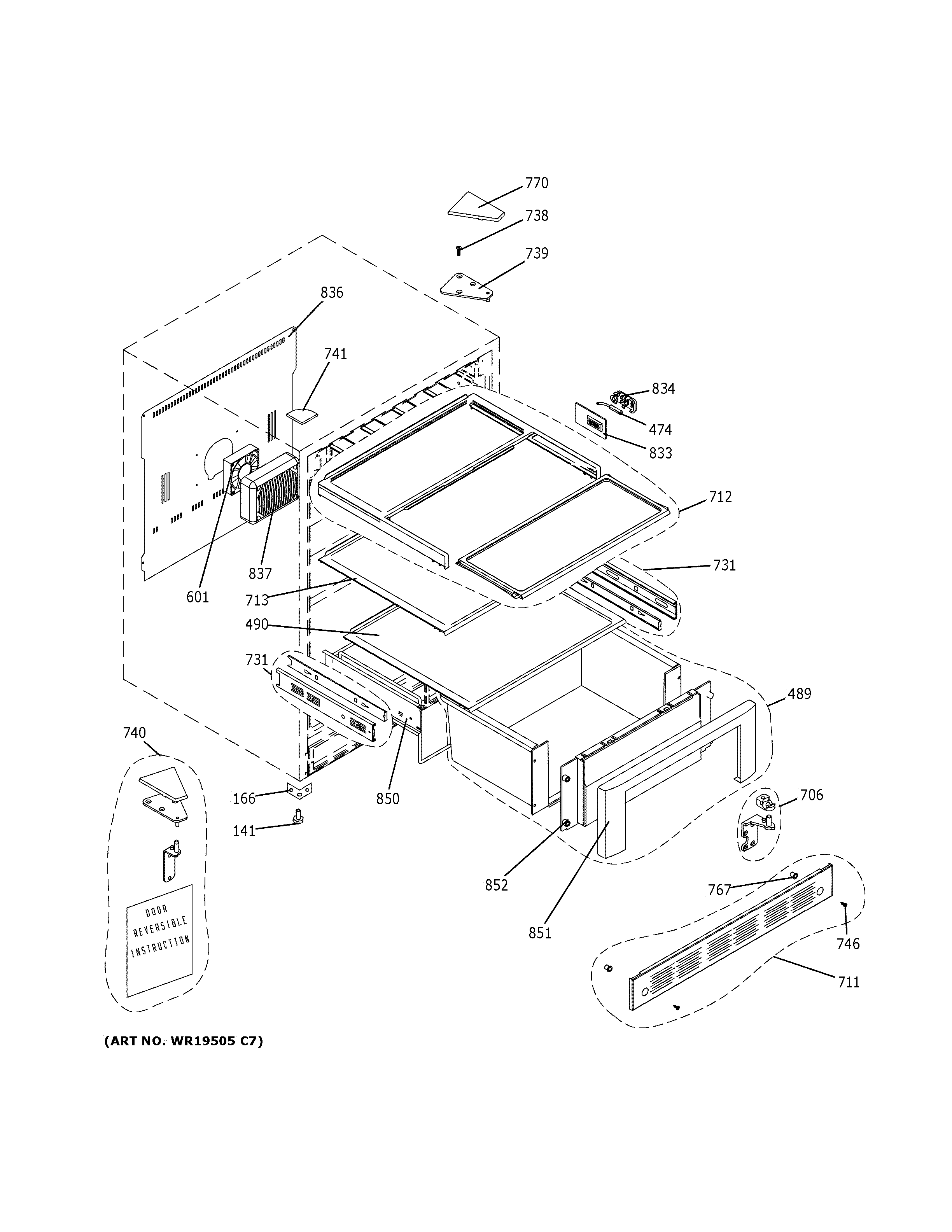

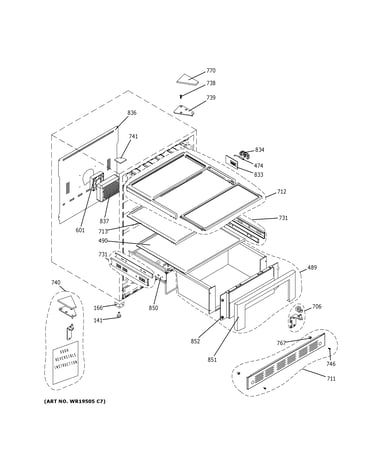

Cabinet & shelves diagram

Refrigeration appliance evaporator fan motor and blade

Part #WR60X10165

$242.01
5% OFF Phone Price : $254.01
In Stock
Wine Cooler Compressor Start Relay WR07X10072
#31

Machine compartment diagram

Wine cooler compressor start relay

Part #WR07X10072

$124.20
9% OFF Phone Price : $136.20
In Stock
Wine Cooler Run Capacitor WR62X10033
#165

Machine compartment diagram

Wine cooler run capacitor

Part #WR62X10033

$92.35
6% OFF Phone Price : $98.35
In Stock
Temperature Control WR02X11816
#834

Cabinet & shelves diagram

Temperature control

Part #WR02X11816

In Stock
Wine Cooler Door Hinge Plug WR02X11411
#171

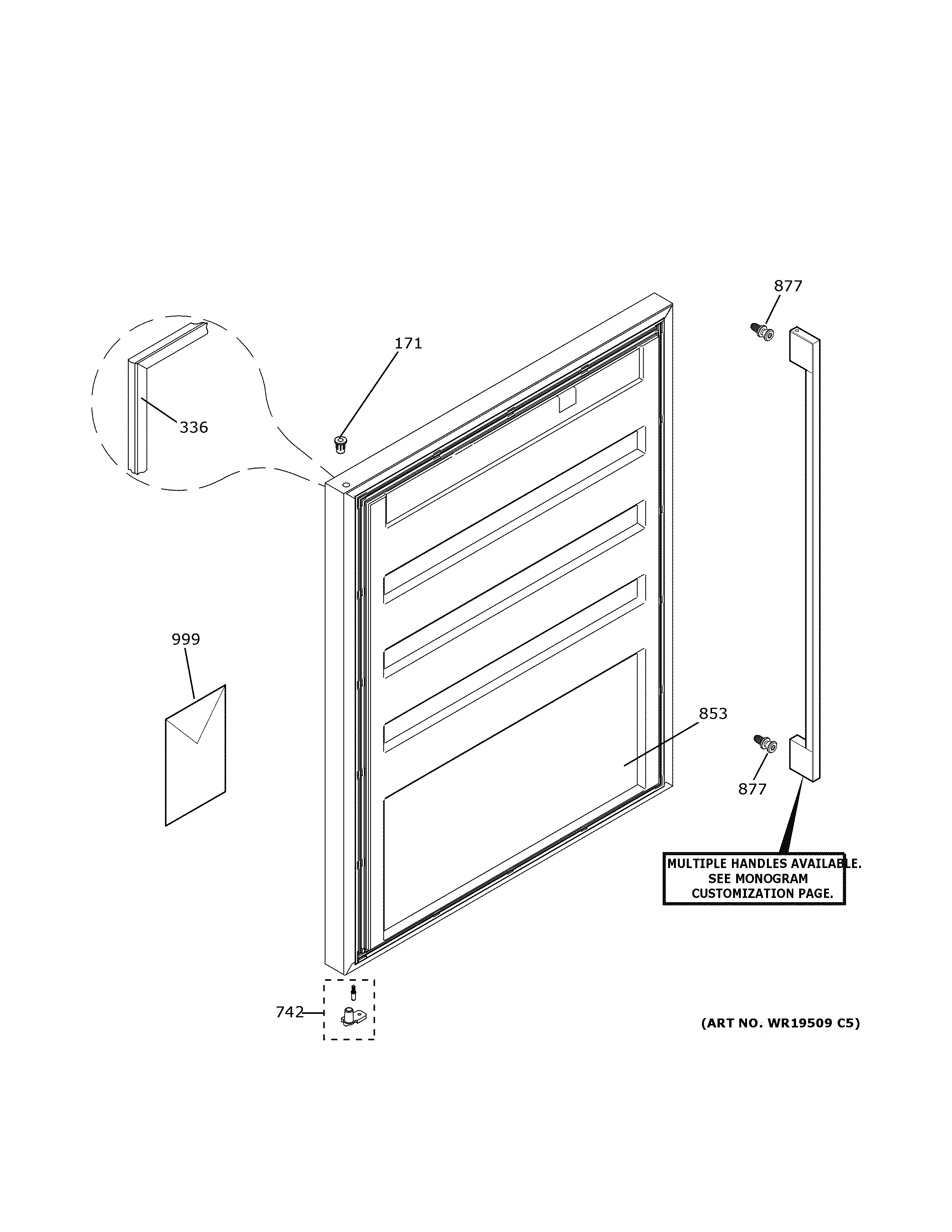

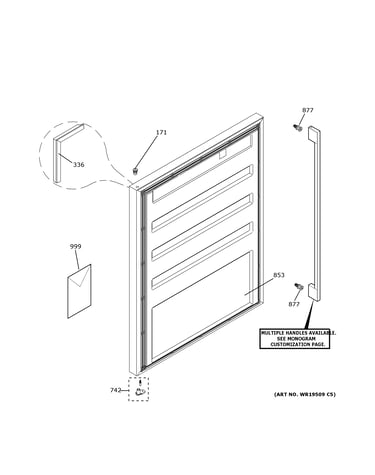

Door diagram

Wine cooler door hinge plug

Part #WR02X11411

In Stock
Control Housing WR17X11674
#717

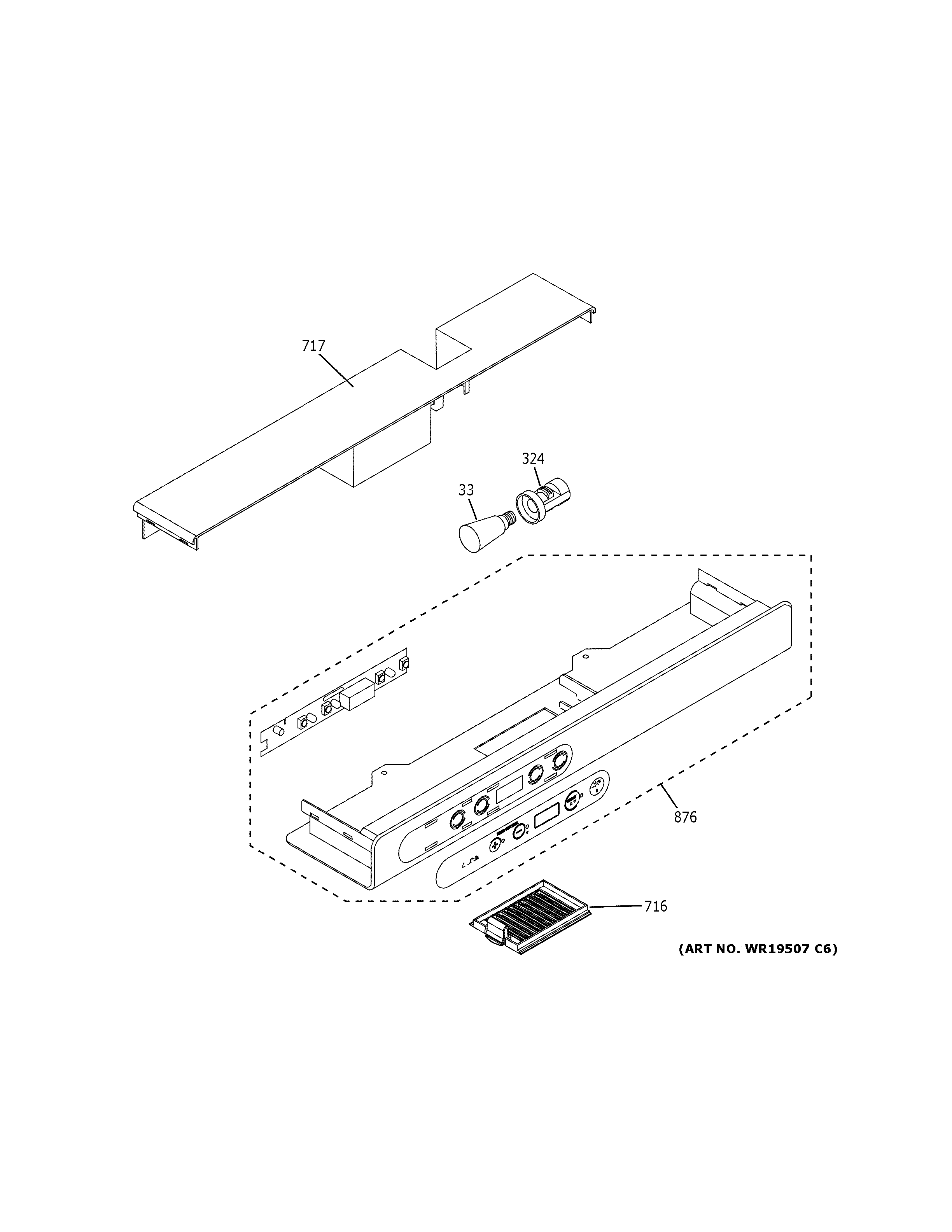

Climate controls diagram

Control housing

Part #WR17X11674

In Stock
Vegetable Pan Front WR17X11678
#852

Cabinet & shelves diagram

Vegetable pan front

Part #WR17X11678

In Stock
Leveling Leg WR01X10384
#41

Machine compartment diagram

Leveling leg

Part #WR01X10384

$33.98
15% OFF Phone Price : $39.98
In Stock
Condenser Ca WR17X11679
#824

Machine compartment diagram

Condenser ca

Part #WR17X11679

In Stock
Levelling Le WR02X11844
#166

Cabinet & shelves diagram

Levelling le

Part #WR02X11844

$24.93
19% OFF Phone Price : $30.93
In Stock
