Model # 315277150 Official Craftsman trimmer

Here are the diagrams and repair parts for Official Craftsman 315277150 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

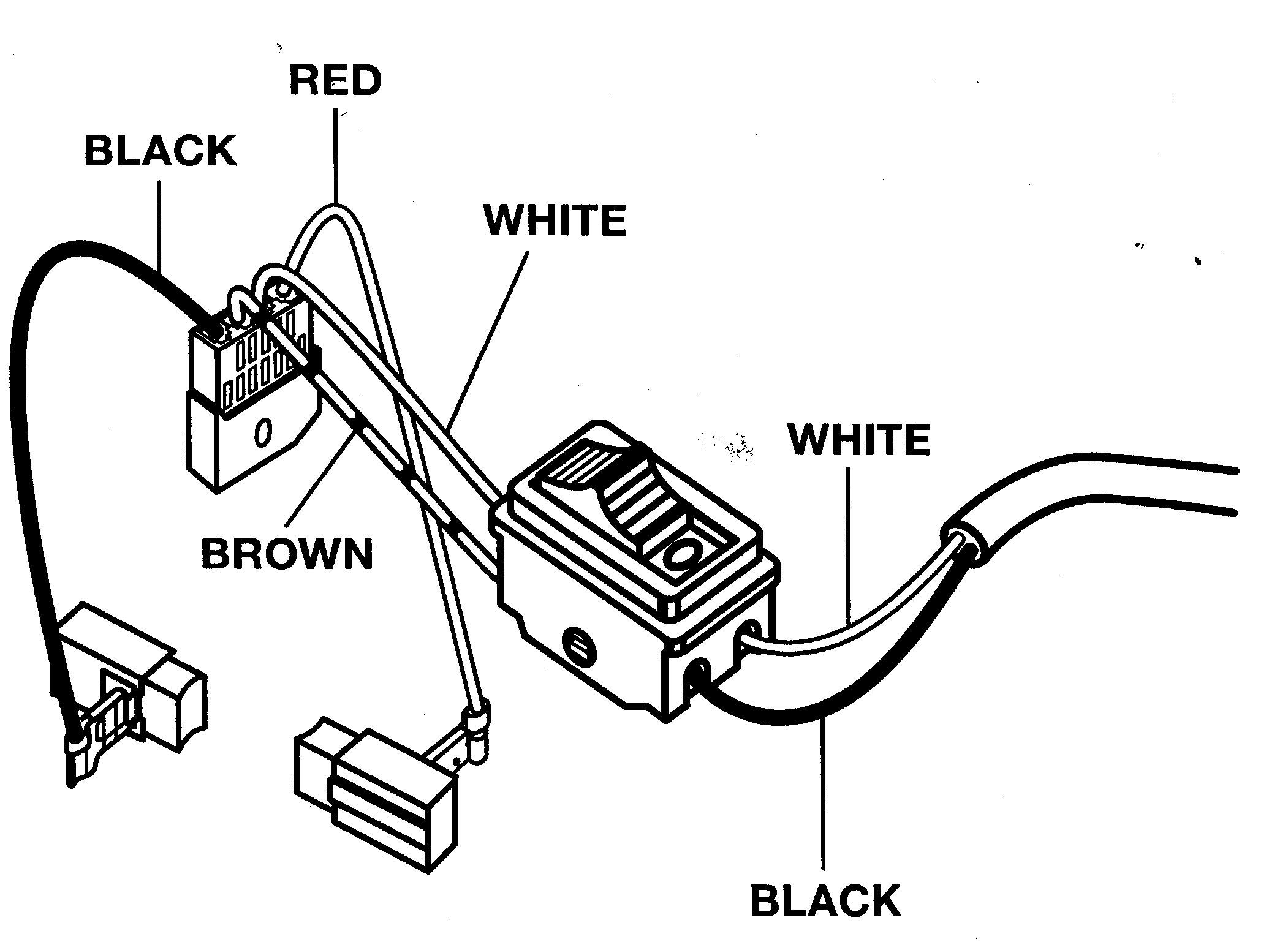

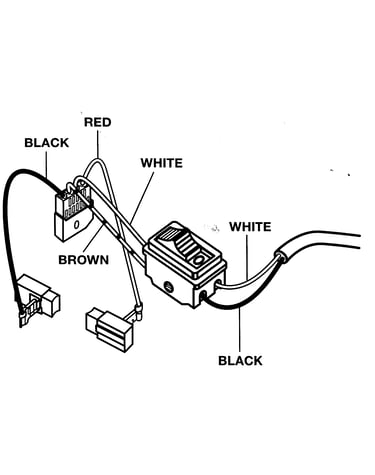

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Bearing 690191001
#20

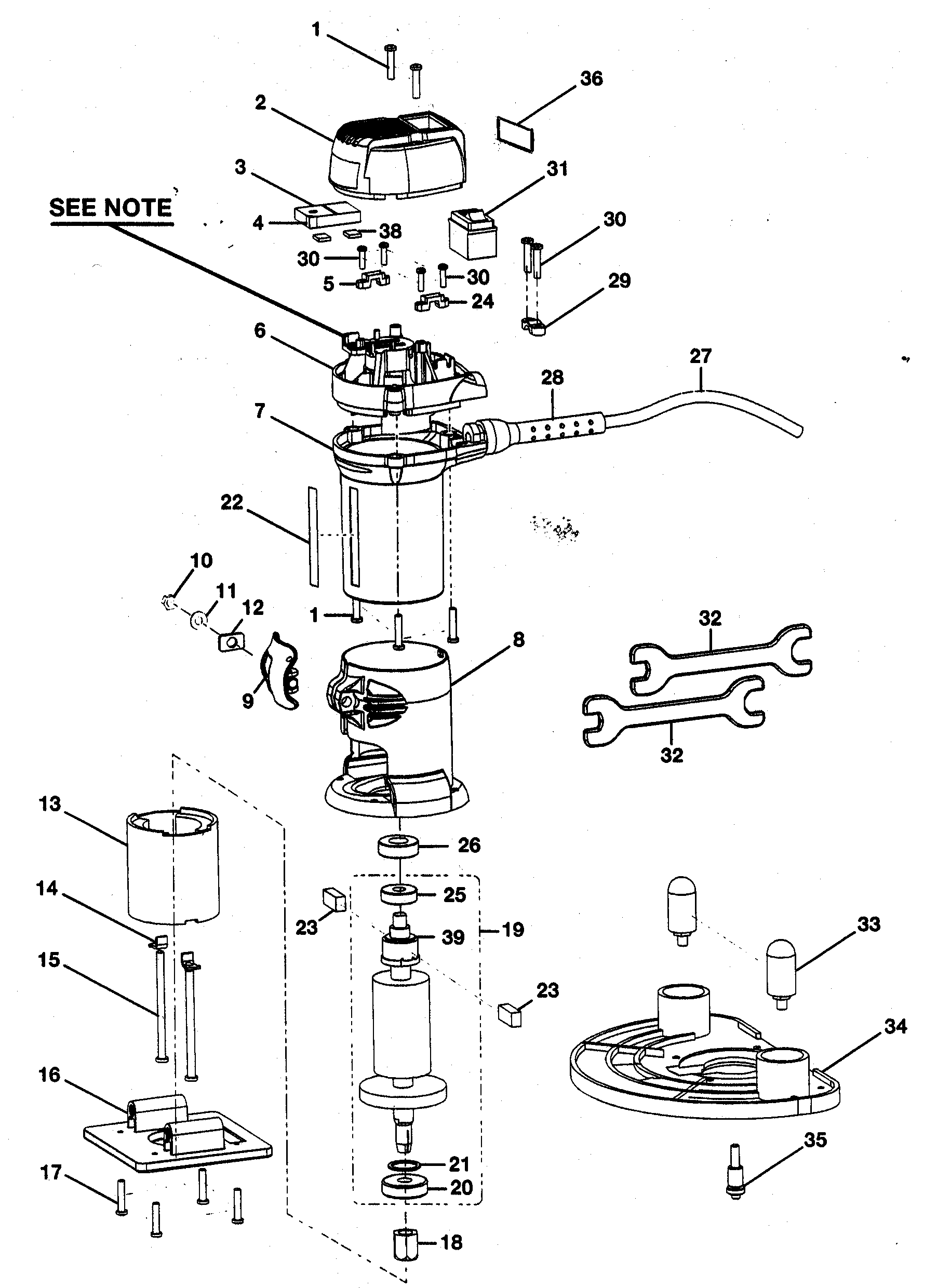

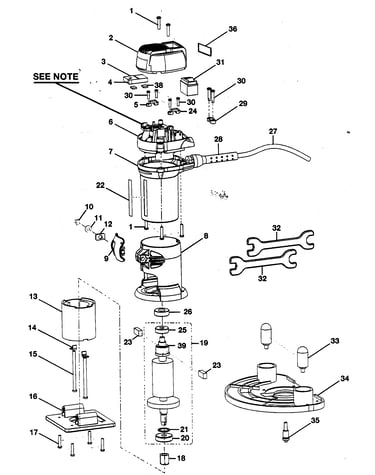

Router assy diagram

Bearing

Part #690191001

The manufacturer no longer makes this part, and there's no substitute part

Frame 512044001
#6

Router assy diagram

Frame

Part #512044001

The manufacturer no longer makes this part, and there's no substitute part

Repair Sheet 983000-481R
#NI

Router assy diagram

Repair sheet

Part #983000-481R

The manufacturer no longer makes this part, and there's no substitute part

Mount 512225401
#5

Router assy diagram

Mount

Part #512225401

The manufacturer no longer makes this part, and there's no substitute part

Bearing Seat 560881001
#26

Router assy diagram

Bearing seat

Part #560881001

The manufacturer no longer makes this part, and there's no substitute part

Mount 512225403
#24

Router assy diagram

Mount

Part #512225403

The manufacturer no longer makes this part, and there's no substitute part

Data Plate 940214068
#36

Router assy diagram

Data plate

Part #940214068

The manufacturer no longer makes this part, and there's no substitute part

Field 740628001
#13

Router assy diagram

Field

Part #740628001

The manufacturer no longer makes this part, and there's no substitute part

Ring 690212001
#21

Router assy diagram

Ring

Part #690212001

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord 730377012
#27

Router assy diagram

Ac cord

Part #730377012

The manufacturer no longer makes this part, and there's no substitute part
