Model # 1039897616 Official Kenmore micro-classic electric range
Here are the diagrams and repair parts for Official Kenmore 1039897616 micro-classic electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

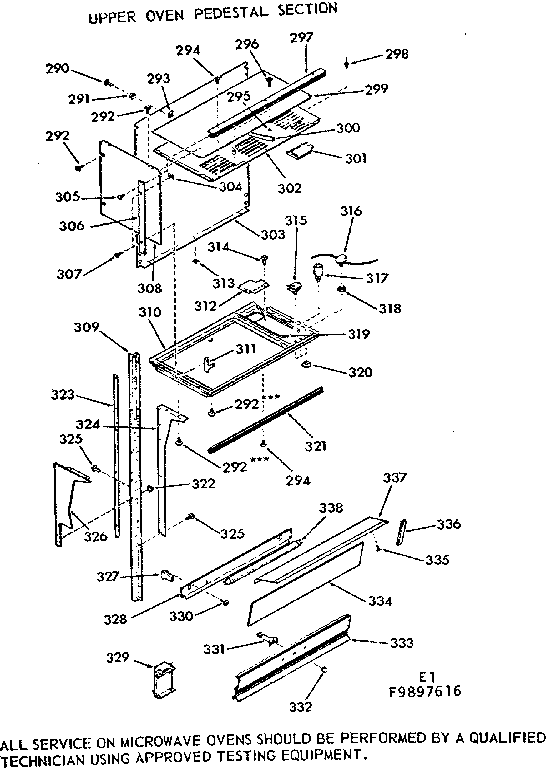

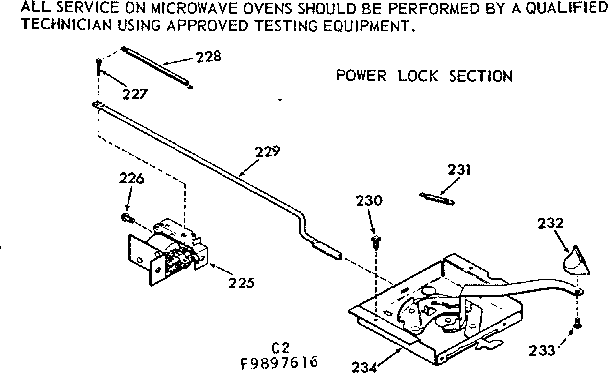

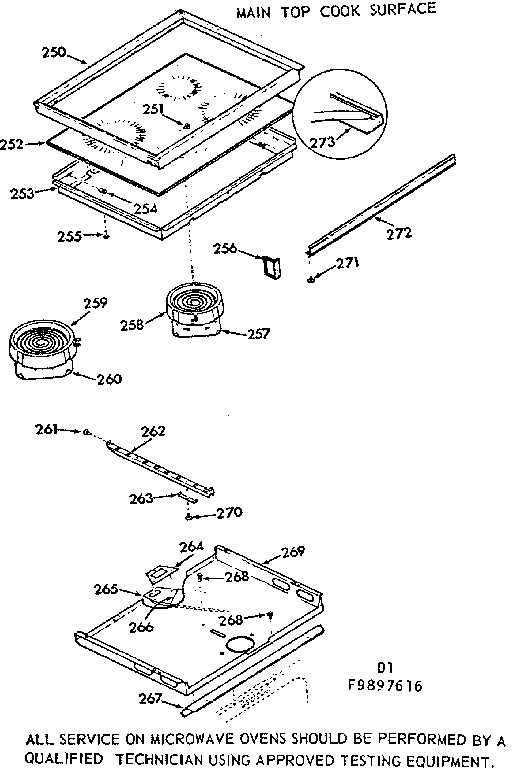

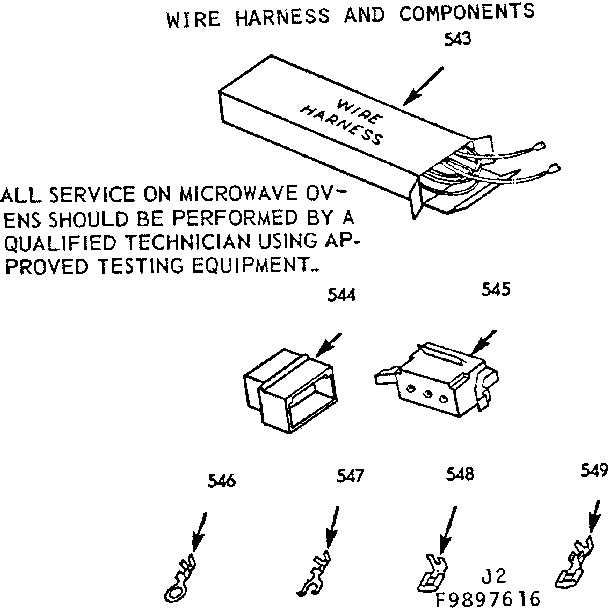

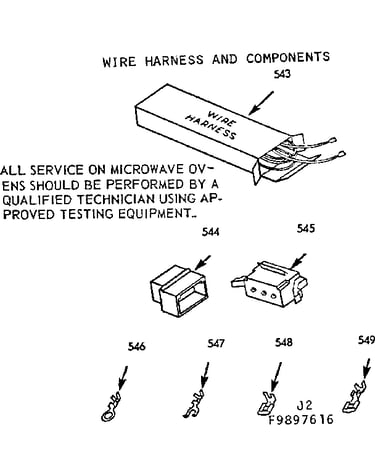

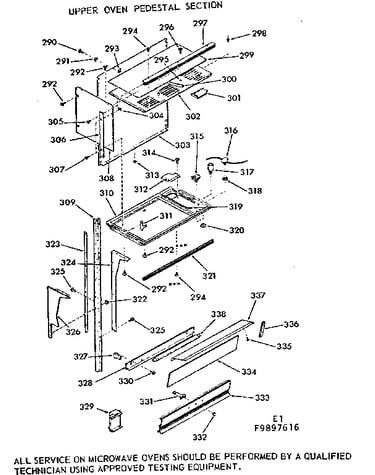

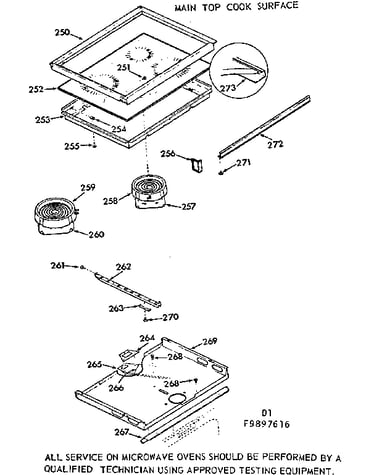

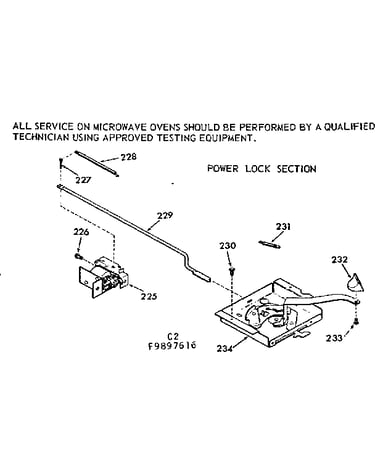

SELECT DIAGRAM
Browse Parts for1039897616 Ranges
- Lamp bulb
Part #STD372401
Replaced by #40A15
?Manufacturer substitutionThis part replaces STD372401. Substitute parts can look different from the original.$13.61 |13% OFF Phone Price : $15.61In Stock - #526

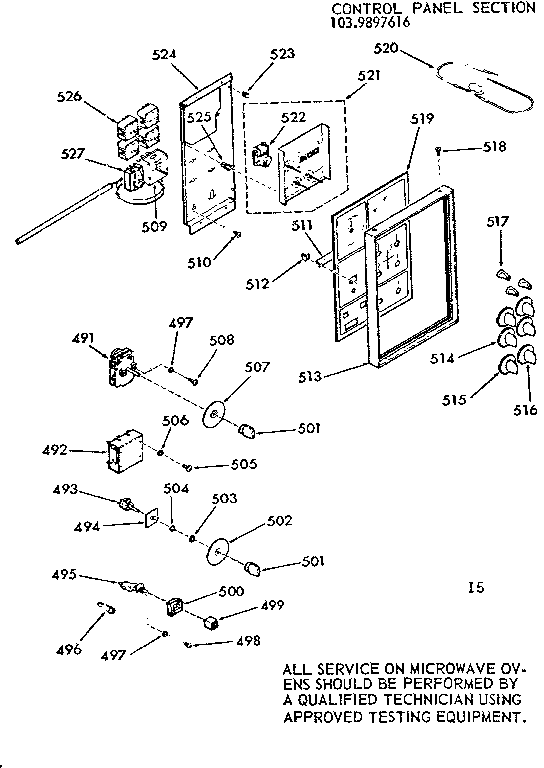

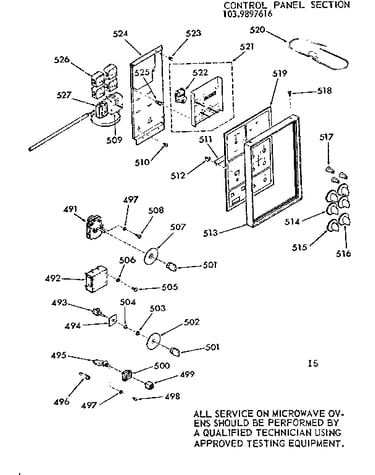

Control panel section diagram
Infinite switchPart #301820
Replaced by #WB21X36771
?Manufacturer substitutionThis part replaces 301820. Substitute parts can look different from the original.$46.17 |12% OFF Phone Price : $52.17In Stock - #415A

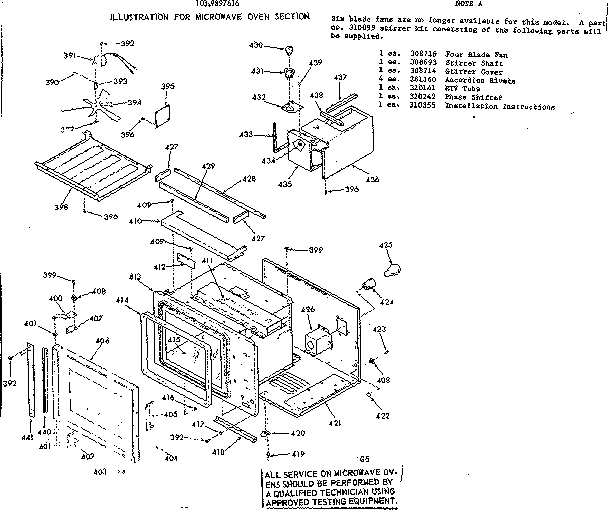

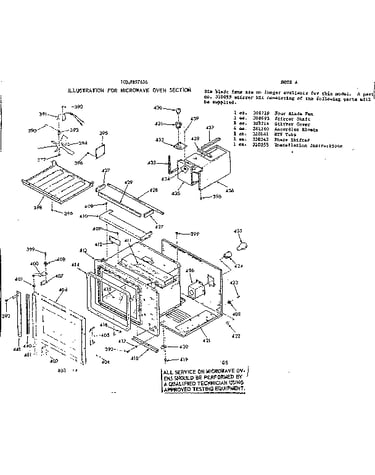

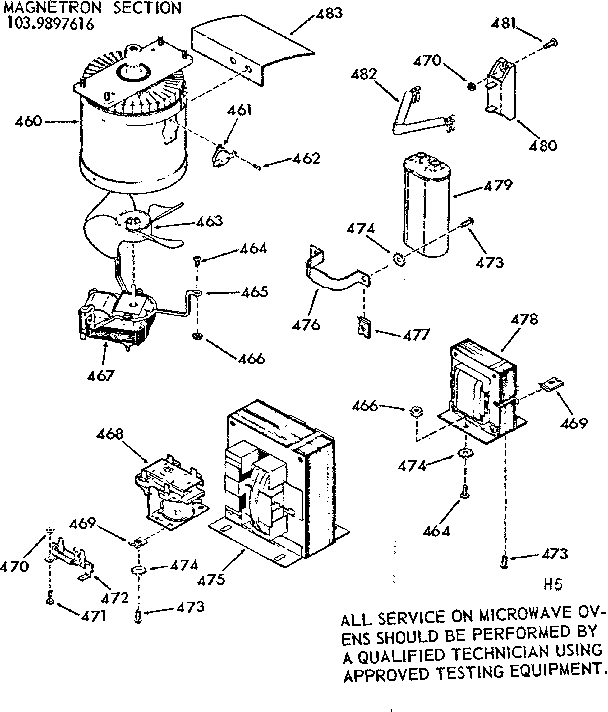

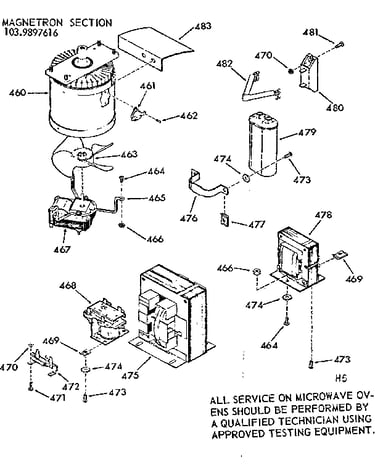

Microwave oven section diagram
SealantPart #M13D2
Replaced by #RTV102
?Manufacturer substitutionThis part replaces M13D2. Substitute parts can look different from the original.$22.40 |21% OFF Phone Price : $28.40In Stock - #126A

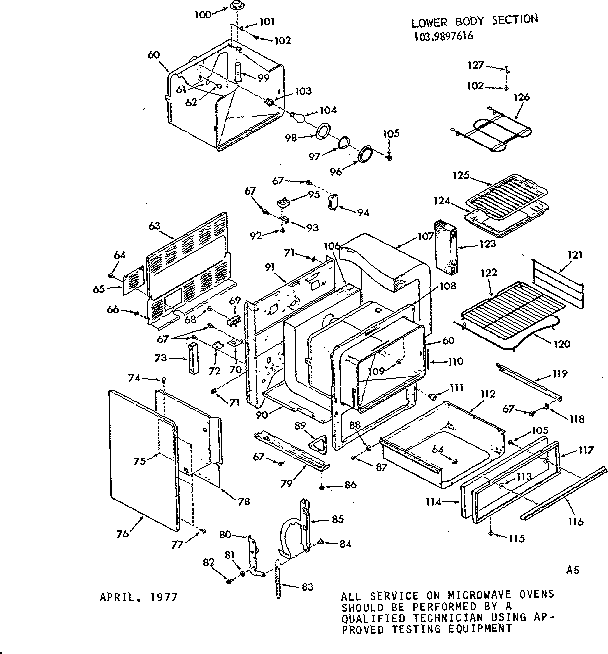

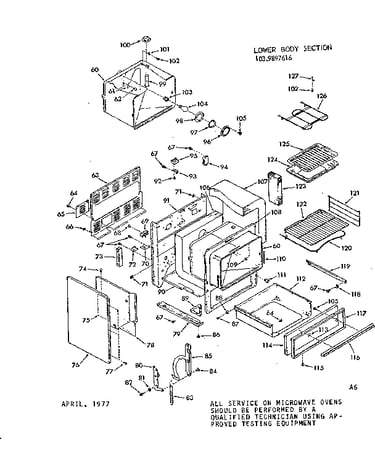

Lower body section diagram
Broil elementPart #293105
Replaced by #WB44M5
?Manufacturer substitutionThis part replaces 293105. Substitute parts can look different from the original.$70.53 |8% OFF Phone Price : $76.53In Stock - #165

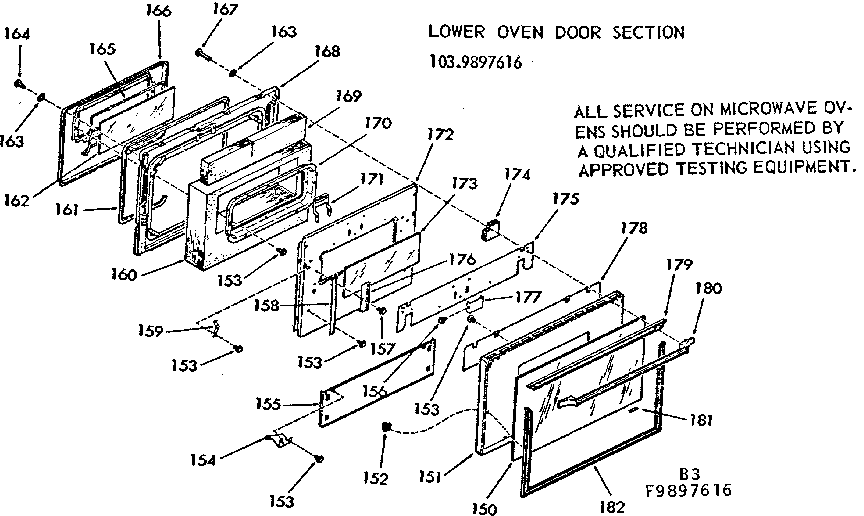

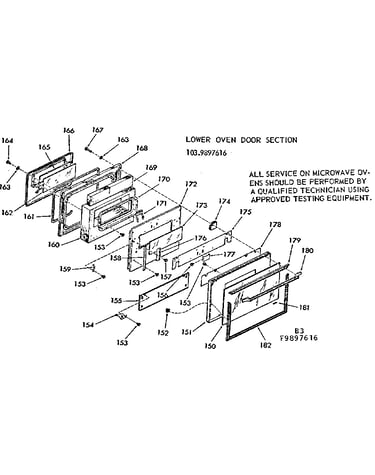

Lower oven door section diagram
SealPart #302935
Replaced by #WB2X9168
?Manufacturer substitutionThis part replaces 302935. Substitute parts can look different from the original.This item is not returnable$15.76 |11% OFF Phone Price : $17.76In Stock - #373

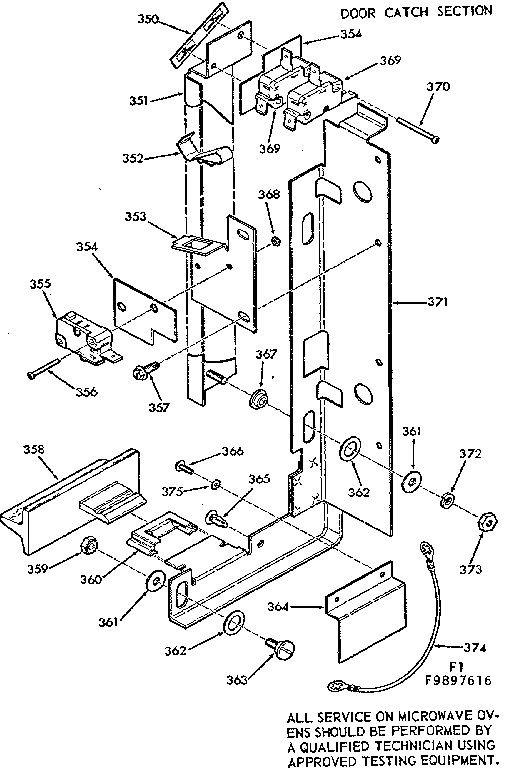

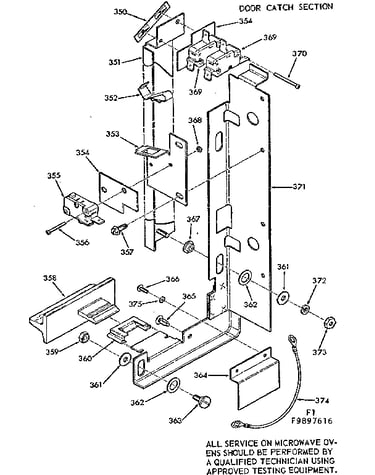

Door catch section diagram
Gm hex nutPart #453284
Replaced by #WB1X1259
?Manufacturer substitutionThis part replaces 453284. Substitute parts can look different from the original.This item is not returnable$7.40 |12% OFF Phone Price : $8.40In Stock - #161
Lower oven door section diagram
GasketPart #292244
Replaced by #WB2X9373
?Manufacturer substitutionThis part replaces 292244. Substitute parts can look different from the original.$80.20 |7% OFF Phone Price : $86.20In Stock - #168
Lower oven door section diagram
Door liningPart #299878
$83.49In Stock - Screw
Part #105771
Replaced by #WB1X1293
?Manufacturer substitutionThis part replaces 105771. Substitute parts can look different from the original.This item is not returnable$8.70 |10% OFF Phone Price : $9.70In Stock - #77
Lower body section diagram
ScrewPart #282634
Replaced by #WB01X32746
?Manufacturer substitutionThis part replaces 282634. Substitute parts can look different from the original.$9.51In Stock
