Model # SHX43C05UC/21 Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SHX43C05UC-21 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

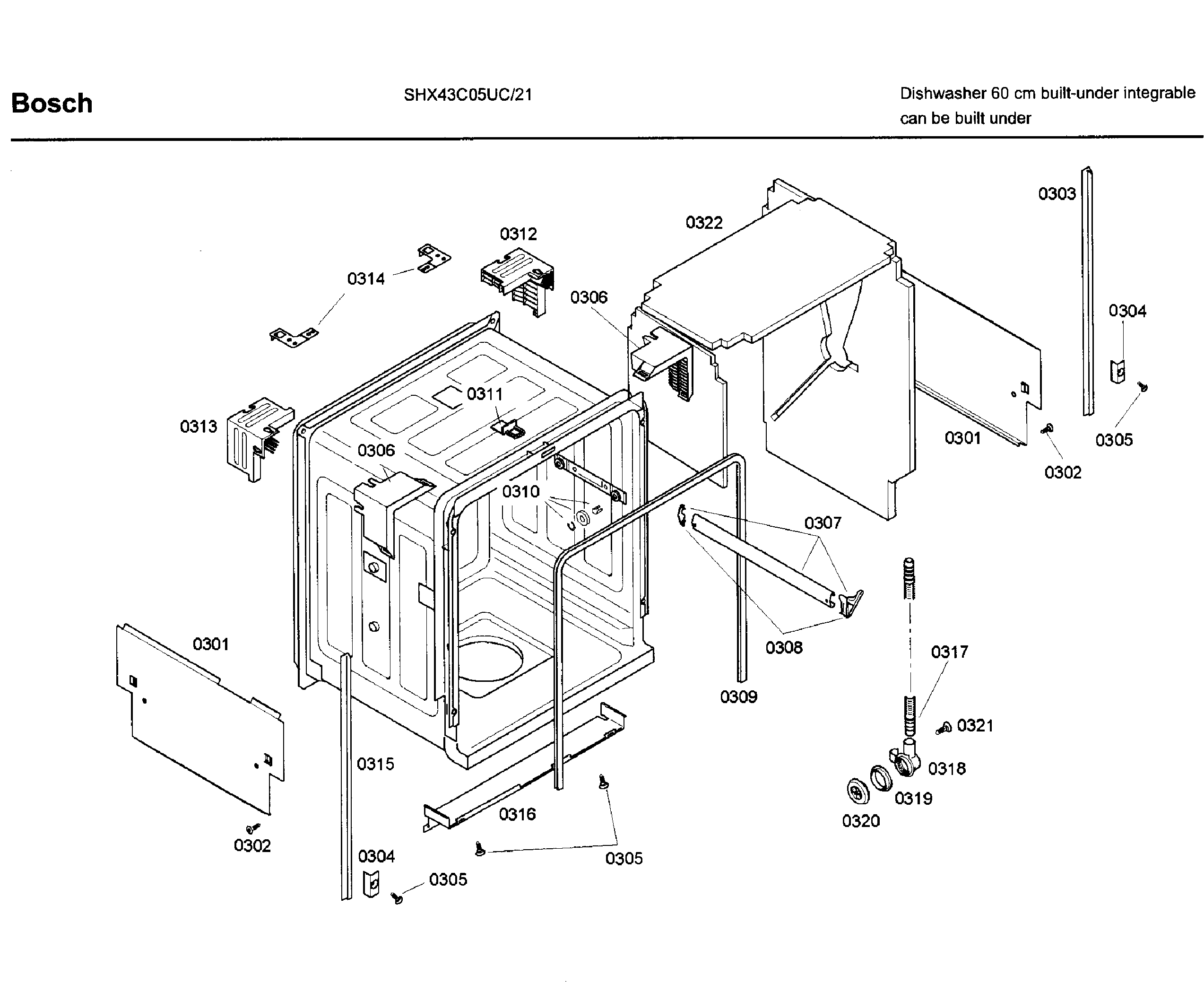

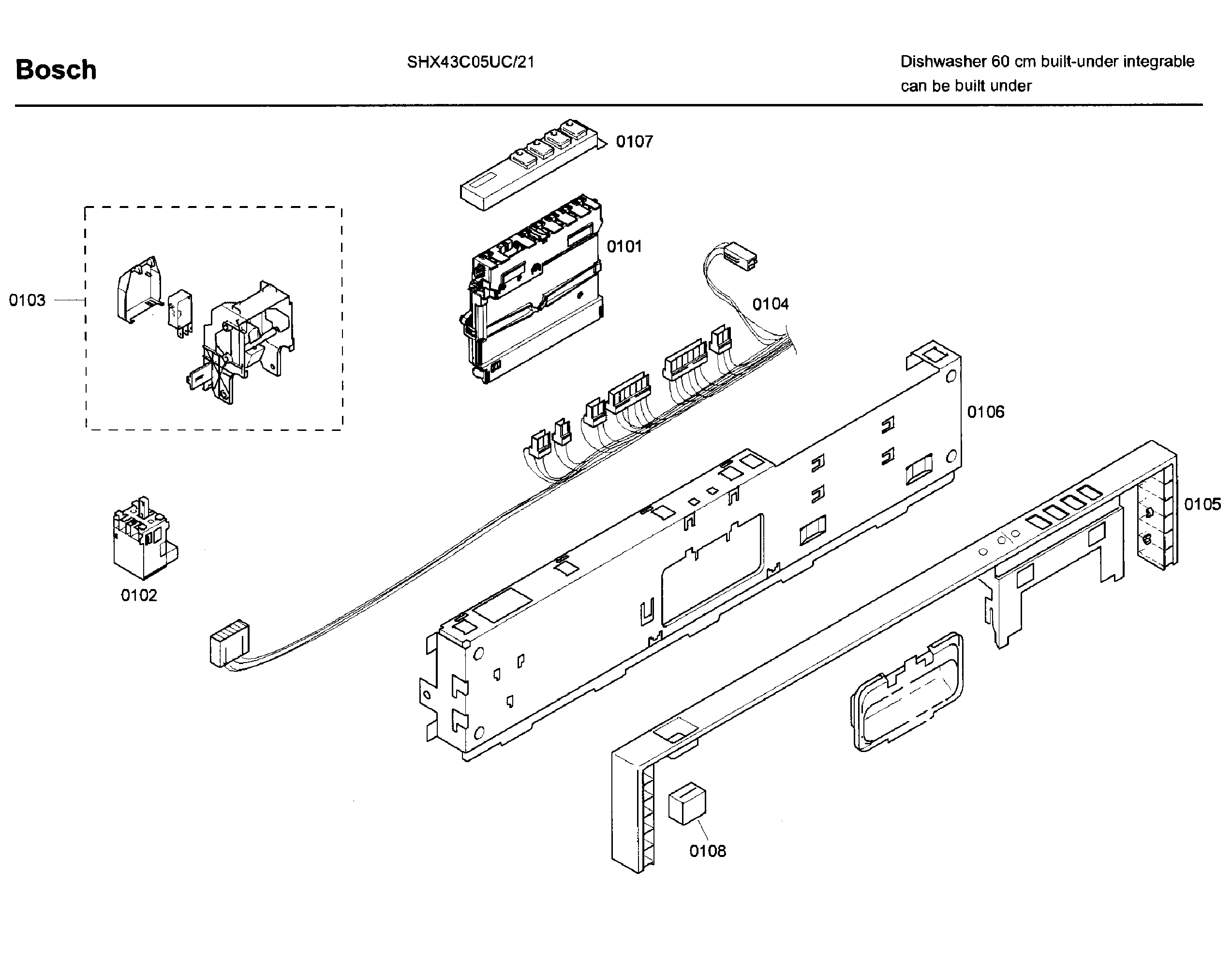

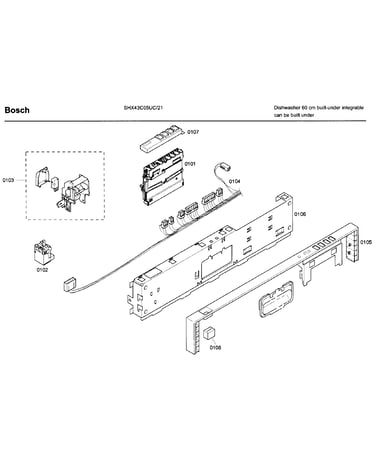

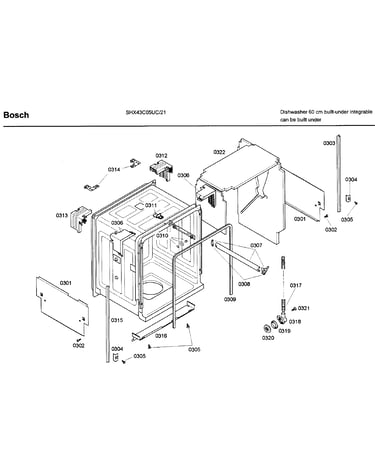

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 136 parts  |
Dishwasher Circulation Pump (replaces 442548) 00442548
#419

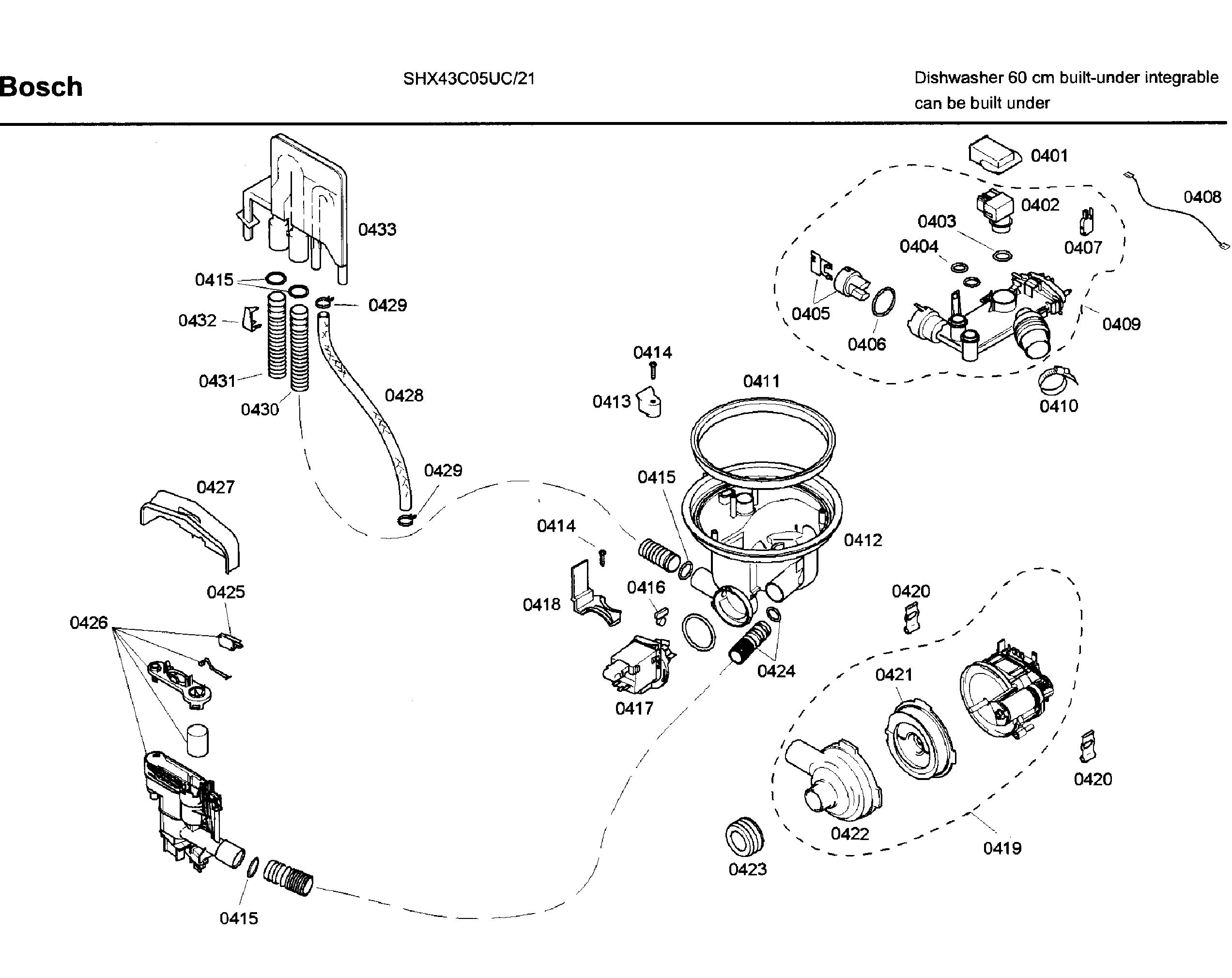

Pump diagram

Dishwasher circulation pump (replaces 442548)

Part #00442548

BEST SELLER
$236.57 |
5% OFF Phone Price : $248.57
In Stock
Dishwasher Door Seal, Lower (replaces 00500038, 432490) 00432490
#204

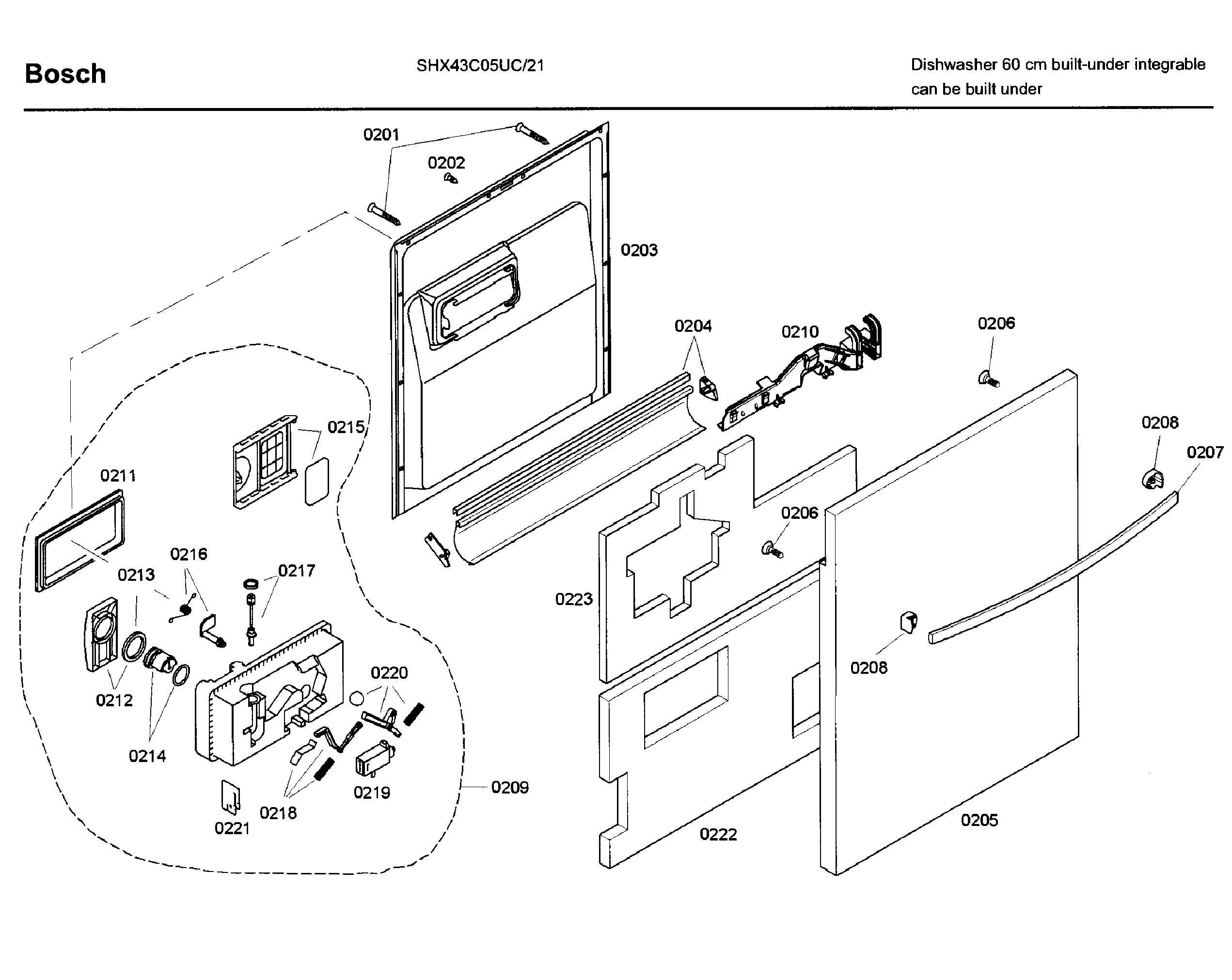

Door asy diagram

Dishwasher door seal, lower (replaces 00500038, 432490)

Part #00432490

BEST SELLER
$34.83 |
15% OFF Phone Price : $40.83
In Stock
Crockery 00434647
#614

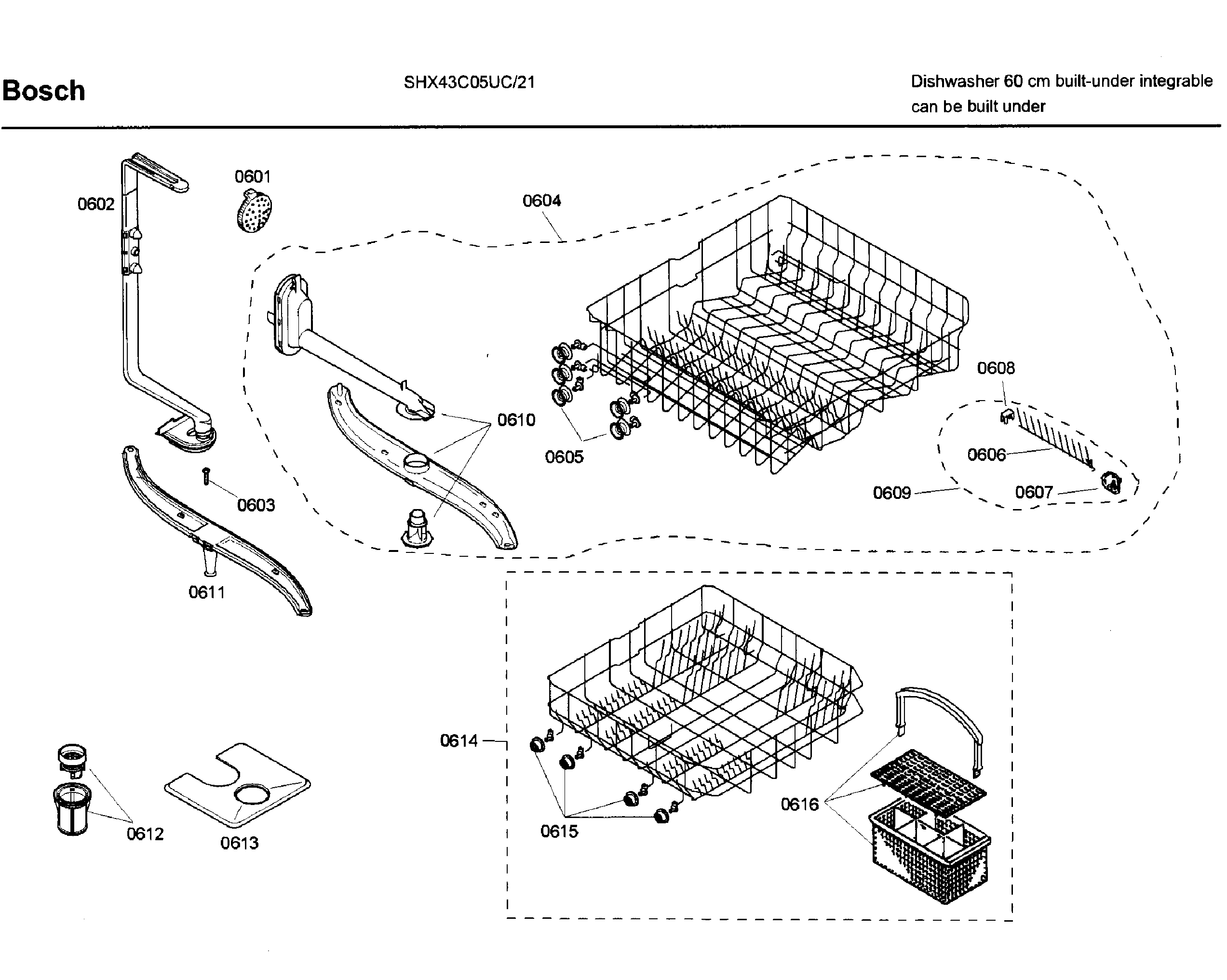

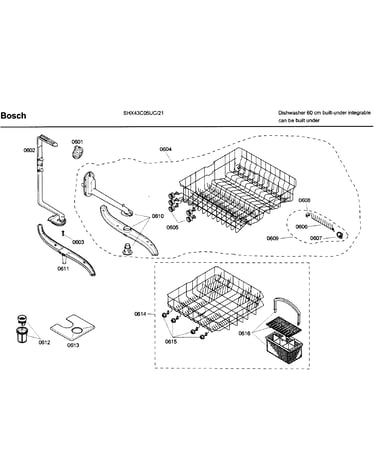

Rack asy diagram

Crockery

Part #00434647

Replaced by #00249276

?
Manufacturer substitution
This part replaces 00434647. Substitute parts can look different from the original.
$278.54 |
$12.00 OFF Phone Price : $290.54
Back Order
Dishwasher Drain Hose (replaces 00280795, 00284311, 298564) 00298564
Dishwasher drain hose (replaces 00280795, 00284311, 298564)

Part #00298564

$31.39 |
16% OFF Phone Price : $37.39
In Stock
Dishwasher Water Inlet Valve (replaces 00492043, 263833) 00263833
#433

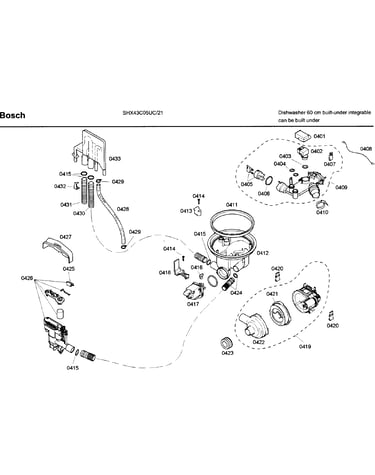

Pump diagram

Dishwasher water inlet valve (replaces 00492043, 263833)

Part #00263833

$124.53 |
9% OFF Phone Price : $136.53
In Stock
Dishwasher Drain Pump 00167082
#417

Pump diagram

Dishwasher drain pump

Part #00167082

$124.86 |
9% OFF Phone Price : $136.86
In Stock
Dishwasher Water-level Sensor (replaces 440670) 00440670
#426

Pump diagram

Dishwasher water-level sensor (replaces 440670)

Part #00440670

$29.49 |
17% OFF Phone Price : $35.49
In Stock
Dishwasher Spray Arm, Upper (replaces 00298594, 00350644, 359976) 00359976
#610

Rack asy diagram

Dishwasher spray arm, upper (replaces 00298594, 00350644, 359976)

Part #00359976

$58.41 |
9% OFF Phone Price : $64.41
In Stock
Appliance Screw 00151703
#202

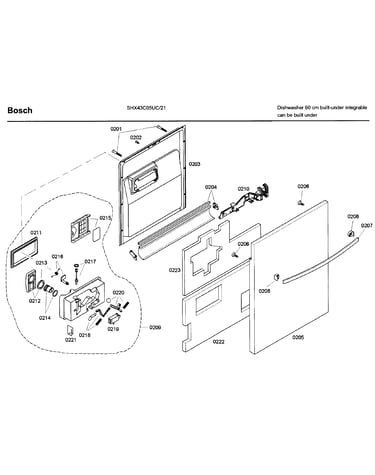

Door asy diagram

Appliance screw

Part #00151703

This item is not returnable
$11.47 |
15% OFF Phone Price : $13.47
In Stock
Dishwasher Door Hinge Lever Bearing (replaces 00170830, 00421781, 00488250, 00580333, 165296) 00165296
#504

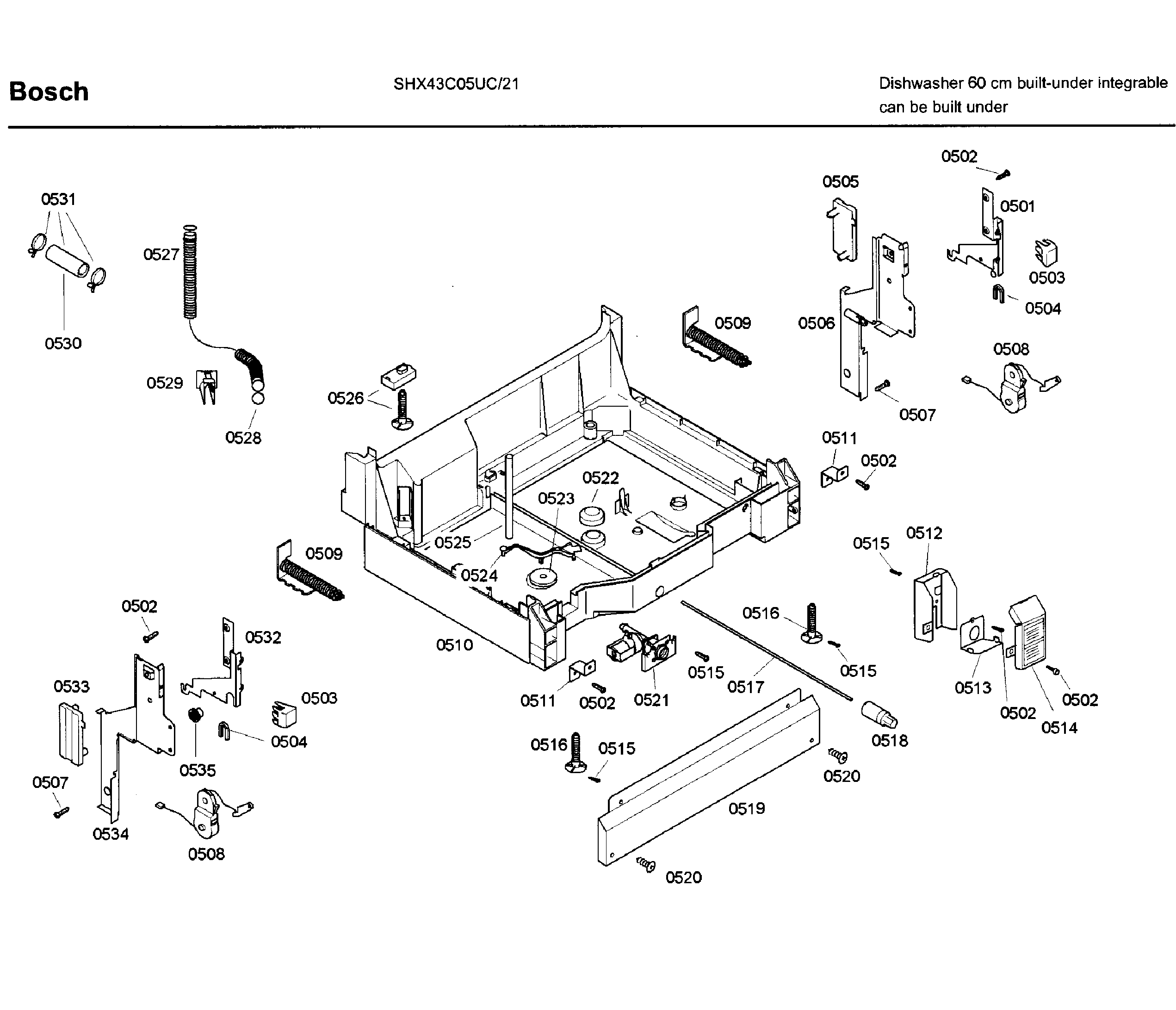

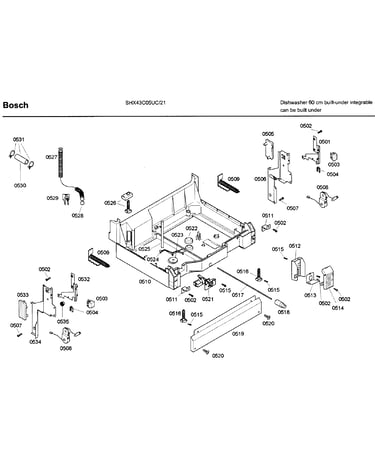

Base diagram

Dishwasher door hinge lever bearing (replaces 00170830, 00421781, 00488250, 00580333, 165296)

Part #00165296

This item is not returnable
$17.89 |
10% OFF Phone Price : $19.89
In Stock
