Whirlpool
Gas Range

Model # SF305BEWW1 Official Whirlpool 30" gas freestanding range with standard clean oven

Here are the diagrams and repair parts for Official Whirlpool SF305BEWW1 30" gas freestanding range with standard clean oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

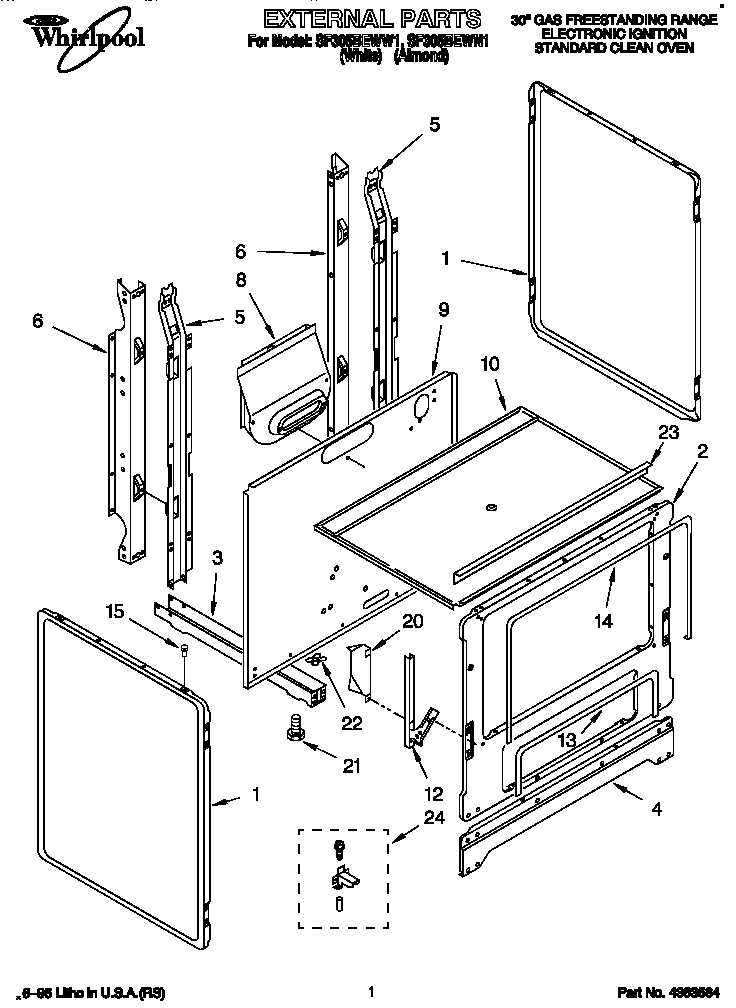

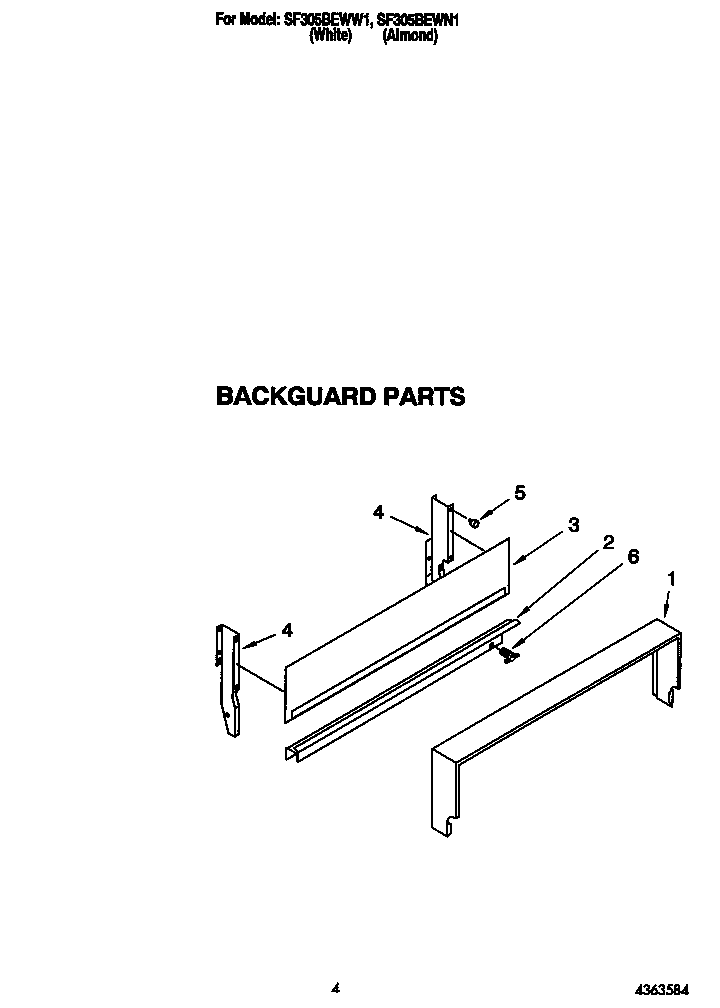

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 126 parts  |
Insulation 4157665
#6

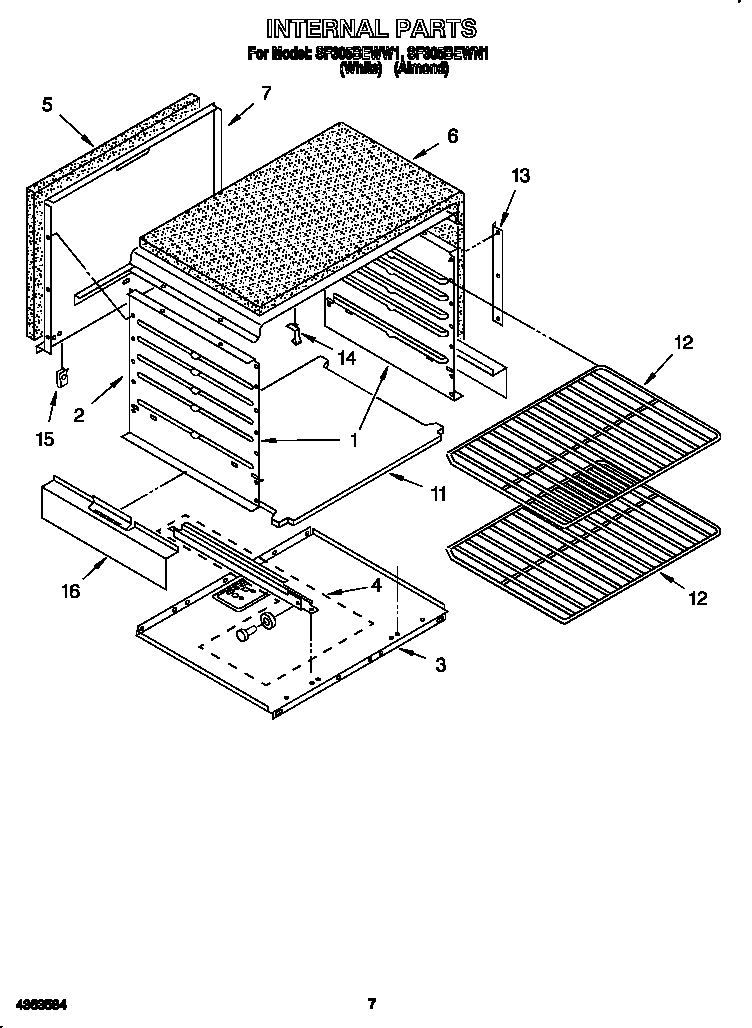

Internal diagram

Insulation

Part #4157665

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 4157665. Substitute parts can look different from the original.
$38.42 |
14% OFF Phone Price : $44.42
In Stock
Insulation 4157664
#5

Internal diagram

Insulation

Part #4157664

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 4157664. Substitute parts can look different from the original.
$38.42 |
14% OFF Phone Price : $44.42
In Stock
Insulation 240132

#NI

All parts diagram

Insulation

Part #240132

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 240132. Substitute parts can look different from the original.
$38.42 |
14% OFF Phone Price : $44.42
In Stock
Igniter Switch 4157210
#37

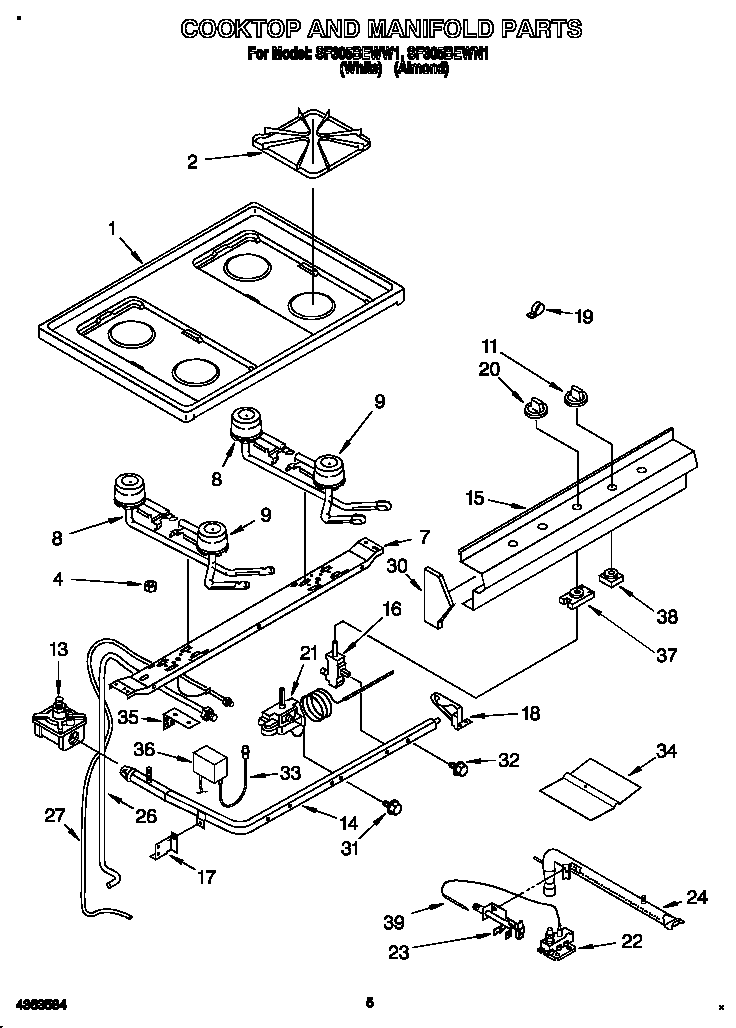

Cooktop and manifold diagram

Igniter switch

Part #4157210

Replaced by #WP878009

?
Manufacturer substitution
This part replaces 4157210. Substitute parts can look different from the original.
$43.51
In Stock
Igniter Switch 4157180
#38

Cooktop and manifold diagram

Igniter switch

Part #4157180

Replaced by #WP4157180

?
Manufacturer substitution
This part replaces 4157180. Substitute parts can look different from the original.
$47.09 |
11% OFF Phone Price : $53.09
In Stock
Broiler Pan 4315095
#19

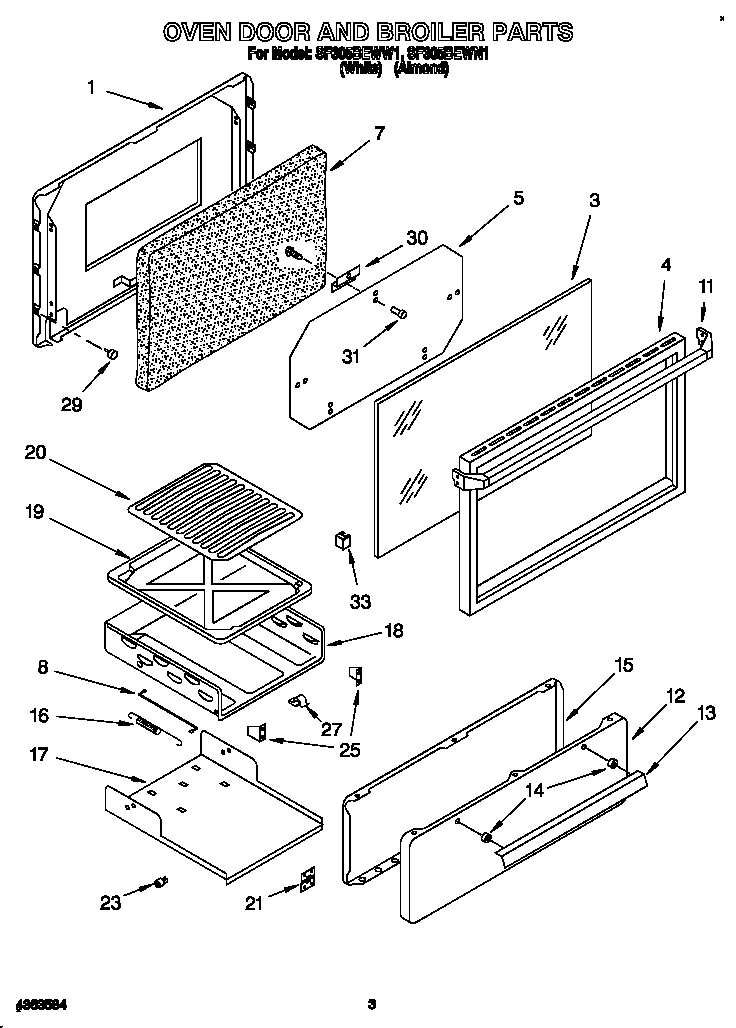

Oven door and broiler diagram

Broiler pan

Part #4315095

Replaced by #4396923

?
Manufacturer substitution
This part replaces 4315095. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Clip Bulb 4157329
#14

Internal diagram

Clip bulb

Part #4157329

Replaced by #98005642

?
Manufacturer substitution
This part replaces 4157329. Substitute parts can look different from the original.
$35.73
In Stock
Igniter 4157694
#33B

Cooktop and manifold diagram

Igniter

Part #4157694

Replaced by #WPY07491203

?
Manufacturer substitution
This part replaces 4157694. Substitute parts can look different from the original.
$47.09 |
11% OFF Phone Price : $53.09
In Stock
Drawer Glide 4363377
#23

Oven door and broiler diagram

Drawer glide

Part #4363377

Replaced by #W10709871

?
Manufacturer substitution
This part replaces 4363377. Substitute parts can look different from the original.
$7.96
In Stock
Nut 4157052
#34A

Cooktop and manifold diagram

Nut

Part #4157052

Replaced by #W10080180

?
Manufacturer substitution
This part replaces 4157052. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
