Troybilt
Gas Line Trimmer

Model # TB90BC Official Troybilt 2-cycle gas trimmer/brushcutter

Here are the diagrams and repair parts for Official Troybilt TB90BC 2-cycle gas trimmer/brushcutter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 113 parts  |
Blade 791-145873
#42

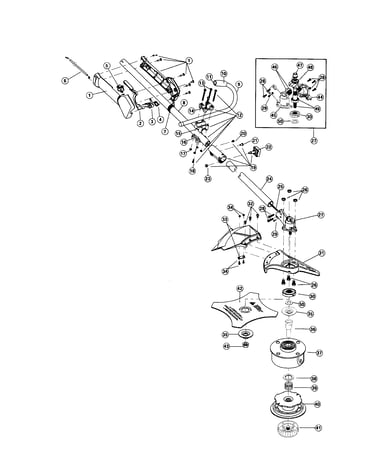

Handle/throttle housing/shield diagram

Blade

Part #791-145873

Replaced by #791-145873B

?
Manufacturer substitution
This part replaces 791-145873. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$57.59 |
9% OFF Phone Price : $63.59
In Stock
Rope Guide 753-1200
#25

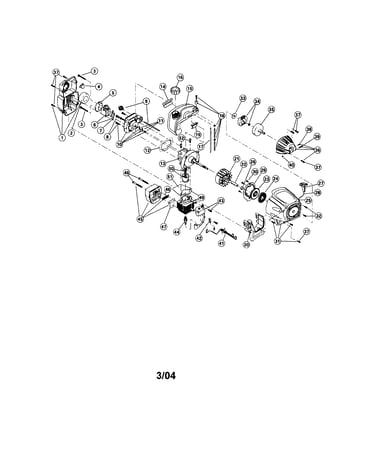

Engine parts diagram

Rope guide

Part #753-1200

$20.63
In Stock
Bolt 791-147575
#48

Engine parts diagram

Bolt

Part #791-147575

The manufacturer no longer makes this part, and there's no substitute part

Spring 791-610636
#39

Handle/throttle housing/shield diagram

Spring

Part #791-610636

The manufacturer no longer makes this part, and there's no substitute part

Cylinder Assembly 753-04323
#49

Engine parts diagram

Cylinder assembly

Part #753-04323

The manufacturer no longer makes this part, and there's no substitute part

Coupler 791-181980
#19

Handle/throttle housing/shield diagram

Coupler

Part #791-181980

The manufacturer no longer makes this part, and there's no substitute part

Up Boom Assembly 753-04236
#8

Handle/throttle housing/shield diagram

Up boom assembly

Part #753-04236

The manufacturer no longer makes this part, and there's no substitute part

Piston Rod 753-1207
#50

Engine parts diagram

Piston rod

Part #753-1207

The manufacturer no longer makes this part, and there's no substitute part

Pressure Plate Assembly 753-1201
#29

Engine parts diagram

Pressure plate assembly

Part #753-1201

The manufacturer no longer makes this part, and there's no substitute part

Screw 791-182200
#26

Handle/throttle housing/shield diagram

Screw

Part #791-182200

The manufacturer no longer makes this part, and there's no substitute part
