GE
Gas Range

Model # JGBS60REF1SS Official GE gas range

Here are the diagrams and repair parts for Official GE JGBS60REF1SS gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 163 parts  |
Bake Burner Ignition WB13K0021
#218

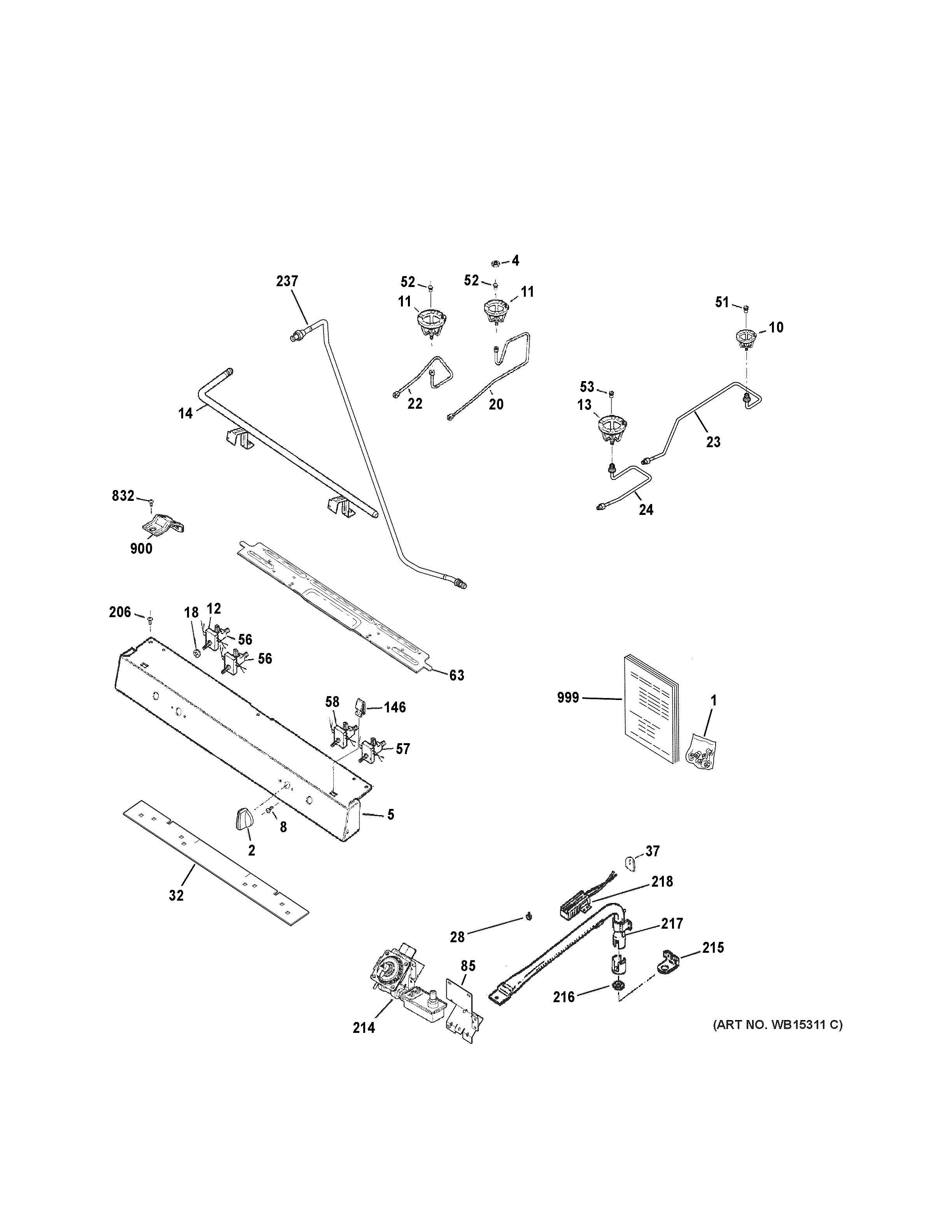

Gas & burner parts diagram

Bake burner ignition

Part #WB13K0021

Replaced by #WB13K21

?
Manufacturer substitution
This part replaces WB13K0021. Substitute parts can look different from the original.
BEST SELLER
$54.97 |
10% OFF Phone Price : $60.97
In Stock
40a15bulb STD372401
#235

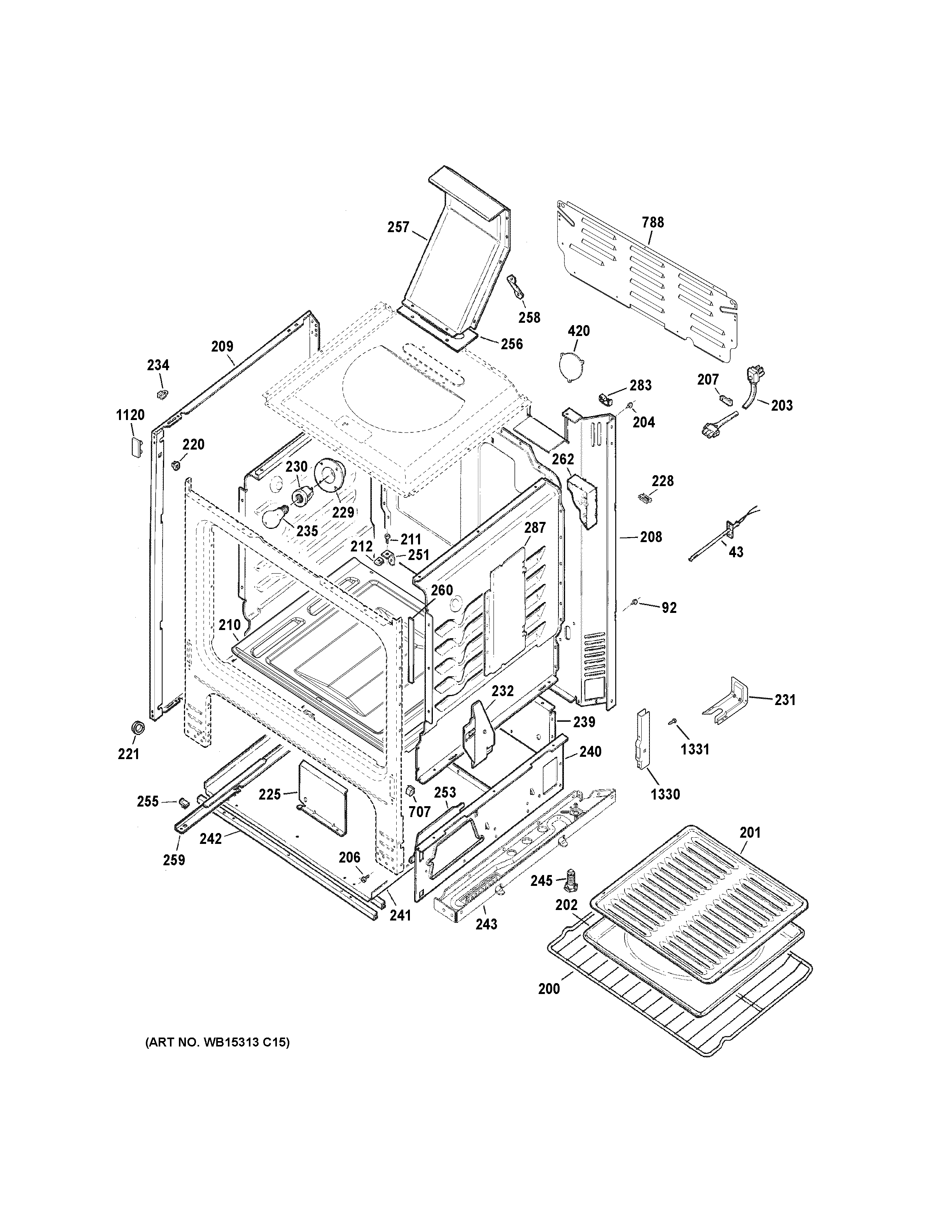

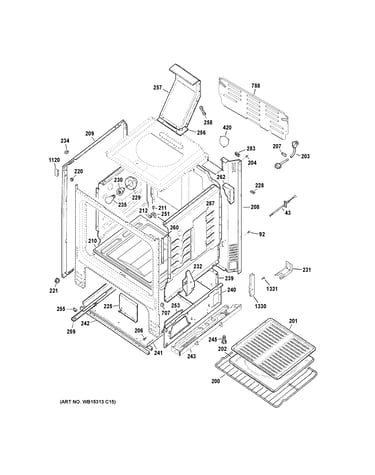

Body parts diagram

40a15bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Range Surface Burner Cap WB29K10024
#152

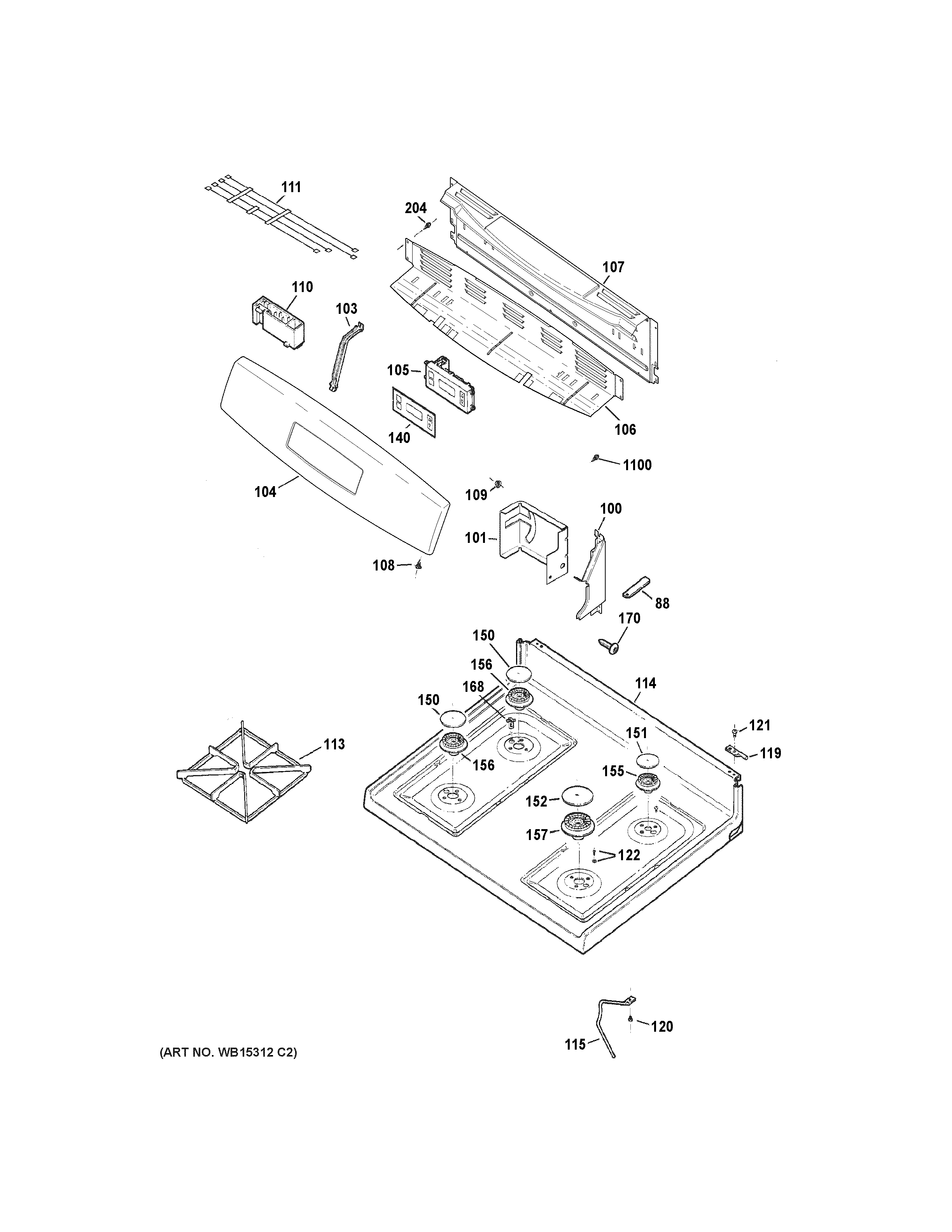

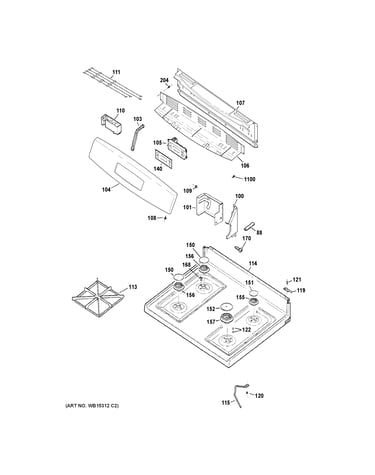

Control panel & cooktop diagram

Range surface burner cap

Part #WB29K10024

BEST SELLER
$11.33 |
15% OFF Phone Price : $13.33
In Stock
Range Surface Burner Head, Medium (replaces Wb16k10023, Wb16k10030) WB16K10055
#156

Control panel & cooktop diagram

Range surface burner head, medium (replaces wb16k10023, wb16k10030)

Part #WB16K10055

BEST SELLER
$26.57 |
18% OFF Phone Price : $32.57
In Stock
Range Oven Door Outer Glass WB56X23809
#338

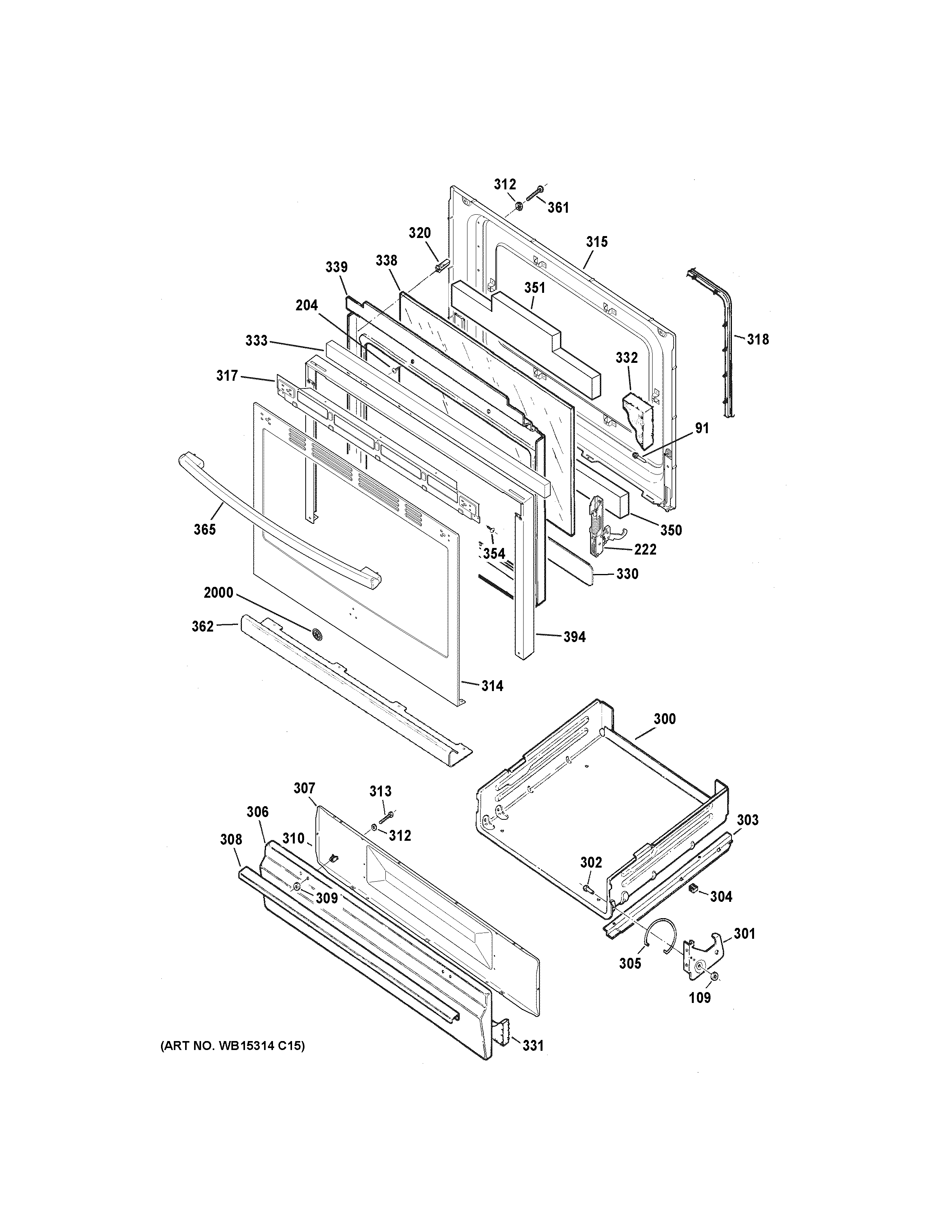

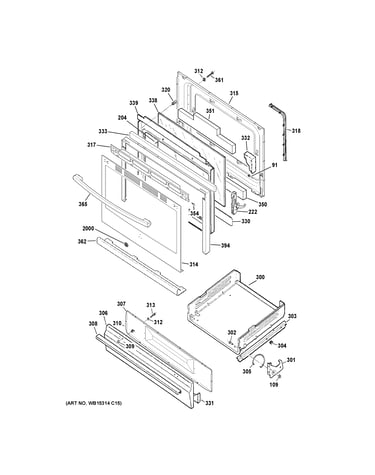

Door & drawer parts diagram

Range oven door outer glass

Part #WB56X23809

BEST SELLER
$91.51 |
6% OFF Phone Price : $97.51
In Stock
Range Light Socket (replaces Wb08t10004) WB08T10026
#230

Body parts diagram

Range light socket (replaces wb08t10004)

Part #WB08T10026

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Door Gasket WB32K0003
#318

Door & drawer parts diagram

Door gasket

Part #WB32K0003

Replaced by #WB35X29720

?
Manufacturer substitution
This part replaces WB32K0003. Substitute parts can look different from the original.
$25.20 |
19% OFF Phone Price : $31.20
In Stock
Range Oven Door Hinge WB10X21809
#222

Door & drawer parts diagram

Range oven door hinge

Part #WB10X21809

This item is not returnable
$31.98 |
16% OFF Phone Price : $37.98
In Stock
Range Oven Door Hinge Receiver WB10X20220
#1330

Body parts diagram

Range oven door hinge receiver

Part #WB10X20220

This item is not returnable
$7.84 |
11% OFF Phone Price : $8.84
In Stock
Cooking Appliance Screw, #10-32 (replaces Wb1t10008) WB01T10008
#91

Door & drawer parts diagram

Cooking appliance screw, #10-32 (replaces wb1t10008)

Part #WB01T10008

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
