Caloric
Electric Range

Model # EHB312 Official Caloric electric range

Here are the diagrams and repair parts for Official Caloric EHB312 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

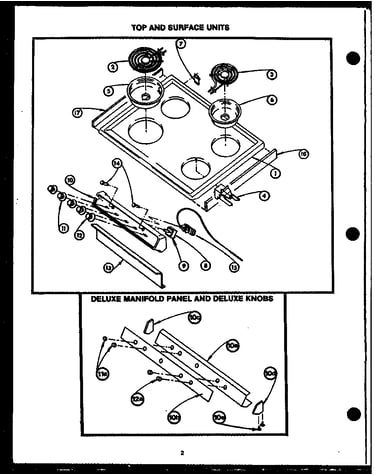

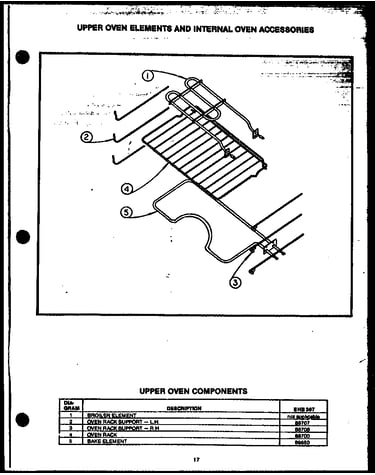

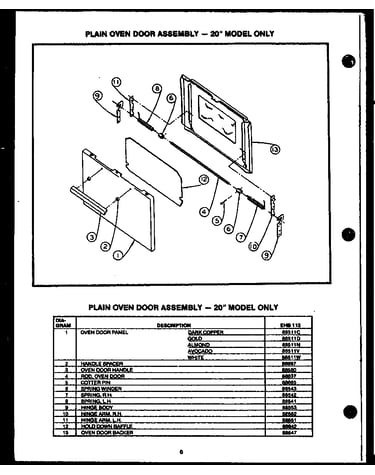

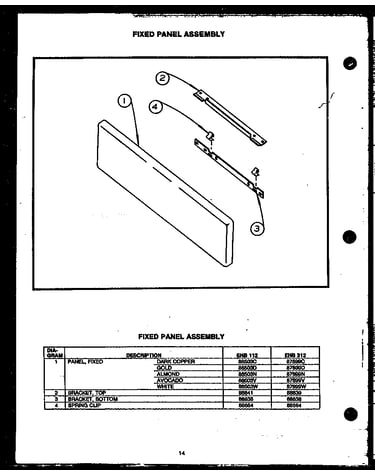

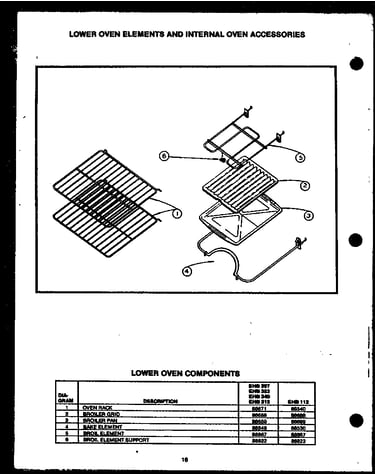

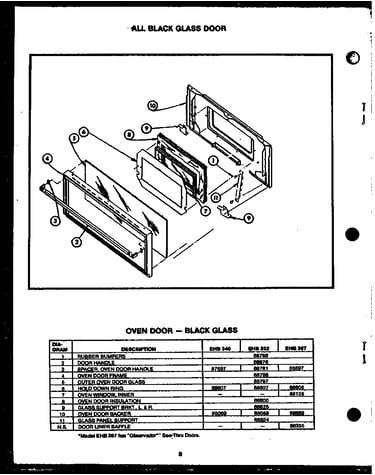

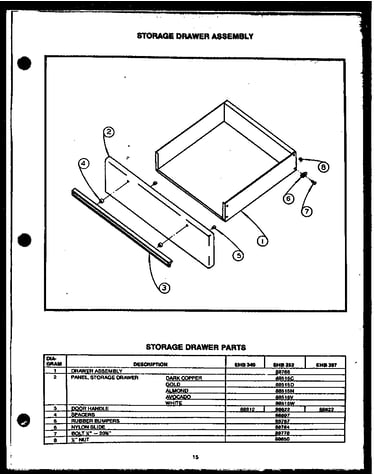

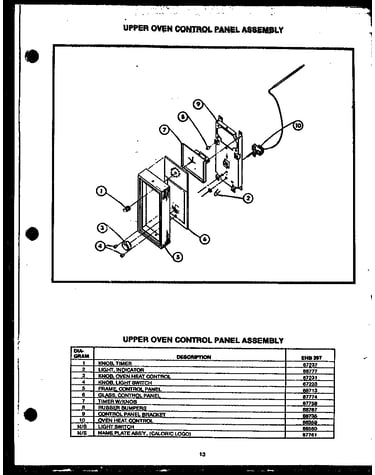

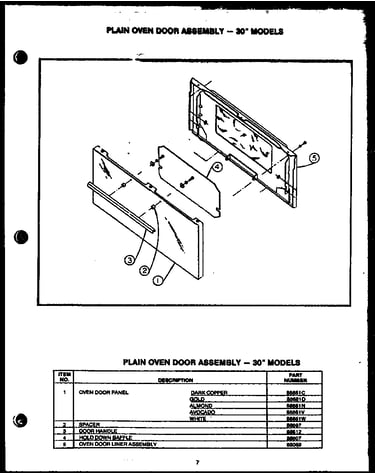

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 259 parts  |
Bracket, Timer Support 87721

#NI

All parts diagram

Bracket, timer support

Part #87721

The manufacturer no longer makes this part, and there's no substitute part

Backguard Wire Cover 88086
#6B

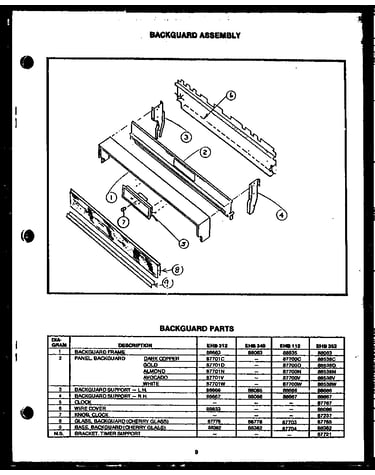

Backguard assembly (ehb112) (ehb312) (ehb340) (ehb352) diagram

Backguard wire cover

Part #88086

The manufacturer no longer makes this part, and there's no substitute part

Body Side (white) 88652W
#1E

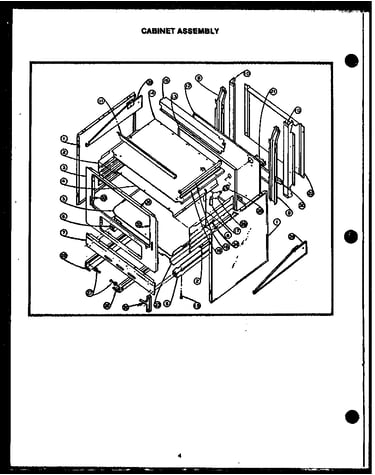

Cabinet assembly diagram

Body side (white)

Part #88652W

The manufacturer no longer makes this part, and there's no substitute part

Nylon Washer 88719
#10

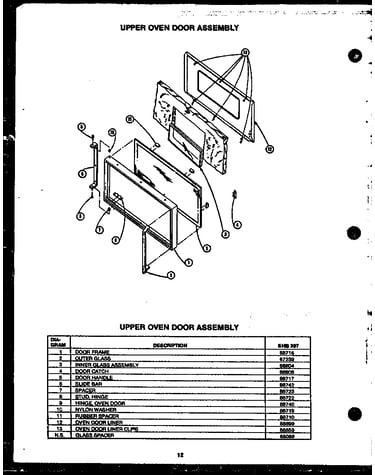

Upper oven door assembly (ehb397) diagram

Nylon washer

Part #88719

The manufacturer no longer makes this part, and there's no substitute part

Panel, Backguard White 87700W
#2N

Backguard assembly (ehb112) (ehb312) (ehb340) (ehb352) diagram

Panel, backguard white

Part #87700W

The manufacturer no longer makes this part, and there's no substitute part

Panel, Backguard Avocado 87701V
#2J

Backguard assembly (ehb112) (ehb312) (ehb340) (ehb352) diagram

Panel, backguard avocado

Part #87701V

The manufacturer no longer makes this part, and there's no substitute part

Base, Front Frame 88655
#7B

Cabinet assembly diagram

Base, front frame

Part #88655

The manufacturer no longer makes this part, and there's no substitute part

Side Panel - L.h. (gold) 88731D
#6B

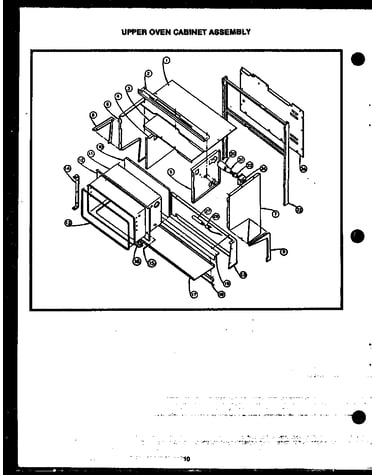

Upper oven cabinet assembly (ehb397) diagram

Side panel - l.h. (gold)

Part #88731D

The manufacturer no longer makes this part, and there's no substitute part

Inner Oven Packing 88721

#NI

All parts diagram

Inner oven packing

Part #88721

The manufacturer no longer makes this part, and there's no substitute part

Slide Bar 88742
#6

Upper oven door assembly (ehb397) diagram

Slide bar

Part #88742

The manufacturer no longer makes this part, and there's no substitute part
