Gas Cooktop

Model # ZGU484NGP4SS Official GE gas cooktop

Here are the diagrams and repair parts for Official GE ZGU484NGP4SS gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

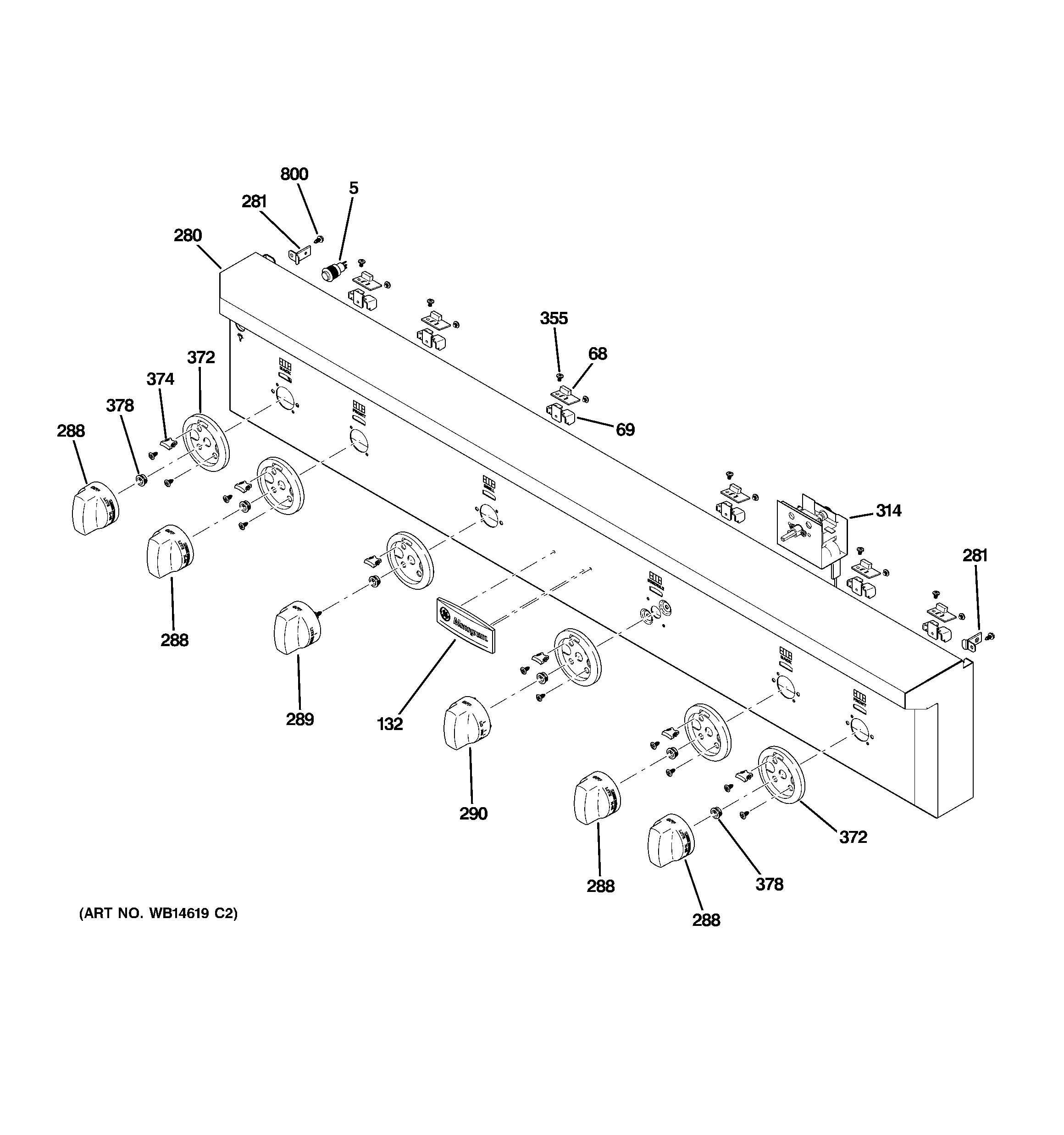

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |
Range Grill Surface Burner Igniter WB13K10030
#145

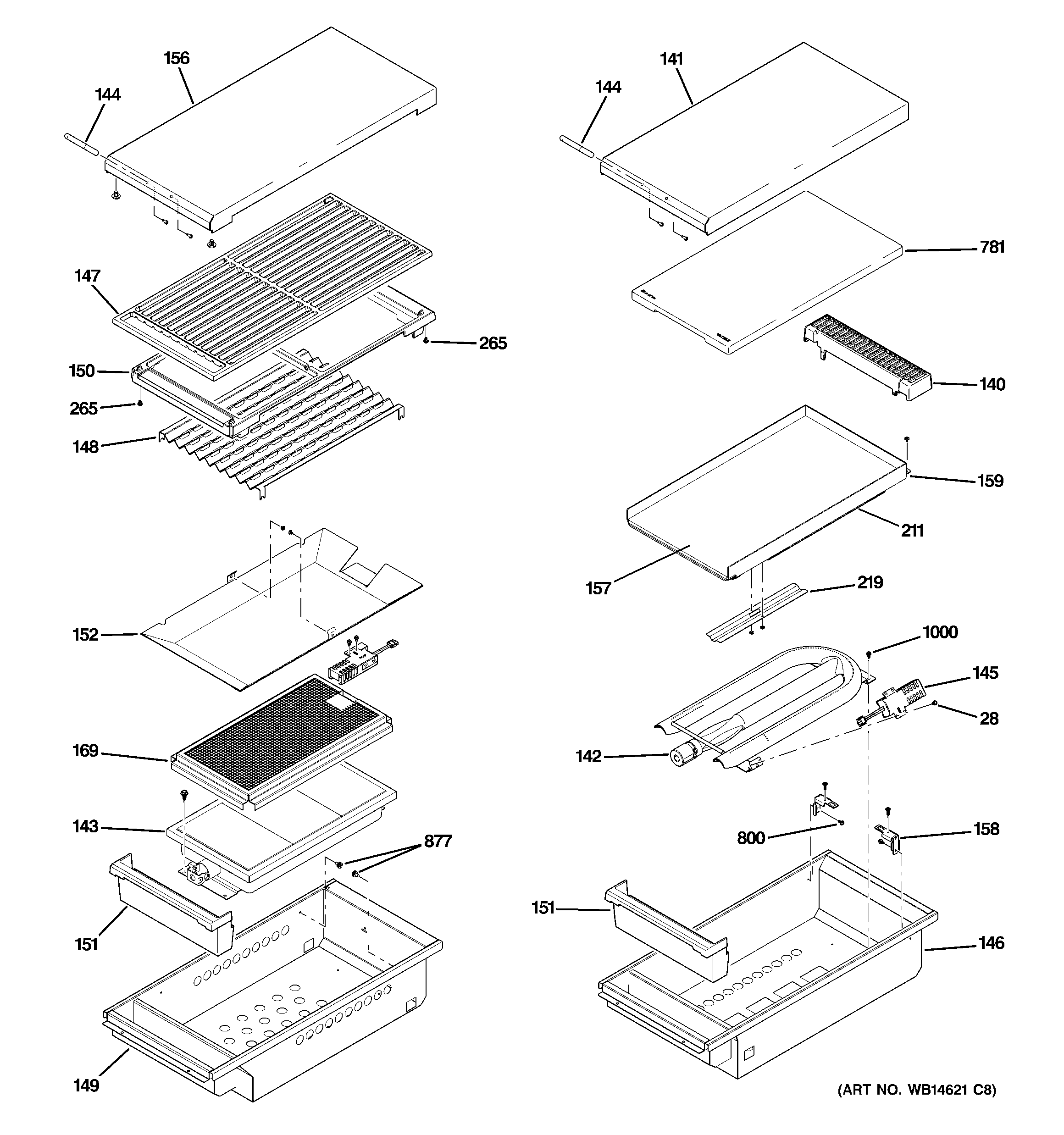

Grill & griddle assembly diagram

Range grill surface burner igniter

Part #WB13K10030

$107.39 |
10% OFF Phone Price : $119.39
In Stock
Scr 8 Hd 1/4 WB01K10067
#21

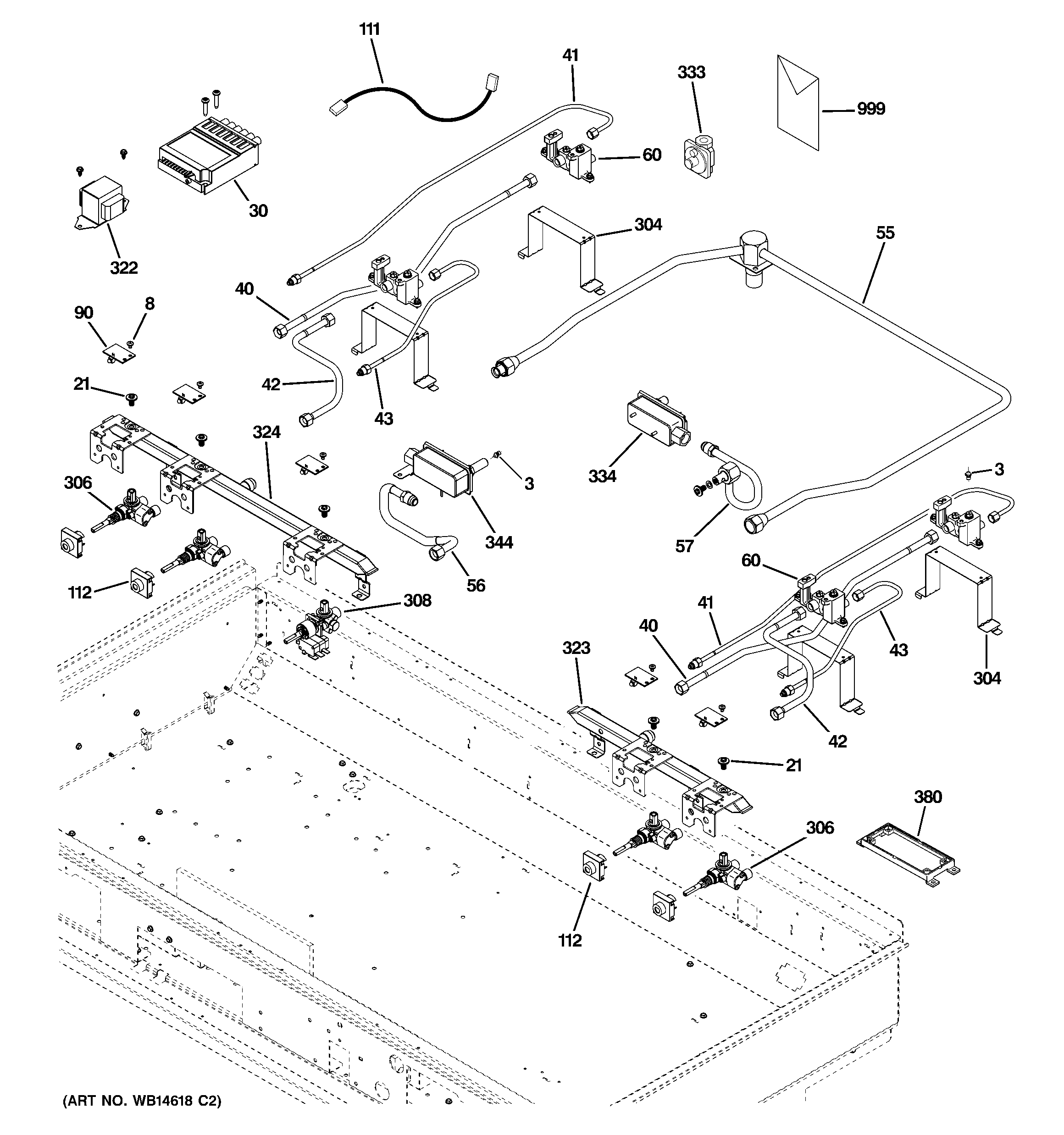

Gas & burner parts diagram

Scr 8 hd 1/4

Part #WB01K10067

This item is not returnable
$7.92 |
11% OFF Phone Price : $8.92
In Stock
Range Ignition Module Transformer WB27K10298
#322

Gas & burner parts diagram

Range ignition module transformer

Part #WB27K10298

$165.01 |
7% OFF Phone Price : $177.01
In Stock
Range Surface Burner Igniter Spring WB09T10011
#470

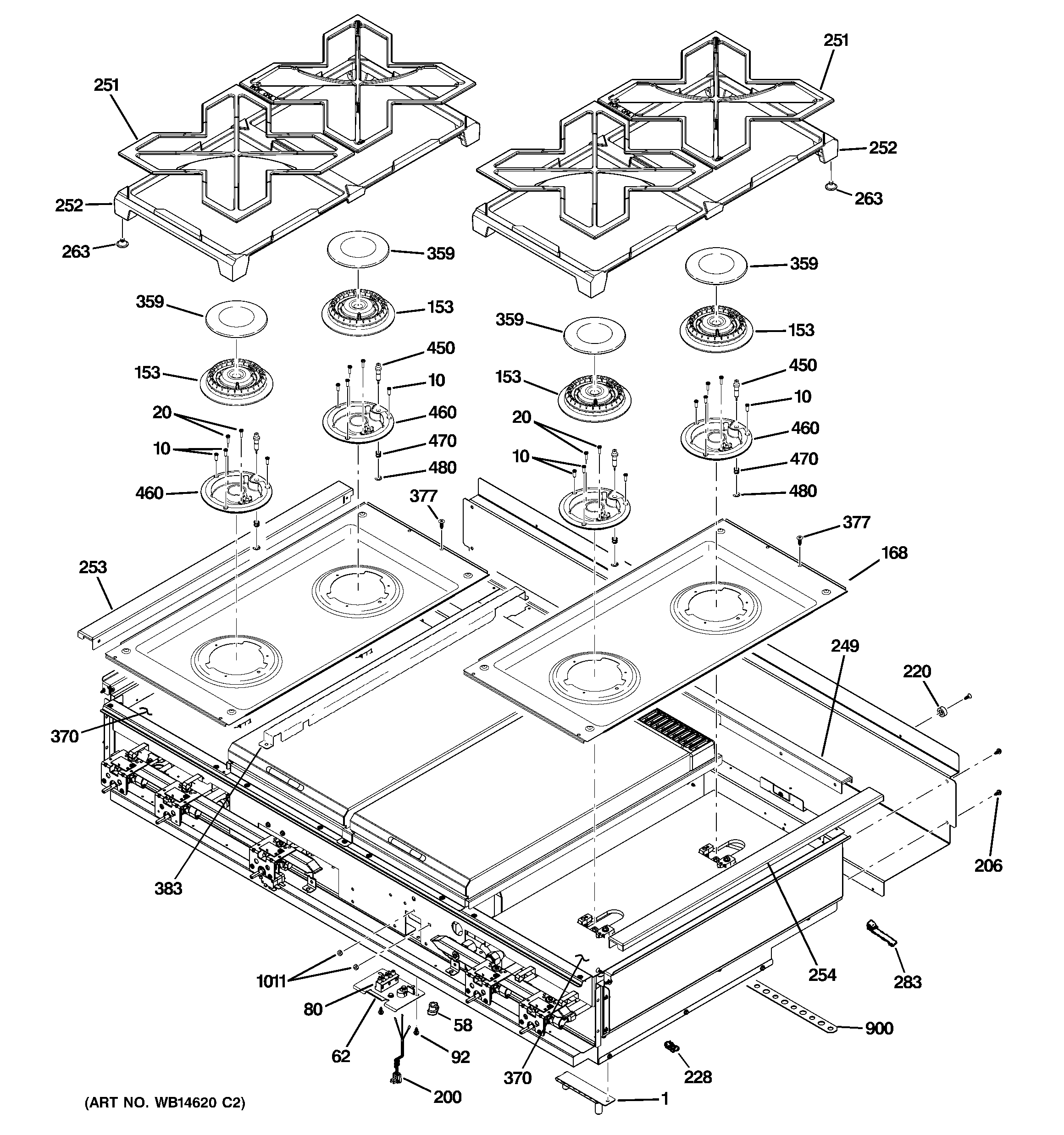

Cooktop diagram

Range surface burner igniter spring

Part #WB09T10011

This item is not returnable
$8.11
In Stock
Range Surface Burner Base Screw WB01T10092
#20

Cooktop diagram

Range surface burner base screw

Part #WB01T10092

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Screw WB01K10002
#8

Gas & burner parts diagram

Range screw

Part #WB01K10002

This item is not returnable
$17.51 |
10% OFF Phone Price : $19.51
In Stock
Cerama Bryte Stainless Steel Brightener (replaces Wb06k10005) WB02T10111
#999

Gas & burner parts diagram

Cerama bryte stainless steel brightener (replaces wb06k10005)

Part #WB02T10111

This item is not returnable
$17.00 |
11% OFF Phone Price : $19.00
In Stock
Range Surface Burner Base WB16T10047
#460

Cooktop diagram

Range surface burner base

Part #WB16T10047

$69.91 |
8% OFF Phone Price : $75.91
In Stock
Spark Module WB13K10037
#30

Gas & burner parts diagram

Spark module

Part #WB13K10037

Replaced by #WB13X27483

?
Manufacturer substitution
This part replaces WB13K10037. Substitute parts can look different from the original.
$113.15 |
10% OFF Phone Price : $125.15
In Stock
Range Burner Head WB16T10043
#153

Cooktop diagram

Range burner head

Part #WB16T10043

Replaced by #WB16X26480

?
Manufacturer substitution
This part replaces WB16T10043. Substitute parts can look different from the original.
$70.47 |
8% OFF Phone Price : $76.47
In Stock
