Kenmore
Top-Mount Refrigerator

Model # 79573964300 Official Kenmore top-mount refrigerator

Here are the diagrams and repair parts for Official Kenmore 79573964300 top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 189 parts  |
Refrigerator Ice Maker Assembly 5989JA0002E
#600A

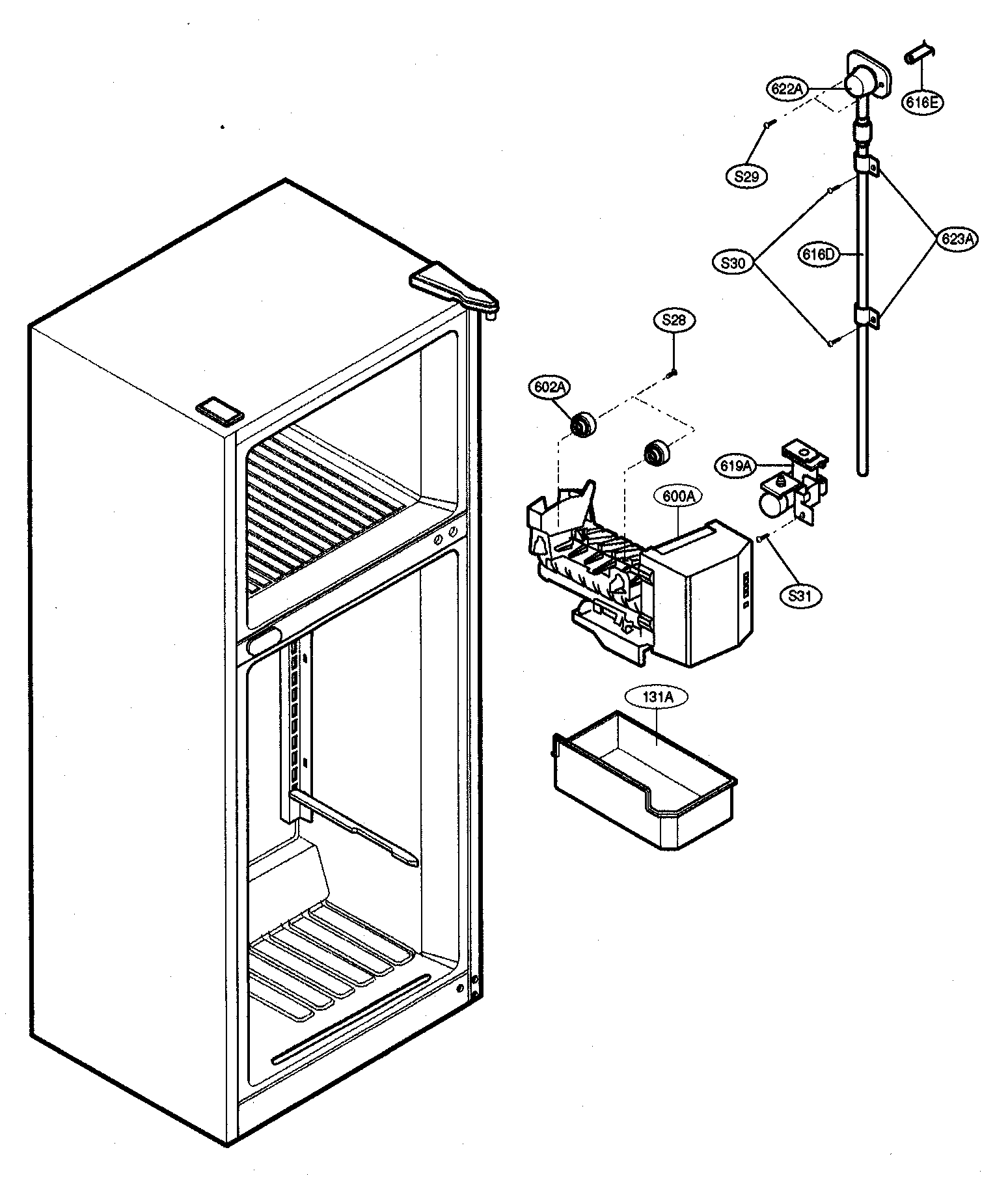

Ice maker parts 1 diagram

Refrigerator ice maker assembly

Part #5989JA0002E

Replaced by #5989JA0002Y

?
Manufacturer substitution
This part replaces 5989JA0002E. Substitute parts can look different from the original.
BEST SELLER
$195.66 |
6% OFF Phone Price : $207.66
In Stock
Refrigerator Harness 6877JB3045A
#404Z

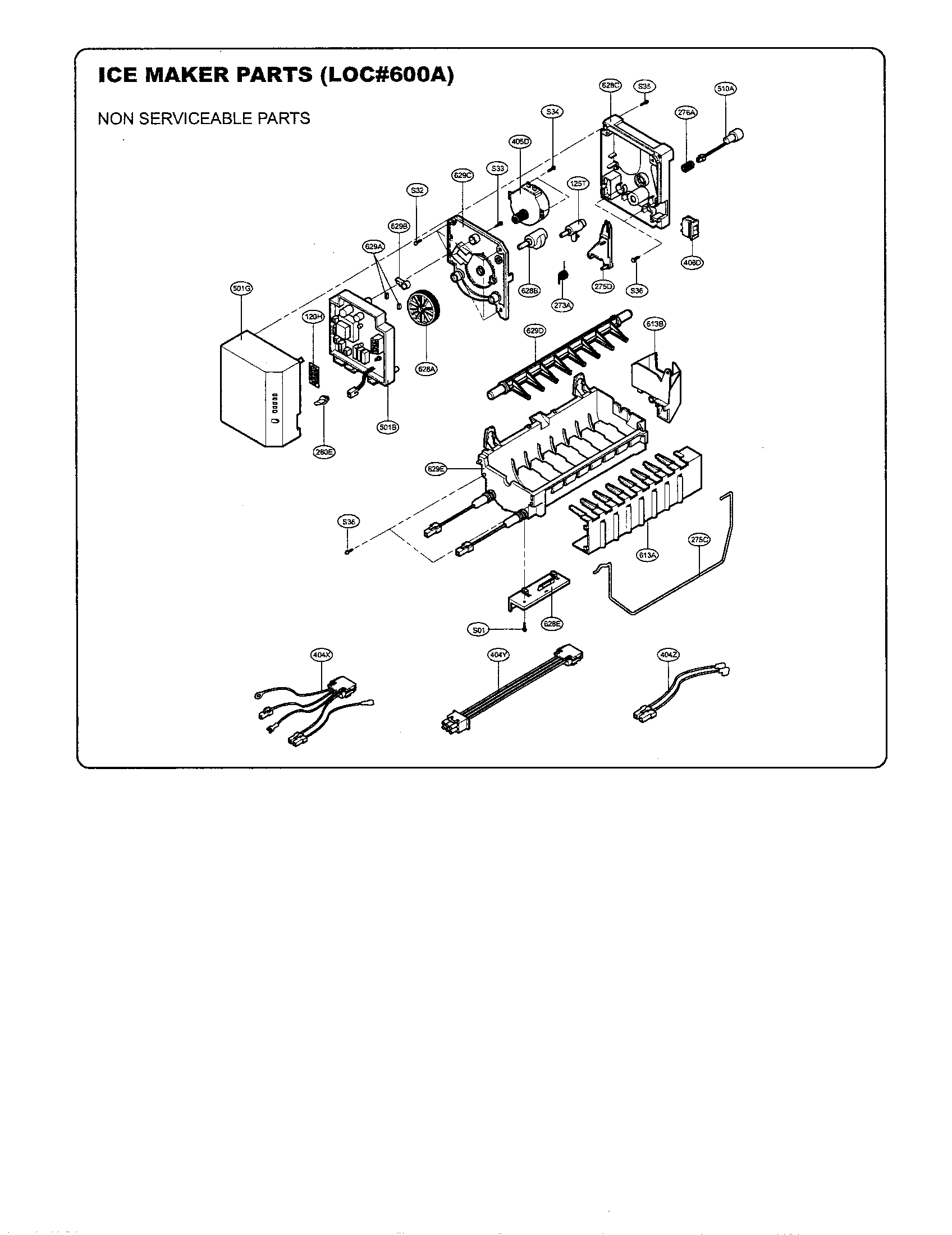

Ice maker parts 2 diagram

Refrigerator harness

Part #6877JB3045A

Replaced by #5989JA0002Y

?
Manufacturer substitution
This part replaces 6877JB3045A. Substitute parts can look different from the original.
BEST SELLER
$195.66 |
6% OFF Phone Price : $207.66
In Stock
Refrigerator Water Inlet Valve (replaces 5220ja2003a, 5220ja2009b, 5221ja2008g) 5220JA2009D
#619A

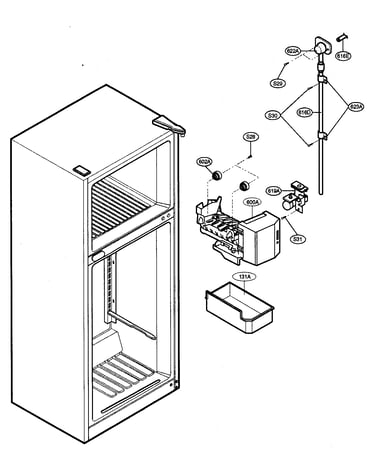

Ice maker parts 1 diagram

Refrigerator water inlet valve (replaces 5220ja2003a, 5220ja2009b, 5221ja2008g)

Part #5220JA2009D

BEST SELLER
$67.26 |
8% OFF Phone Price : $73.26
In Stock
Refrigerator Door Bin 5005JJ2005A
#241E

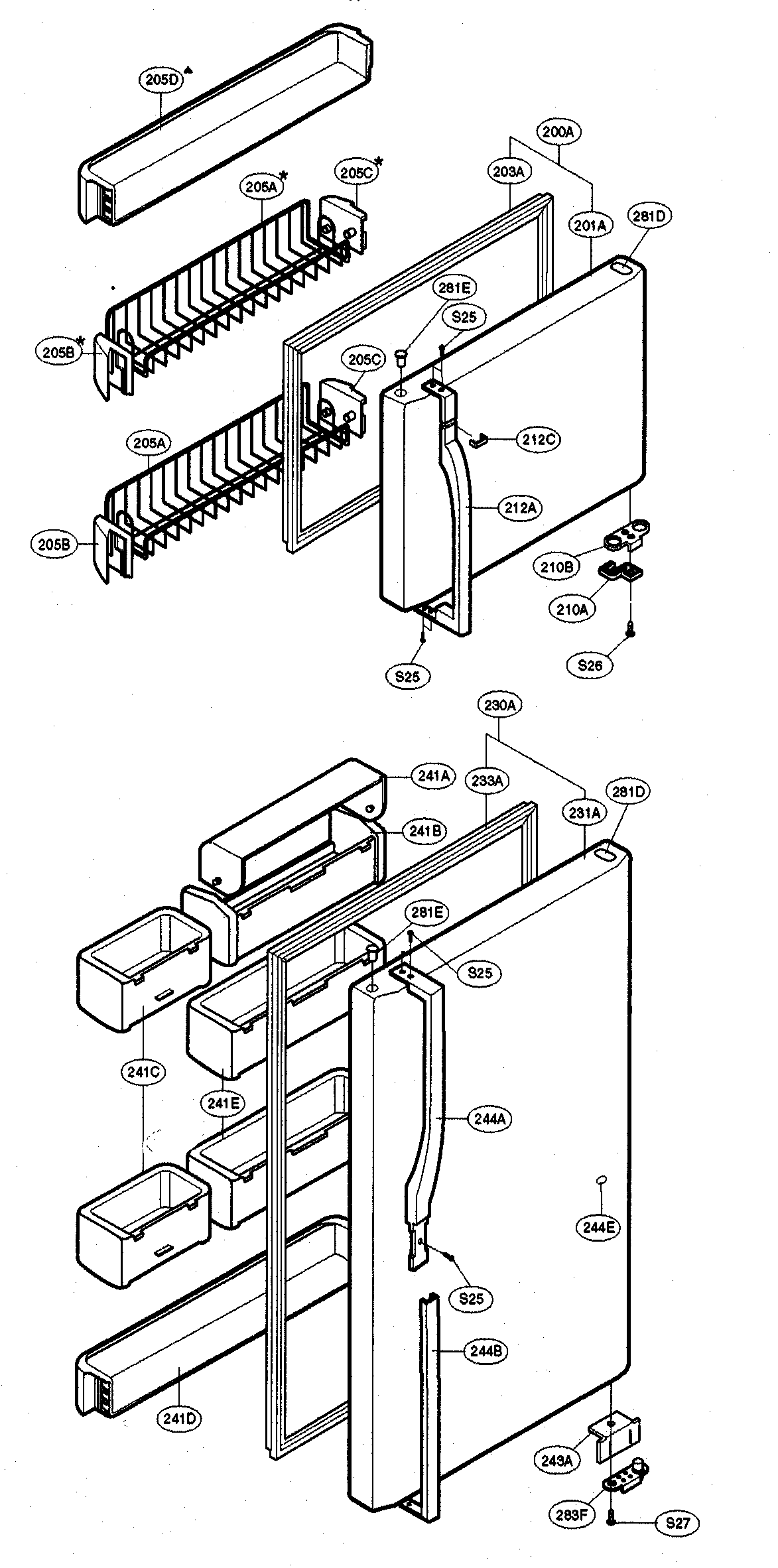

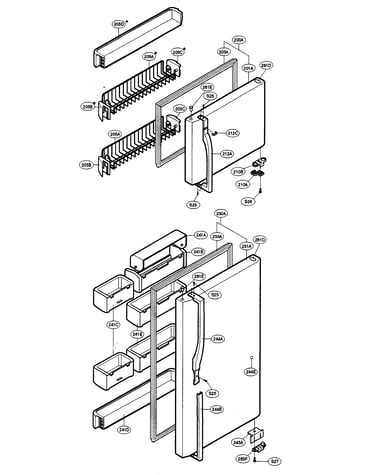

Door parts diagram

Refrigerator door bin

Part #5005JJ2005A

Replaced by #5005JJ2018A

?
Manufacturer substitution
This part replaces 5005JJ2005A. Substitute parts can look different from the original.
BEST SELLER
$94.51 |
6% OFF Phone Price : $100.51
In Stock
Refrigerator Deli Drawer Slide Rail 4975JJ2002A
#128A

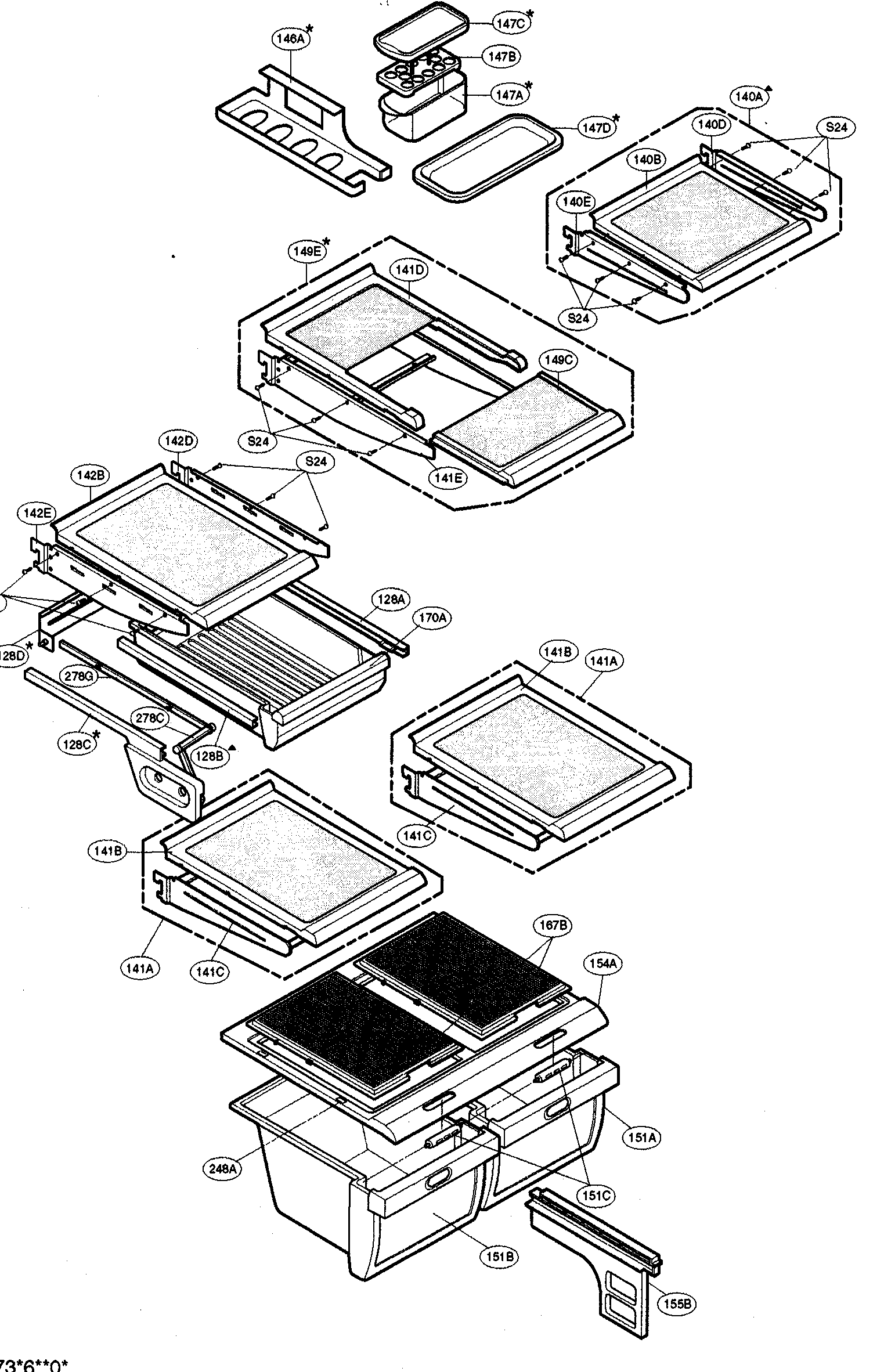

Refrigerator parts diagram

Refrigerator deli drawer slide rail

Part #4975JJ2002A

This item is not returnable
$26.29 |
19% OFF Phone Price : $32.29
In Stock
Refrigerator Stopper 4620JJ3004B
#243A

Door parts diagram

Refrigerator stopper

Part #4620JJ3004B

Replaced by #4620JJ3006A

?
Manufacturer substitution
This part replaces 4620JJ3004B. Substitute parts can look different from the original.
This item is not returnable
$20.38 |
23% OFF Phone Price : $26.38
In Stock
Refrigerator Screw (replaces 69390951) 4J00415D
Refrigerator screw (replaces 69390951)

Part #4J00415D

Replaced by #1SZZW1E002B

?
Manufacturer substitution
This part replaces 4J00415D. Substitute parts can look different from the original.
$8.29
In Stock
Refrigerator Freezer Door Stop Guide 4974JA3031B
#210B

Door parts diagram

Refrigerator freezer door stop guide

Part #4974JA3031B

This item is not returnable
$11.11 |
15% OFF Phone Price : $13.11
In Stock
Kenmore Elite Refrigerator Crisper Drawer Humidity Control Knob 4940JJ2003A
#151C

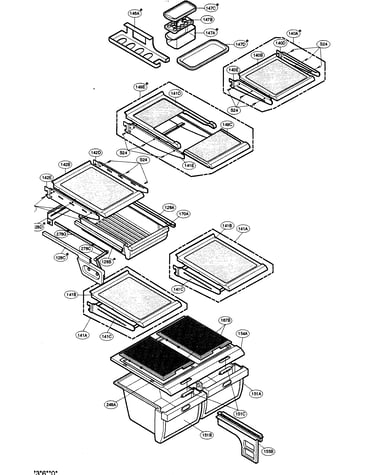

Refrigerator parts diagram

Kenmore elite refrigerator crisper drawer humidity control knob

Part #4940JJ2003A

This item is not returnable
$16.64 |
11% OFF Phone Price : $18.64
In Stock
Refrigerator Run Capacitor 0CZZJB2003H
#410G

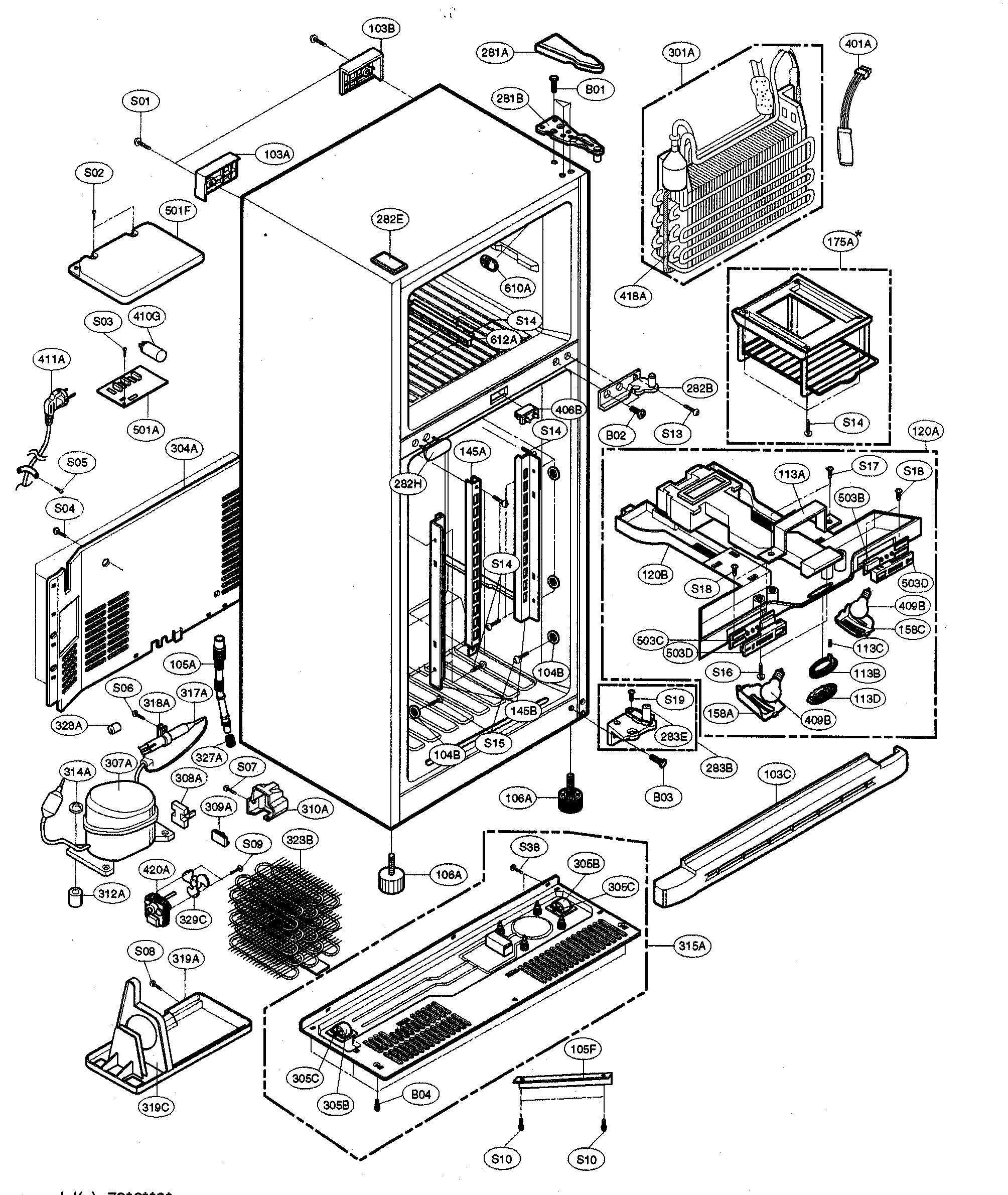

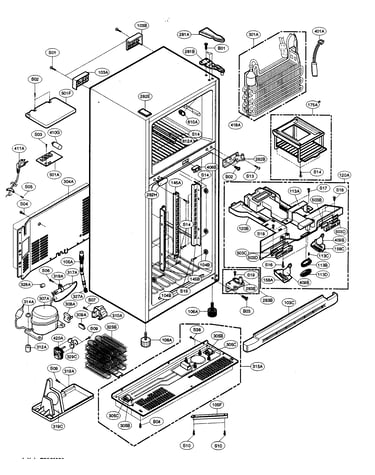

Case parts diagram

Refrigerator run capacitor

Part #0CZZJB2003H

Replaced by #0CZZJB2002B

?
Manufacturer substitution
This part replaces 0CZZJB2003H. Substitute parts can look different from the original.
$68.59 |
8% OFF Phone Price : $74.59
In Stock
