Model # AHK40LKG1 Official GE dehumidifier

Here are the diagrams and repair parts for Official GE AHK40LKG1 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Om Dehumidif 49-7557
#9999

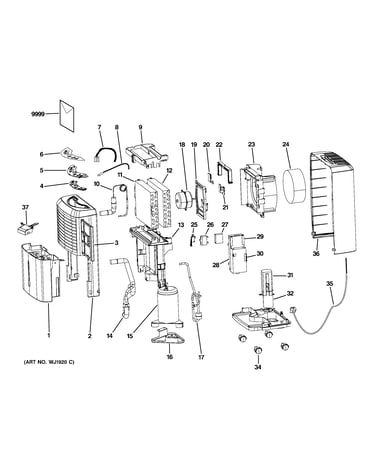

Dehumidifier diagram

Om dehumidif

Part #49-7557

$18.59 |
10% OFF Phone Price : $20.59
In Stock
Panel WK90X10009
#36

Dehumidifier diagram

Panel

Part #WK90X10009

The manufacturer no longer makes this part, and there's no substitute part

Compressor WK98X10011
#15

Dehumidifier diagram

Compressor

Part #WK98X10011

The manufacturer no longer makes this part, and there's no substitute part

Dehumidifier Air Filter WK85X10008
#3

Dehumidifier diagram

Dehumidifier air filter

Part #WK85X10008

The manufacturer no longer makes this part, and there's no substitute part

Control Panel WK07X10005
#5

Dehumidifier diagram

Control panel

Part #WK07X10005

The manufacturer no longer makes this part, and there's no substitute part

Base Bracket WK76X10011
#13

Dehumidifier diagram

Base bracket

Part #WK76X10011

The manufacturer no longer makes this part, and there's no substitute part

Suction Pipe WK57X10014
#14

Dehumidifier diagram

Suction pipe

Part #WK57X10014

The manufacturer no longer makes this part, and there's no substitute part

Motor Capacitor WK26X10018
#26

Dehumidifier diagram

Motor capacitor

Part #WK26X10018

The manufacturer no longer makes this part, and there's no substitute part

Water Tank A WK10X10009
#1

Dehumidifier diagram

Water tank a

Part #WK10X10009

The manufacturer no longer makes this part, and there's no substitute part

Cover Comp C WK79X10013
#31

Dehumidifier diagram

Cover comp c

Part #WK79X10013

The manufacturer no longer makes this part, and there's no substitute part
