Model # GFWS3500L0WW Official GE washer

Here are the diagrams and repair parts for Official GE GFWS3500L0WW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 186 parts  |
Washer Suspension Spring WH05X10012
#204

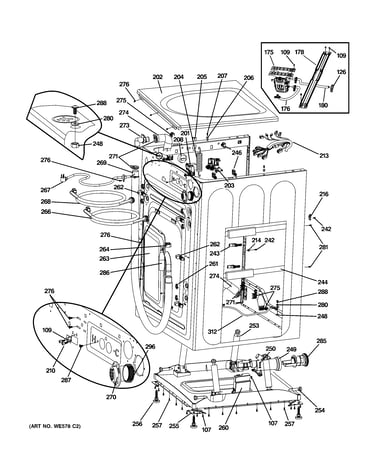

Cabinet & top panel diagram

Washer suspension spring

Part #WH05X10012

BEST SELLER
$38.64 |
13% OFF Phone Price : $44.64
In Stock
Diverter WH43X10031
#140

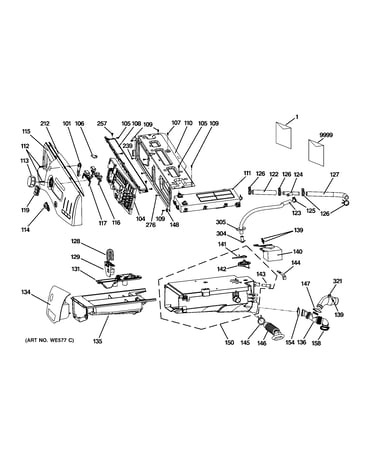

Controls & dispenser diagram

Diverter

Part #WH43X10031

Replaced by #WH43X10059

?
Manufacturer substitution
This part replaces WH43X10031. Substitute parts can look different from the original.
$129.55 |
8% OFF Phone Price : $141.55
In Stock
Washer Door Lock WH10X10006
#217

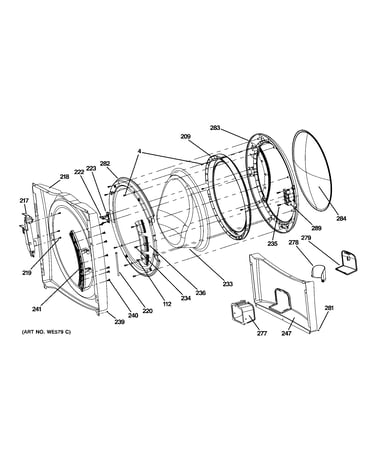

Front panel & door diagram

Washer door lock

Part #WH10X10006

$158.03 |
7% OFF Phone Price : $170.03
In Stock
Washer Drive Pulley Kit WH07X10022
#322

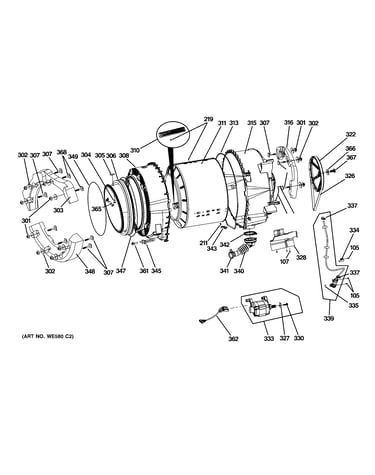

Tub & motor diagram

Washer drive pulley kit

Part #WH07X10022

$100.93 |
11% OFF Phone Price : $112.93
In Stock
Washer Drain Pump Filter (replaces Wh23x10027, Wh23x20840) WH23X10029
#285

Cabinet & top panel diagram

Washer drain pump filter (replaces wh23x10027, wh23x20840)

Part #WH23X10029

Replaced by #WH11X34741

?
Manufacturer substitution
This part replaces WH23X10029. Substitute parts can look different from the original.
$97.31
In Stock
Washer Door Boot Spring Clamp WH08X10056
#349

Tub & motor diagram

Washer door boot spring clamp

Part #WH08X10056

$33.71 |
15% OFF Phone Price : $39.71
In Stock
Washer Shock Absorber Mounting Pin WH01X10261
#254

Cabinet & top panel diagram

Washer shock absorber mounting pin

Part #WH01X10261

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Washer Drain Hose WH41X10126
#269

Cabinet & top panel diagram

Washer drain hose

Part #WH41X10126

$37.61 |
14% OFF Phone Price : $43.61
In Stock
Washer Door Boot Spring Clamp, Inner WH08X10055
#347

Tub & motor diagram

Washer door boot spring clamp, inner

Part #WH08X10055

$50.52 |
11% OFF Phone Price : $56.52
In Stock
Washer Tub Seal WH08X10054
#313

Tub & motor diagram

Washer tub seal

Part #WH08X10054

$30.99 |
16% OFF Phone Price : $36.99
In Stock
