Haier
Upright Freezer

Model # HUM046EB Official Haier freezer

Here are the diagrams and repair parts for Official Haier HUM046EB freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Hinge RF-3450-110
#19

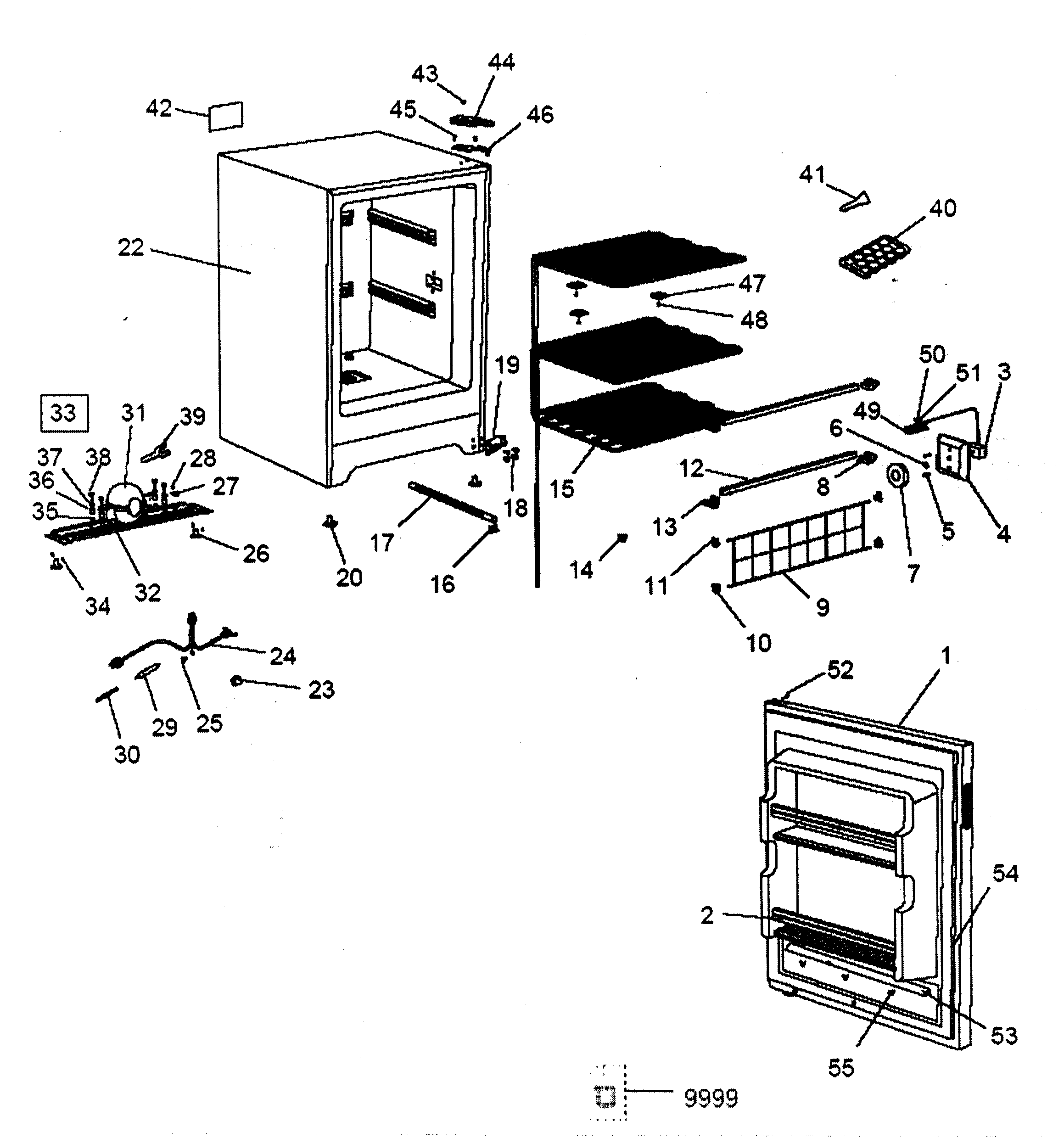

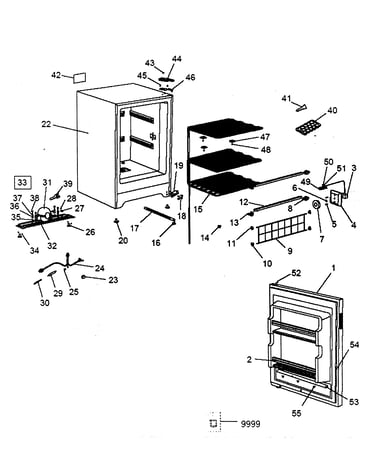

Freezer diagram

Hinge

Part #RF-3450-110

$9.49
In Stock
Trim RF-7700-44
#12

Freezer diagram

Trim

Part #RF-7700-44

$14.99
In Stock
Wrench RF-8150-01
#39

Freezer diagram

Wrench

Part #RF-8150-01

This item is not returnable
$2.99
In Stock
Ice Scraper RF-6095-04
#41

Freezer diagram

Ice scraper

Part #RF-6095-04

This item is not returnable
$2.99
In Stock
Cover RF-1950-123
#44

Freezer diagram

Cover

Part #RF-1950-123

This item is not returnable
$5.99
In Stock
Housing RF-3600-13
#4

Freezer diagram

Housing

Part #RF-3600-13

This item is not returnable
$7.49
In Stock
Clamp RF-1640-09
#49

Freezer diagram

Clamp

Part #RF-1640-09

This item is not returnable
$2.99
In Stock
Evaporator RF-2650-63
#15

Freezer diagram

Evaporator

Part #RF-2650-63

$80.99
In Stock
Pad RF-5100-38
#23

Freezer diagram

Pad

Part #RF-5100-38

This item is not returnable
$2.99
In Stock
Plate RF-5300-19
#32

Freezer diagram

Plate

Part #RF-5300-19

$17.49
In Stock
