Electric Wall Oven

Model # JT5000BL6TS Official GE electric wall oven

Here are the diagrams and repair parts for Official GE JT5000BL6TS electric wall oven, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forJT5000BL6TS Wall Ovens

  • Wall Oven Cooling Fan Sensor Board WB27T11463
    #599

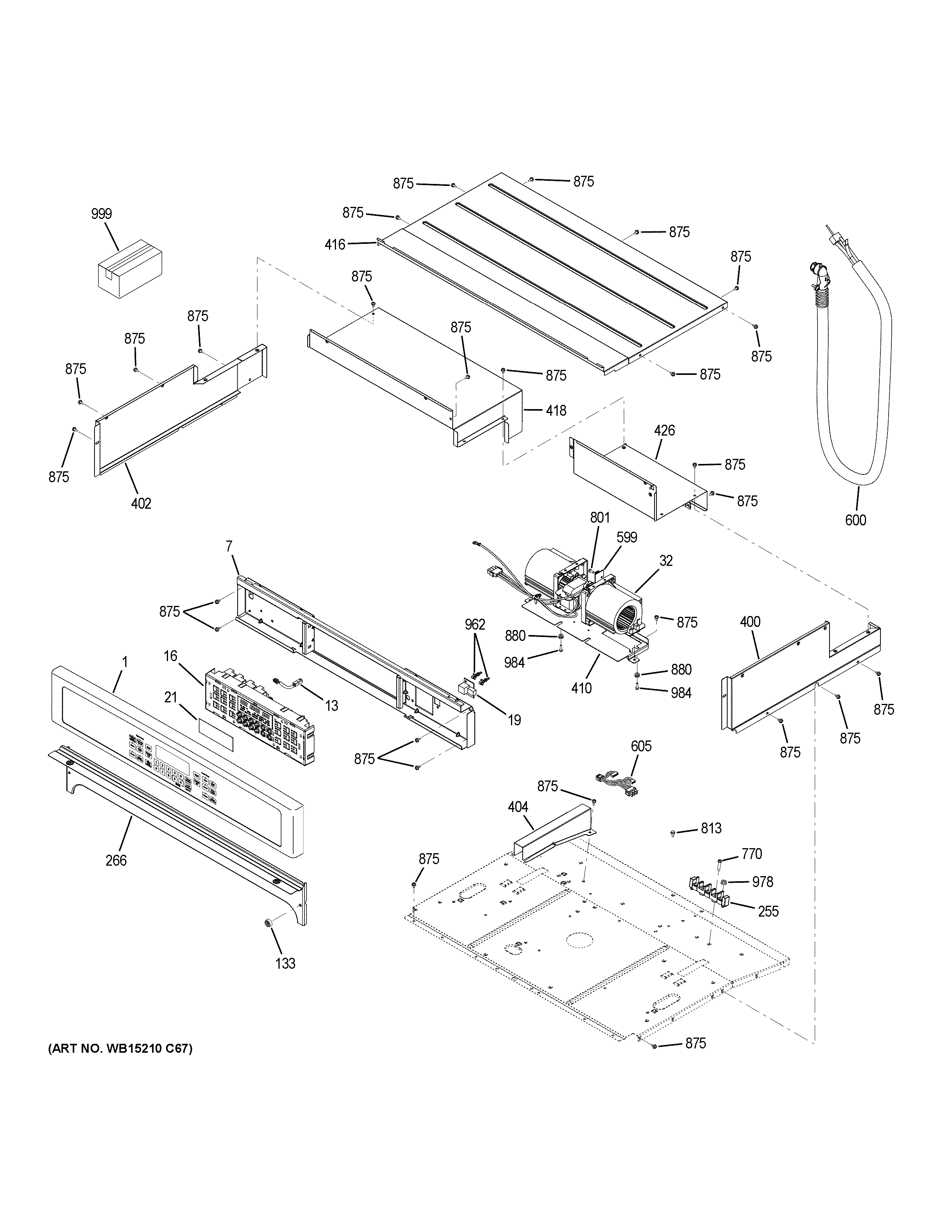

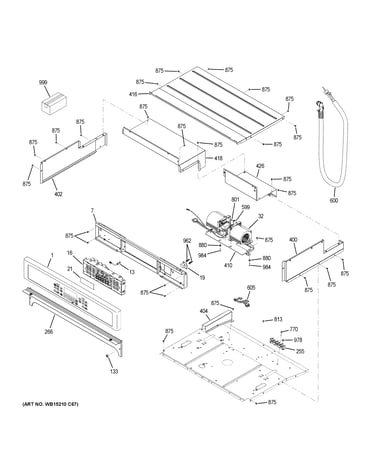

    Control panel diagram

    Wall oven cooling fan sensor board

    Part #WB27T11463

    BEST SELLER
    This item is not returnable
    $53.78 |
    10% OFF Phone Price : $59.78
    In Stock
  • Wall Oven Temperature Sensor WB21X10165
    #253

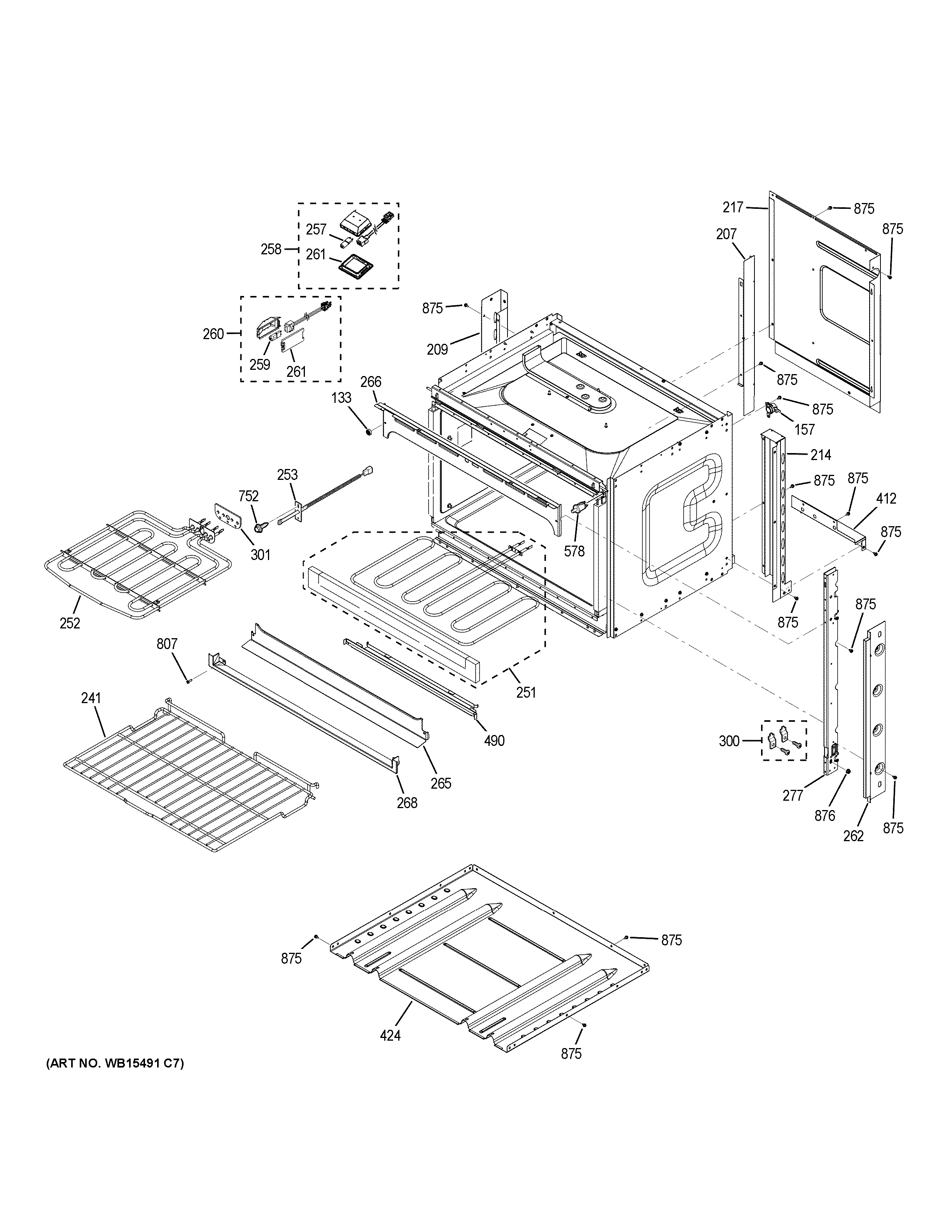

    Body parts diagram

    Wall oven temperature sensor

    Part #WB21X10165

    BEST SELLER
    $23.49 |
    20% OFF Phone Price : $29.49
    In Stock
  • Wall Oven Cooling Fan Assembly WB26X31060
    #32

    Control panel diagram

    Wall oven cooling fan assembly

    Part #WB26X31060

    1.67 (3)
    BEST SELLER
    $68.04 |
    8% OFF Phone Price : $74.04
    In Stock
  • Range High-limit Thermostat WB24T10164
    #157

    Body parts diagram

    Range high-limit thermostat

    Part #WB24T10164

    Replaced by #WB24X46906

    ?
    Manufacturer substitution
    This part replaces WB24T10164. Substitute parts can look different from the original.
    BEST SELLER
    $90.25 |
    6% OFF Phone Price : $96.25
    In Stock
  • Range Oven Door Switch WB24T10147
    #578

    Body parts diagram

    Range oven door switch

    Part #WB24T10147

    4 (2)
    This item is not returnable
    $18.69 |
    10% OFF Phone Price : $20.69
    In Stock
  • Wall Oven Door Lock Assembly WB10X23814
    #150

    Door lock diagram

    Wall oven door lock assembly

    Part #WB10X23814

    $79.78 |
    7% OFF Phone Price : $85.78
    In Stock
  • Gasket WB35X26196
    #132

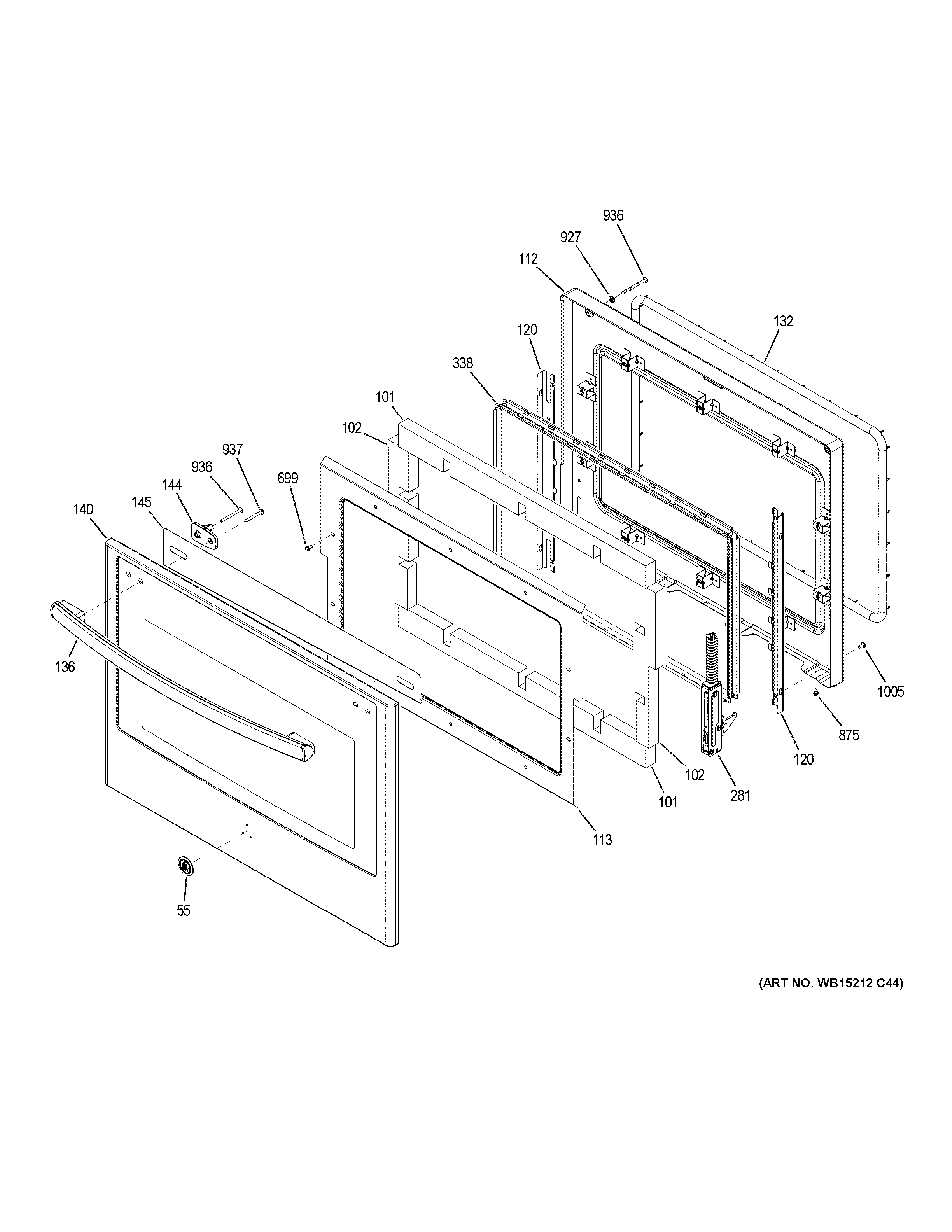

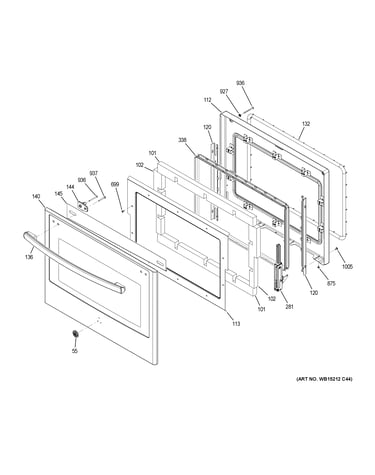

    Door diagram

    Gasket

    Part #WB35X26196

    Replaced by #WB35X32825

    ?
    Manufacturer substitution
    This part replaces WB35X26196. Substitute parts can look different from the original.
    $42.29 |
    12% OFF Phone Price : $48.29
    In Stock
  • Wall Oven Light Assembly WB25X31221
    #258

    Body parts diagram

    Wall oven light assembly

    Part #WB25X31221

    4 (1)
    $41.76 |
    13% OFF Phone Price : $47.76
    In Stock
  • Wall Oven Rack WB48X31582
    #241

    Body parts diagram

    Wall oven rack

    Part #WB48X31582

    $56.09 |
    10% OFF Phone Price : $62.09
    In Stock
  • Convex Motor WB26X23813
    #511

    Convection fan diagram

    Convex motor

    Part #WB26X23813

    $94.35 |
    6% OFF Phone Price : $100.35
    In Stock
