Maytag
Bottom-Mount Refrigerator

Model # MB1927PEHW-PMB1927PHW0 Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag MB1927PEHW-PMB1927PHW0 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

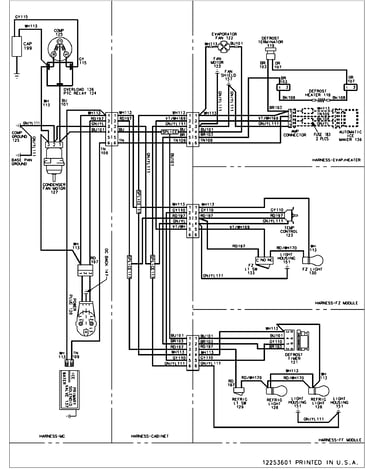

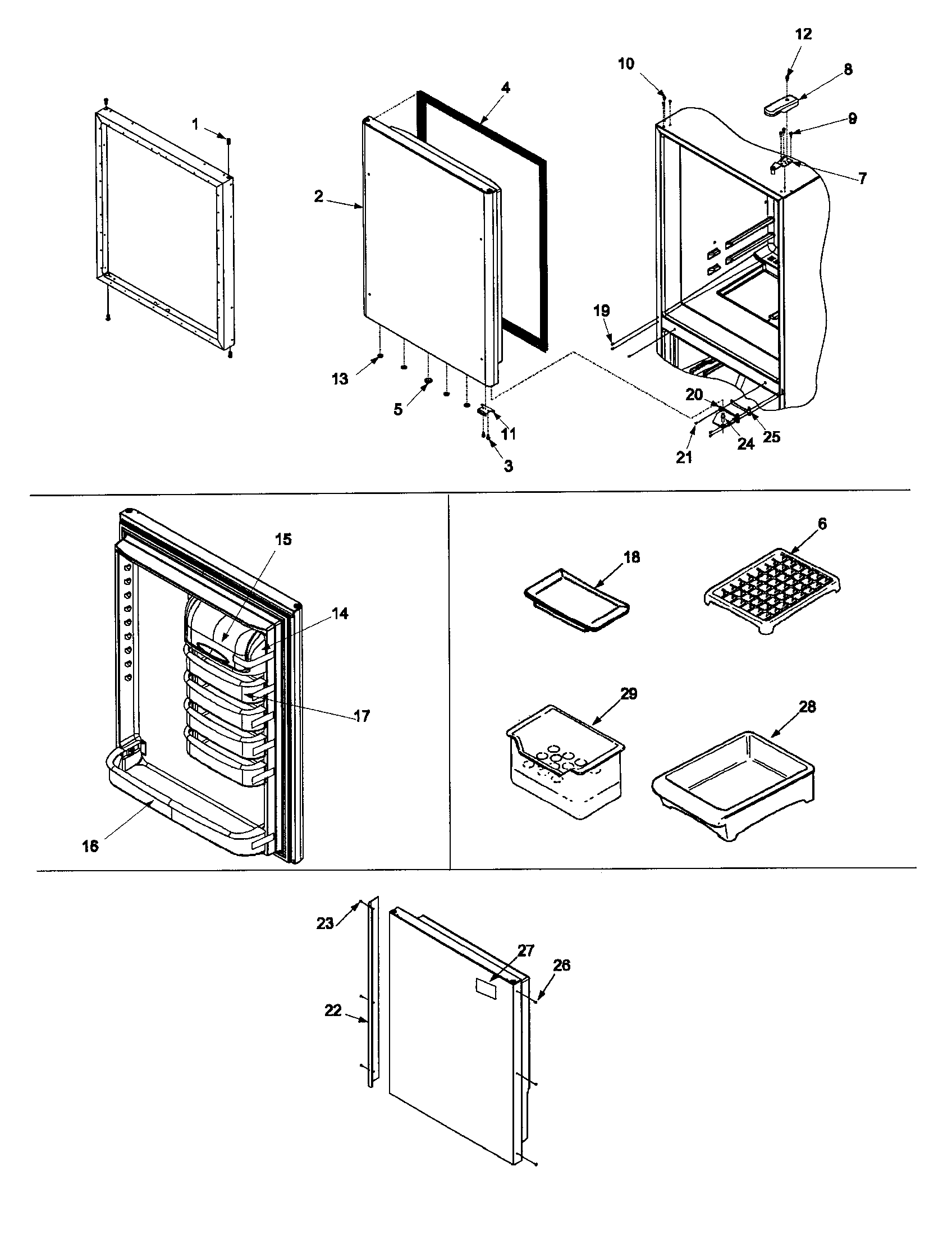

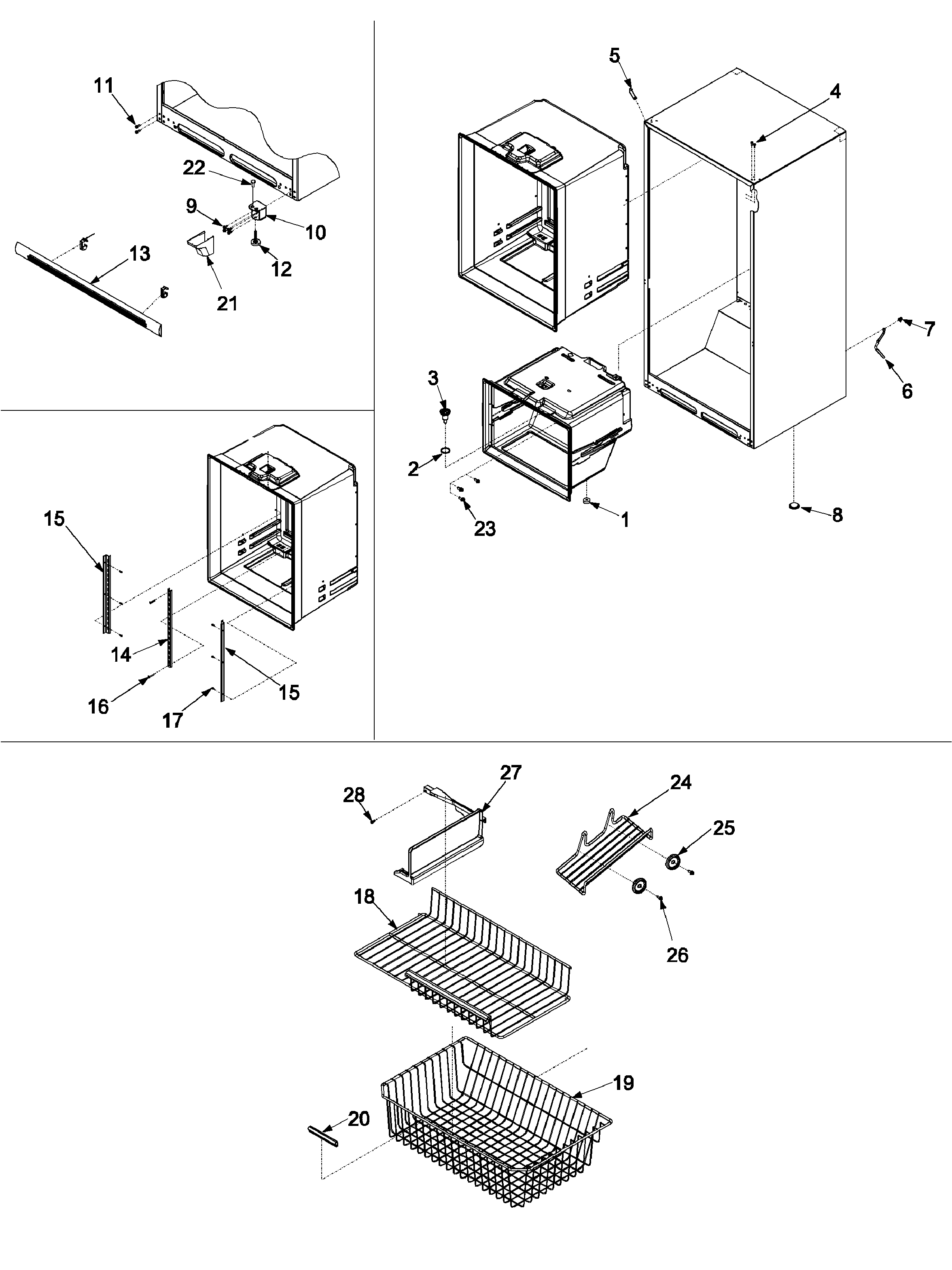

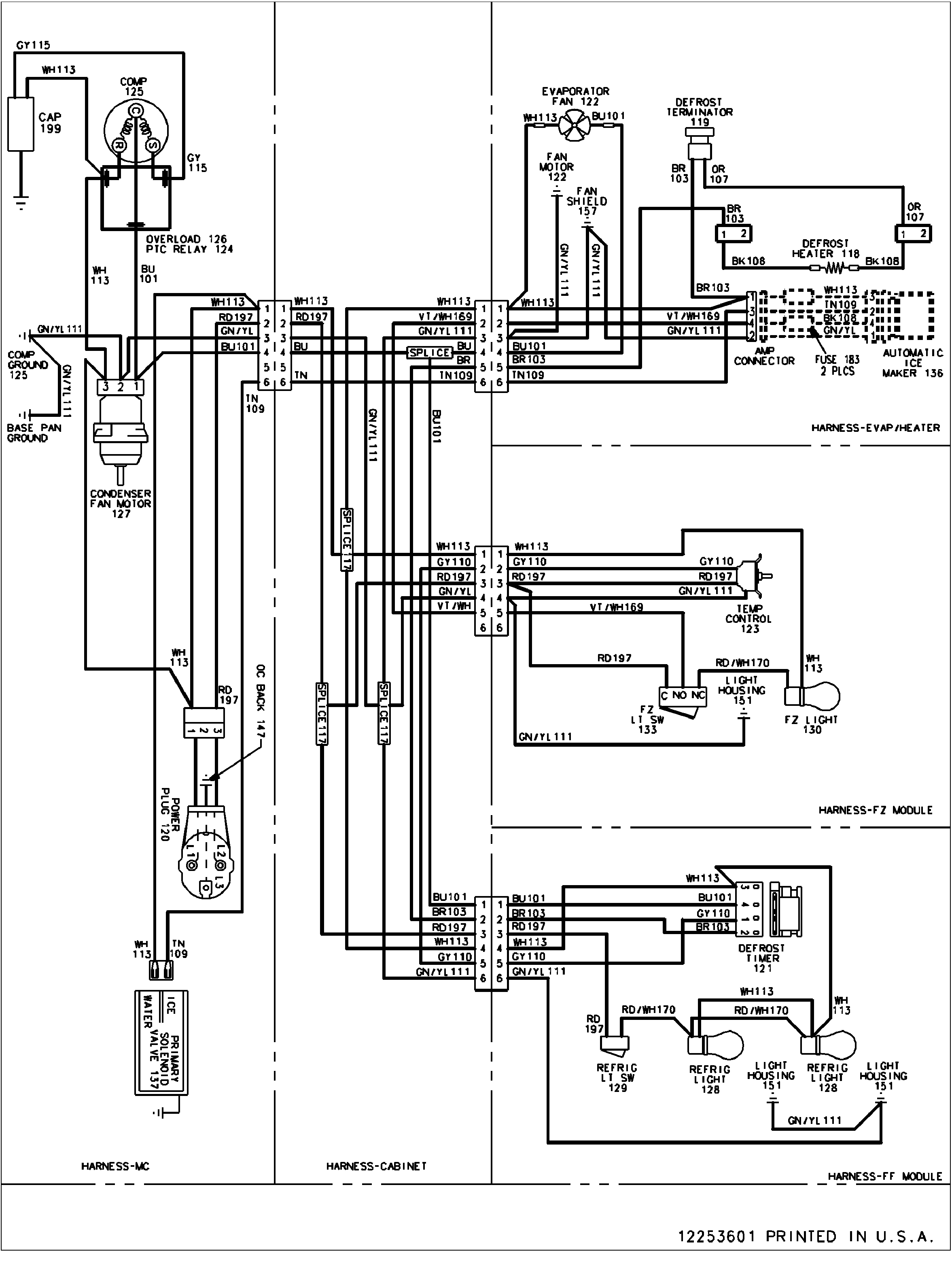

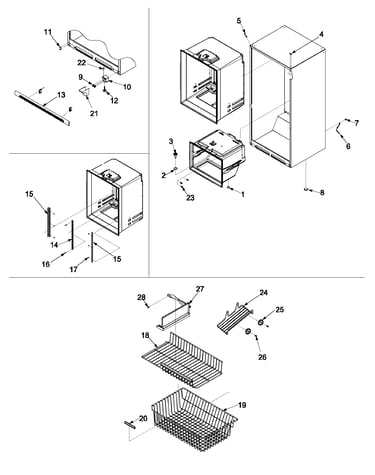

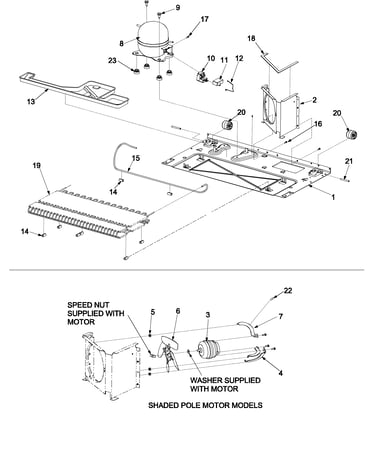

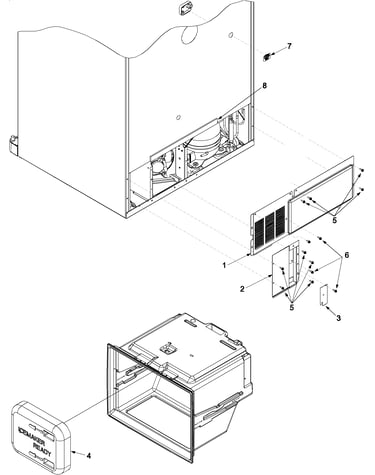

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 229 parts  |
Refrigerator Light Switch C3680310
#1

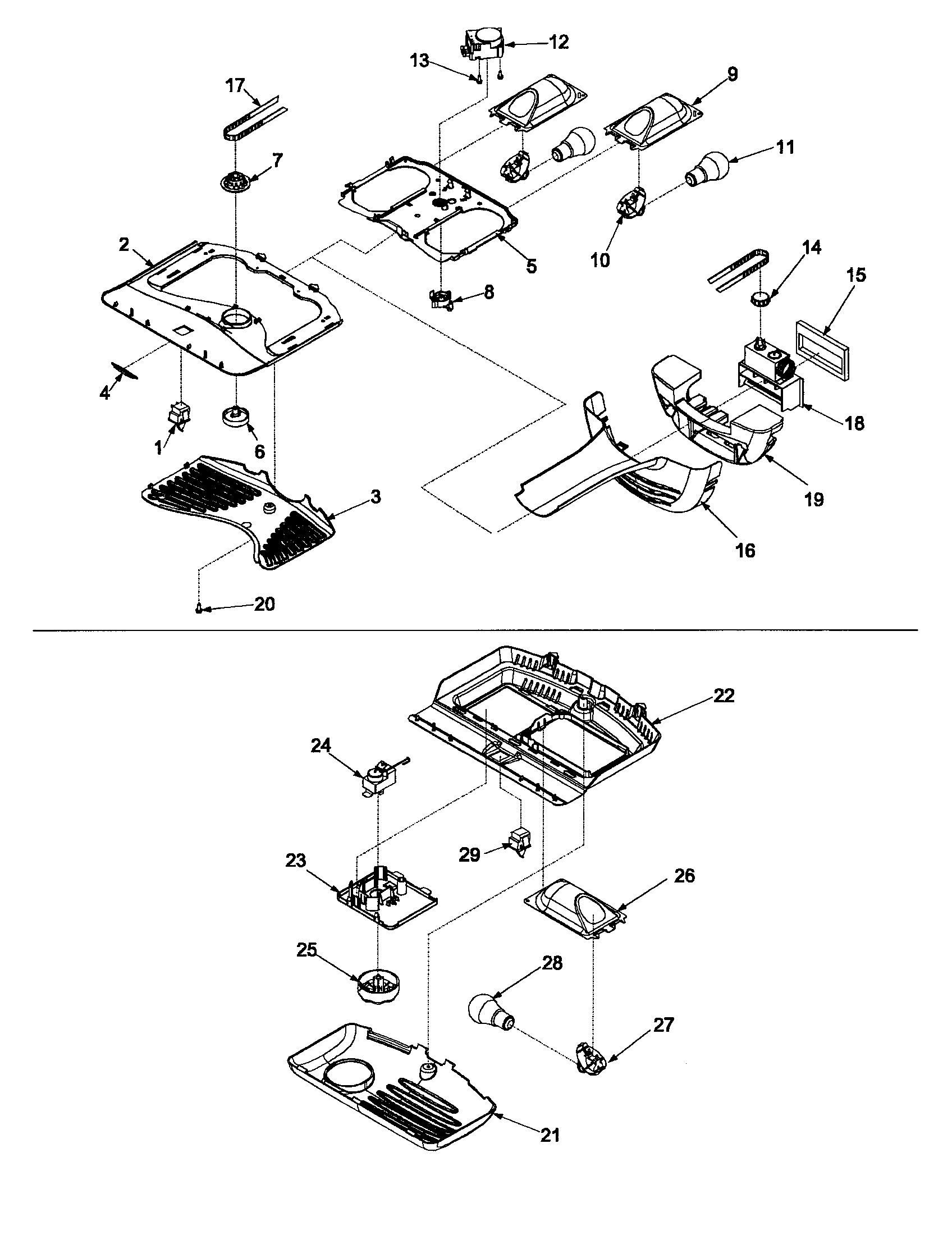

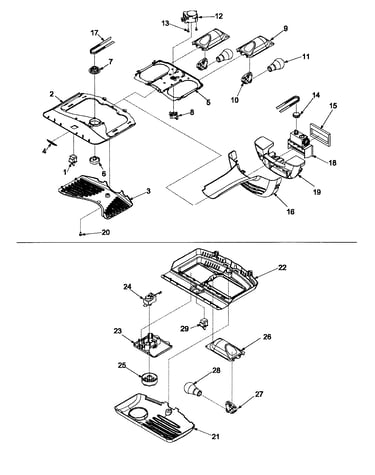

Controls diagram

Refrigerator light switch

Part #C3680310

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680310. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Refrigerator Evaporator Fan Blade 12217201
#21

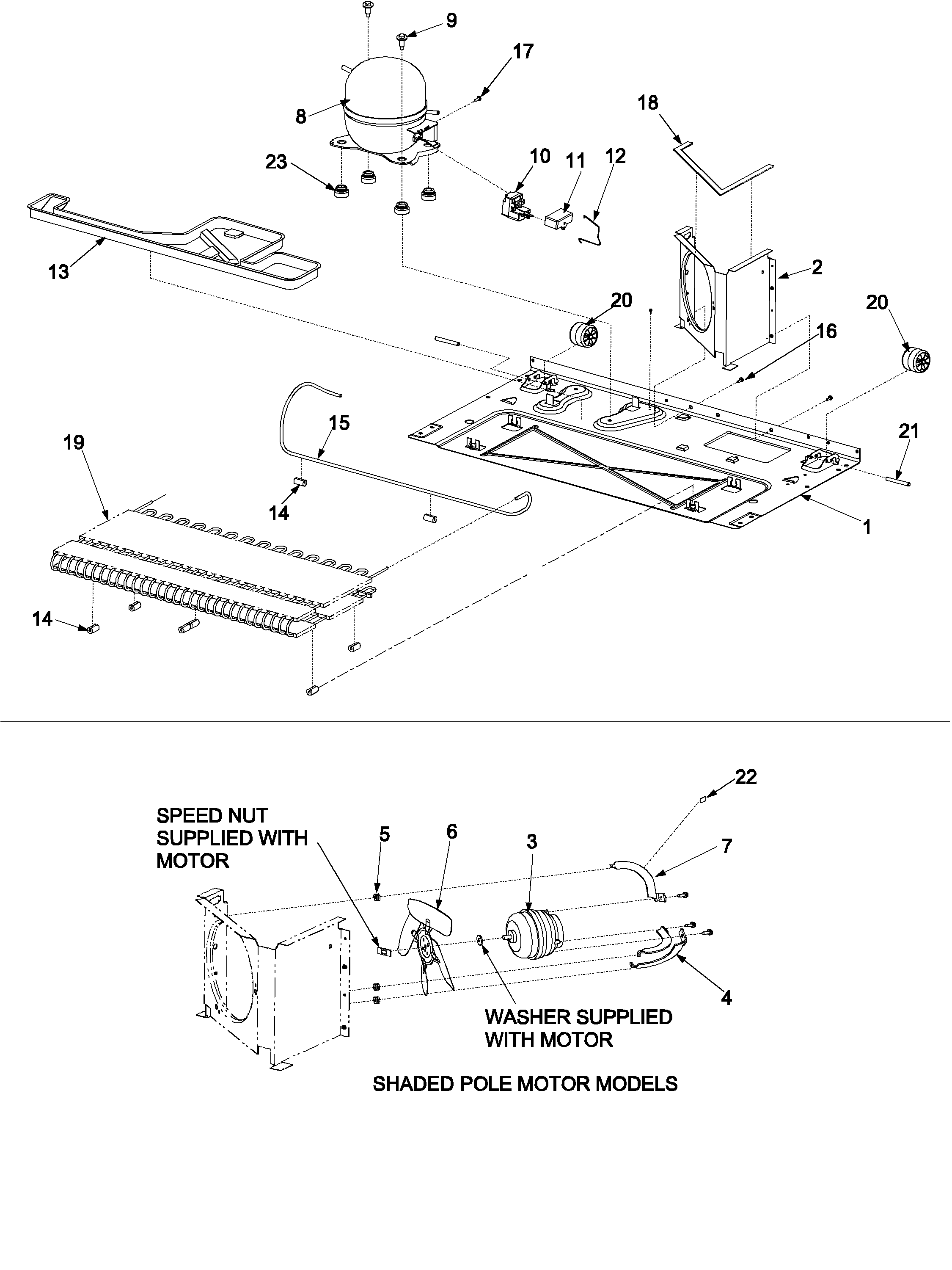

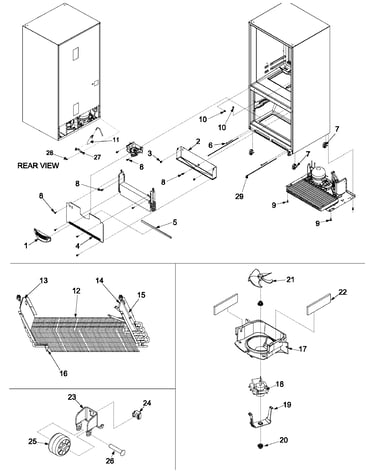

Evaporator area & rollers diagram

Refrigerator evaporator fan blade

Part #12217201

Replaced by #WP2169142

?
Manufacturer substitution
This part replaces 12217201. Substitute parts can look different from the original.
BEST SELLER
$38.22 |
14% OFF Phone Price : $44.22
In Stock
Refrigerator Crisper Drawer Support Rail, Center 67001057
#15

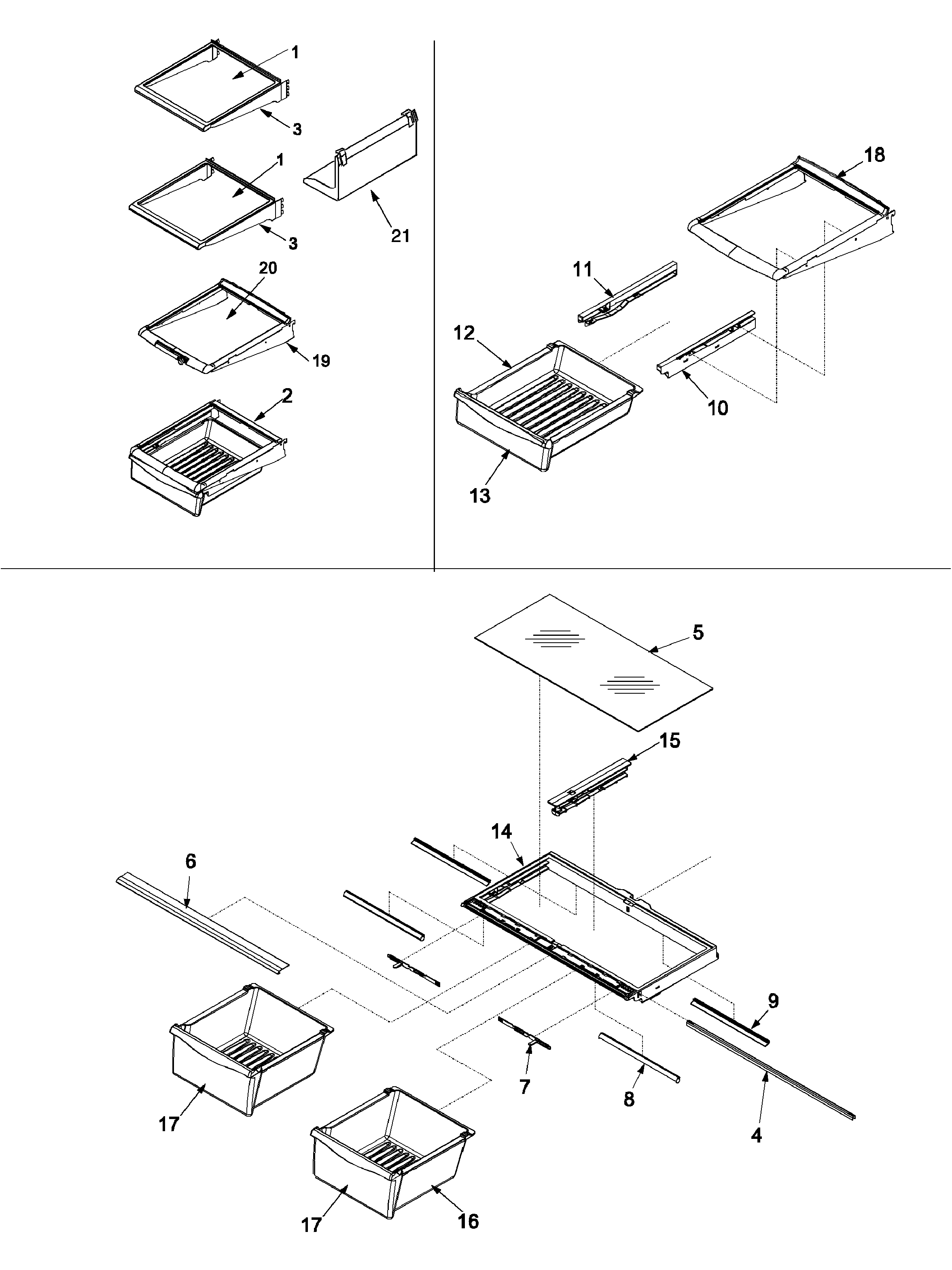

Refrigerator shelving diagram

Refrigerator crisper drawer support rail, center

Part #67001057

Replaced by #WPW10671238

?
Manufacturer substitution
This part replaces 67001057. Substitute parts can look different from the original.
BEST SELLER
$45.01 |
12% OFF Phone Price : $51.01
In Stock
Refrigerator Light Switch 12466101
#29

Controls diagram

Refrigerator light switch

Part #12466101

Replaced by #W11396033

?
Manufacturer substitution
This part replaces 12466101. Substitute parts can look different from the original.
BEST SELLER
$21.08 |
22% OFF Phone Price : $27.08
In Stock
Drier B2150504
#11

Evaporator area & rollers diagram

Drier

Part #B2150504

Replaced by #WPB2150504

?
Manufacturer substitution
This part replaces B2150504. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Jenn-air Refrigerator Defrost Bi-metal Thermostat (replaces 67001202, 67002571, 8170904) 12001937
#29

Evaporator area & rollers diagram

Jenn-air refrigerator defrost bi-metal thermostat (replaces 67001202, 67002571, 8170904)

Part #12001937

BEST SELLER
$59.61 |
9% OFF Phone Price : $65.61
In Stock
Grille, Fz A 67001079
#1

Evaporator area & rollers diagram

Grille, fz a

Part #67001079

Replaced by #WPW10175909

?
Manufacturer substitution
This part replaces 67001079. Substitute parts can look different from the original.
BEST SELLER
$33.88 |
15% OFF Phone Price : $39.88
In Stock
Gasket, Fz D 12683802W
#4A

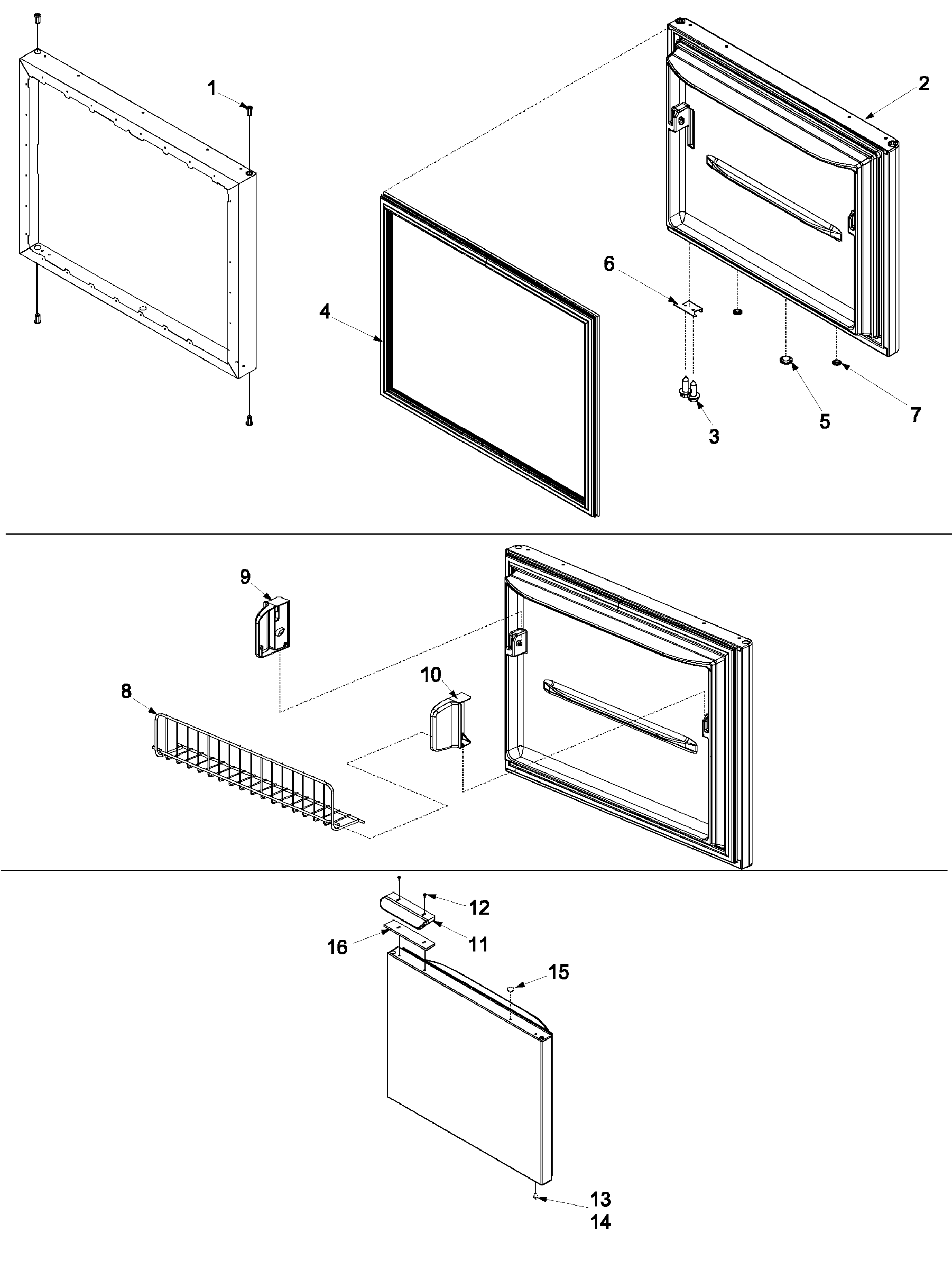

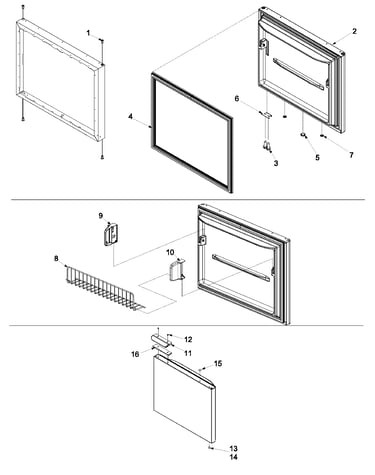

Freezer door diagram

Gasket, fz d

Part #12683802W

Replaced by #WPW10443311

?
Manufacturer substitution
This part replaces 12683802W. Substitute parts can look different from the original.
BEST SELLER
$166.10 |
7% OFF Phone Price : $178.10
In Stock
Refrigerator Screw 95106-1
#7

Optional ice maker kit- ic511 p1328006w diagram

Refrigerator screw

Part #95106-1

Replaced by #WP681249

?
Manufacturer substitution
This part replaces 95106-1. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Refrigerator Ice Maker Arm 67001257
#16

Optional ice maker kit- ic511 p1328006w diagram

Refrigerator ice maker arm

Part #67001257

Replaced by #WP67004028

?
Manufacturer substitution
This part replaces 67001257. Substitute parts can look different from the original.
BEST SELLER
$36.85 |
14% OFF Phone Price : $42.85
In Stock
