Thermador
Electric Wall Oven

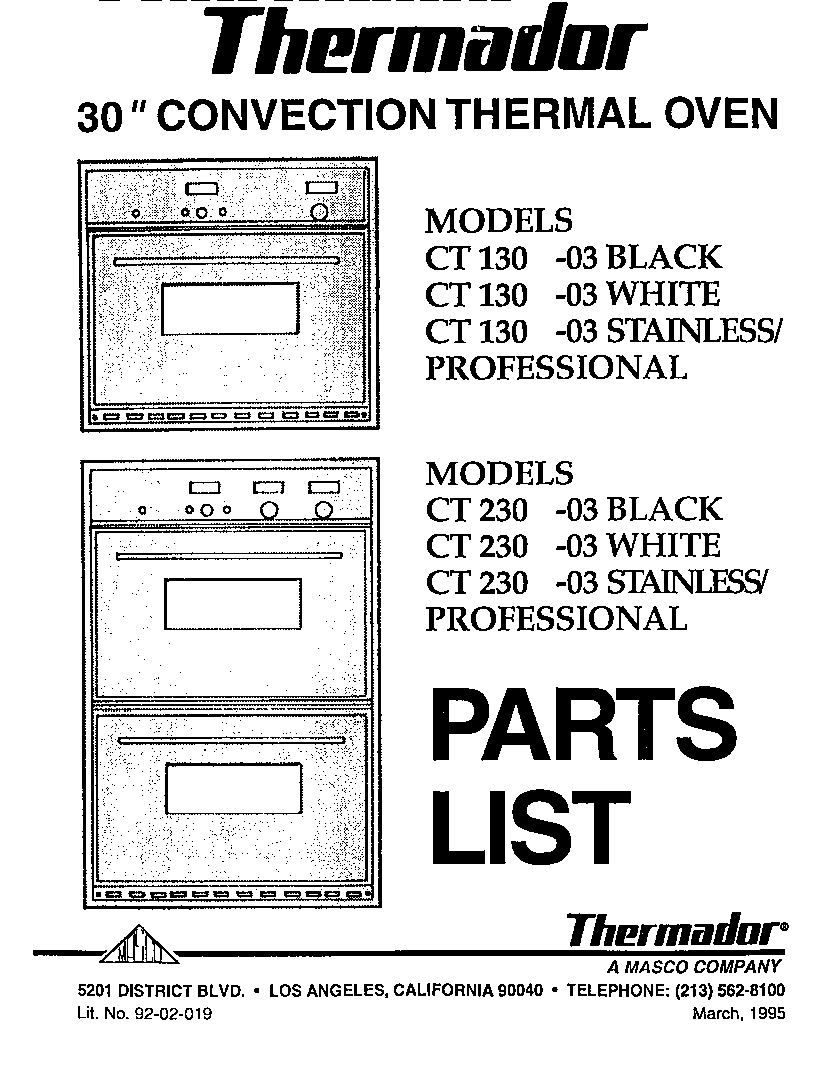

Model # CT130-03 Official Thermador 30" convection thermal oven

Here are the diagrams and repair parts for Official Thermador CT130-03 30" convection thermal oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

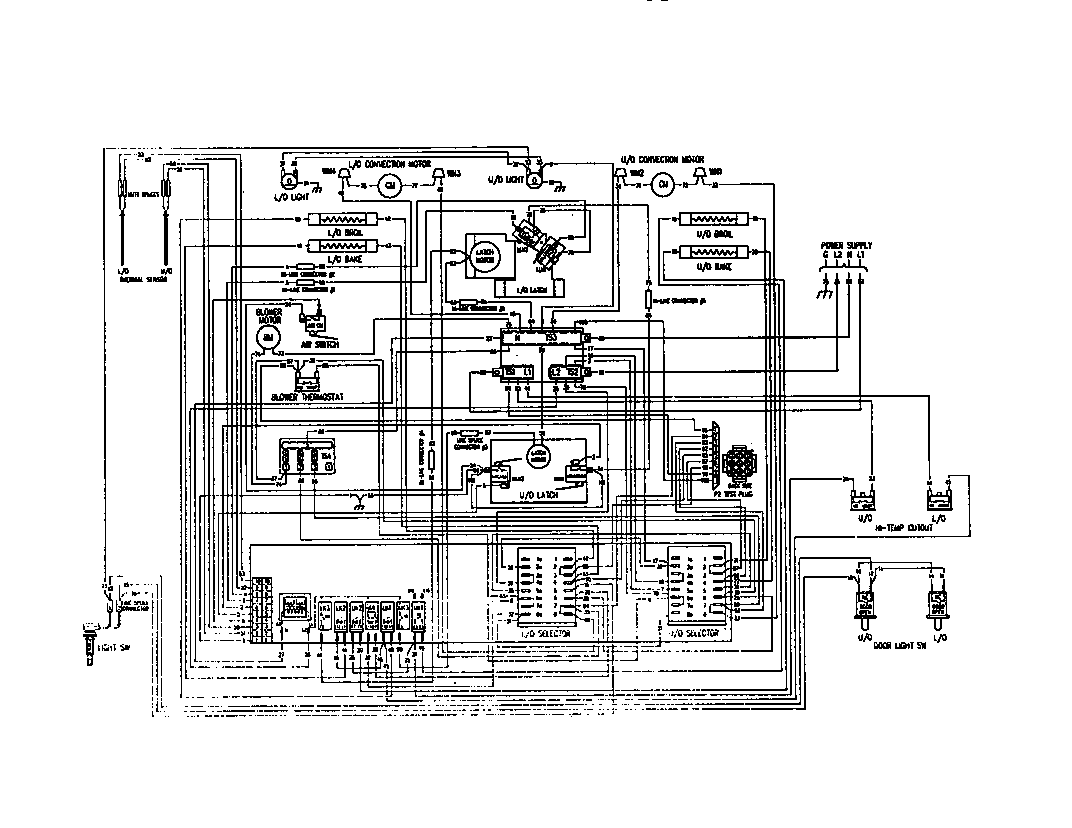

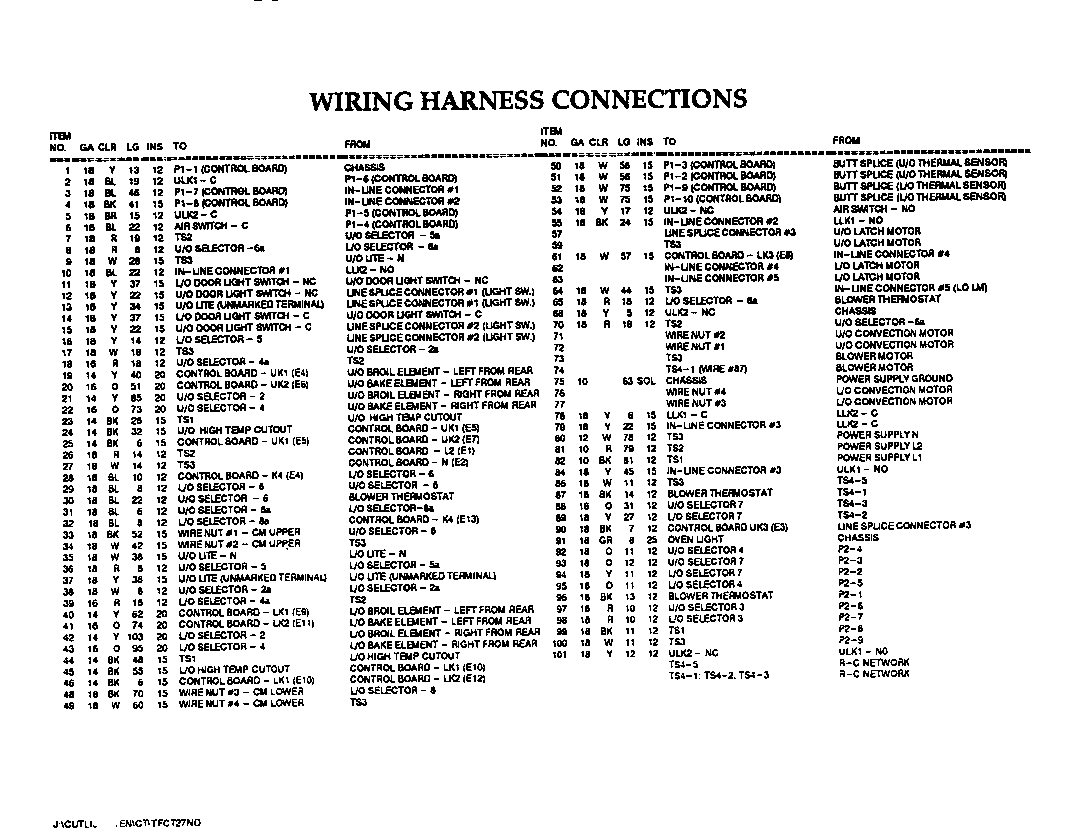

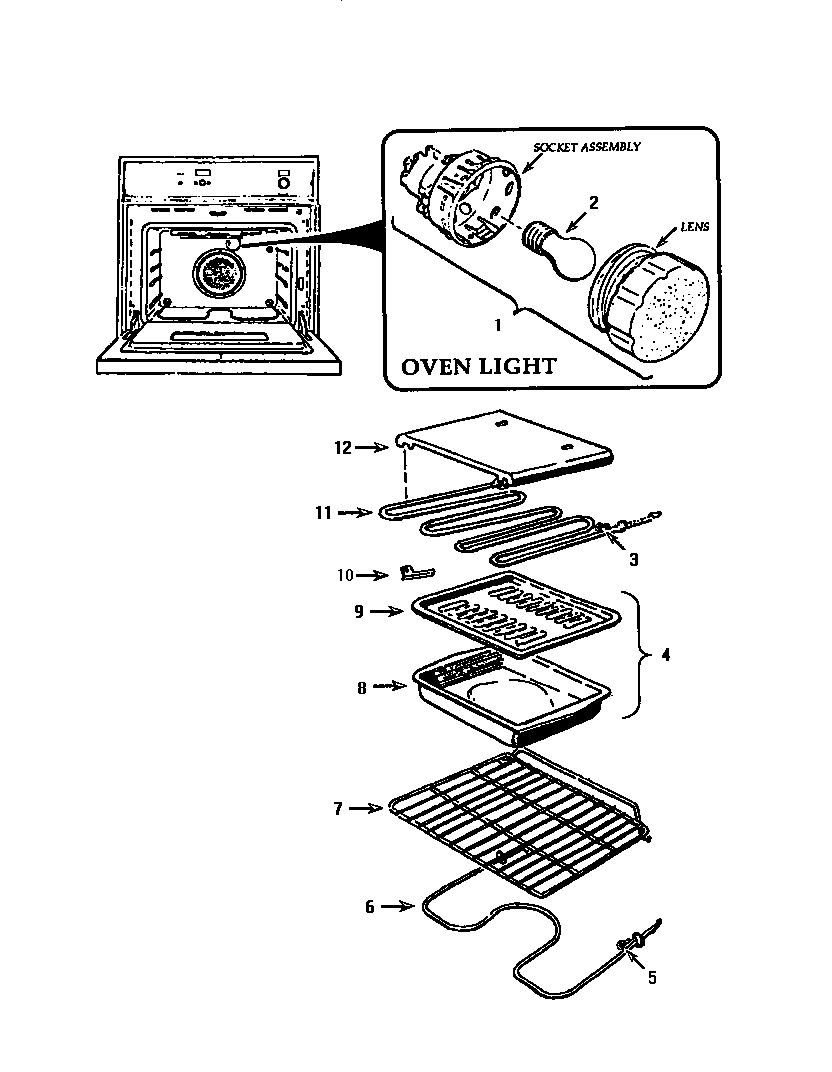

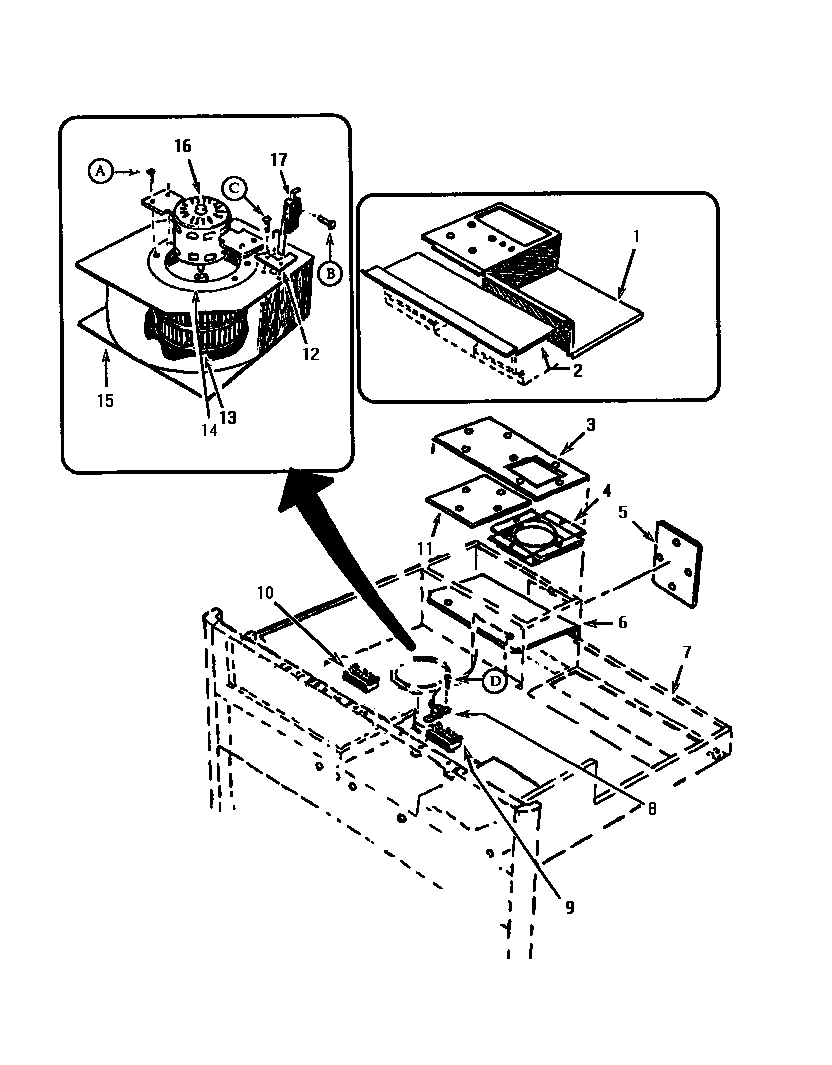

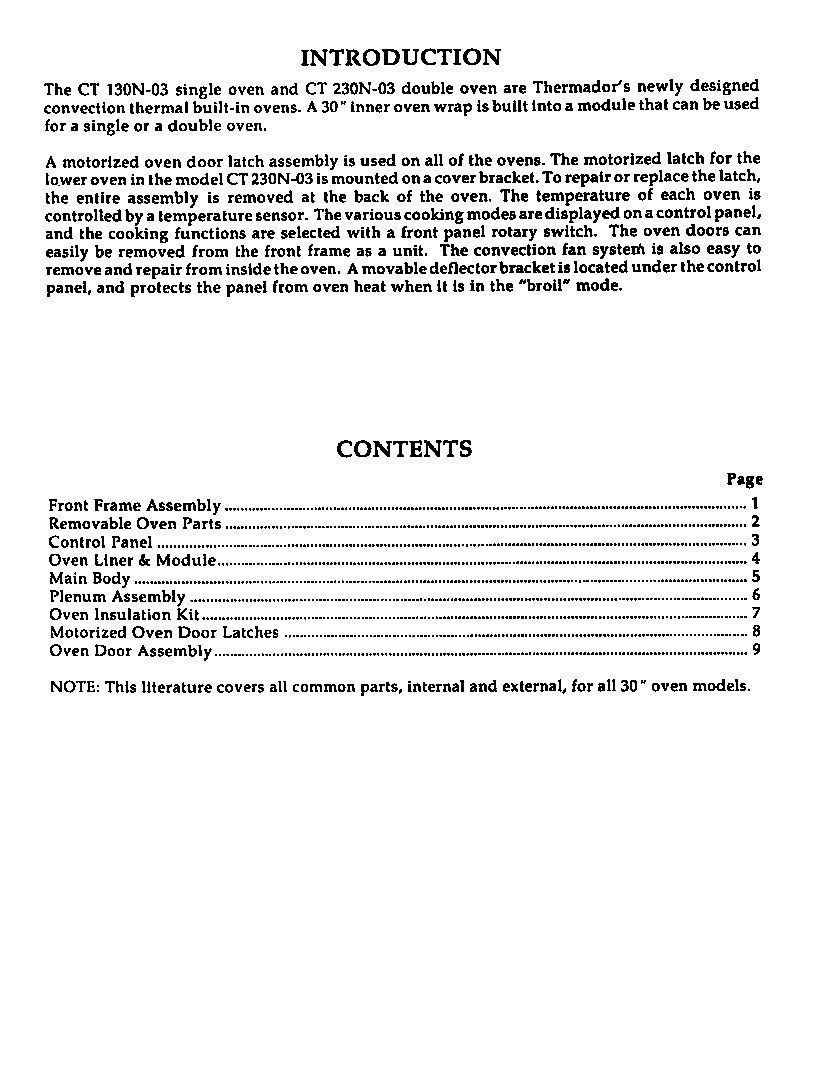

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 170 parts  |
Glass 14-33-228-05
#13A

Control panel diagram

Glass

Part #14-33-228-05

$89.99
In Stock
Trim 14-31-754-05
#4

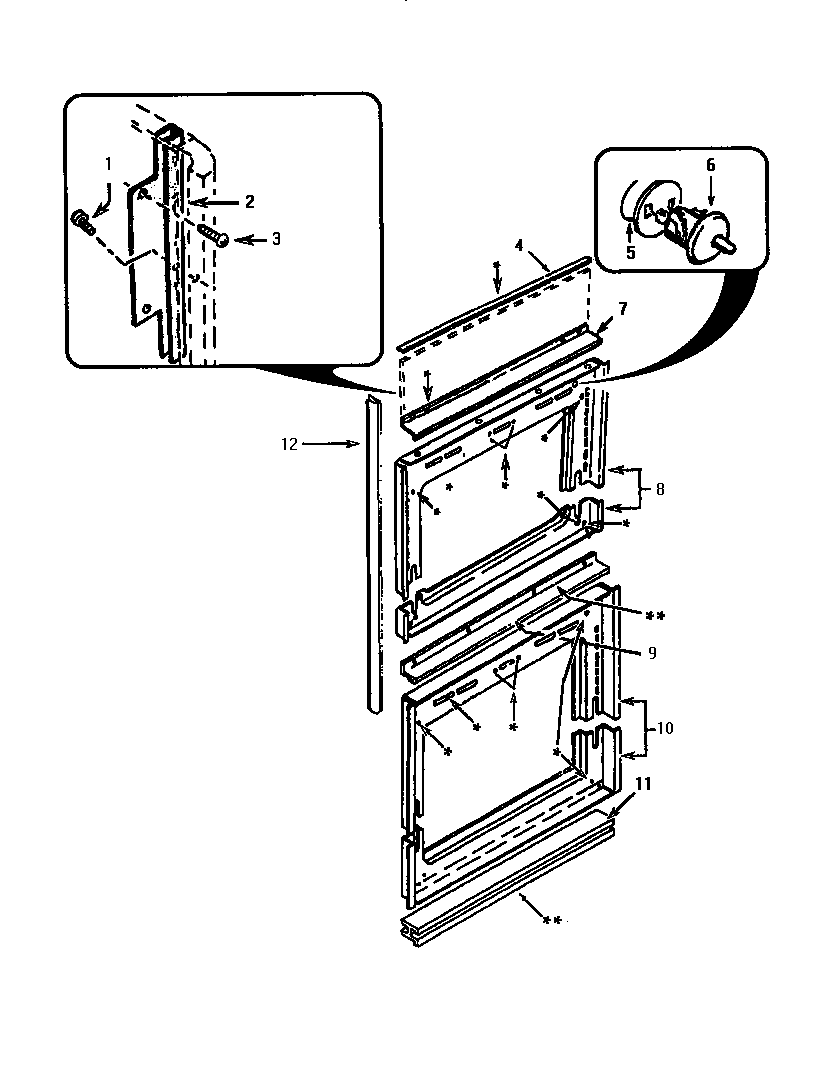

Front frame assembly diagram

Trim

Part #14-31-754-05

$66.99
In Stock
Bracket 14-33-091
#17

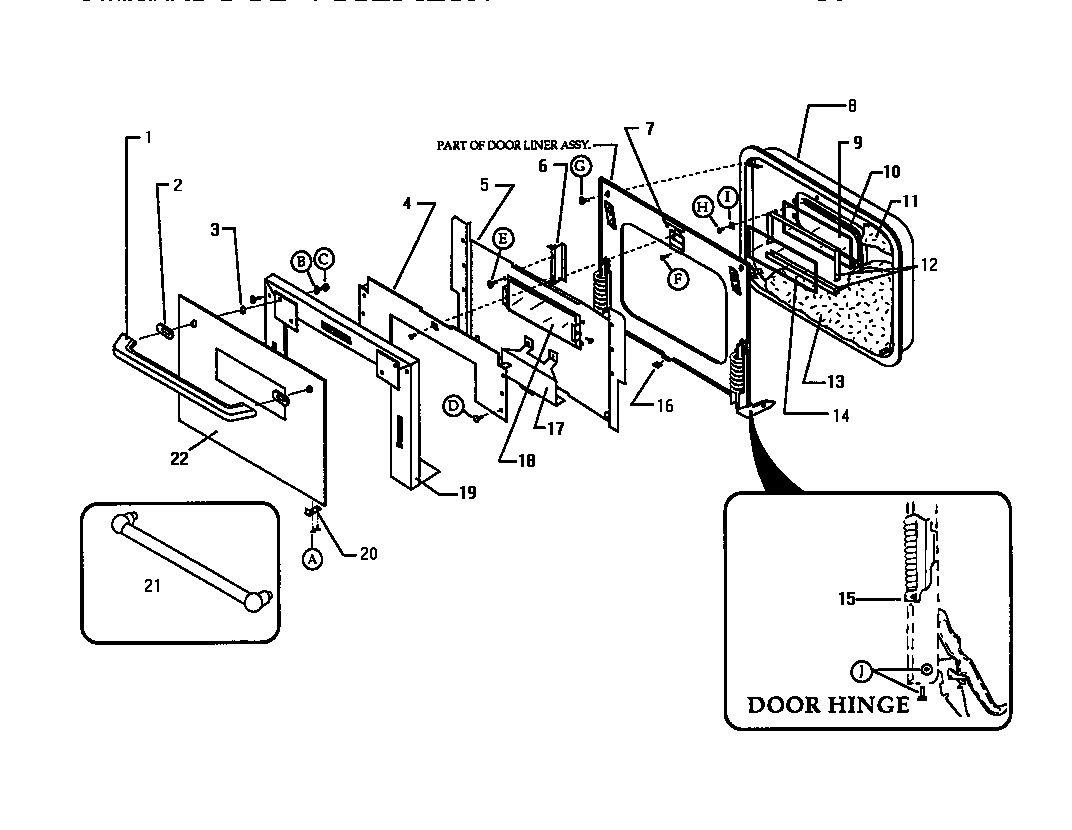

Oven door assembly diagram

Bracket

Part #14-33-091

$14.49
In Stock
Trim 14-31-753-19
#12K

Front frame assembly diagram

Trim

Part #14-31-753-19

$77.99
In Stock
Support 14-33-251-02
#19A

Oven door assembly diagram

Support

Part #14-33-251-02

$139.49
In Stock
Door Oven 14-33-181

#NI

All parts diagram

Door oven

Part #14-33-181

$690.99
In Stock
Mounting 14-31-851
#7

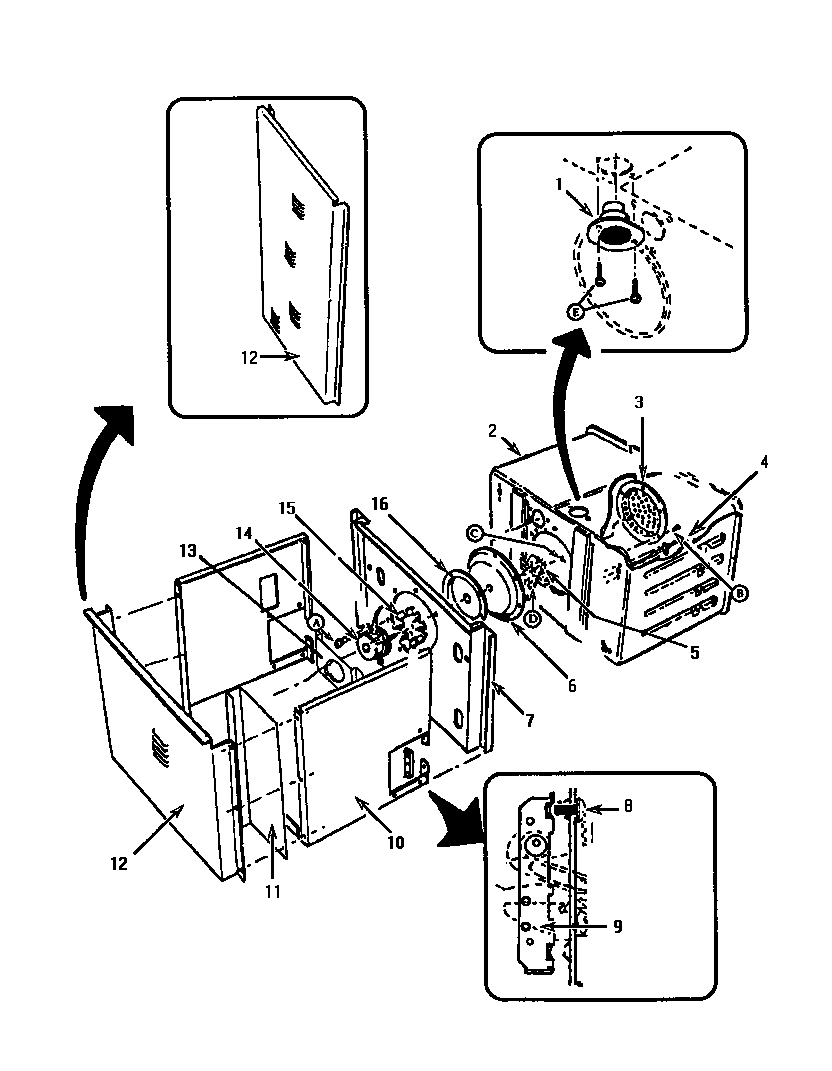

Oven liner and module diagram

Mounting

Part #14-31-851

$39.99
In Stock
Enclosure 14-31-245
#18

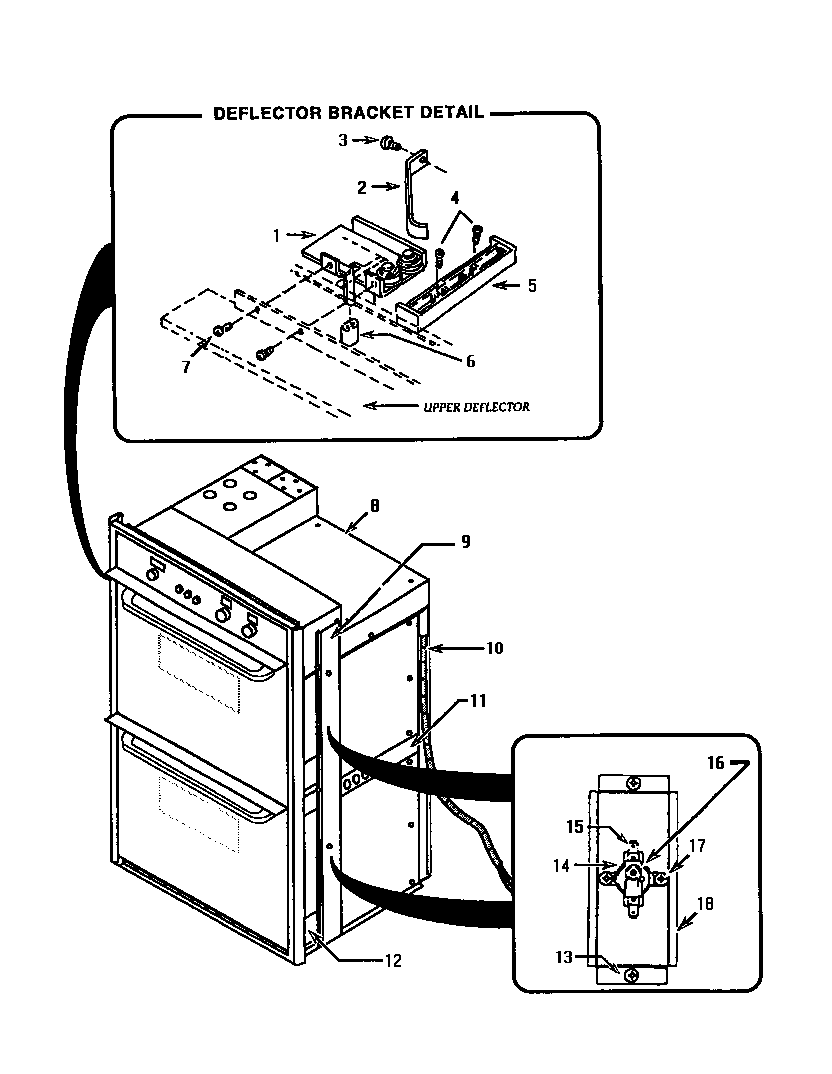

Main body diagram

Enclosure

Part #14-31-245

$7.99
In Stock
Trim 14-31-756-02
#9A

Front frame assembly diagram

Trim

Part #14-31-756-02

$82.49
In Stock
Support 14-33-104-01
#2

Front frame assembly diagram

Support

Part #14-33-104-01

This item is not returnable
$2.29
In Stock
