Ikea
Top-Mount Refrigerator

Model # IRT134FDW00 Official Ikea top-mount refrigerator

Here are the diagrams and repair parts for Official Ikea IRT134FDW00 top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

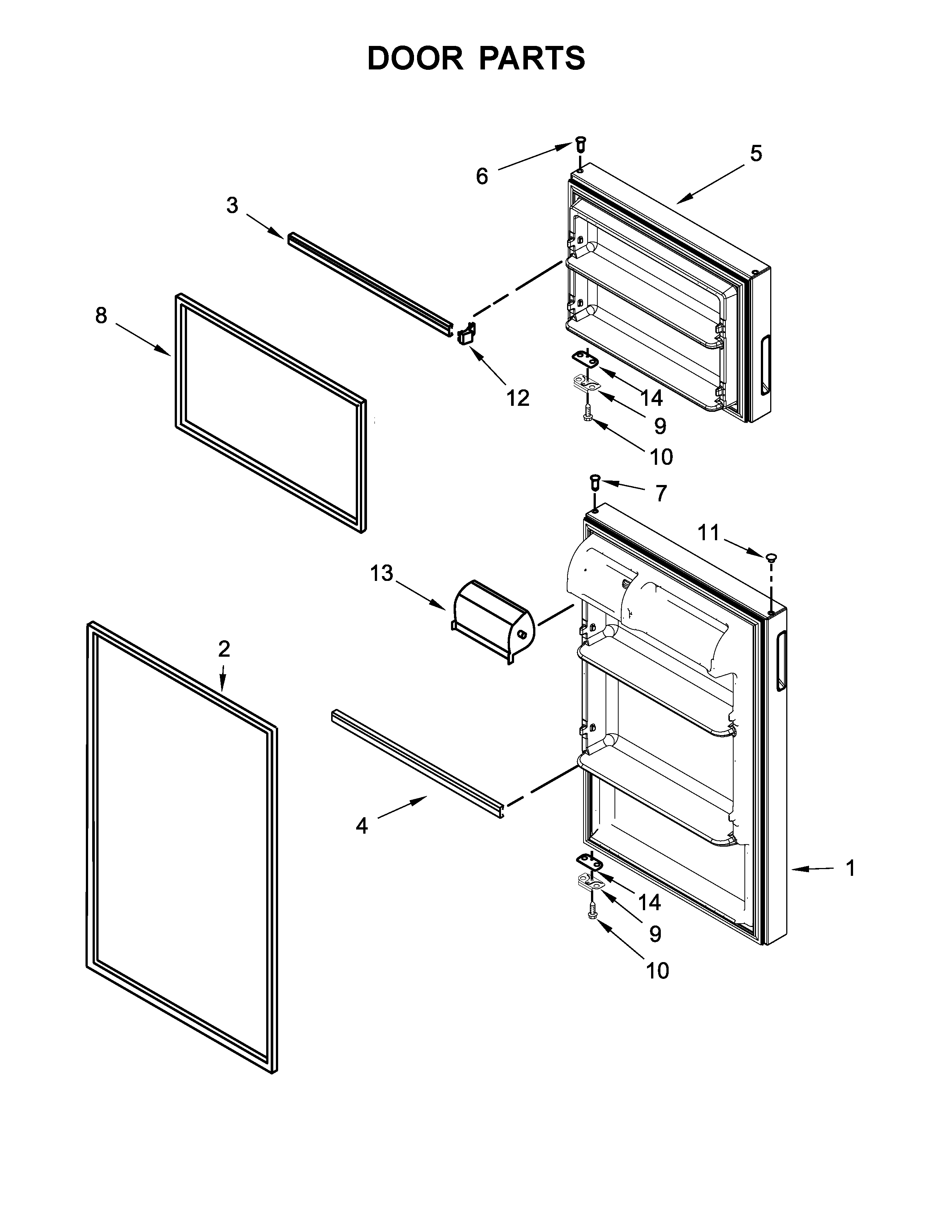

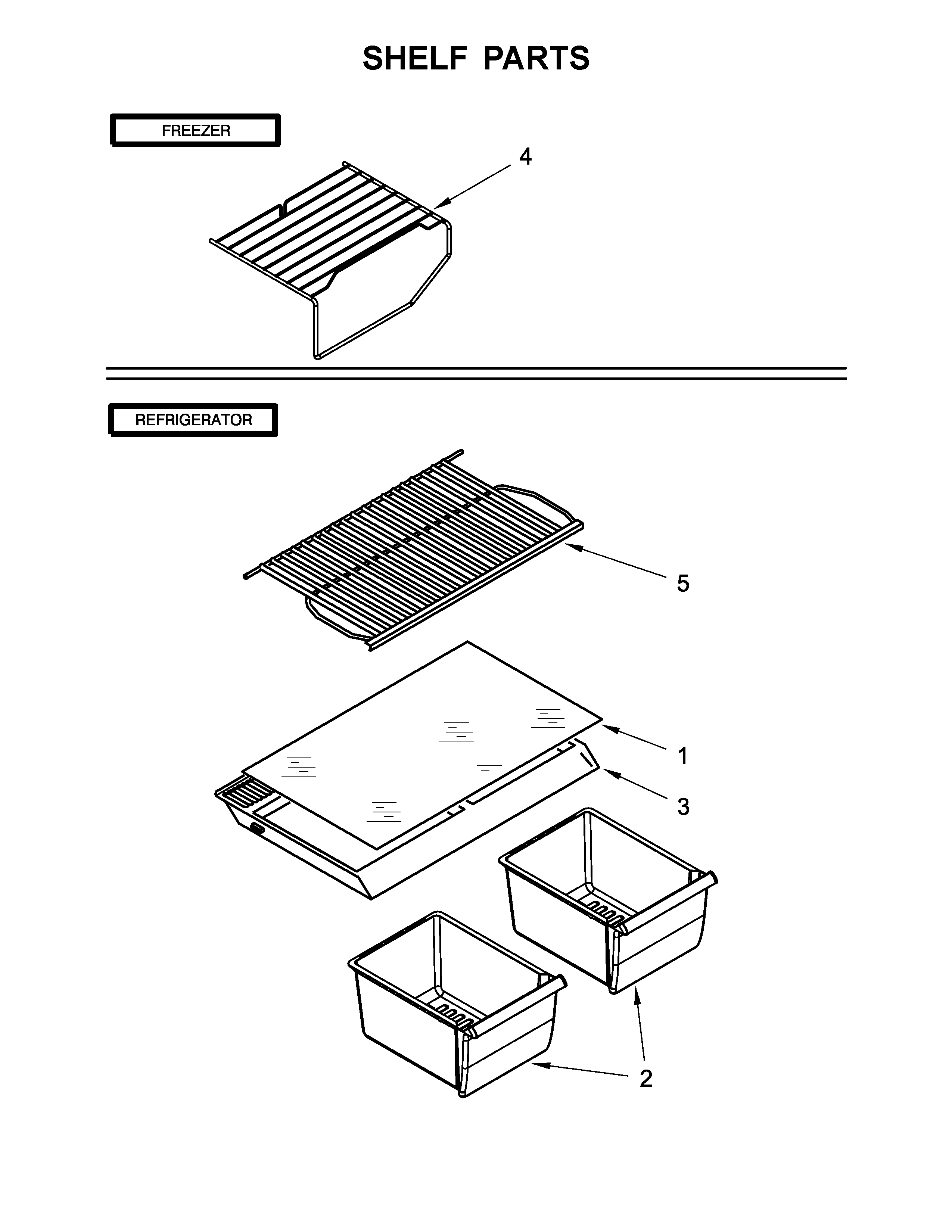

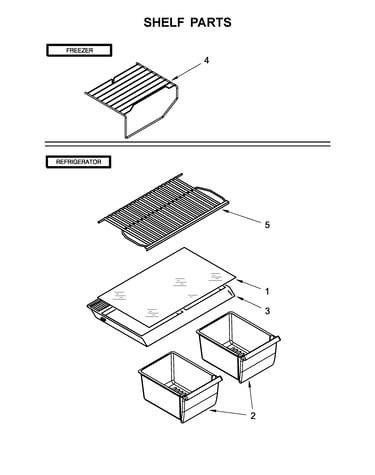

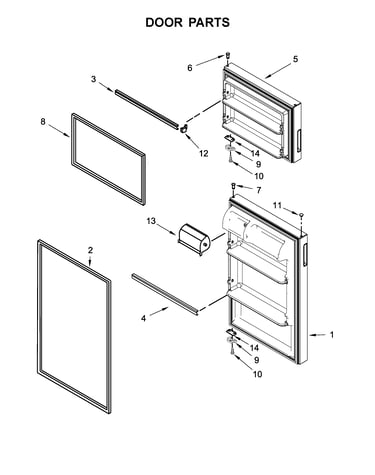

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 137 parts  |
Fan Blade 2200509
#11

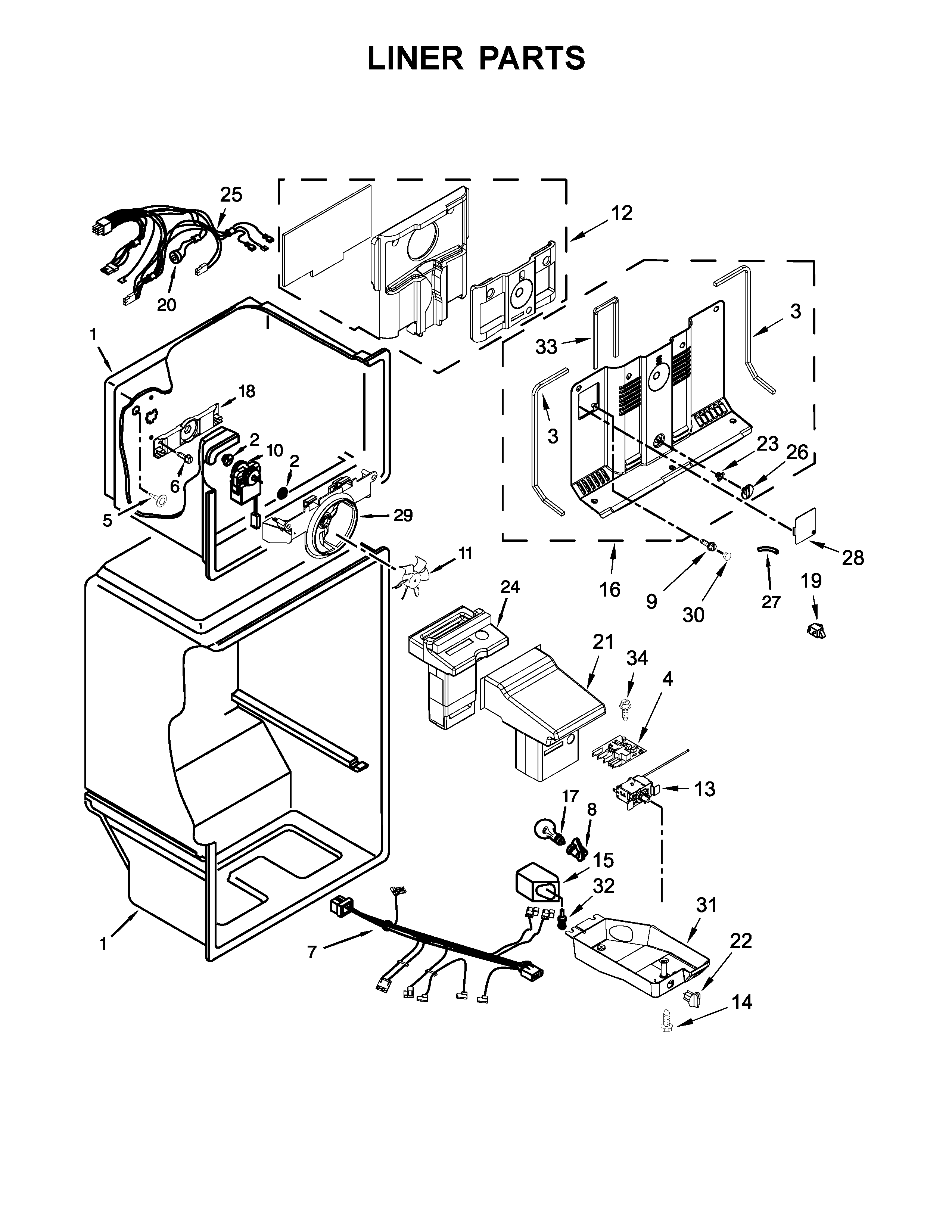

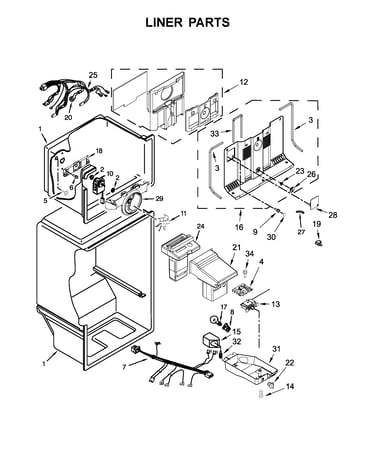

Liner parts diagram

Fan blade

Part #2200509

Replaced by #WP2163777

?
Manufacturer substitution
This part replaces 2200509. Substitute parts can look different from the original.
BEST SELLER
$35.42 |
14% OFF Phone Price : $41.42
In Stock
Refrigerator Evaporator W10570565
#5

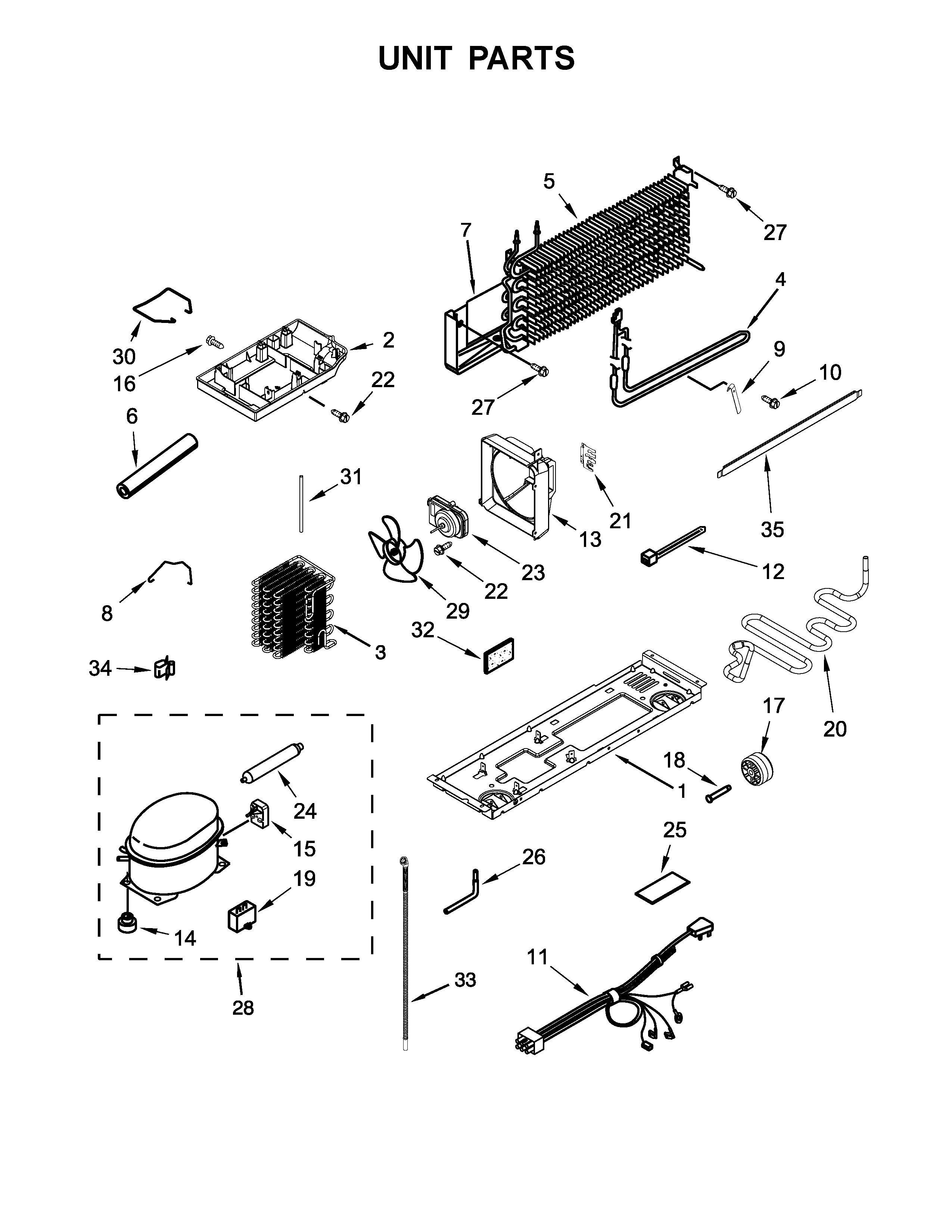

Unit parts diagram

Refrigerator evaporator

Part #W10570565

Replaced by #W10836706

?
Manufacturer substitution
This part replaces W10570565. Substitute parts can look different from the original.
BEST SELLER
$206.39 |
5% OFF Phone Price : $218.39
In Stock
Sears Refrigerator Service Valve (replaces 876620) 876764
#NI

Unit parts diagram

Sears refrigerator service valve (replaces 876620)

Part #876764

BEST SELLER
$26.12 |
19% OFF Phone Price : $32.12
In Stock
Led - Lamp 1 W10820003
#17

Liner parts diagram

Led - lamp 1

Part #W10820003

Replaced by #W11338583

?
Manufacturer substitution
This part replaces W10820003. Substitute parts can look different from the original.
BEST SELLER
$32.76 |
15% OFF Phone Price : $38.76
In Stock
Appliance Silicone Lubricant 542638
#NI

Optional parts diagram

Appliance silicone lubricant

Part #542638

Replaced by #WP542638

?
Manufacturer substitution
This part replaces 542638. Substitute parts can look different from the original.
BEST SELLER
$26.69 |
18% OFF Phone Price : $32.69
In Stock
Appliance Touch-up Paint, 0.6-oz (black) (replaces 20001009, 72032p, 72032r, W10831982) 72032
#NI

Optional parts diagram

Appliance touch-up paint, 0.6-oz (black) (replaces 20001009, 72032p, 72032r, w10831982)

Part #72032

BEST SELLER
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
Washer 489341
#13

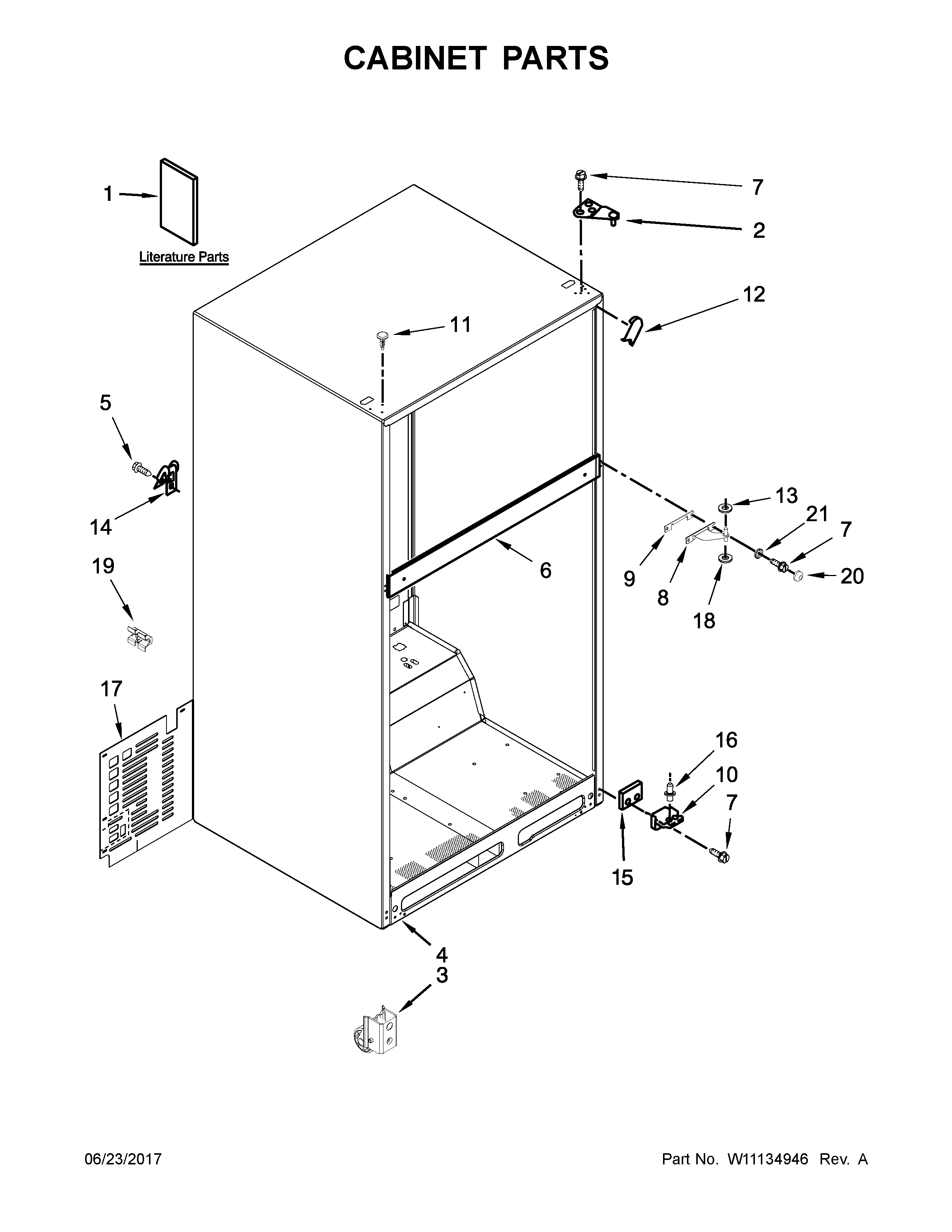

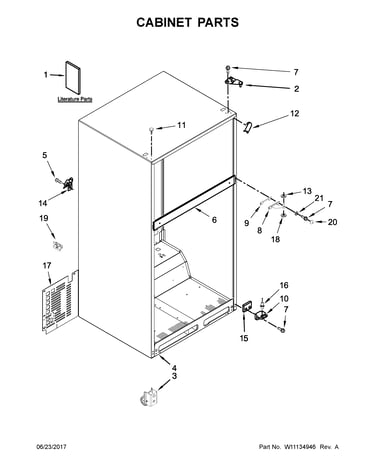

Cabinet parts diagram

Washer

Part #489341

Replaced by #WP489467

?
Manufacturer substitution
This part replaces 489341. Substitute parts can look different from the original.
$8.09 |
11% OFF Phone Price : $9.09
In Stock
Refrigerator Start Device W10448874
#15

Unit parts diagram

Refrigerator start device

Part #W10448874

Replaced by #WPW10448874

?
Manufacturer substitution
This part replaces W10448874. Substitute parts can look different from the original.
$59.37 |
9% OFF Phone Price : $65.37
In Stock
Light Socket 2162085
#8

Liner parts diagram

Light socket

Part #2162085

Replaced by #4387478

?
Manufacturer substitution
This part replaces 2162085. Substitute parts can look different from the original.
$62.74 |
9% OFF Phone Price : $68.74
In Stock
Refrigerator Screw 489497
#7

Cabinet parts diagram

Refrigerator screw

Part #489497

Replaced by #WP489497

?
Manufacturer substitution
This part replaces 489497. Substitute parts can look different from the original.
$8.12 |
11% OFF Phone Price : $9.12
In Stock
