Model # JS750DF2BB Official GE electric range

Here are the diagrams and repair parts for Official GE JS750DF2BB electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

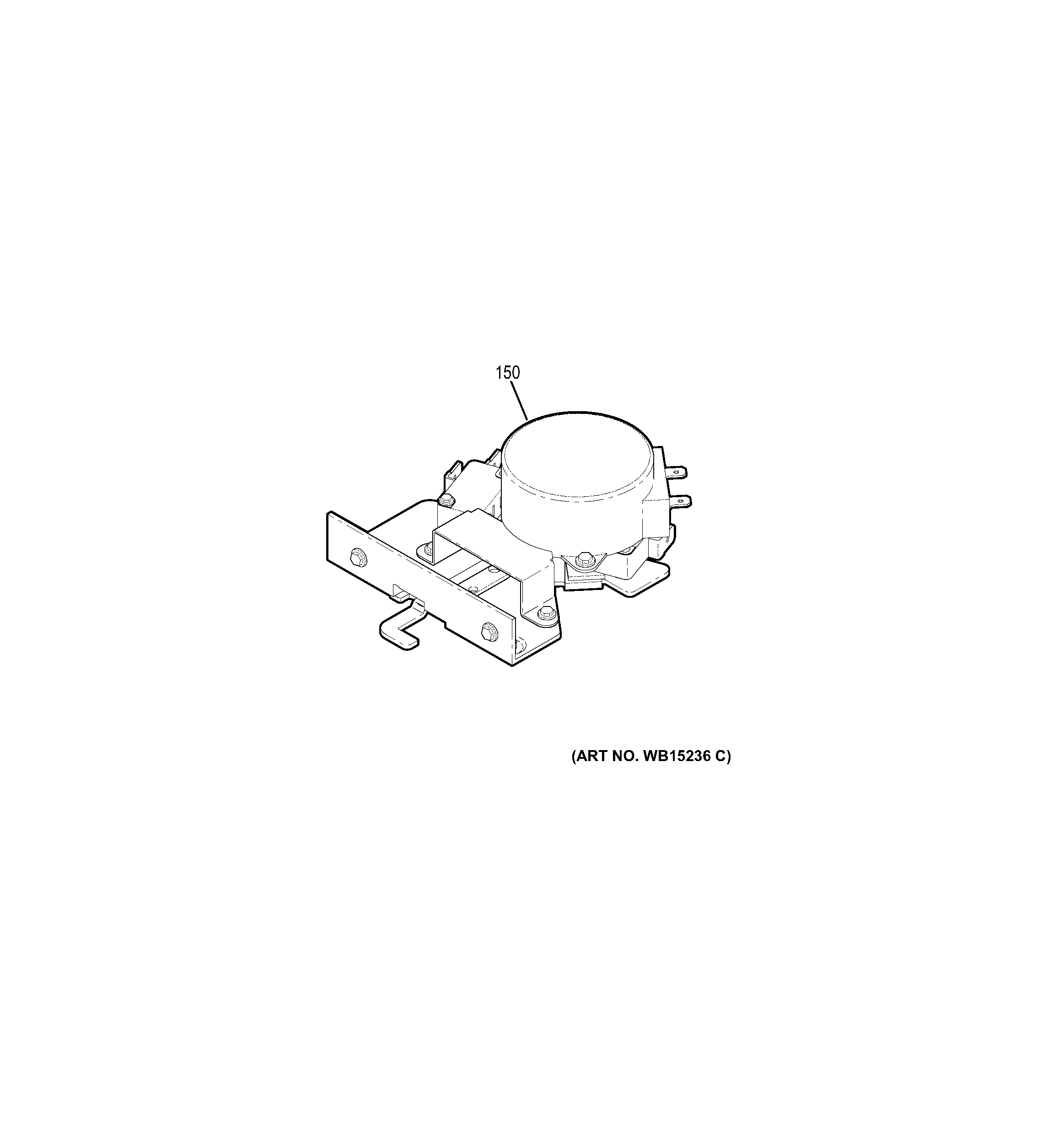

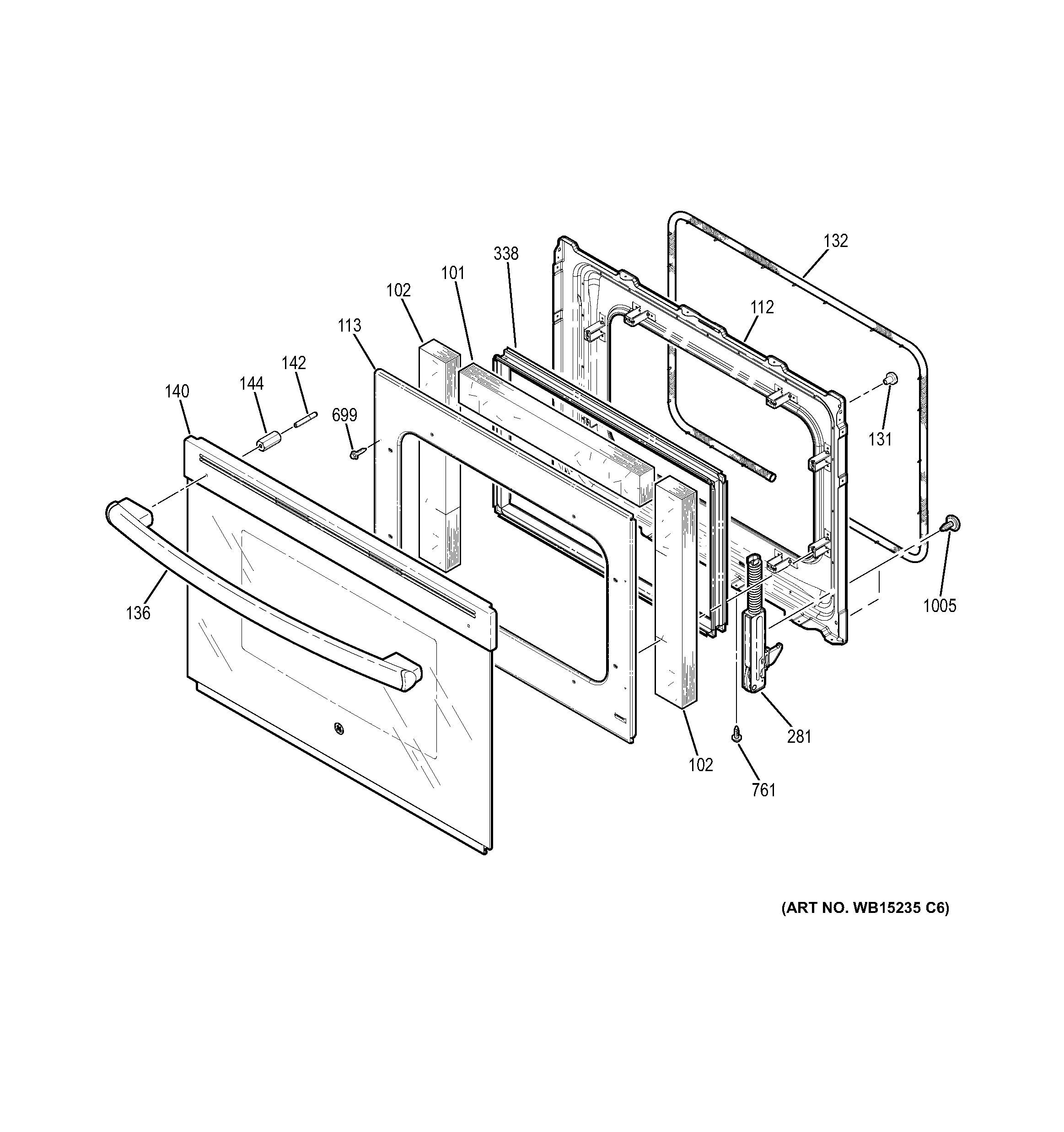

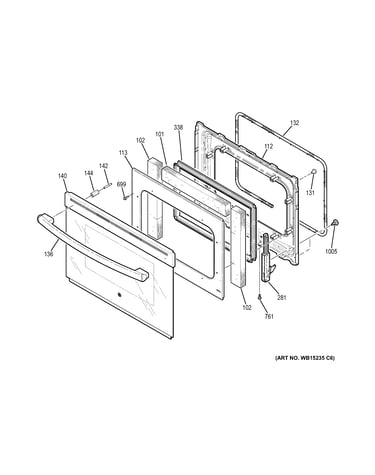

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 134 parts  |
Range Triple Radiant Surface Element WB30T10155
#58

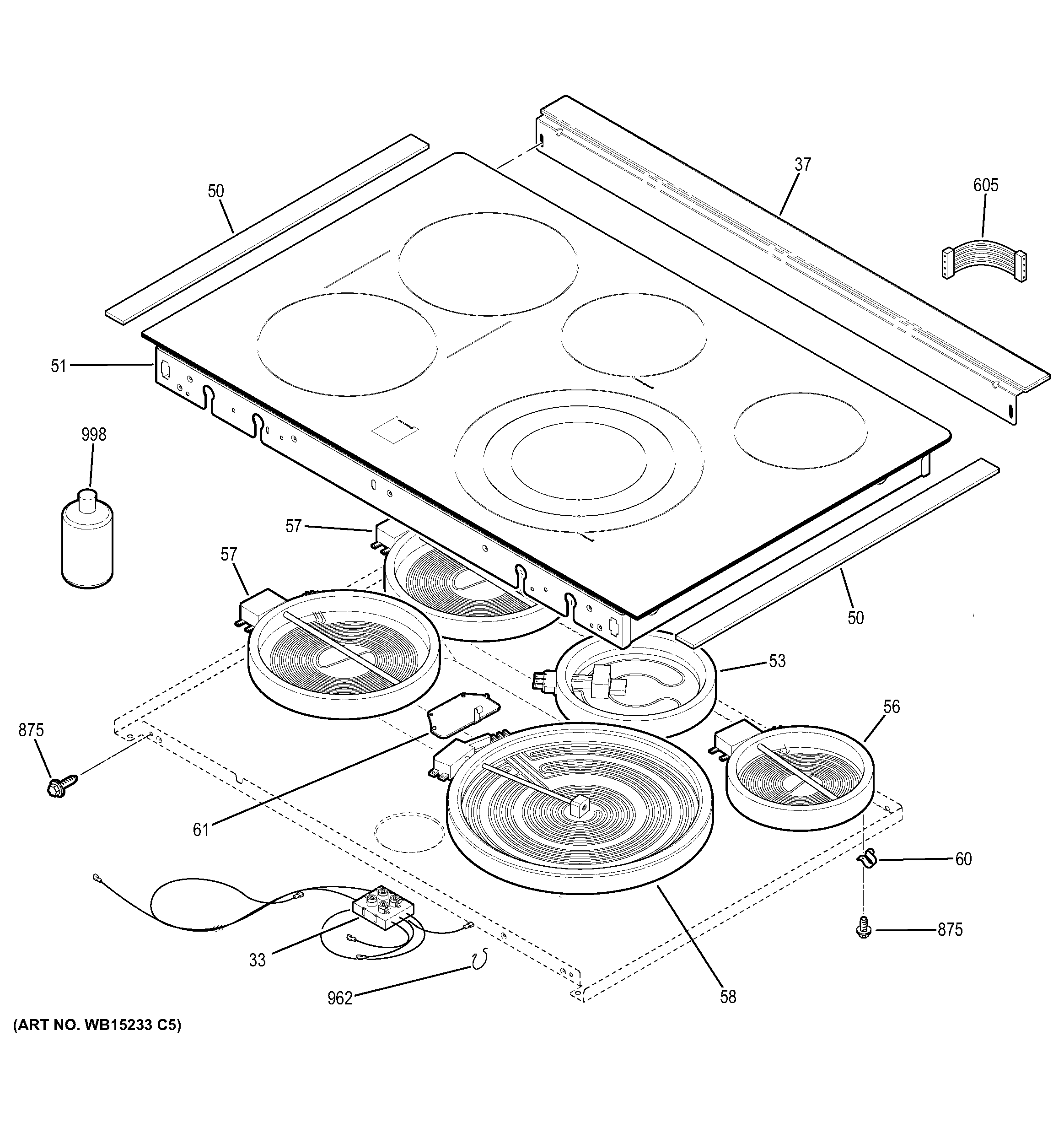

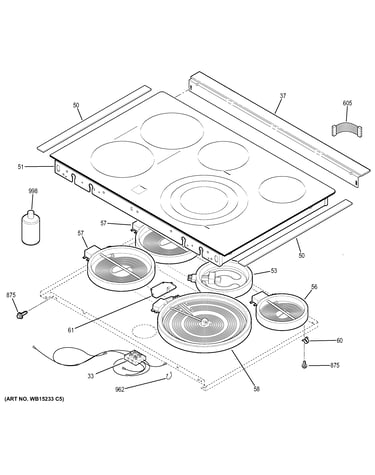

Cooktop diagram

Range triple radiant surface element

Part #WB30T10155

BEST SELLER
$171.55 |
9% OFF Was : $188.52
In Stock
Range Radiant Surface Element, 5-1/2-in (replaces Wb30t10127) WB30T10145
#56

Cooktop diagram

Range radiant surface element, 5-1/2-in (replaces wb30t10127)

Part #WB30T10145

BEST SELLER
$89.97 |
6% OFF Phone Price : $95.97
In Stock
Range Radiant Surface Element, 8-in (replaces Wb30t10128) WB30T10132
#57

Cooktop diagram

Range radiant surface element, 8-in (replaces wb30t10128)

Part #WB30T10132

BEST SELLER
$51.57 |
10% OFF Phone Price : $57.57
In Stock
Range High-limit Thermostat WB24T10164
#157

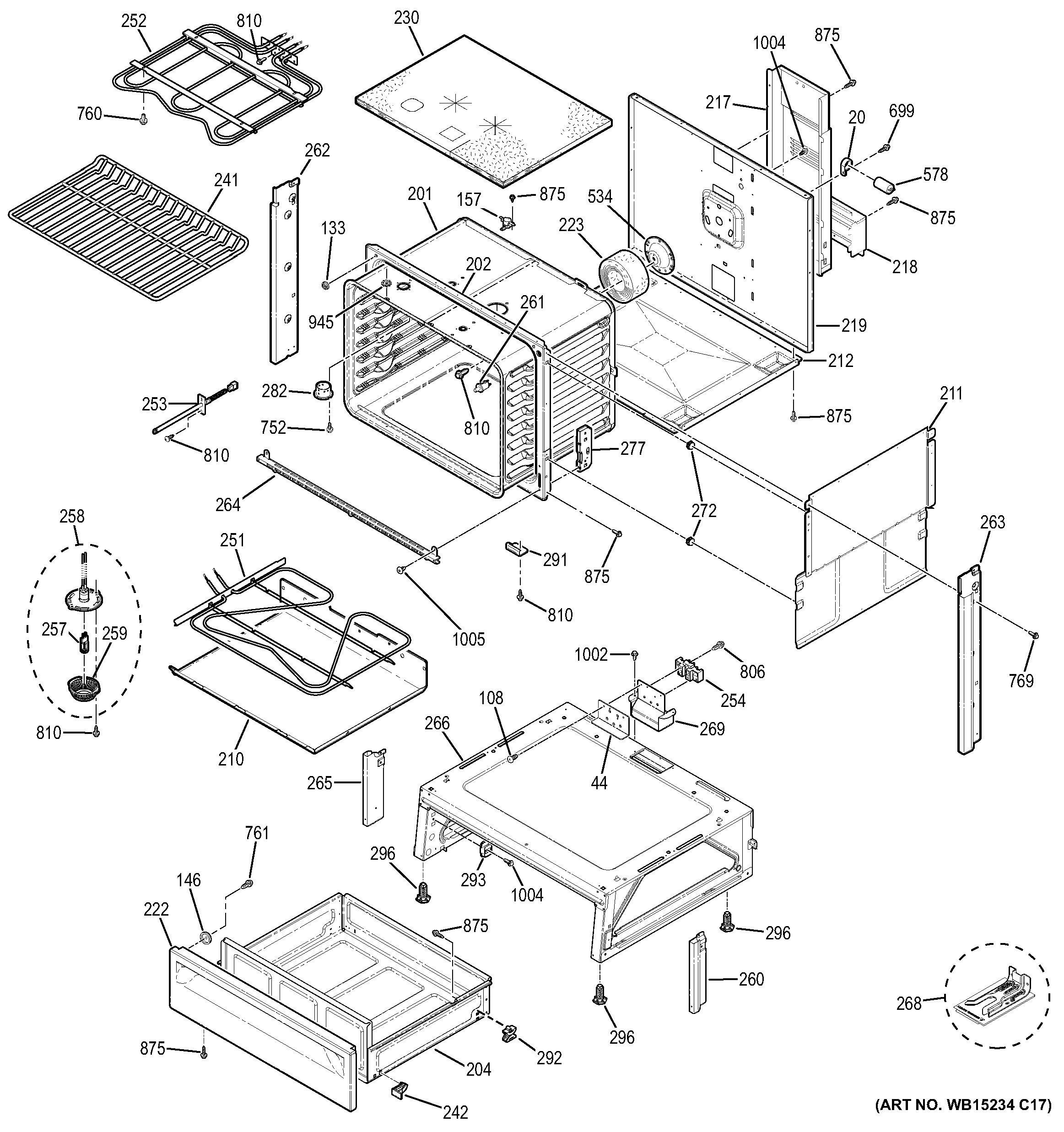

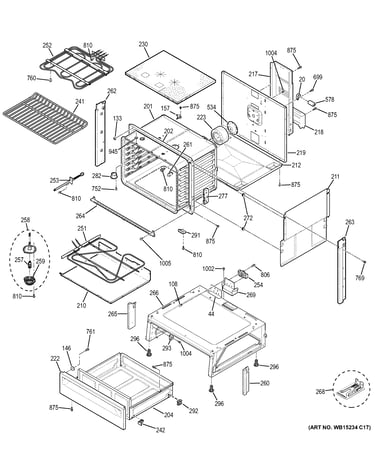

Body parts diagram

Range high-limit thermostat

Part #WB24T10164

Replaced by #WB24X46906

?
Manufacturer substitution
This part replaces WB24T10164. Substitute parts can look different from the original.
BEST SELLER
$99.57 |
11% OFF Phone Price : $111.57
In Stock
Range Surface Element Control Switch, 2,000-watt WB24T10026
#23

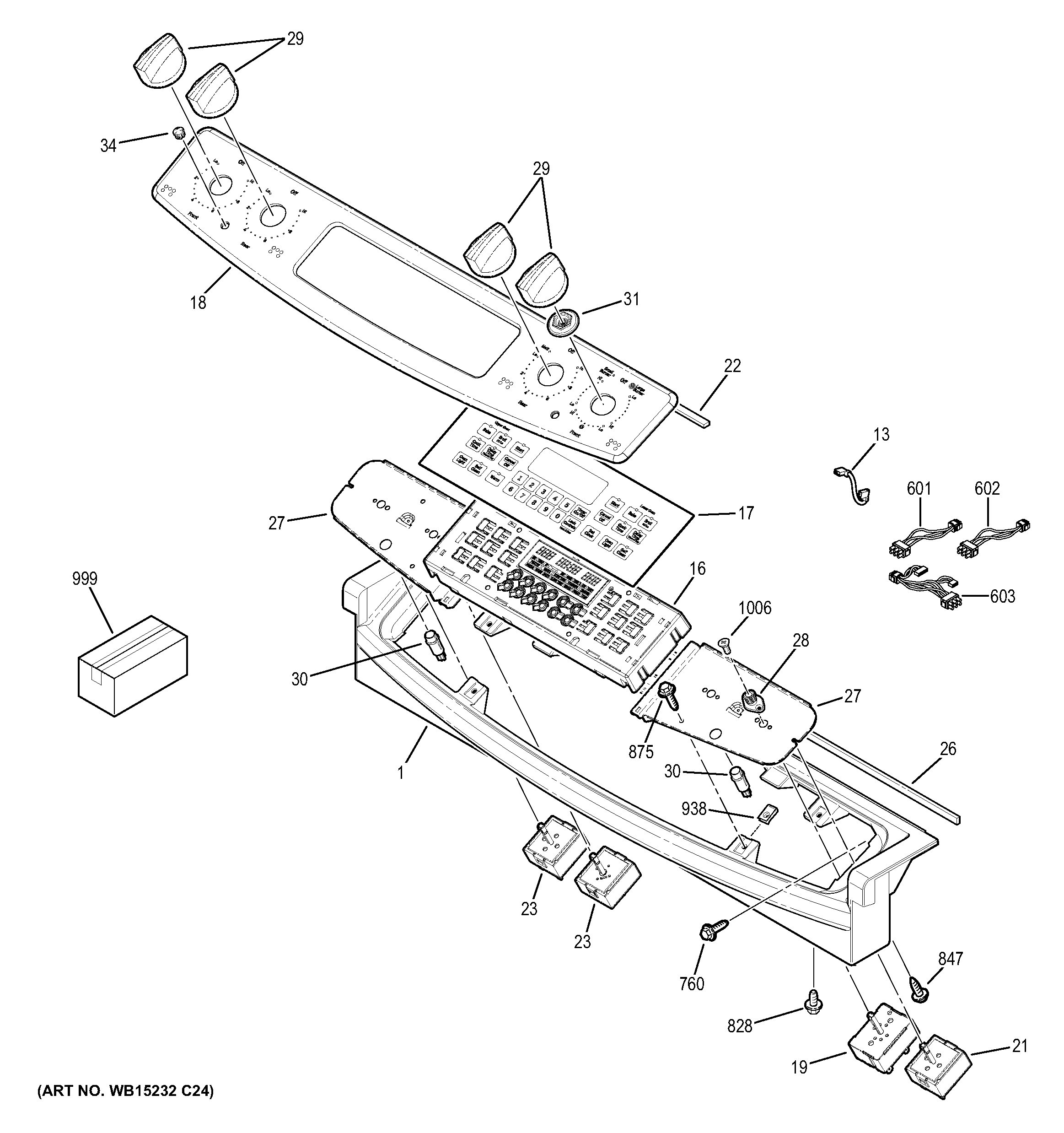

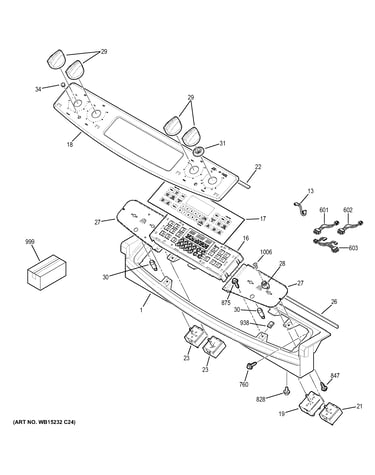

Control panel diagram

Range surface element control switch, 2,000-watt

Part #WB24T10026

BEST SELLER
$35.97 |
14% OFF Phone Price : $41.97
In Stock
Wall Oven Safety Thermostat (replaces Wb24t10066) WB24T10060
#159

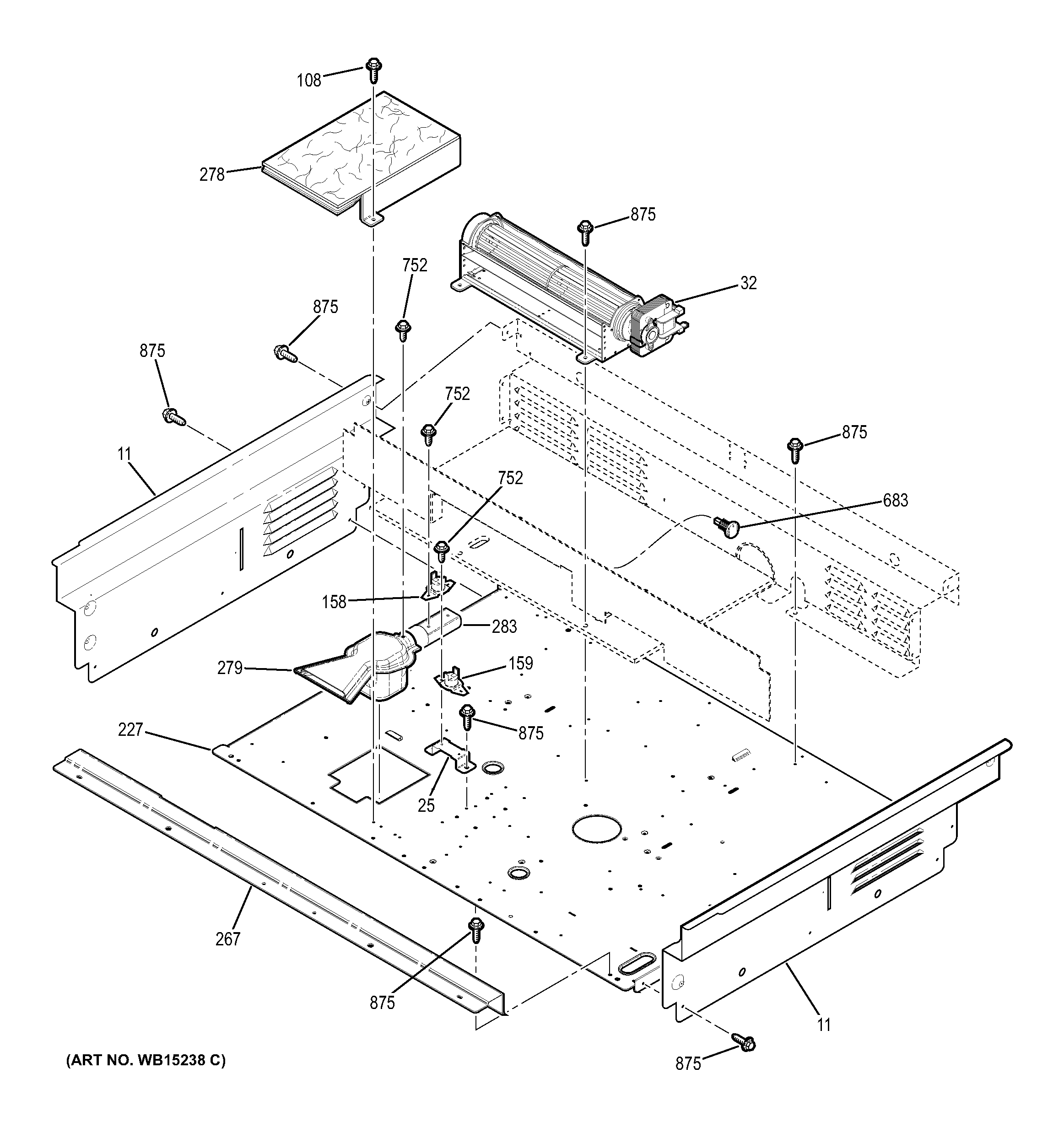

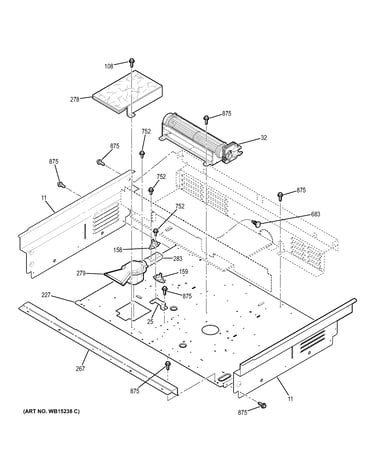

Cooling fan diagram

Wall oven safety thermostat (replaces wb24t10066)

Part #WB24T10060

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Oven Door Switch (replaces 71001129, Wb24k10004, Wb24t10112, Wb24x25231, Wb24x5316) WB24T10147
#261

Body parts diagram

Range oven door switch (replaces 71001129, wb24k10004, wb24t10112, wb24x25231, wb24x5316)

Part #WB24T10147

This item is not returnable
$16.39 |
11% OFF Phone Price : $18.39
In Stock
Range Convection Fan Blade WB02T10289
#43

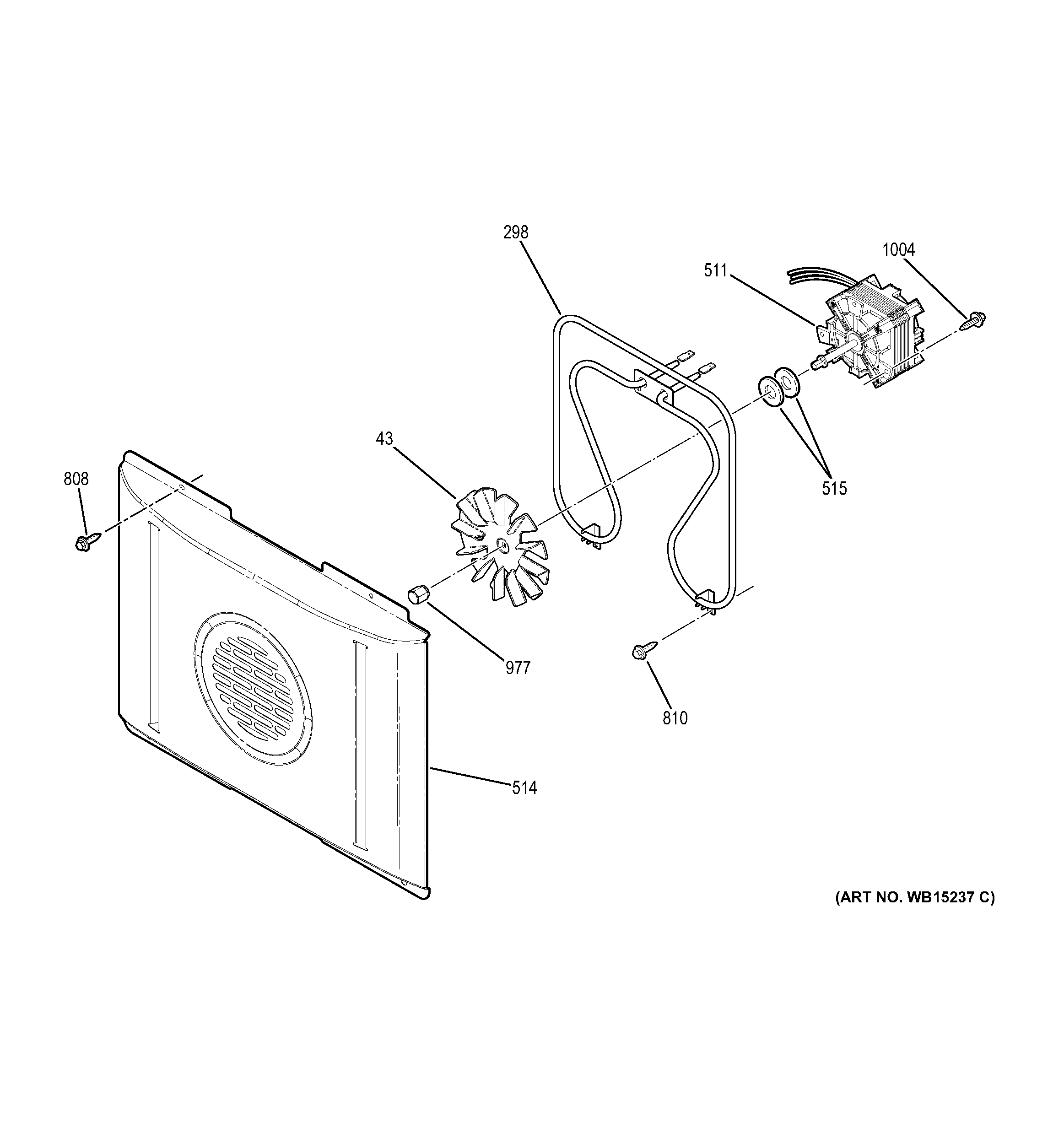

Convection fan diagram

Range convection fan blade

Part #WB02T10289

This item is not returnable
$18.91 |
10% OFF Phone Price : $20.91
In Stock
Screw WH02X0930
Screw

Part #WH02X0930

Replaced by #WH2X930

?
Manufacturer substitution
This part replaces WH02X0930. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Storage Drawer Support, Rear WB48T10030
#292

Body parts diagram

Range storage drawer support, rear

Part #WB48T10030

Replaced by #WB02X33180

?
Manufacturer substitution
This part replaces WB48T10030. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
