Model # MH6151XHT0 Official Whirlpool microwave/hood combo
Here are the diagrams and repair parts for Official Whirlpool MH6151XHT0 microwave/hood combo, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
MH6151XHT0 Microwave/Hood Combo
#6

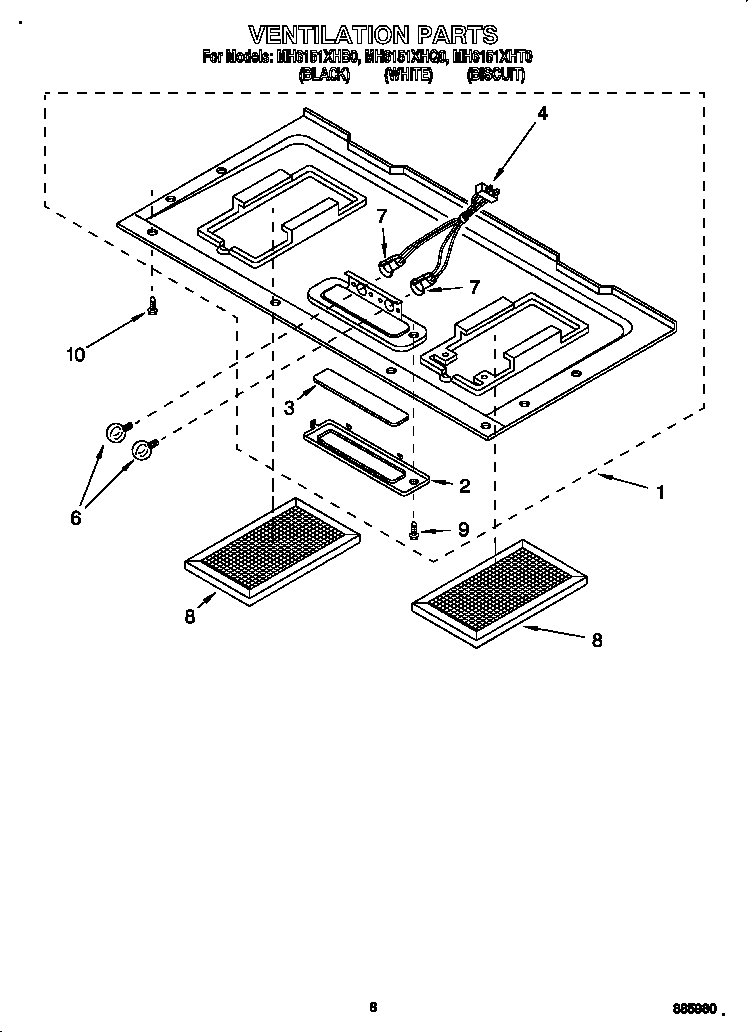

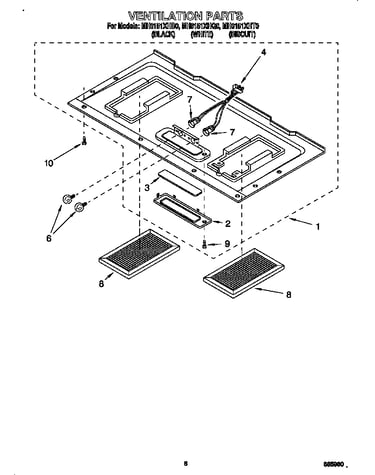

Ventilation diagram
Light bulb
Part #4358971
Replaced by #WPA3073101
?
Manufacturer substitution
This part replaces 4358971. Substitute parts can look different from the original.
$18.12 |
10% OFF Phone Price : $20.12
In Stock
#3
Latch board diagram
Switch
Part #4158941
Replaced by #4392027
?
Manufacturer substitution
This part replaces 4158941. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
#2
Latch board diagram
Switch
Part #4158940
Replaced by #4392027
?
Manufacturer substitution
This part replaces 4158940. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
#9

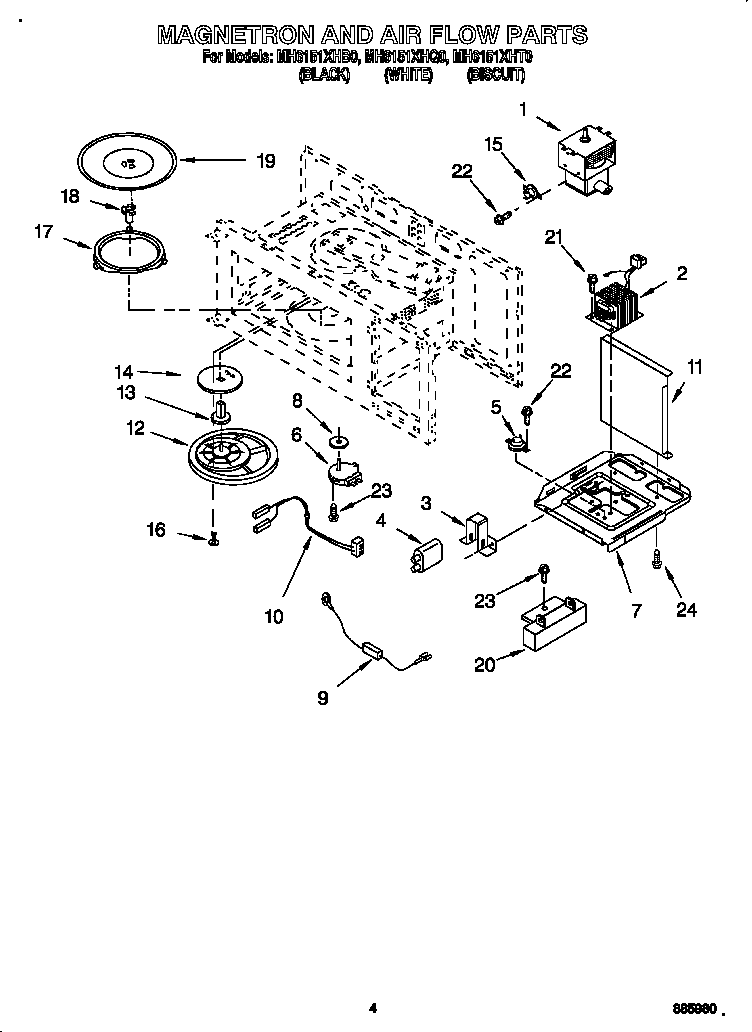

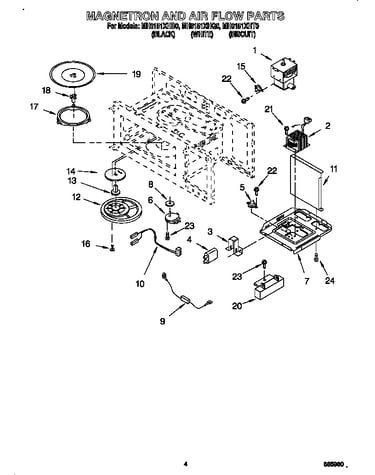

Magnetron and air flow diagram
Voltage wire
Part #8171879
Replaced by #WP8205489
?
Manufacturer substitution
This part replaces 8171879. Substitute parts can look different from the original.
$45.60 |
12% OFF Phone Price : $51.60
In Stock
#15

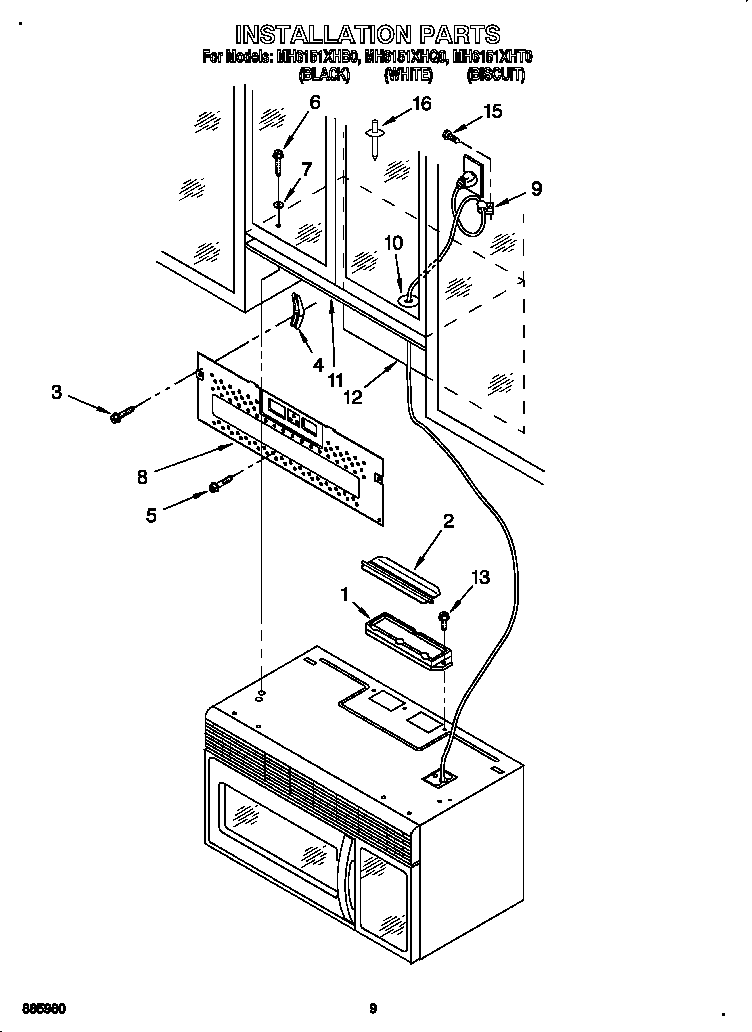

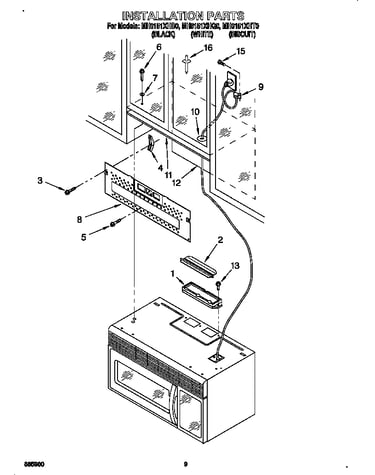

Installation diagram
Screw
Part #4358010
Replaced by #WP98008545
?
Manufacturer substitution
This part replaces 4358010. Substitute parts can look different from the original.
This item is not returnable
$4.67 |
18% OFF Phone Price : $5.67
In Stock
#7

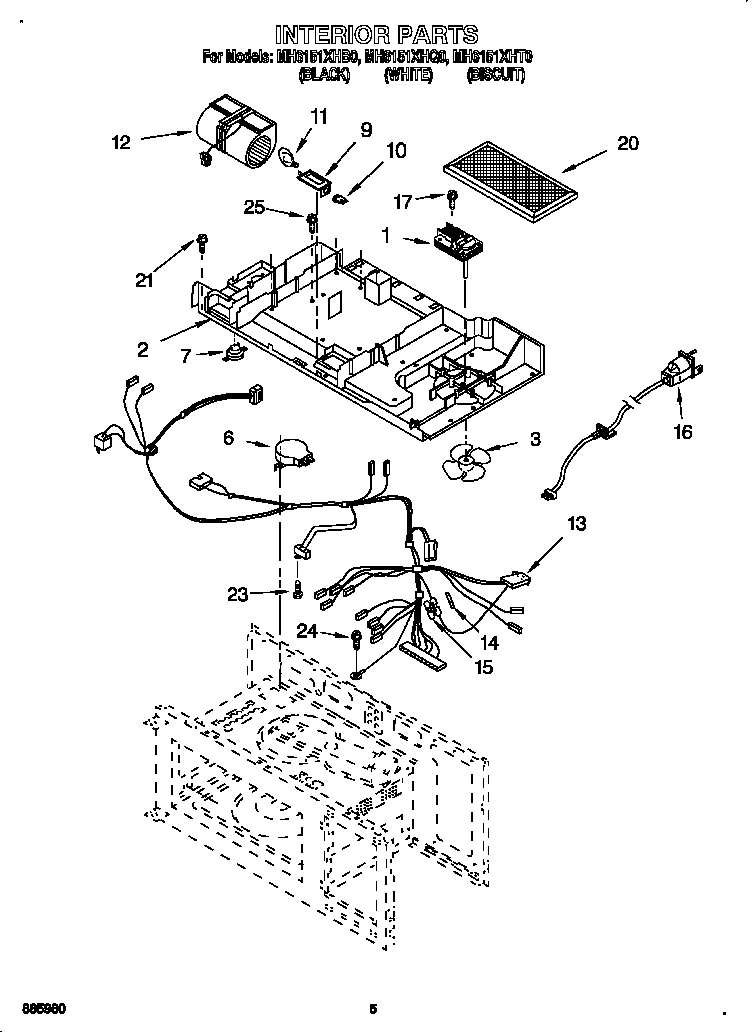

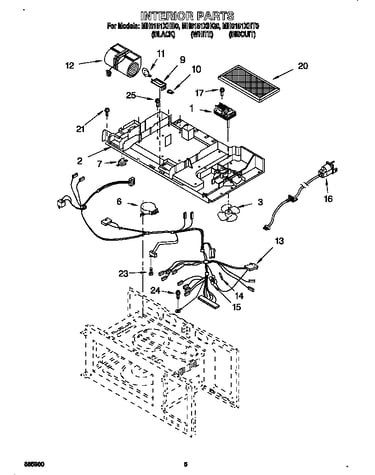

Interior diagram
Thermostat
Part #4358775
Replaced by #W10864742
?
Manufacturer substitution
This part replaces 4358775. Substitute parts can look different from the original.
$37.68 |
14% OFF Phone Price : $43.68
In Stock
#3
Installation diagram
Screw
Part #4158321
Replaced by #WP8169704
?
Manufacturer substitution
This part replaces 4158321. Substitute parts can look different from the original.
This item is not returnable
$5.07 |
16% OFF Phone Price : $6.07
In Stock
#8
Ventilation diagram
Microwave air filter
Part #4358853
This item is not returnable
$13.79 |
13% OFF Phone Price : $15.79
In Stock
#11

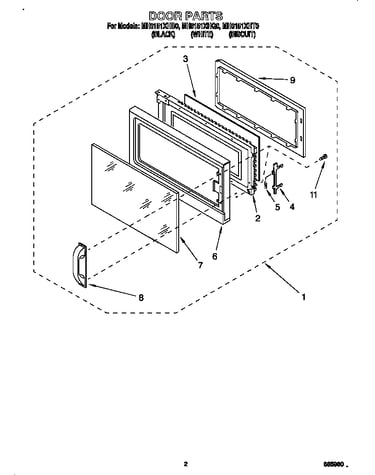

Door diagram
Screw
Part #4358192
Replaced by #W11380570
?
Manufacturer substitution
This part replaces 4358192. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Microwave screw
Part #4358380
Replaced by #W11380570
?
Manufacturer substitution
This part replaces 4358380. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
