Model # ST285 Official Homelite trimmer

Here are the diagrams and repair parts for Official Homelite ST285 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 146 parts |

#27

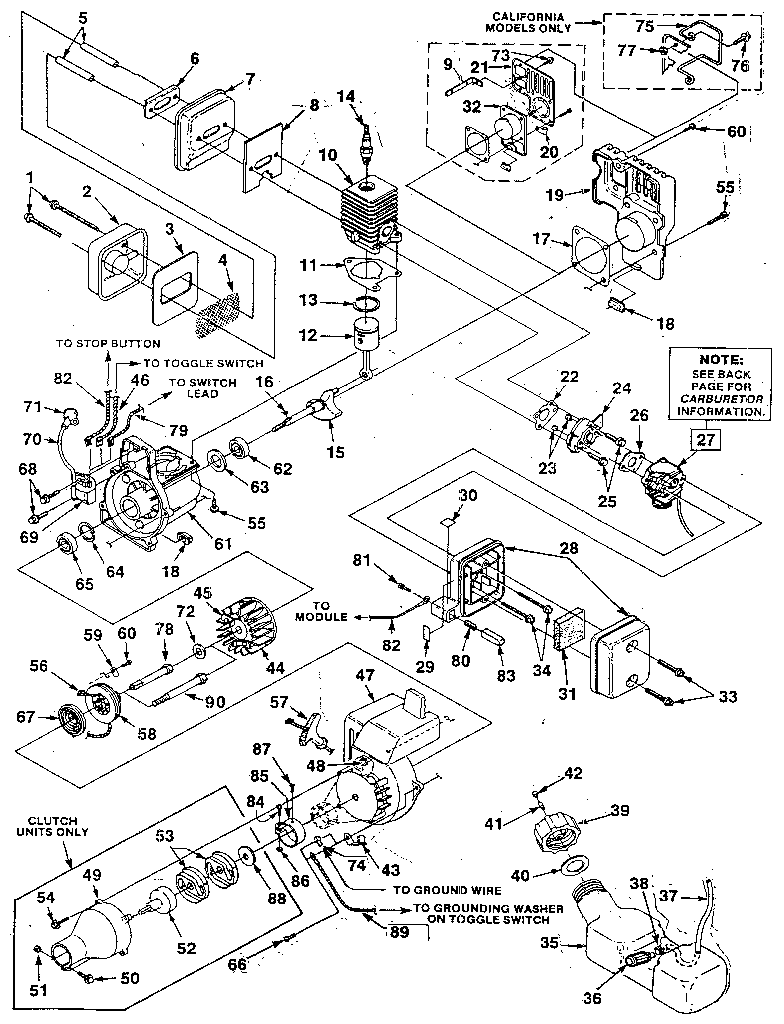

Replacement parts diagram

Carburetor

Part #A-00047-C

The manufacturer no longer makes this part, and there's no substitute part

#74

Replacement parts diagram

Terminal

Part #00719

The manufacturer no longer makes this part, and there's no substitute part

#11

Replacement parts diagram

Gasket

Part #98764

The manufacturer no longer makes this part, and there's no substitute part

#16

Replacement parts diagram

Key

Part #69250

The manufacturer no longer makes this part, and there's no substitute part

#NI

All parts diagram

Holding tool

Part #00063

The manufacturer no longer makes this part, and there's no substitute part

#NI

All parts diagram

Parts list

Part #17968-B

The manufacturer no longer makes this part, and there's no substitute part

Replacement parts diagram

Spacer muffler

Part #98860-A

The manufacturer no longer makes this part, and there's no substitute part

#20

Drive shaft and cutter head diagram

Lawn & garden equipment screw

Part #80295

The manufacturer no longer makes this part, and there's no substitute part

#49

Replacement parts diagram

Adapter tube

Part #A-98931

The manufacturer no longer makes this part, and there's no substitute part

#37

Replacement parts diagram

Tubing

Part #94772-25

The manufacturer no longer makes this part, and there's no substitute part
