Digital Camcorder

Model # SCD103 Official Samsung video camcorder

Here are the diagrams and repair parts for Official Samsung SCD103 video camcorder, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
SCD103 Camcorders
Lens Cover AD97-08447A
#NI

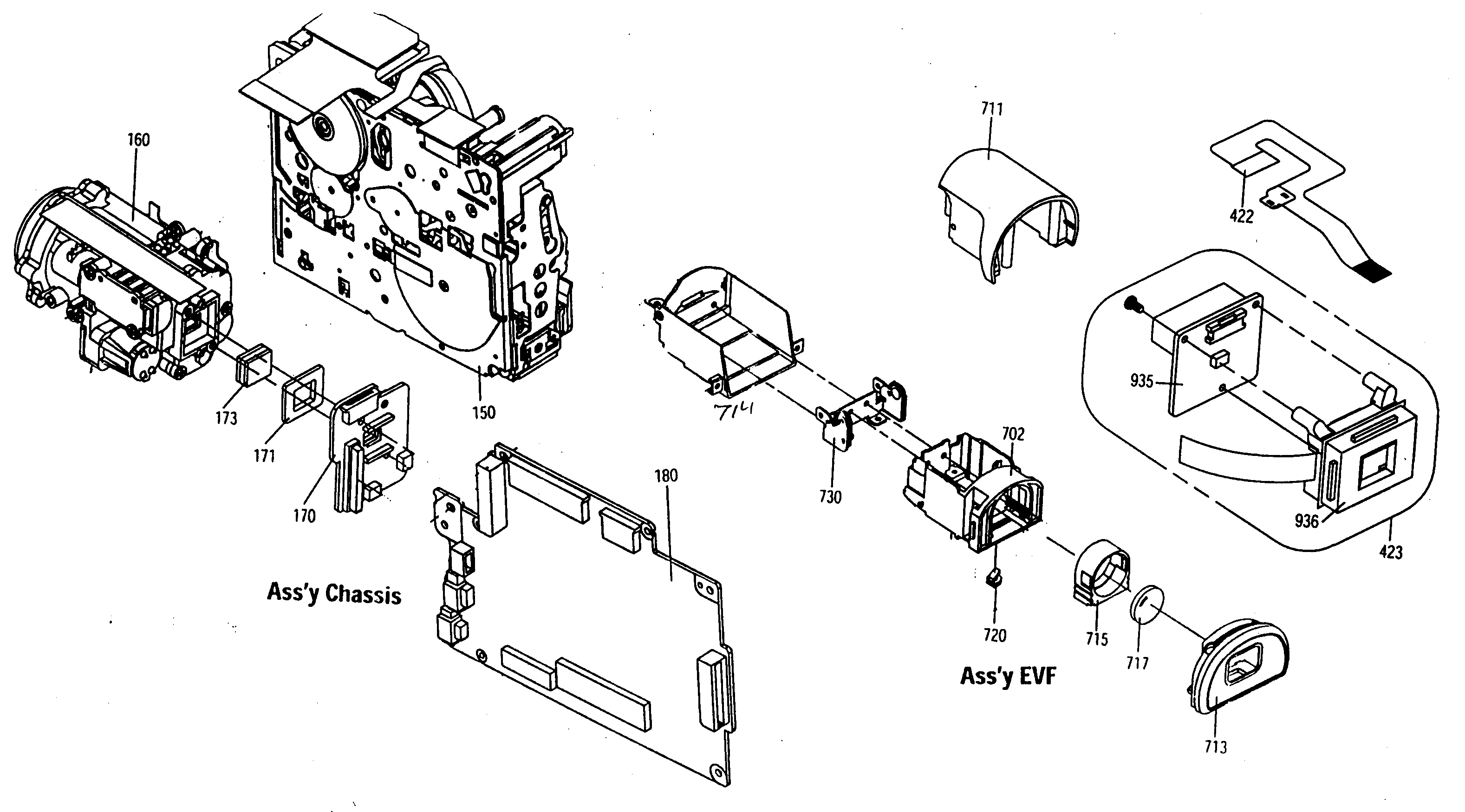

Chassis/evf assy diagram

Lens cover

Part #AD97-08447A

The manufacturer no longer makes this part, and there's no substitute part

Guide AD73-00006A
#462

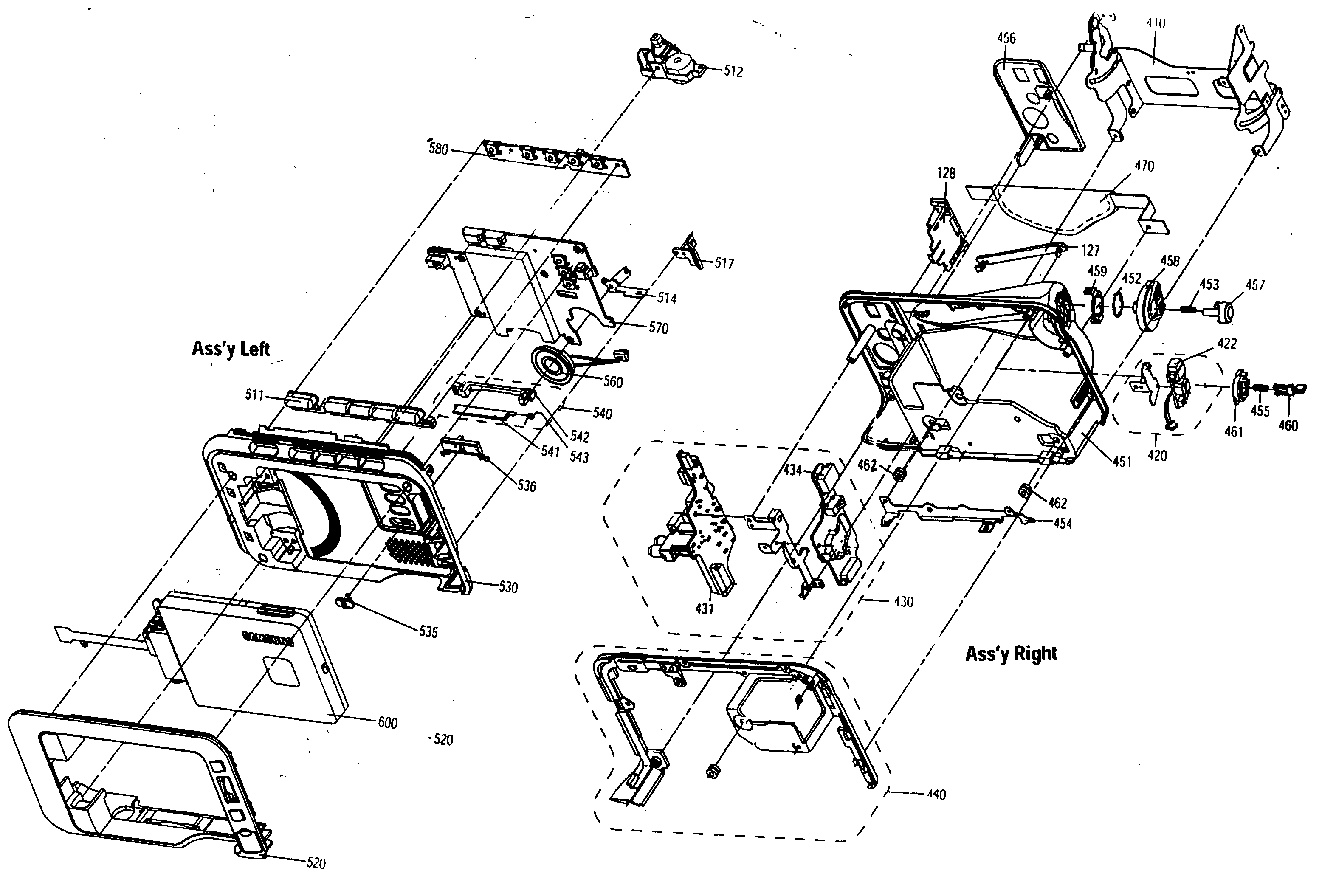

Cabinet left/right assy diagram

Guide

Part #AD73-00006A

The manufacturer no longer makes this part, and there's no substitute part

Holder AD61-01617A
#209

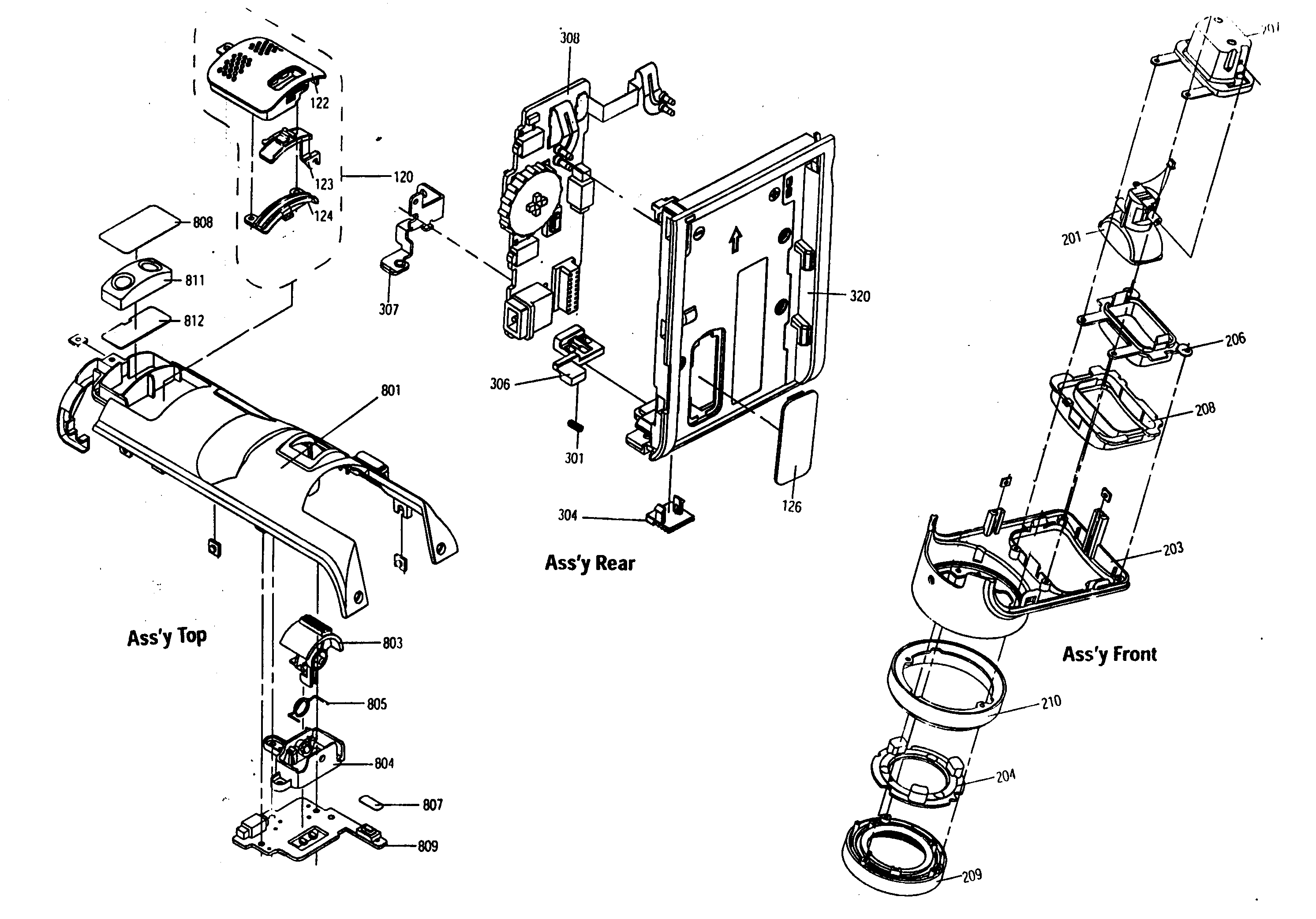

Top/rear/front assy diagram

Holder

Part #AD61-01617A

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly AD97-08407A
#570

Cabinet left/right assy diagram

Pcb assembly

Part #AD97-08407A

The manufacturer no longer makes this part, and there's no substitute part

Bracket AD61-01626A
#307

Top/rear/front assy diagram

Bracket

Part #AD61-01626A

The manufacturer no longer makes this part, and there's no substitute part

Bracket AD61-01591A
#482

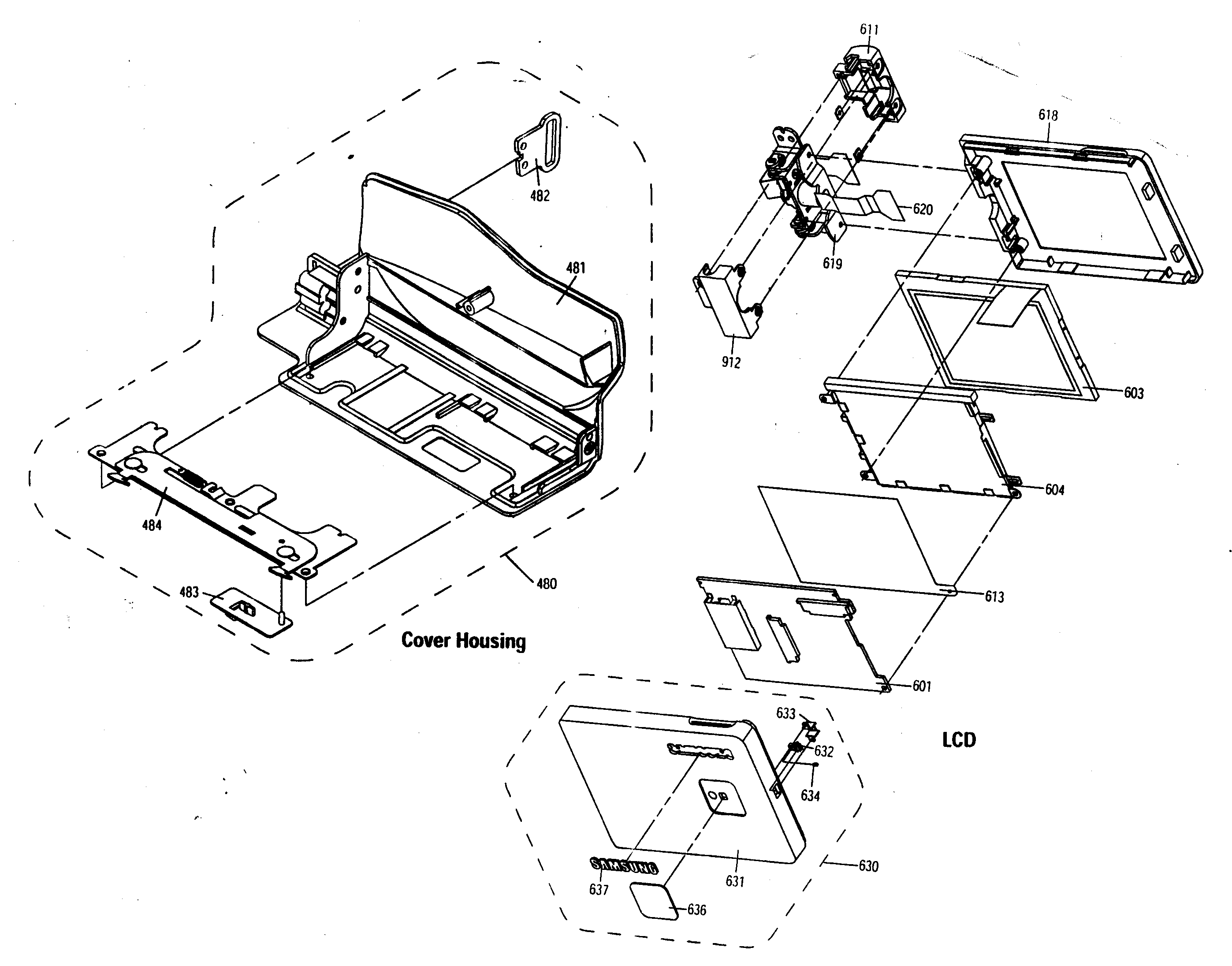

Cover housing/lcd diagram

Bracket

Part #AD61-01591A

The manufacturer no longer makes this part, and there's no substitute part

Button AD64-01148A
#511

Cabinet left/right assy diagram

Button

Part #AD64-01148A

The manufacturer no longer makes this part, and there's no substitute part

Bracket AD61-01595A
#514

Cabinet left/right assy diagram

Bracket

Part #AD61-01595A

The manufacturer no longer makes this part, and there's no substitute part

Case Front AD61-01598A
#203

Top/rear/front assy diagram

Case front

Part #AD61-01598A

The manufacturer no longer makes this part, and there's no substitute part

Door AD61-01028A
#543

Cabinet left/right assy diagram

Door

Part #AD61-01028A

The manufacturer no longer makes this part, and there's no substitute part
