GE
Warming Drawer

Model # PKD915WM1WW Official GE warming drawer

Here are the diagrams and repair parts for Official GE PKD915WM1WW warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |
Heating Element WB44X10029
#3

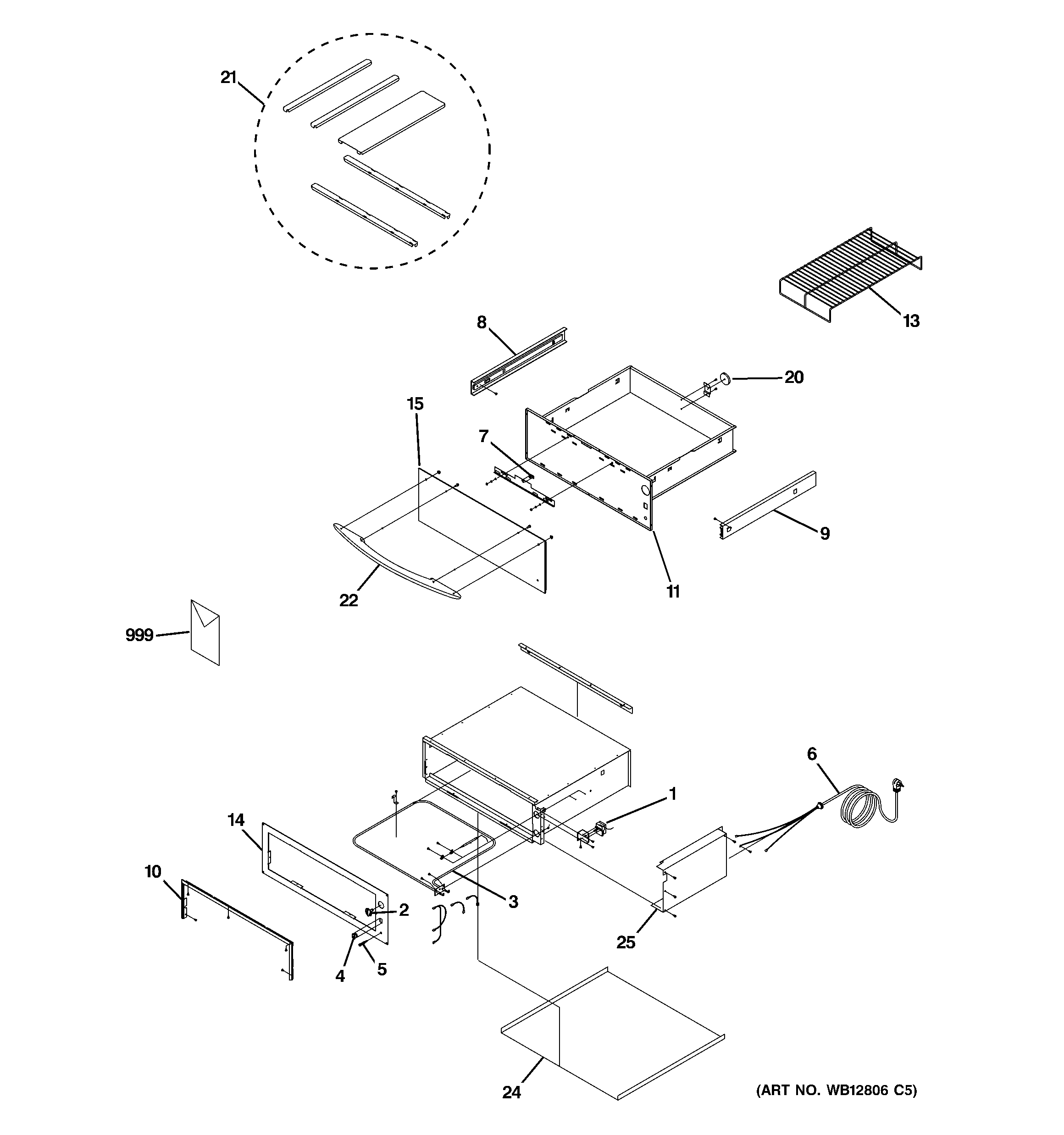

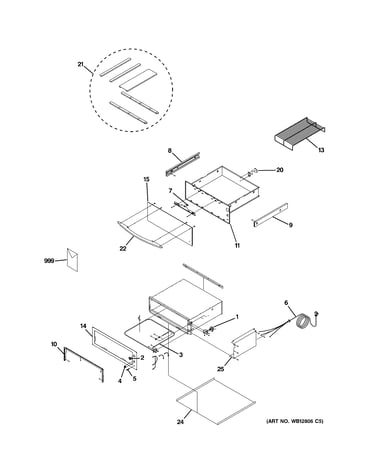

Warming drawer diagram

Heating element

Part #WB44X10029

$86.69 |
6% OFF Phone Price : $92.69
In Stock
Unitized Pan WB58X10019
#11

Warming drawer diagram

Unitized pan

Part #WB58X10019

$340.35
In Stock
Gasket Seal WB02X11288
#10

Warming drawer diagram

Gasket seal

Part #WB02X11288

$48.88
In Stock
Rail Kit, 27 WB64X10001
#21

Warming drawer diagram

Rail kit, 27

Part #WB64X10001

Replaced by #WB64X10031

?
Manufacturer substitution
This part replaces WB64X10001. Substitute parts can look different from the original.
$228.07
In Stock
Wire Rack WB48X10045
#13

Warming drawer diagram

Wire rack

Part #WB48X10045

The manufacturer no longer makes this part, and there's no substitute part

Power Cord WB02X10588
#6

Warming drawer diagram

Power cord

Part #WB02X10588

The manufacturer no longer makes this part, and there's no substitute part

Handle Profile WB15T10154
#22

Warming drawer diagram

Handle profile

Part #WB15T10154

The manufacturer no longer makes this part, and there's no substitute part

Control Panel WB02X11007
#25

Warming drawer diagram

Control panel

Part #WB02X11007

The manufacturer no longer makes this part, and there's no substitute part

Drawer WB56X10781
#14

Warming drawer diagram

Drawer

Part #WB56X10781

The manufacturer no longer makes this part, and there's no substitute part

Glass 27" Wh WB55X10912
#15

Warming drawer diagram

Glass 27" wh

Part #WB55X10912

The manufacturer no longer makes this part, and there's no substitute part
