Model # TB55B Official Troybilt 12-v trimmer battery

Here are the diagrams and repair parts for Official Troybilt TB55B 12-v trimmer battery, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Spring 791-180374
#22

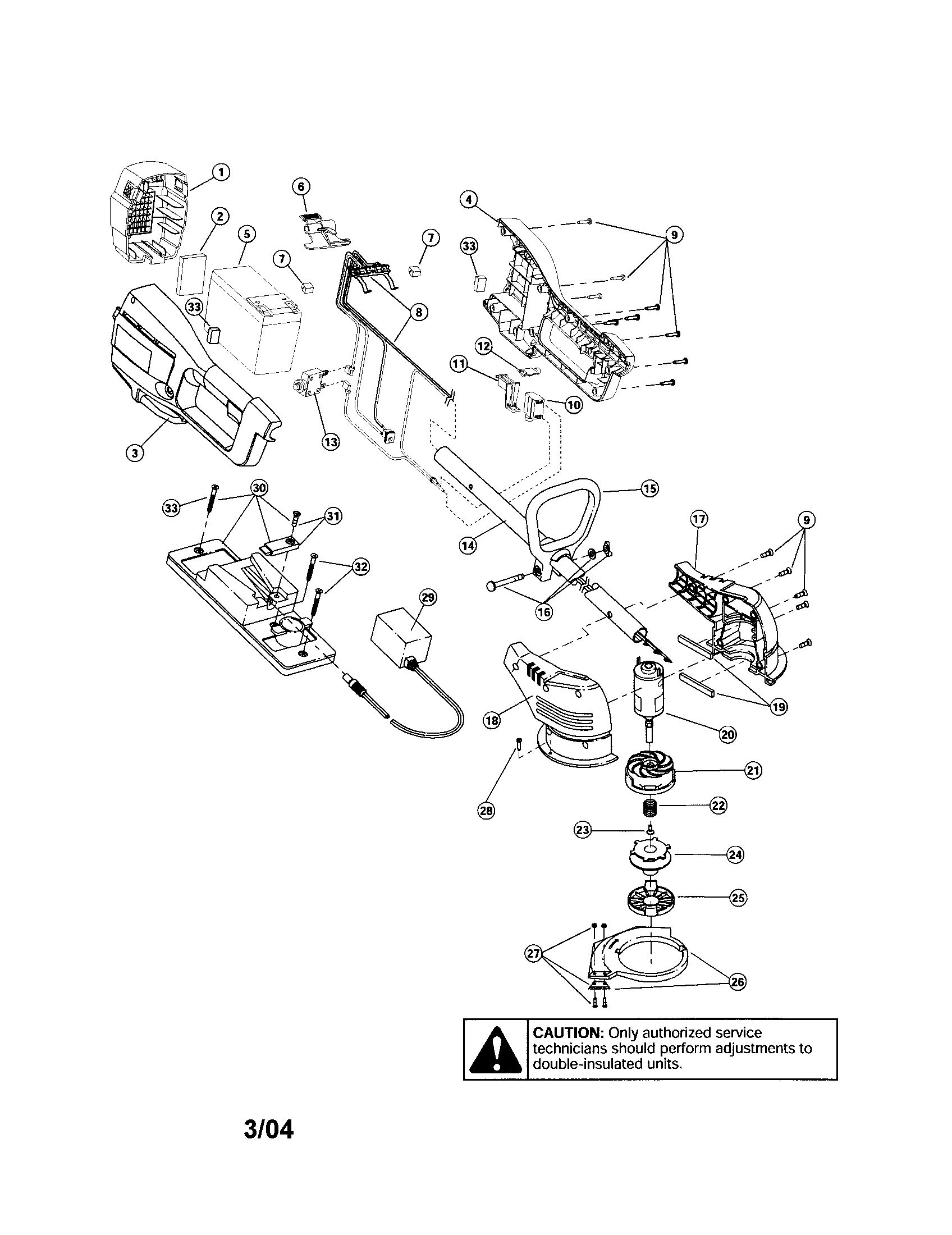

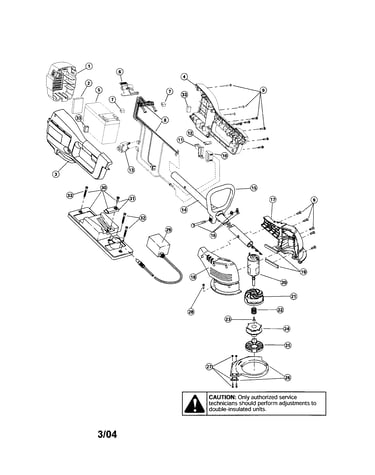

12 volt batter trimmer diagram

Spring

Part #791-180374

$18.83
In Stock
Breaker 791-180365
#13

12 volt batter trimmer diagram

Breaker

Part #791-180365

$36.44
In Stock
Line Trimmer Handle Hardware Assembly 791-181587
#16

12 volt batter trimmer diagram

Line trimmer handle hardware assembly

Part #791-181587

$26.38 |
19% OFF Phone Price : $32.38
In Stock
Bolens Lawn & Garden Equipment Screw 791-181482
#9

12 volt batter trimmer diagram

Bolens lawn & garden equipment screw

Part #791-181482

$7.83
In Stock
Inner Reel 791-180292
#24

12 volt batter trimmer diagram

Inner reel

Part #791-180292

Replaced by #791-180292B

?
Manufacturer substitution
This part replaces 791-180292. Substitute parts can look different from the original.
$22.73
In Stock
Screw 791-182469
#28

12 volt batter trimmer diagram

Screw

Part #791-182469

Replaced by #1755

?
Manufacturer substitution
This part replaces 791-182469. Substitute parts can look different from the original.
This item is not returnable
$6.69
In Stock
Line Trimmer Cutting Head Assembly 791-180327

#NI02

All parts diagram

Line trimmer cutting head assembly

Part #791-180327

The manufacturer no longer makes this part, and there's no substitute part

Scr:6x2.0":d 791-182709
#32

12 volt batter trimmer diagram

Scr:6x2.0":d

Part #791-182709

The manufacturer no longer makes this part, and there's no substitute part

Switch 791-180364
#12

12 volt batter trimmer diagram

Switch

Part #791-180364

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer Handle 791-153064
#15

12 volt batter trimmer diagram

Line trimmer handle

Part #791-153064

The manufacturer no longer makes this part, and there's no substitute part
