Part #WD21X25468
Part #WD21X10490
Part #WD08X22095
Part #WD15X26078
Part #WD12X28078
Part #WD08X10092
Part #WD21X22830
Part #WD24X10062
Part #WD19X27779
Replaced by #WD19X28199
Part #WD21X20309

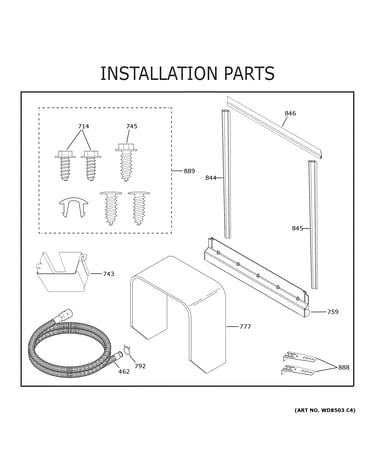

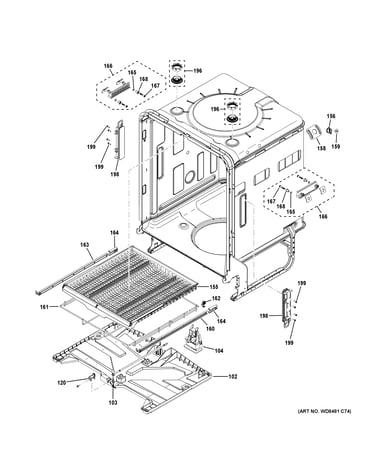

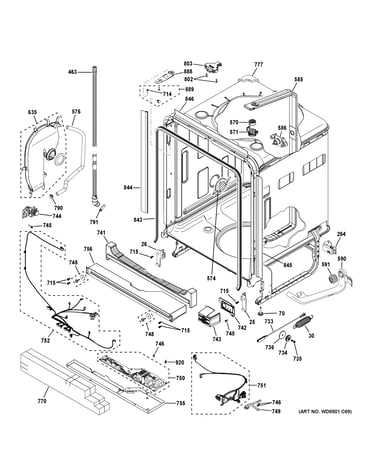

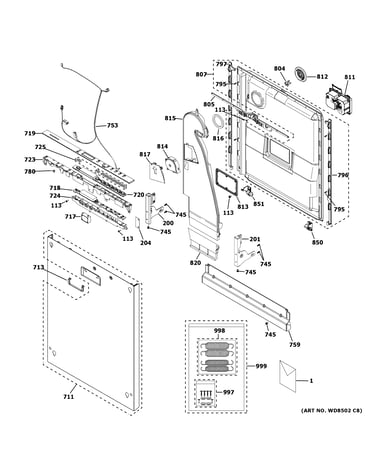

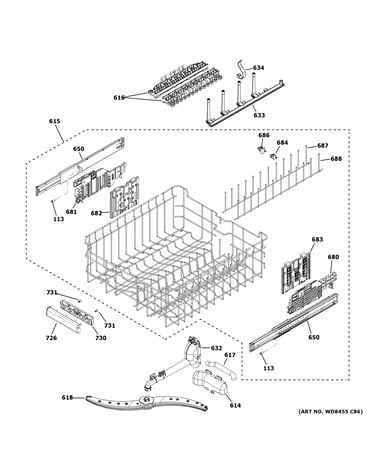

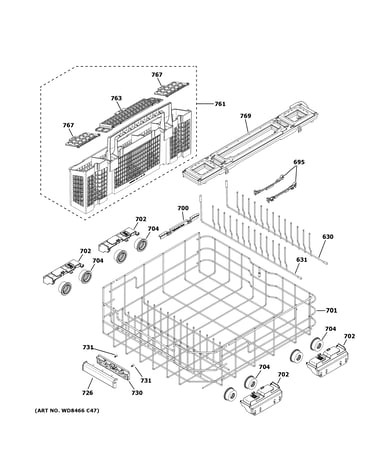

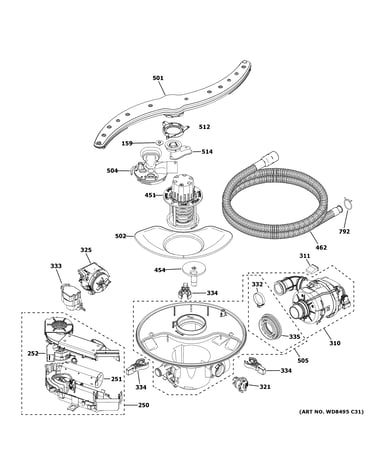

Here are the diagrams and repair parts for Official GE ZDT925SIN6II dishwasher, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Part #WD21X25468
Part #WD21X10490
Part #WD08X22095
Part #WD15X26078
Part #WD12X28078
Part #WD08X10092
Part #WD21X22830
Part #WD24X10062
Part #WD19X27779
Replaced by #WD19X28199
Part #WD21X20309
Choose a symptom to see related dishwasher repairs.
Main causes: water supply problem, stuck overfill float, clogged water inlet valve screen, water inlet valve failure…
Main causes: light switch beside the sink turned off, lack of power, bad dishwasher door switch, control system failure,…
Main cause: damaged rack height adjuster…
Main causes: clogged kitchen sink drain, clogged drain hose, drain check valve damaged, drain pump failure, control syst…
Main causes: improper loading, low water temperature, improper detergent dosage, detergent dispenser failure, spray arm …
Main causes: damaged or stuck spray arm, leaking door seal, damaged door hinge, leaky heating element water seal, cracke…
Main causes: not using rinse aid, rinse aid dispenser failure, broken heating element, malfunctioning vent, drying fan f…
Main causes: broken door spring, damaged or broken door hinge…
Main causes: broken door latch, tripped circuit breaker, broken heating element, faulty vent fan, sensor failure, contro…
These step-by-step repair guides will help you safely fix what’s broken on your dishwasher.
If your dishwasher fills constantly or won't fill at all, the water inlet valve has failed. You can replace it in about …
Follow these steps to replace the timer in your dishwasher if it fails to advance or does not operate properly.…
If the lower spray wash arm is damaged, you can install a new one in just a few minutes.…
Use the advice and tips in these articles and videos to get the most out of your dishwasher.
Get expert tips on using your dishwasher efficiently to save water and energy.…
Get tips for cleaning and maintaining your dishwasher…
This list shows how to disable the demo mode on a variety of dishwashers.…
