Dacor
Gas Cooktop

Model # RGC304BLPH Official Dacor cooktop

Here are the diagrams and repair parts for Official Dacor RGC304BLPH cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |

Led W/sock 103705
#2

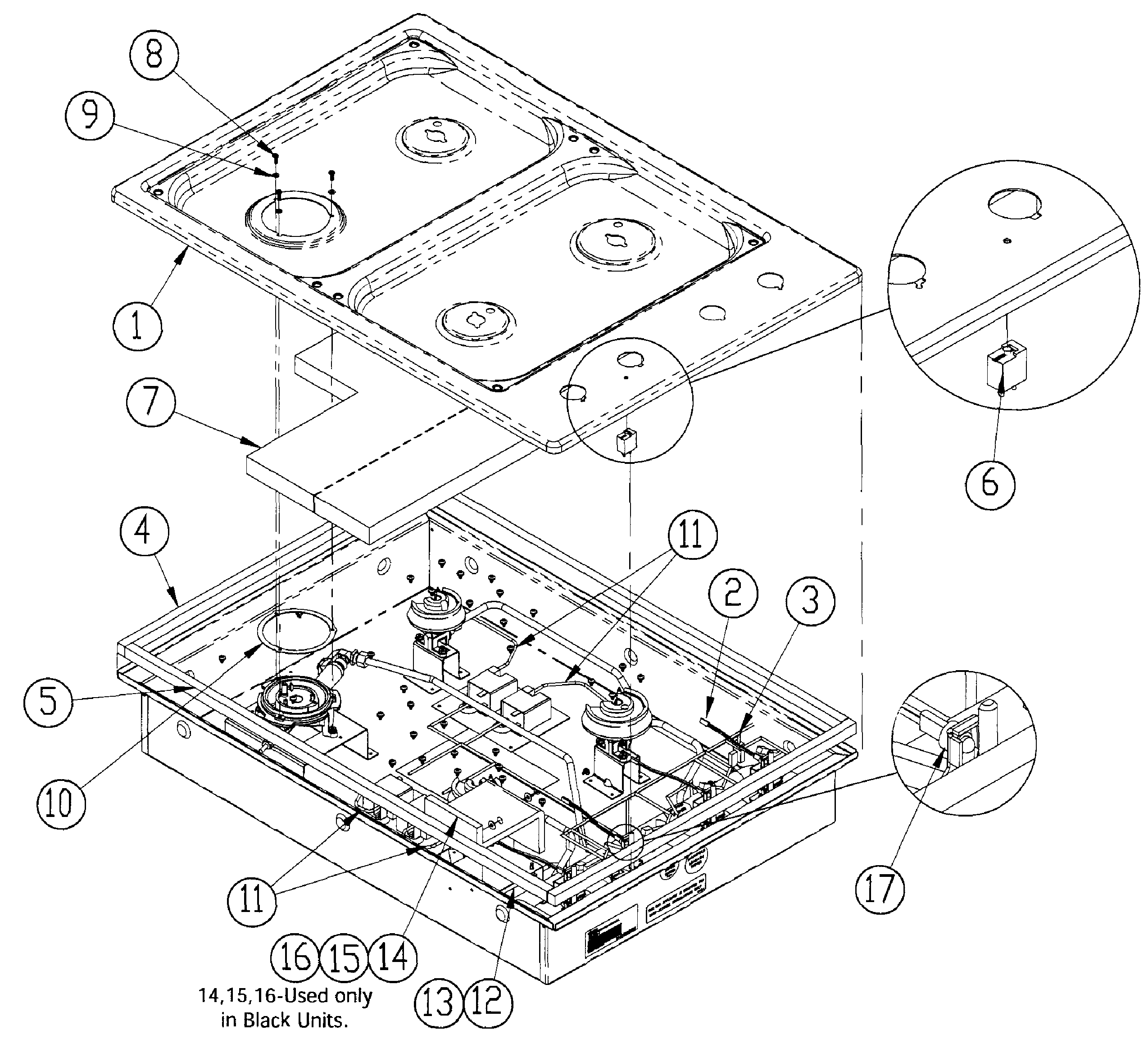

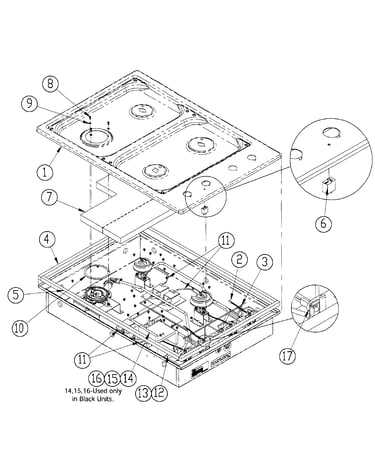

Upper assy diagram

Led w/sock

Part #103705

In Stock
Cooktop Burner Ring 92459
#13

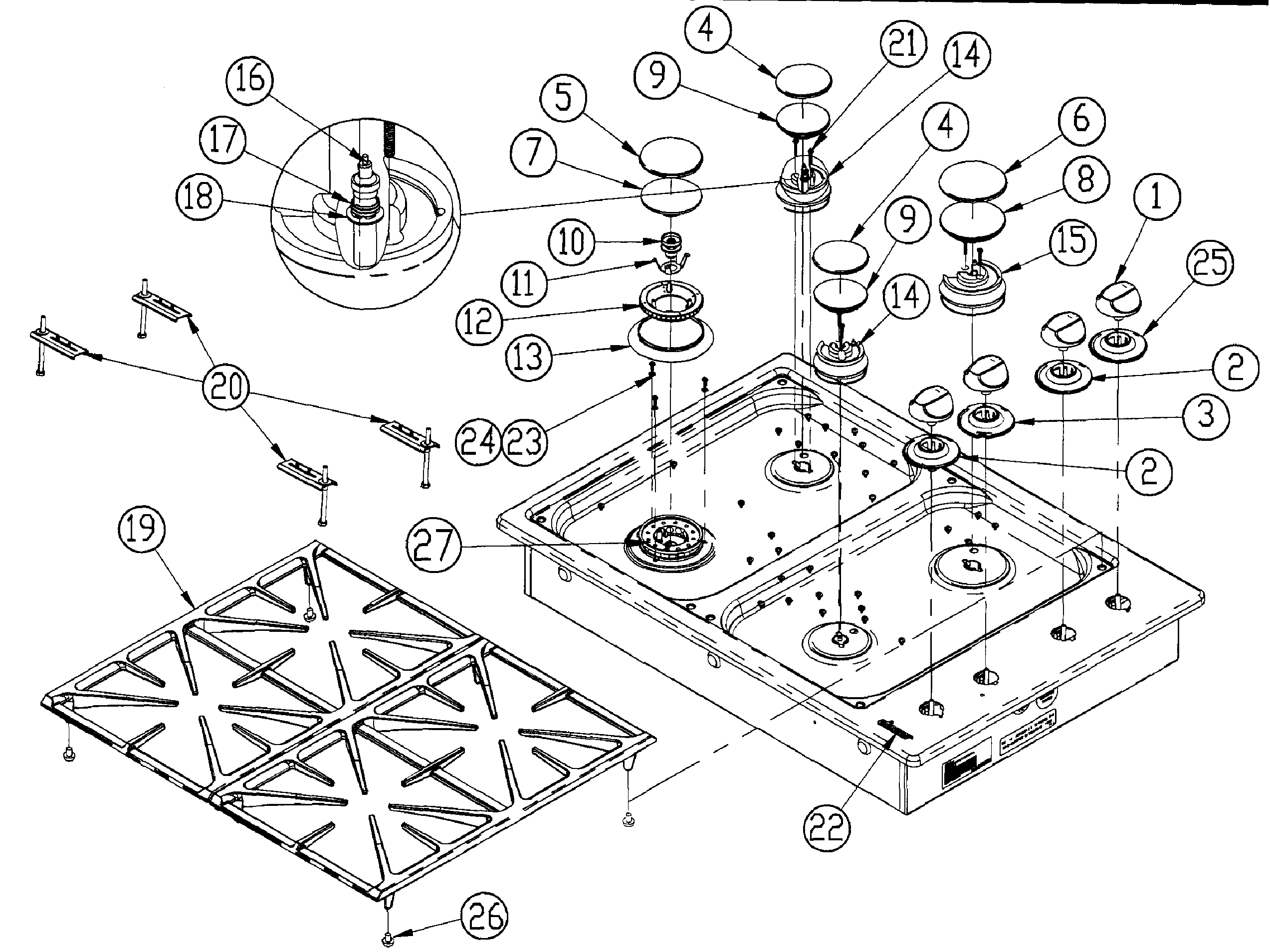

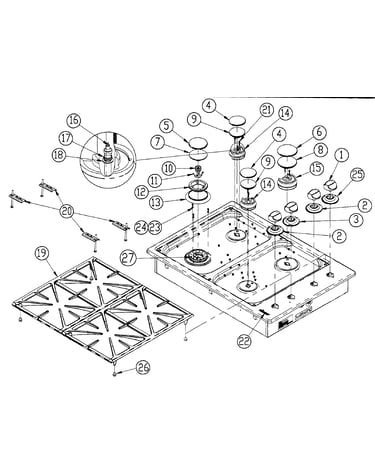

Top frame diagram

Cooktop burner ring

Part #92459

In Stock
Single Support 46319
#3

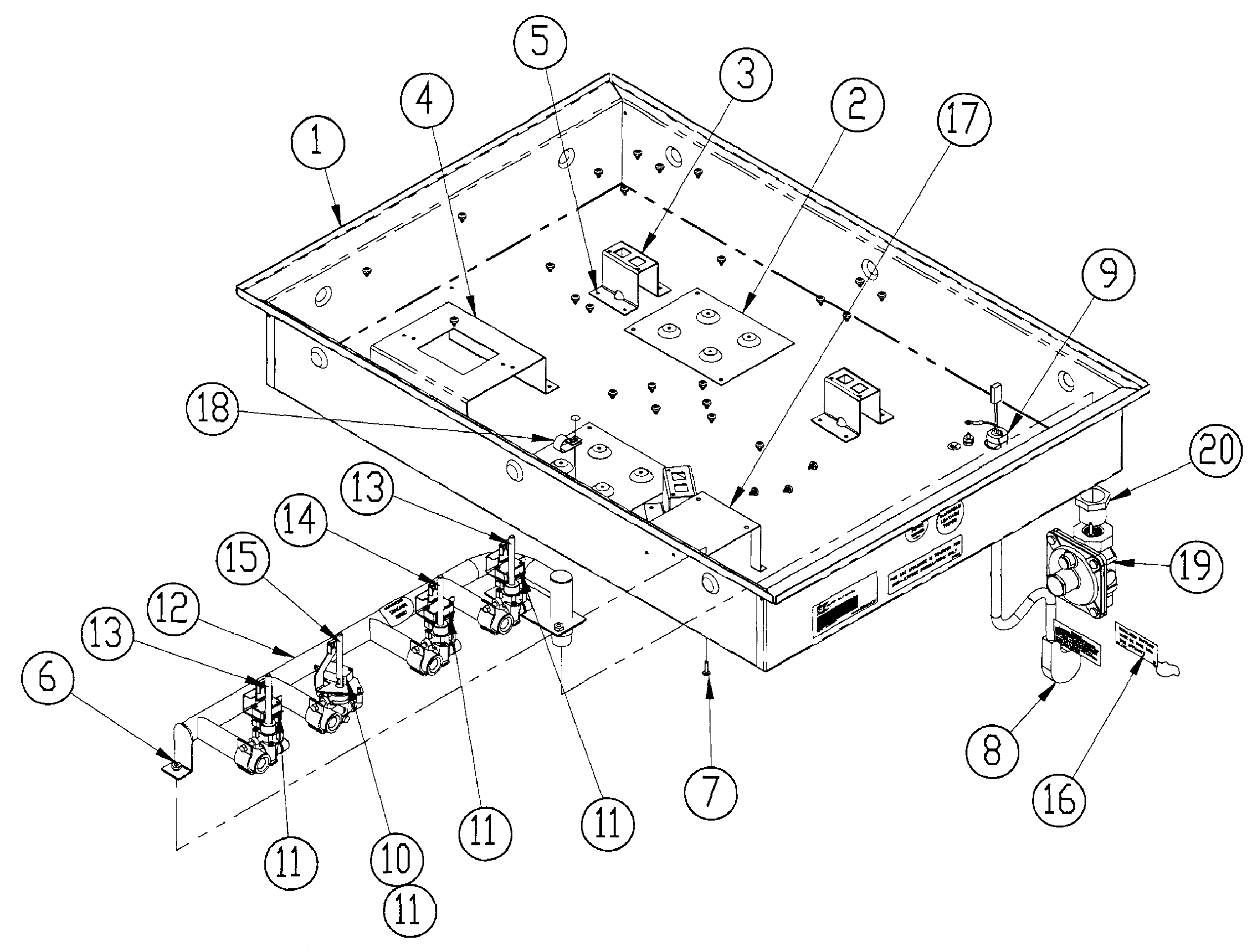

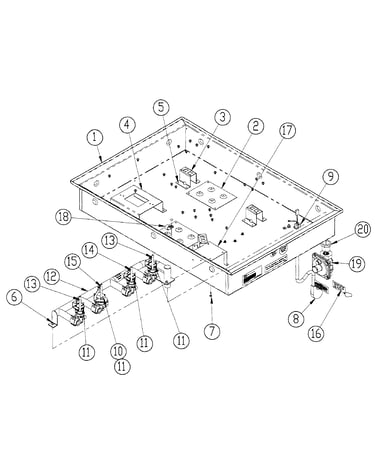

Chassis diagram

Single support

Part #46319

In Stock
Hex Nut #8 83048
#6

Chassis diagram

Hex nut #8

Part #83048

This item is not returnable
In Stock
Tube Rt/fr 72981
#12

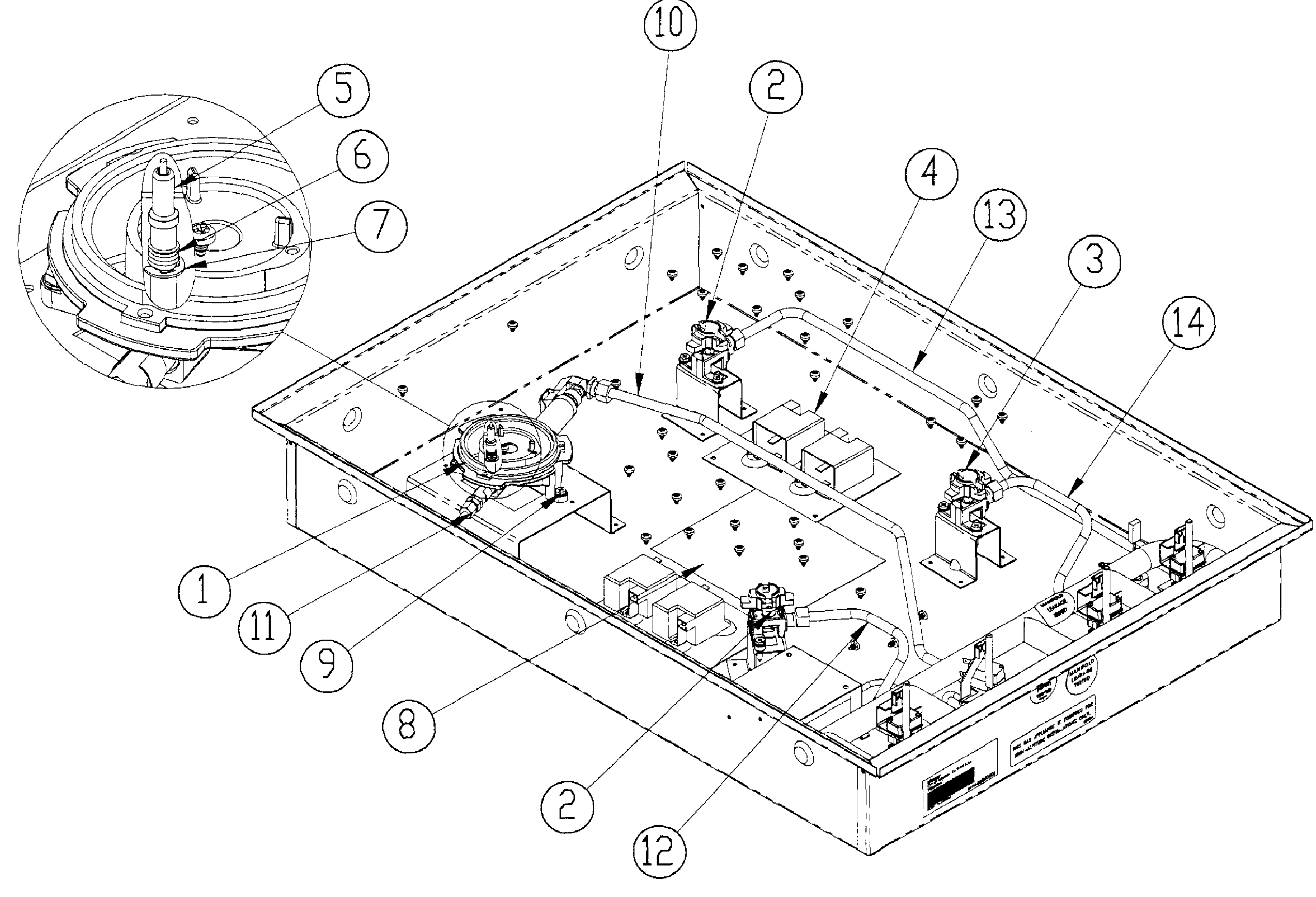

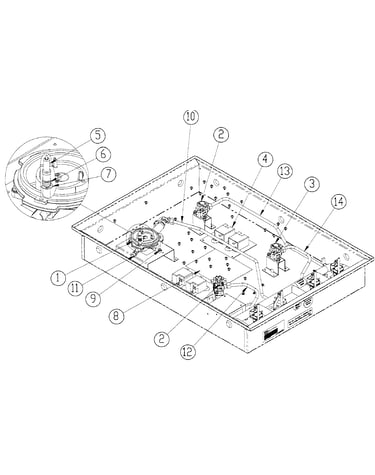

Spark module diagram

Tube rt/fr

Part #72981

In Stock
Screw 83700
#9

Spark module diagram

Screw

Part #83700

This item is not returnable
In Stock
Foam Gasket 92310-002
#5

Upper assy diagram

Foam gasket

Part #92310-002

In Stock
Sing Valve 66953NG
#13

Chassis diagram

Sing valve

Part #66953NG

In Stock
Cooktop Burner Head 103737
#8

Top frame diagram

Cooktop burner head

Part #103737

In Stock
Cooktop Burner Cap, Right Front 92460
#7

Top frame diagram

Cooktop burner cap, right front

Part #92460

In Stock
