Amana
Trash Compactor

Model # TUR103 Official Amana built-in compactor

Here are the diagrams and repair parts for Official Amana TUR103 built-in compactor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 134 parts  |
Plug Hole 87416
#141

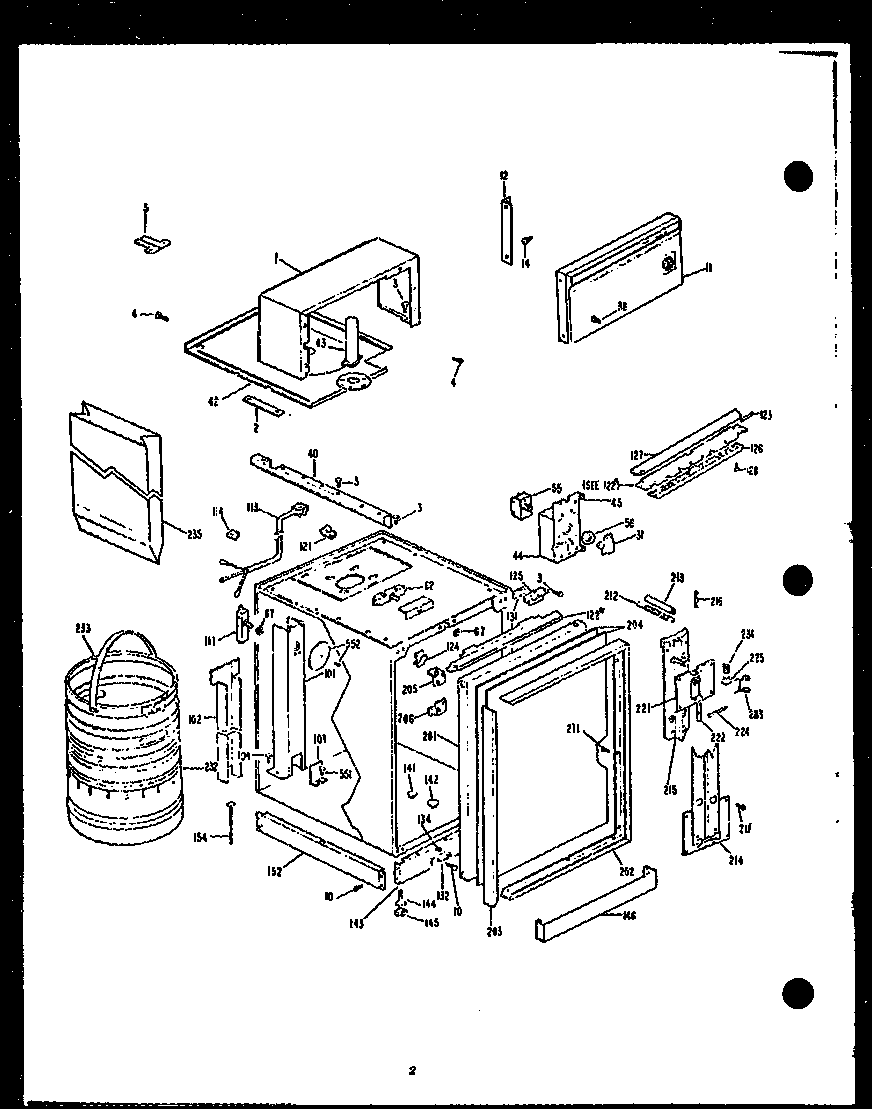

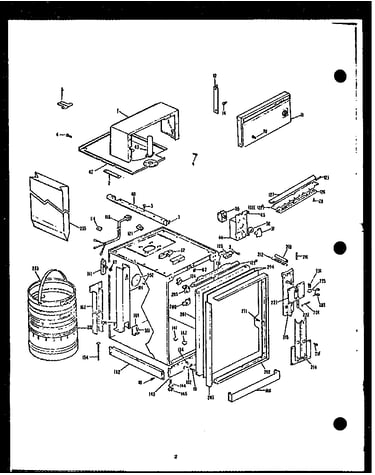

Cabinet parts diagram

Plug hole

Part #87416

The manufacturer no longer makes this part, and there's no substitute part

Protector 87497
#552B

Cabinet parts diagram

Protector

Part #87497

The manufacturer no longer makes this part, and there's no substitute part

Ps Kit Container Guide 87468
#498

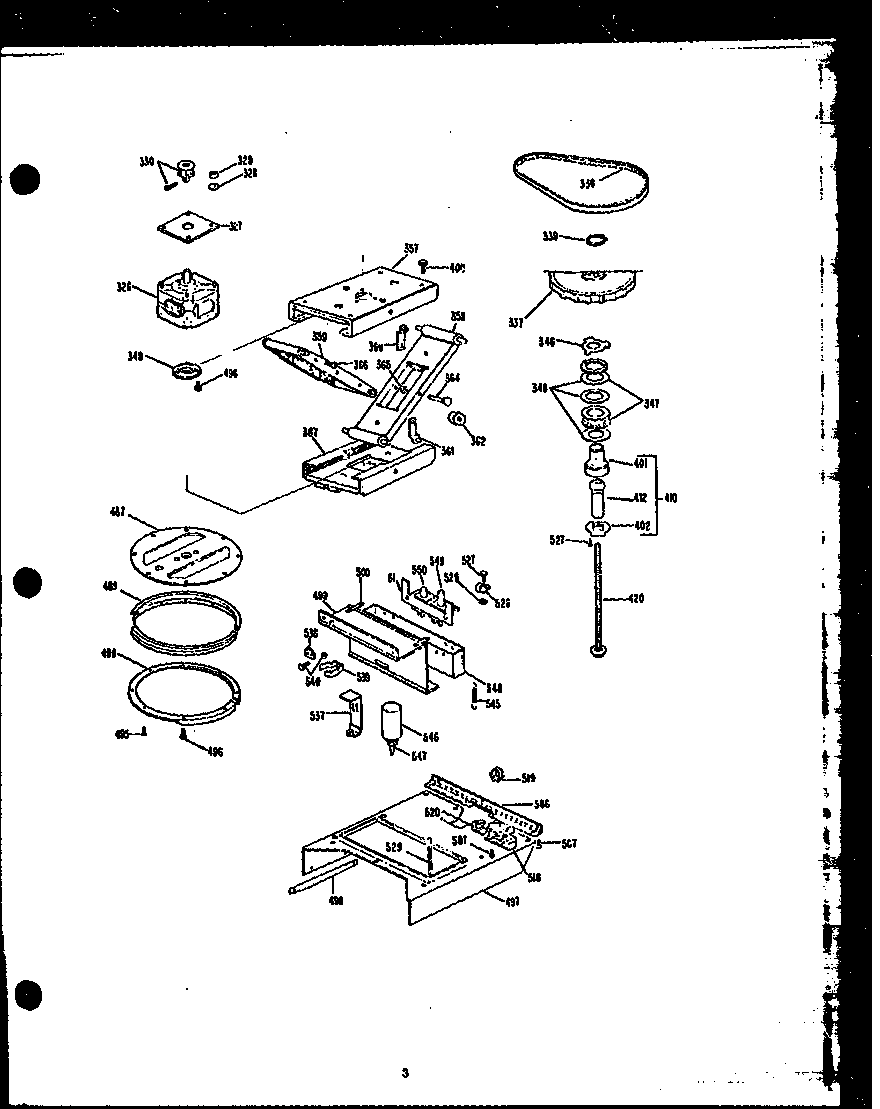

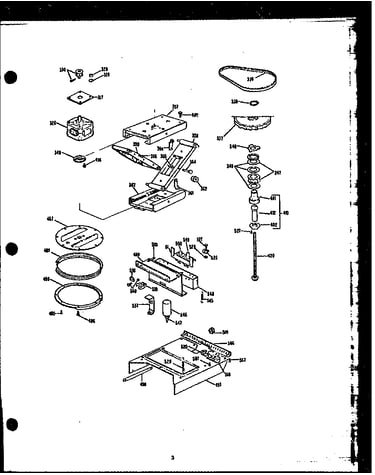

Motor and drive diagram

Ps kit container guide

Part #87468

The manufacturer no longer makes this part, and there's no substitute part

Switch Reversing 87490
#549

Motor and drive diagram

Switch reversing

Part #87490

The manufacturer no longer makes this part, and there's no substitute part

Nut 87484
#540A

Motor and drive diagram

Nut

Part #87484

The manufacturer no longer makes this part, and there's no substitute part

Washer 87439
#328

Motor and drive diagram

Washer

Part #87439

The manufacturer no longer makes this part, and there's no substitute part

Support Trim & Brkt 87104
#1

Cabinet parts diagram

Support trim & brkt

Part #87104

The manufacturer no longer makes this part, and there's no substitute part

Bracket Hinge L H 87408
#125A

Cabinet parts diagram

Bracket hinge l h

Part #87408

The manufacturer no longer makes this part, and there's no substitute part

Stop Bracket 87482
#538

Motor and drive diagram

Stop bracket

Part #87482

The manufacturer no longer makes this part, and there's no substitute part

Ps Tunnel Asm Kit 87398
#101

Cabinet parts diagram

Ps tunnel asm kit

Part #87398

The manufacturer no longer makes this part, and there's no substitute part
