Model # PDW1800K01BB Official GE dishwasher

Here are the diagrams and repair parts for Official GE PDW1800K01BB dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

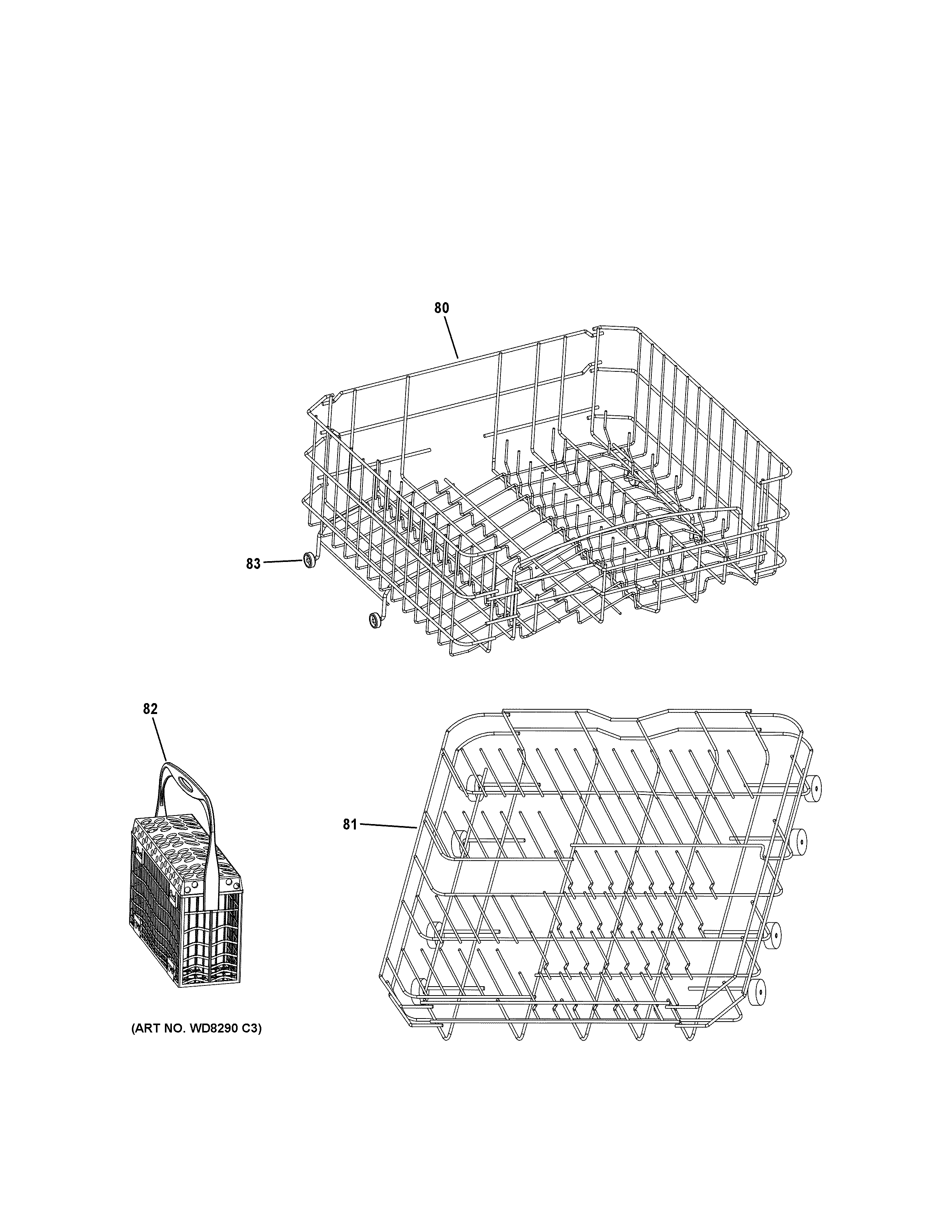

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 106 parts  |
Haier Dishwasher Rinse-aid Dispenser Cap (replaces Wd12x10102) WD12X10122
#99

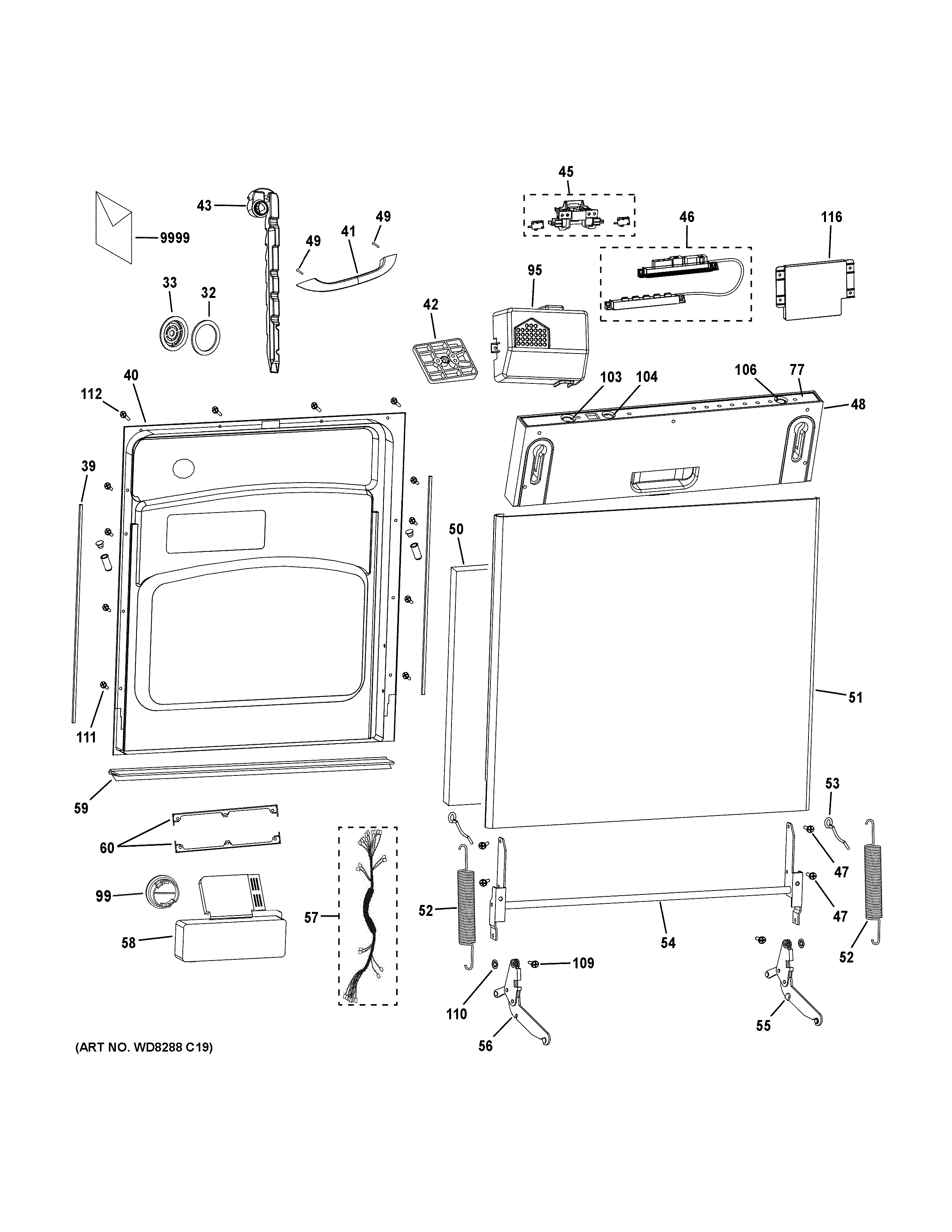

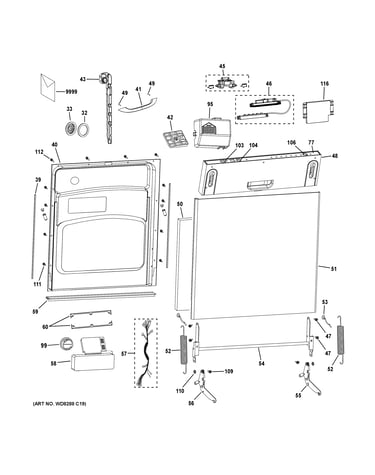

Escutcheon & door assembly diagram

Haier dishwasher rinse-aid dispenser cap (replaces wd12x10102)

Part #WD12X10122

This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Haier Dishwasher Door Hinge Spring WD03X10033
#52

Escutcheon & door assembly diagram

Haier dishwasher door hinge spring

Part #WD03X10033

$15.26 |
12% OFF Phone Price : $17.26
In Stock
Pressure Switch WD21X10191
#26

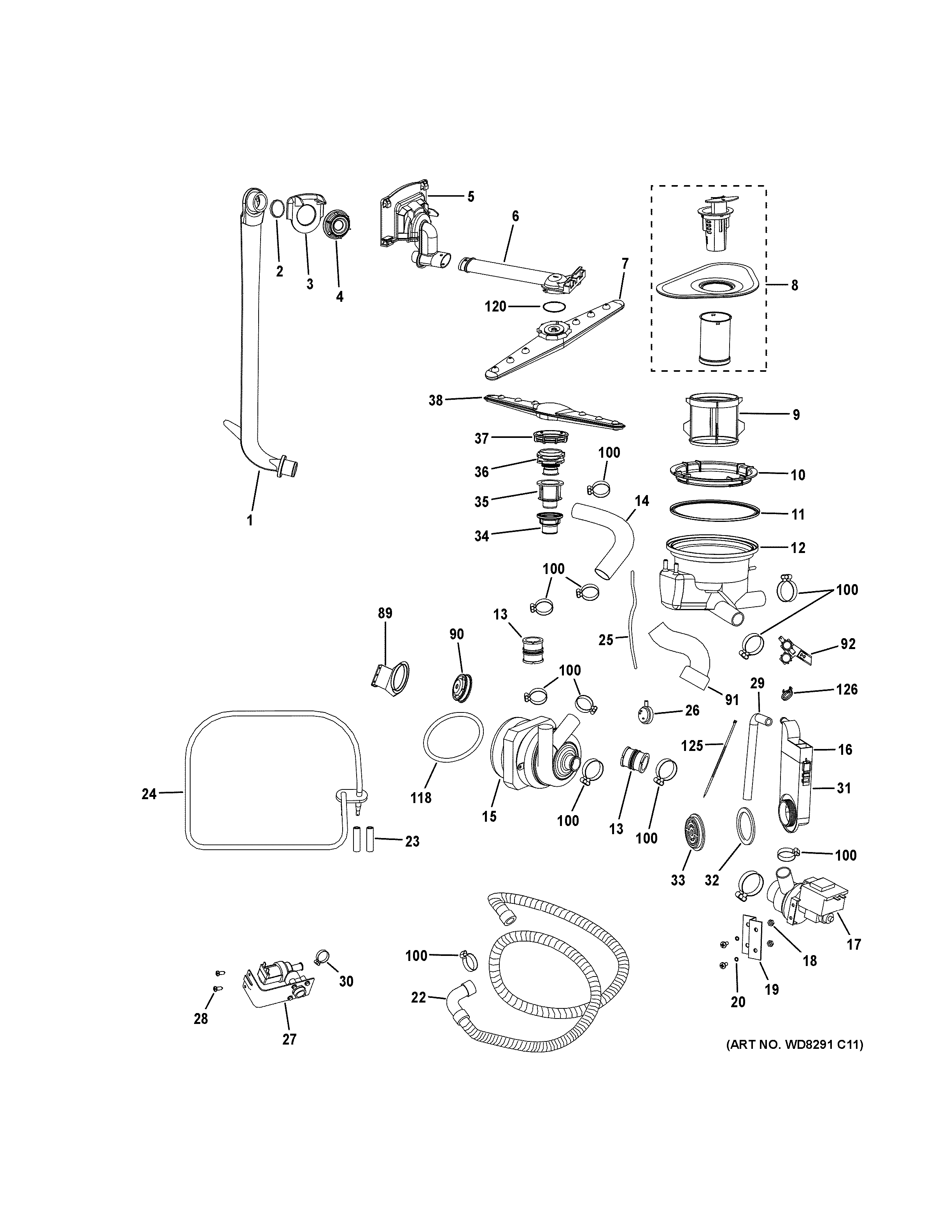

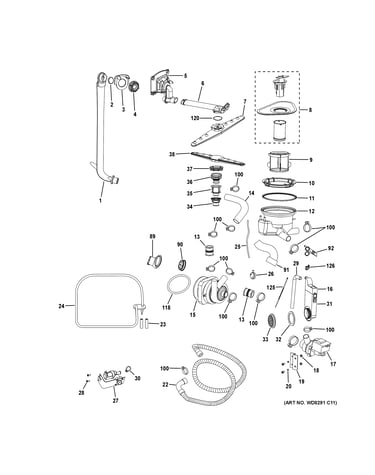

Motor-pump mechanism diagram

Pressure switch

Part #WD21X10191

Replaced by #WD21X23650

?
Manufacturer substitution
This part replaces WD21X10191. Substitute parts can look different from the original.
$52.57 |
10% OFF Phone Price : $58.57
In Stock
Dishwasher Dishrack Slide Rail End Cap WD12X10222
#69

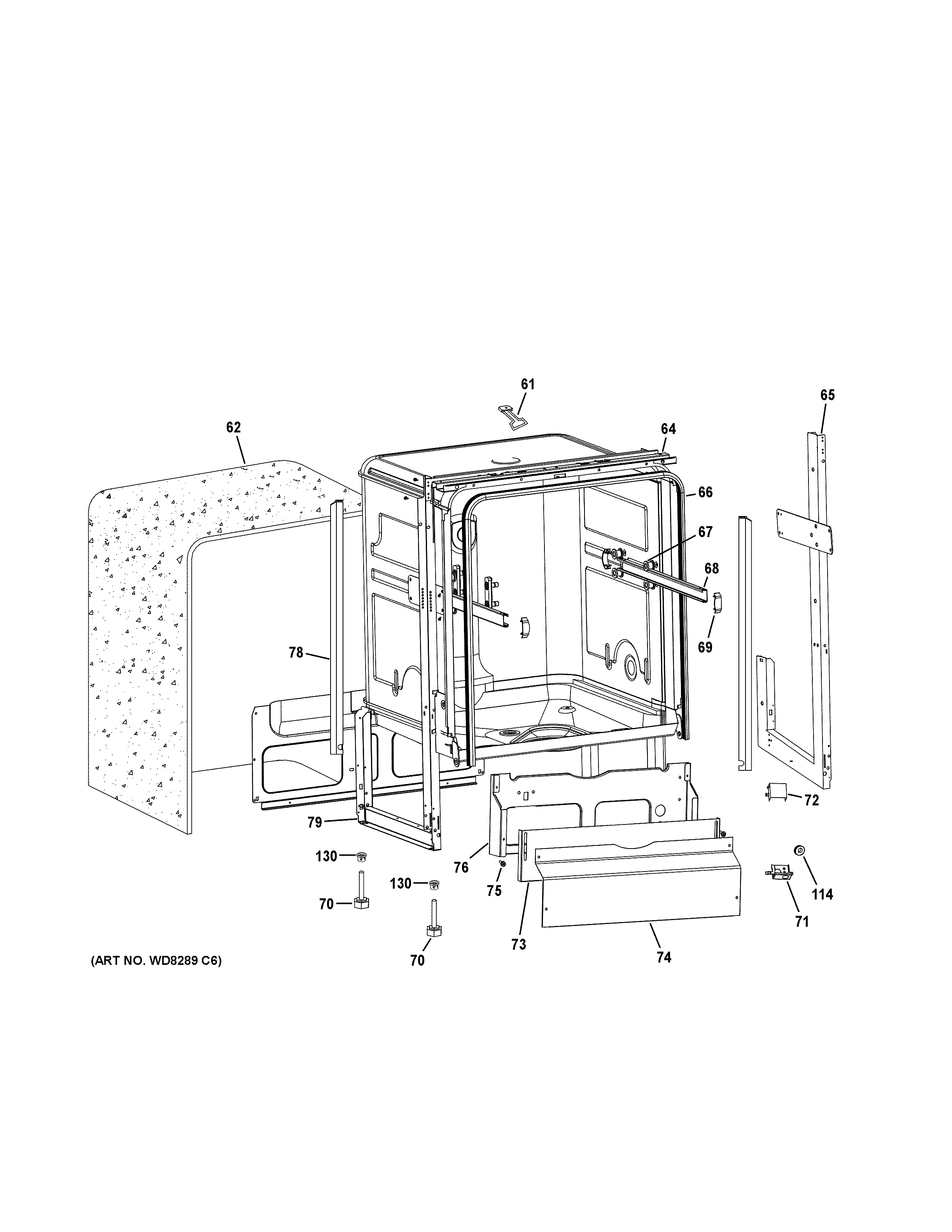

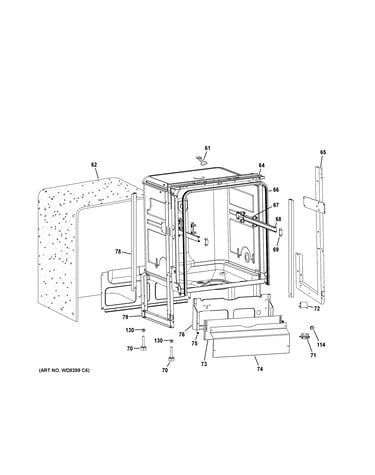

Body parts diagram

Dishwasher dishrack slide rail end cap

Part #WD12X10222

Replaced by #WD12X23617

?
Manufacturer substitution
This part replaces WD12X10222. Substitute parts can look different from the original.
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Dishwasher Water Feed Tube Manifold Seal WD01X10240
#2

Motor-pump mechanism diagram

Dishwasher water feed tube manifold seal

Part #WD01X10240

Replaced by #WD08X23648

?
Manufacturer substitution
This part replaces WD01X10240. Substitute parts can look different from the original.
$7.71
In Stock
Dishwasher Water Inlet Valve WD15X10009
#27

Motor-pump mechanism diagram

Dishwasher water inlet valve

Part #WD15X10009

Replaced by #WD15X23665

?
Manufacturer substitution
This part replaces WD15X10009. Substitute parts can look different from the original.
$121.39 |
9% OFF Phone Price : $133.39
In Stock
Conduit Main WD12X10216
#5

Motor-pump mechanism diagram

Conduit main

Part #WD12X10216

Replaced by #WD12X23662

?
Manufacturer substitution
This part replaces WD12X10216. Substitute parts can look different from the original.
This item is not returnable
$20.49 |
23% OFF Phone Price : $26.49
In Stock
Haier Handle Screw WD02X23519
#49

Escutcheon & door assembly diagram

Haier handle screw

Part #WD02X23519

This item is not returnable
$5.00
In Stock
Haier Detergent Bracket WD01X10321
#60

Escutcheon & door assembly diagram

Haier detergent bracket

Part #WD01X10321

$8.11
In Stock
Haier Spray Arm Rubber Gasket WD08X23740
#120

Motor-pump mechanism diagram

Haier spray arm rubber gasket

Part #WD08X23740

$23.09 |
21% OFF Phone Price : $29.09
In Stock
