Frigidaire
Electric Range

Model # FGEF3059TDH Official Frigidaire free standing electric range

Here are the diagrams and repair parts for Official Frigidaire FGEF3059TDH free standing electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |
Frigidaire Range Oven Temperature Sensor (replaces 316490003) 316490000
#37

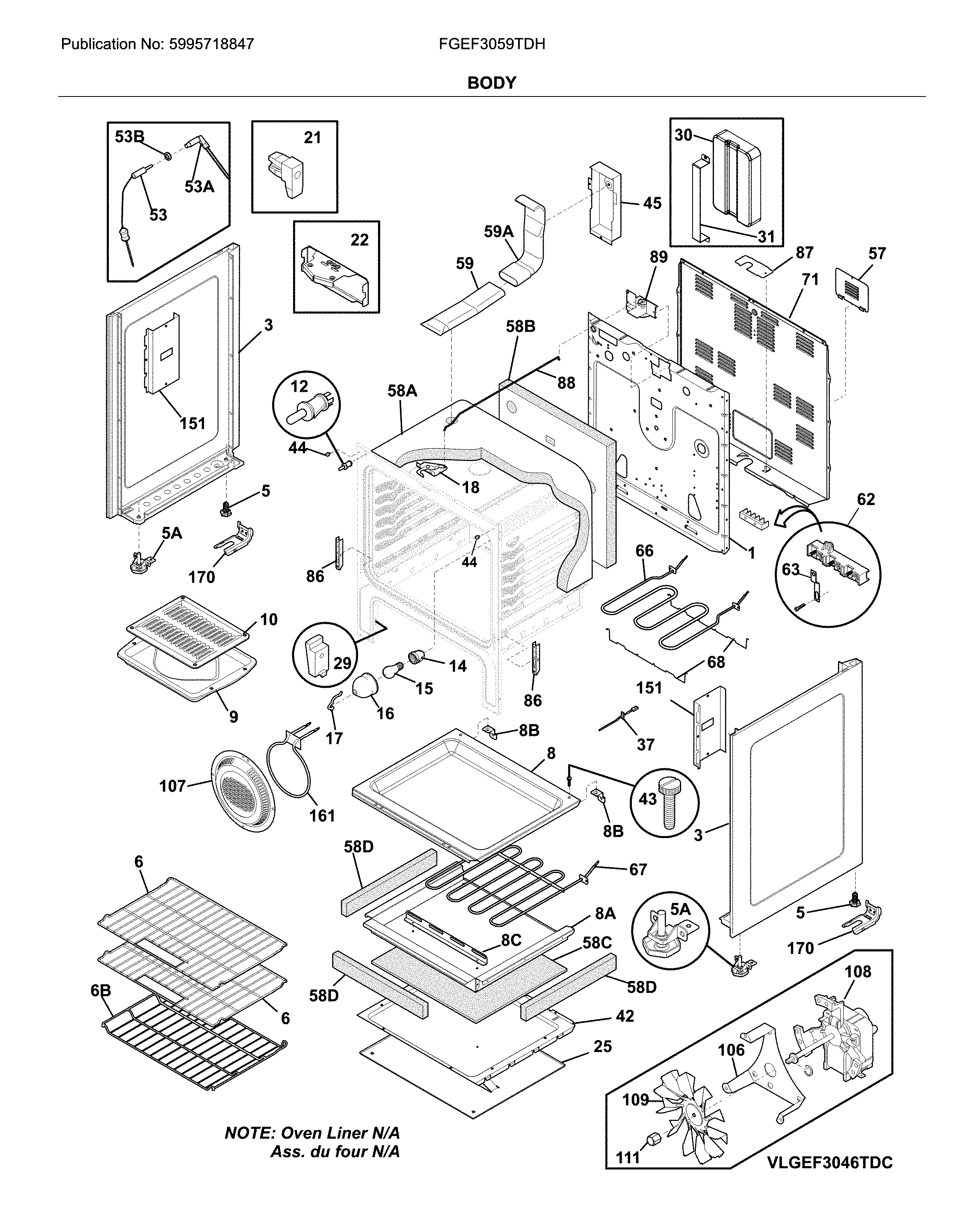

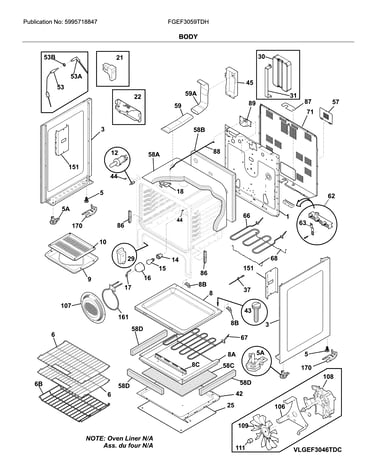

Body diagram

Frigidaire range oven temperature sensor (replaces 316490003)

Part #316490000

BEST SELLER
$34.04 |
15% OFF Phone Price : $40.04
In Stock
Universal/multiflex (frigidaire) Range Small Surface Element Control Switch (replaces 316021500, 5304506424) 316436000
#54

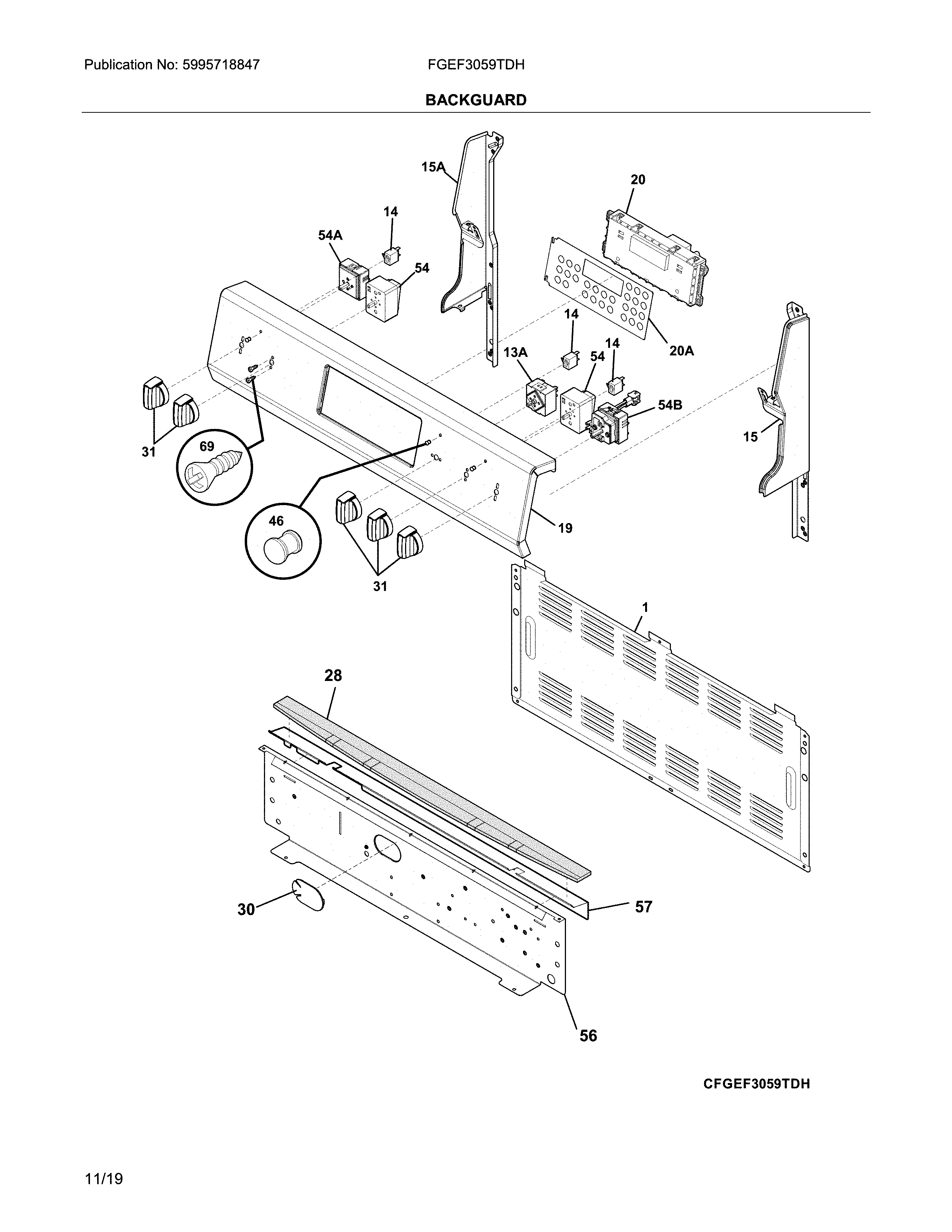

Backguard diagram

Universal/multiflex (frigidaire) range small surface element control switch (replaces 316021500, 5304506424)

Part #316436000

BEST SELLER
$57.43 |
9% OFF Phone Price : $63.43
In Stock
Appliance Light Bulb, 40-watt 316538901
#15

Body diagram

Appliance light bulb, 40-watt

Part #316538901

Replaced by #316538904

?
Manufacturer substitution
This part replaces 316538901. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Frigidaire Range Radiant Surface Element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110) 318178110
#15

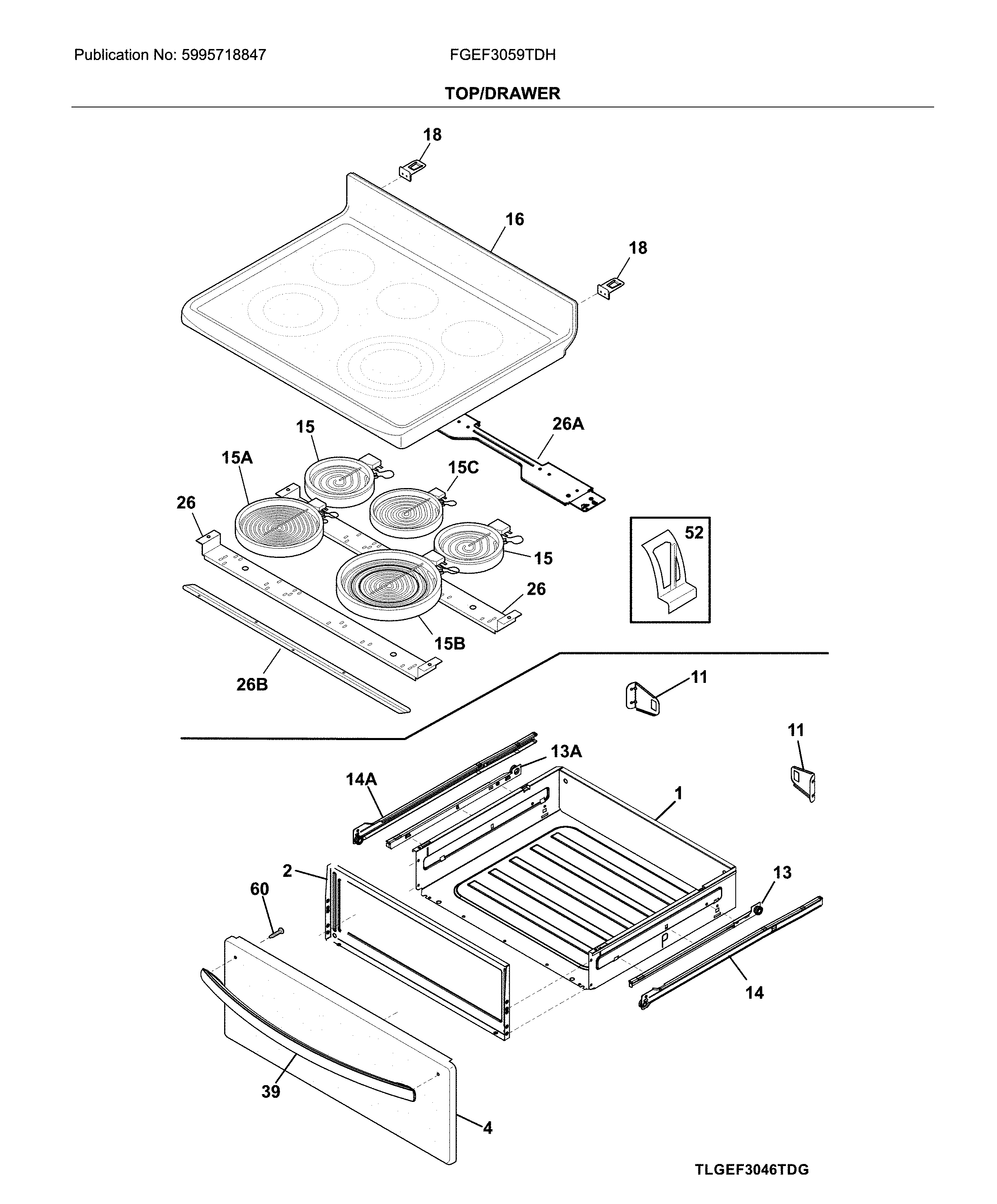

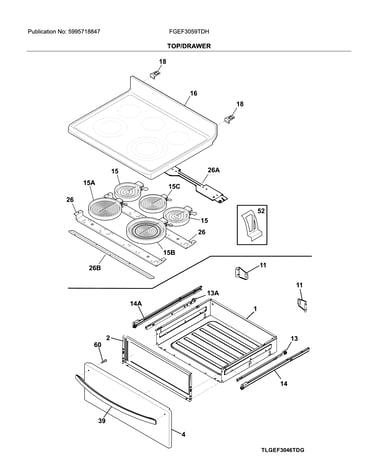

Top/drawer diagram

Frigidaire range radiant surface element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110)

Part #318178110

BEST SELLER
$149.34 |
7% OFF Phone Price : $161.34
In Stock
Range Oven Door Inner Glass 316117502
#8

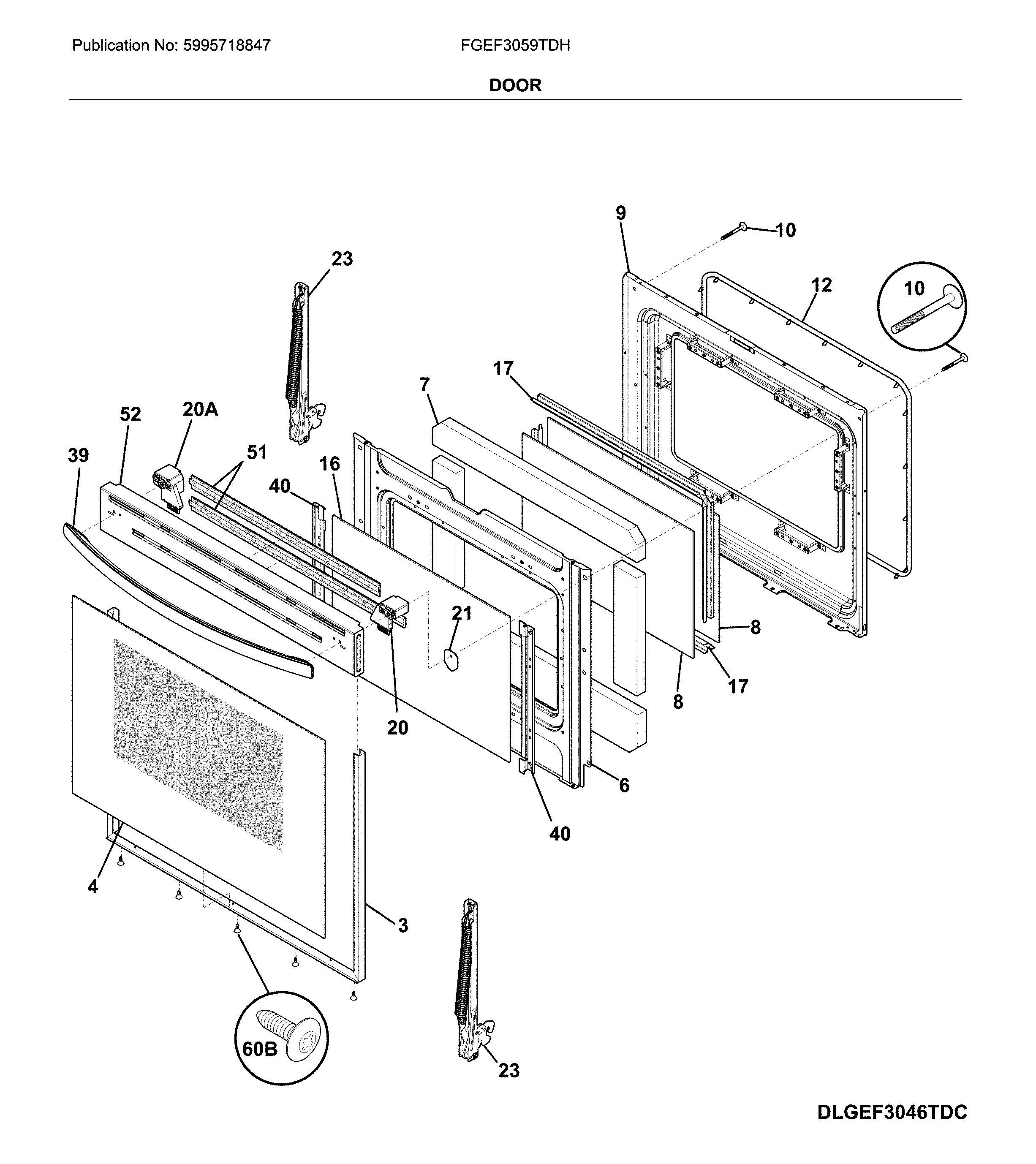

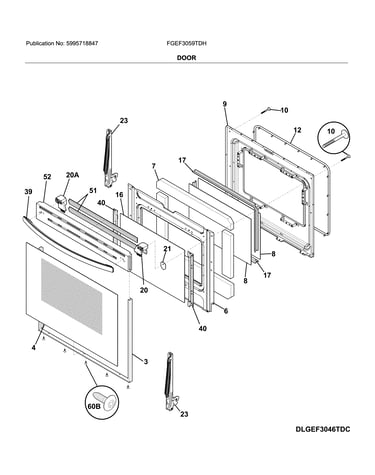

Door diagram

Range oven door inner glass

Part #316117502

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117502. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Tappan Range Dual Surface Element Control Switch 5304522918
#54A

Backguard diagram

Tappan range dual surface element control switch

Part #5304522918

BEST SELLER
$58.27 |
9% OFF Phone Price : $64.27
In Stock
Range Oven Door Lock Motor And Switch Assembly 316464300
#89

Body diagram

Range oven door lock motor and switch assembly

Part #316464300

Replaced by #5304528973

?
Manufacturer substitution
This part replaces 316464300. Substitute parts can look different from the original.
BEST SELLER
$39.98 |
13% OFF Phone Price : $45.98
In Stock
Range Triple Radiant Surface Element (replaces 318297809) 318297810
#15B

Top/drawer diagram

Range triple radiant surface element (replaces 318297809)

Part #318297810

BEST SELLER
$245.54 |
5% OFF Phone Price : $257.54
In Stock
Range Light Socket (replaces 5308011085) 316116400
#14

Body diagram

Range light socket (replaces 5308011085)

Part #316116400

BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Frigidaire Range Main Top (black) 5304513155
#16

Top/drawer diagram

Frigidaire range main top (black)

Part #5304513155

$359.97 |
$12.00 OFF Phone Price : $371.97
In Stock
