Electric Water Heater

Model # E1A30HS035V Official American Water Heaters water heater

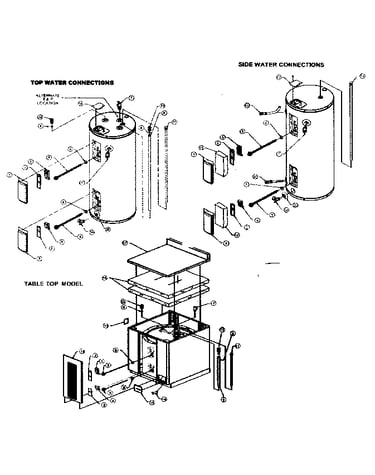

Here are the diagrams and repair parts for Official American Water Heaters E1A30HS035V water heater, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
E1A30HS035V Water Heaters
Water Heater Thermostat Bracket 3900048
#NI

Water heater diagram

Water heater thermostat bracket

Part #3900048

$39.82
In Stock
Water Heater Dip Tube (replaces 4710772) 4710720
#9

Water heater diagram

Water heater dip tube (replaces 4710772)

Part #4710720

Replaced by #100112124

?
Manufacturer substitution
This part replaces 4710720. Substitute parts can look different from the original.
$24.44
In Stock
Element Ga 4400032
#6

Water heater diagram

Element ga

Part #4400032

Replaced by #100108414

?
Manufacturer substitution
This part replaces 4400032. Substitute parts can look different from the original.
$21.43
In Stock
Drain Valve 6900764
#14

Water heater diagram

Drain valve

Part #6900764

Replaced by #100109106

?
Manufacturer substitution
This part replaces 6900764. Substitute parts can look different from the original.
$60.74
In Stock
Top T-stat 6900804
#3

Water heater diagram

Top t-stat

Part #6900804

Replaced by #100108424

?
Manufacturer substitution
This part replaces 6900804. Substitute parts can look different from the original.
$32.99
In Stock
Element 6900684
#5

Water heater diagram

Element

Part #6900684

Replaced by #100109629

?
Manufacturer substitution
This part replaces 6900684. Substitute parts can look different from the original.
$23.33
In Stock
T&p Valve 6900745
#7

Water heater diagram

T&p valve

Part #6900745

Replaced by #100108279

?
Manufacturer substitution
This part replaces 6900745. Substitute parts can look different from the original.
$32.22
In Stock
Anode 4700330
#11

Water heater diagram

Anode

Part #4700330

The manufacturer no longer makes this part, and there's no substitute part

Cover 4810073
#2

Water heater diagram

Cover

Part #4810073

The manufacturer no longer makes this part, and there's no substitute part

Access Door 2610087
#1

Water heater diagram

Access door

Part #2610087

The manufacturer no longer makes this part, and there's no substitute part
