Model # DW896 TYPE 1 Official DeWalt 16-gauge nibbler

Here are the diagrams and repair parts for Official DeWalt DW896-TYPE-1 16-gauge nibbler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Collar 935852-00
#48

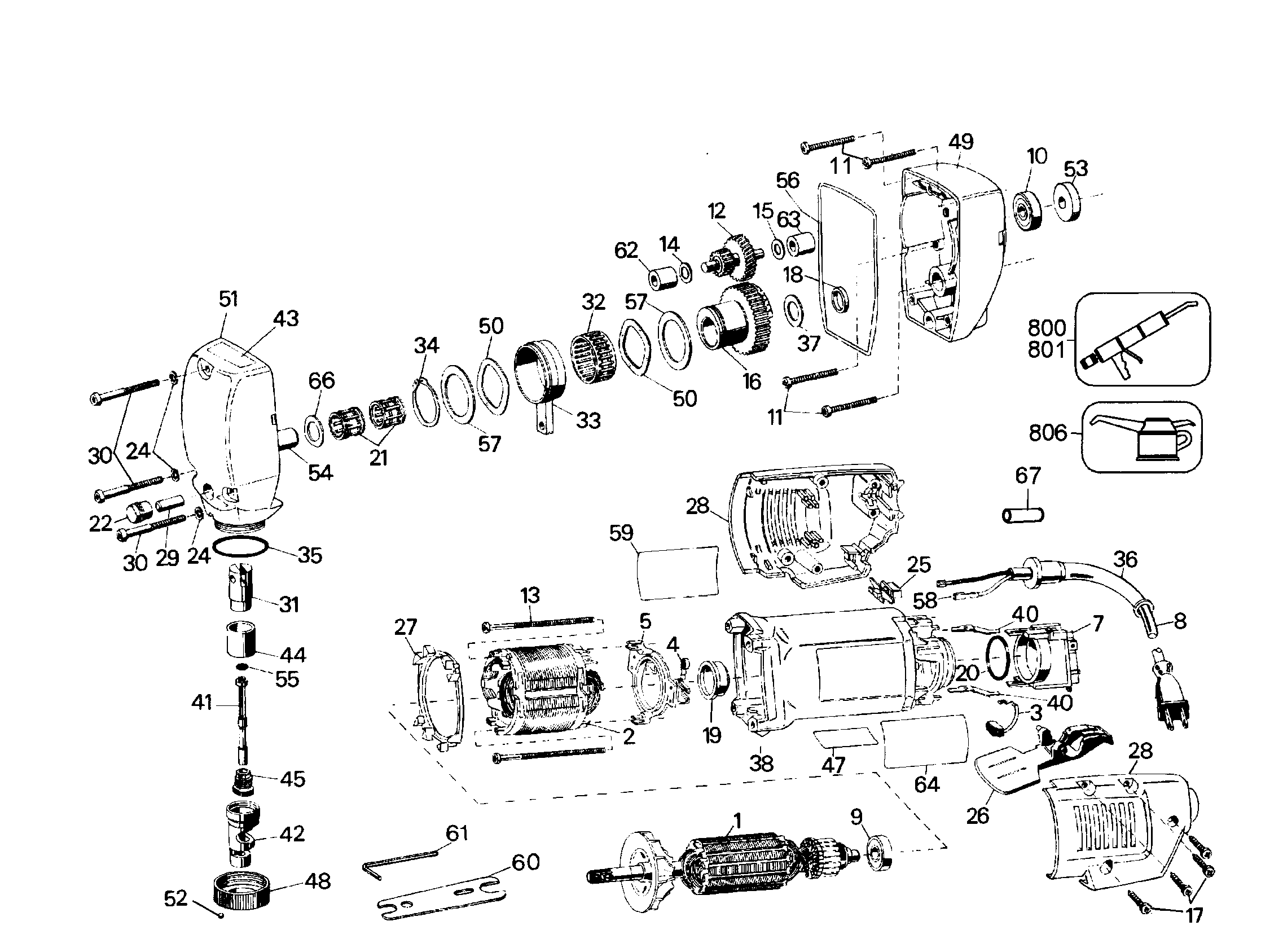

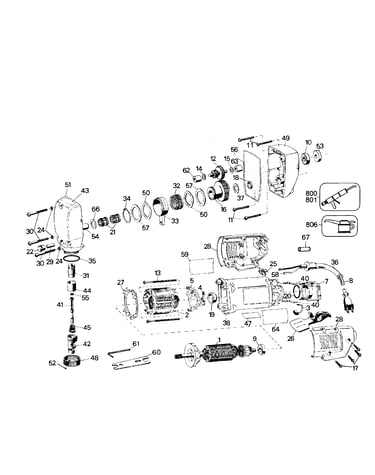

Main asy diagram

Collar

Part #935852-00

The manufacturer no longer makes this part, and there's no substitute part

Gear And Pin 869219-04
#12

Main asy diagram

Gear and pin

Part #869219-04

The manufacturer no longer makes this part, and there's no substitute part

Shaft 935858-00
#31

Main asy diagram

Shaft

Part #935858-00

The manufacturer no longer makes this part, and there's no substitute part

Pin 935842-00
#54

Main asy diagram

Pin

Part #935842-00

The manufacturer no longer makes this part, and there's no substitute part

Die 935851-00
#42

Main asy diagram

Die

Part #935851-00

The manufacturer no longer makes this part, and there's no substitute part

Oil Bottle 447465-00
#806

Main asy diagram

Oil bottle

Part #447465-00

The manufacturer no longer makes this part, and there's no substitute part

Musgrave Washer 932309-00
#66

Main asy diagram

Musgrave washer

Part #932309-00

The manufacturer no longer makes this part, and there's no substitute part

Gasket 868970-00
#56

Main asy diagram

Gasket

Part #868970-00

The manufacturer no longer makes this part, and there's no substitute part

Bearing 930302-00
#63

Main asy diagram

Bearing

Part #930302-00

The manufacturer no longer makes this part, and there's no substitute part

O 935857-00
#55

Main asy diagram

O

Part #935857-00

The manufacturer no longer makes this part, and there's no substitute part
