Model # 48624534 Official Craftsman power sprayer

Here are the diagrams and repair parts for Official Craftsman 48624534 power sprayer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |
Lawn Tractor Lawn Sprayer Attachment Hose Clamp 45025
#18

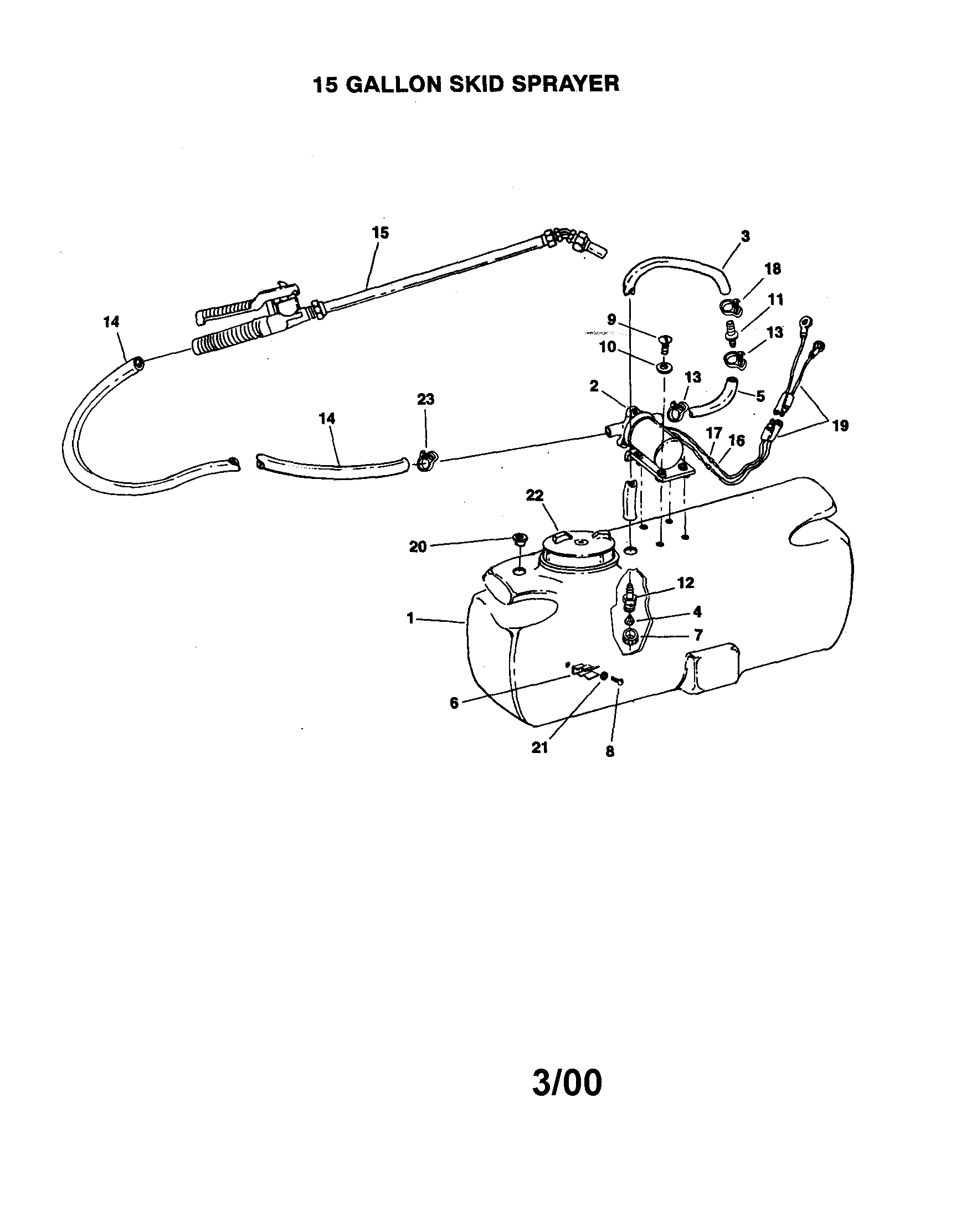

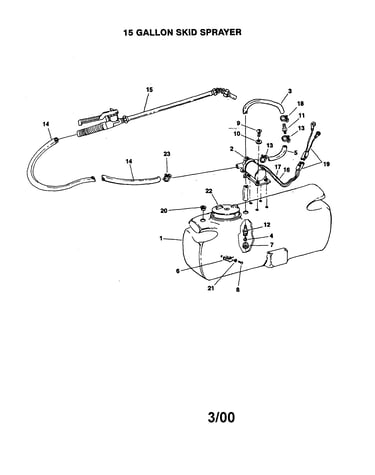

15 gallon skid sprayer diagram

Lawn tractor lawn sprayer attachment hose clamp

Part #45025

This item is not returnable
$2.16
In Stock
Lawn Tractor Lawn Sprayer Attachment Strainer 45024
#4

15 gallon skid sprayer diagram

Lawn tractor lawn sprayer attachment strainer

Part #45024

This item is not returnable
$2.16
In Stock
Lawn Tractor Lawn Sprayer Attachment Spray Gun Hose Clamp 47405
#23

15 gallon skid sprayer diagram

Lawn tractor lawn sprayer attachment spray gun hose clamp

Part #47405

This item is not returnable
$2.16
In Stock
Lawn & Garden Equipment Swivel Nut 45032
#7

15 gallon skid sprayer diagram

Lawn & garden equipment swivel nut

Part #45032

This item is not returnable
$2.16
In Stock
Female Terminal 45085
#16

15 gallon skid sprayer diagram

Female terminal

Part #45085

This item is not returnable
$2.16
In Stock
Hose Reducer 47005
#11

15 gallon skid sprayer diagram

Hose reducer

Part #47005

This item is not returnable
$2.16
In Stock
Lid, Tank 15 46700
#22

15 gallon skid sprayer diagram

Lid, tank 15

Part #46700

$11.80
In Stock
Adapter 46276
#12

15 gallon skid sprayer diagram

Adapter

Part #46276

This item is not returnable
$2.16
In Stock
Terminal, .2 45086
#17

15 gallon skid sprayer diagram

Terminal, .2

Part #45086

This item is not returnable
$2.16
In Stock
Lawn Tractor Lawn Sprayer Attachment Spray Gun 47406
#15

15 gallon skid sprayer diagram

Lawn tractor lawn sprayer attachment spray gun

Part #47406

This item is not returnable
$26.09 |
19% OFF Phone Price : $32.09
In Stock
